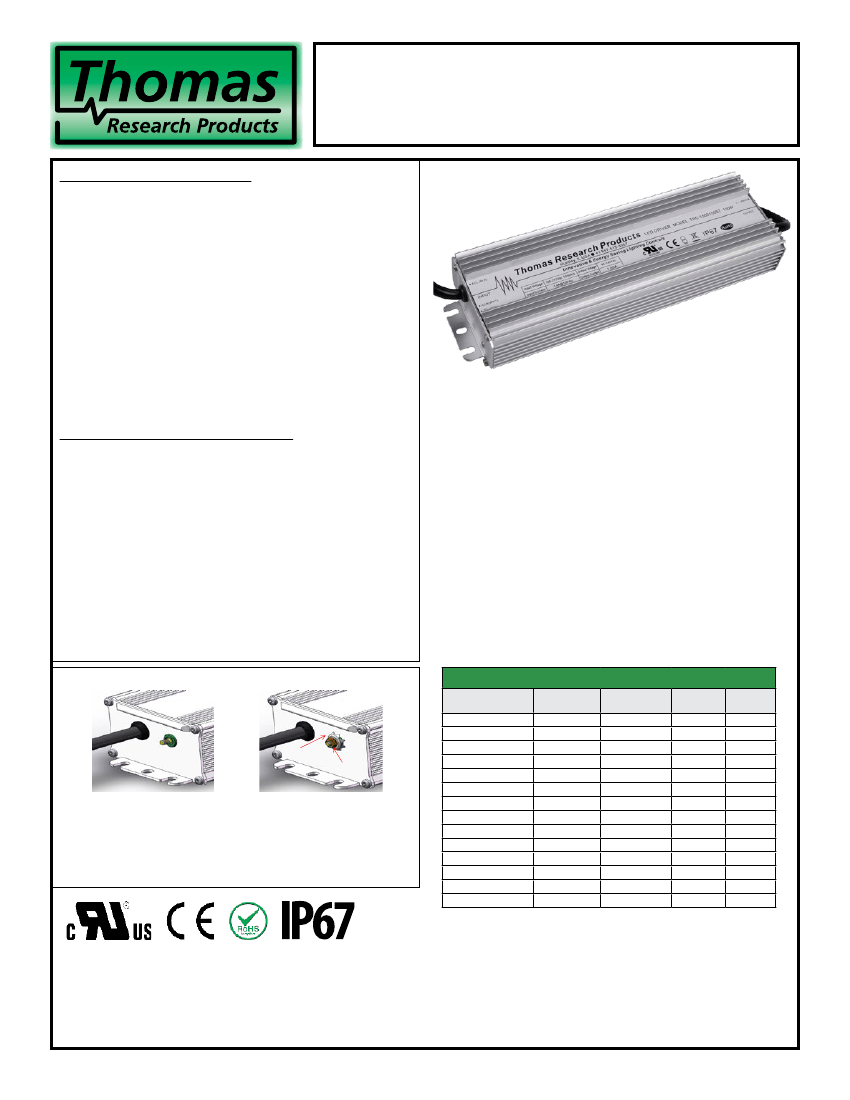

150W TRC-150 Series
Switch Mode LED Drivers
Constant Current
Aluminum Housing
Electrical Specifications
Input Voltage Range:
Frequency:
Power Factor:
Inrush Current:
Input Current:
Maximum Power:
Line Regulation:
Load Regulation:
Leakage Current:
Typical Efficiency
Turn-on Delay:
Ripple and Noise:
Protection:
100 - 277 Nom. Vac (90 - 305 V Min/Max)
50/60 Hz Nom. (47-63 Hz Min/Max)
>0.90 @ full load, 100V through 277V
65 Amps max @ 230 Vac, cold start 25ºC
1.8 A max 100Vac, 0.9 A max 220Vac
150W
± 1%
± 3%
1 mA 277 VAC 60Hz
89-91% at 277VAC
0.5S typical 110Vac, 0.3S typical 220Vac
3% V
o
Over-Voltage, Over-Temperature (110°C), Lightning,
and Short Circuit Protection with Self Recovery
Environmental Specifications
Max Case Temperature:
Storage Temperature:
Minimum Starting Temp:
Humidity:
Cooling:
Sound Rating:
MTBF:
350mA, 450mA, 700mA Tc= 88.2ºC, all others Tc= 90ºC
-40ºC to +85ºC
-35ºC
5% to 100%
Convection
Class A
- 250,000 Hrs (350mA model) @110Vac input, 80% load,
25ºC ambient conditions per MIL-HDBK-217F
- 195,000 Hrs (5950mA model) @110Vac input, 80% load,
25ºC ambient conditions per MIL-HDBK-217F
- 90,000 Hrs (350mA model) @ 220Vac, 80% load,
60ºC case temp.
- 50,000 Hrs (5950mA model) @ 220Vac, 80% load,
60ºC case temp.
3.31 lbs. (1.5 kg)
• Total Power: 150 Watts
• Input Voltage: 100-277 Vac Nom.
• UL Dry & Damp Location Rated
• IP67
• Ultra-high Efficiency
• High Power Factor with Active Correction
• UL8750
Lifetime:
Weight:
New Surge Protection and HI-POT Testing
Constant Current - Product Specifications
Model Name
TRC-150S035ST
TRC-150S045ST
TRC-150S070ST
Output Current
(mA)*
350
450
700
1050
1400
1750
2100
2450
2800
3150
3500
4200
4900
5950
Output Voltage
Range
(Vdc)
256-428
200-333
128-214
85-142
64-107
51-85
42-71
36-61
31-53
28-47
25-42
21-35
18-30
15-25
Max Output
Power
(W)
150
150
150
150
150
150
150
150
150
150
150
150
150
150
Typical
Efficiency
92%
92%
92%
92%
92%
91%
91%
90%
90%
90%
90%
89%
89%
88%
Metal Lock Sheet
Nut
TRC-150S105ST
TRC-150S140ST
TRC-150S175ST
TRC-150S210ST
TRC-150S245ST
TRC-150S280ST
TRC-150S315ST
TRC-150S350ST
TRC-150S420ST
TRC-150S490ST
TRC-150S595ST
HI-POT Test
Normal Application
The new design of this LED driver provides 1.4KV surge protection. To properly
HI-POT test this unit, the surge protection must be disconnected. The screw, nut, and
metal lock sheet on the input side of the driver provide for this. To test, first remove
the nut and lock sheet as shown. After testing, secure the nut and lock sheet to
provide line-to-earth protection.
This HI-POT test feature is available on product manufactured after August 15, 2015.
* The output current is adjustable at factory from 50% to 100%.
E332160
Note:
LED drivers are designed and intended to operate LED loads only.
Non-LED loading may be outside the specified design limits of our
LED drivers, and therefore cannot be covered by any warranty.
If you desire to use our LED drivers to operate non-LED loads
please contact us to discuss compatibility.
Specifications subject to change without notice.
Rev 9-1-15
Thomas Research Products • 1225 Bowes Rd • Elgin, IL 60123 • T 847-515-3057 • F 847-515-3047 • www.trpssl.com
TRC-150 Series
SSL Solutions Faster Than The Speed Of Light
®
Pg 2 of 3

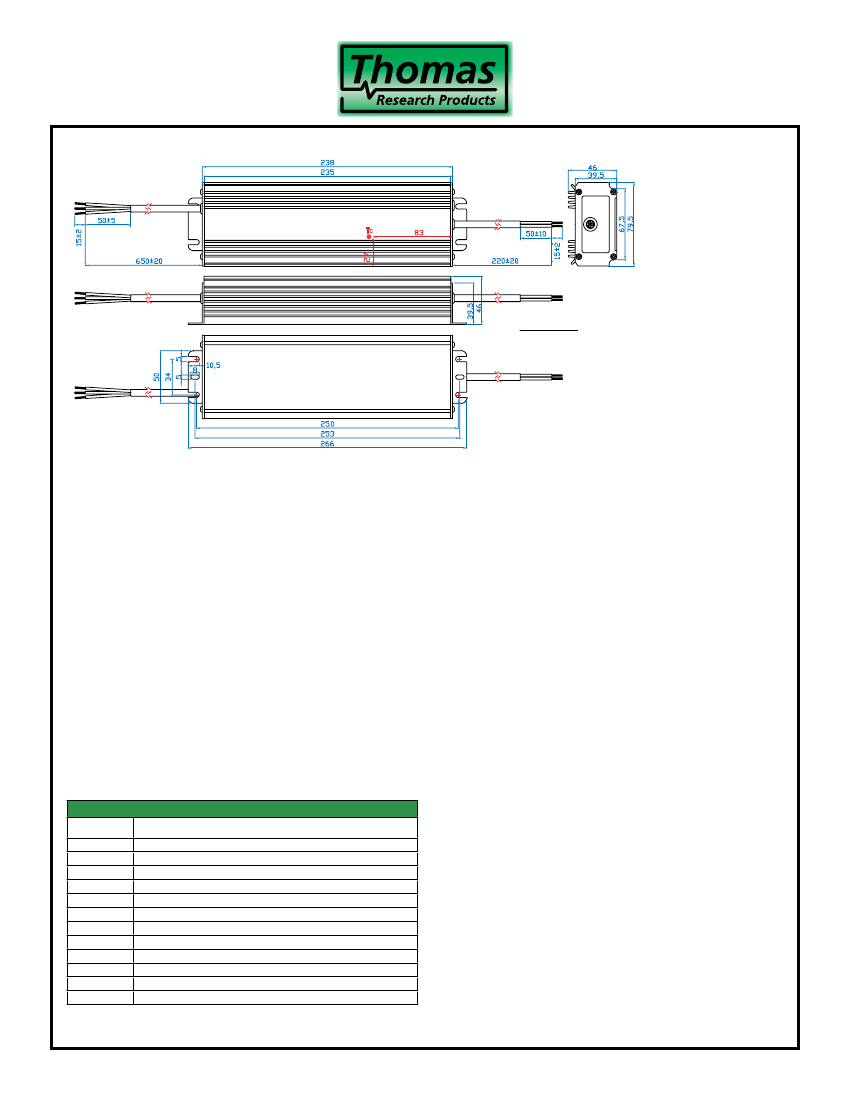

INPUT
Black (L)
White (N)
Green (GND)
OUTPUT
Red (V+)
Blue (V-)
Tc
WIRE SPECS:
AC Input:
#18AWG
DC Output:
#18AWG
Safety and EMC Compliance
UL/CUL
CE
EN 55015
EN 61000-3-2
EN 61000-3-3
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
EN 61000-4-11
EN 61547
UL8750, Compliance to UL1012, UL935,
CAN/CSA-C22.2 No. 0, CSA-C22.2 No. 107.1-01, CSA-C22.2 No. 250.0
EN 61347-1, EN61347-2-13
Conducted emission Test & Radiated emission Test
Harmonic current emissions
Voltage fluctuations & flicker
Electrostatic Discharge (ESD): 8 kV air discharge, 4 kV contact discharge
Radio-Frequency Electromagnetic Field Susceptibility Test-RS
Electrical Fast Transient / Burst-EFT
Surge Immunity Test: AC Power Line: line to line 4 kV, line to earth 6 kV
Conducted Radio Frequency Disturbances Test-CS
Power Frequency Magnetic Field Test
Voltage Dips
Electromagnetic Immunity Requirements Applies to Lighting Equipment
Thomas Research Products • 1225 Bowes Rd • Elgin, IL 60123 • T 847-515-3057 • F 847-515-3047 • www.trpssl.com
TRC-150 Series
SSL Solutions Faster Than The Speed Of Light
®
Pg 3 of 3

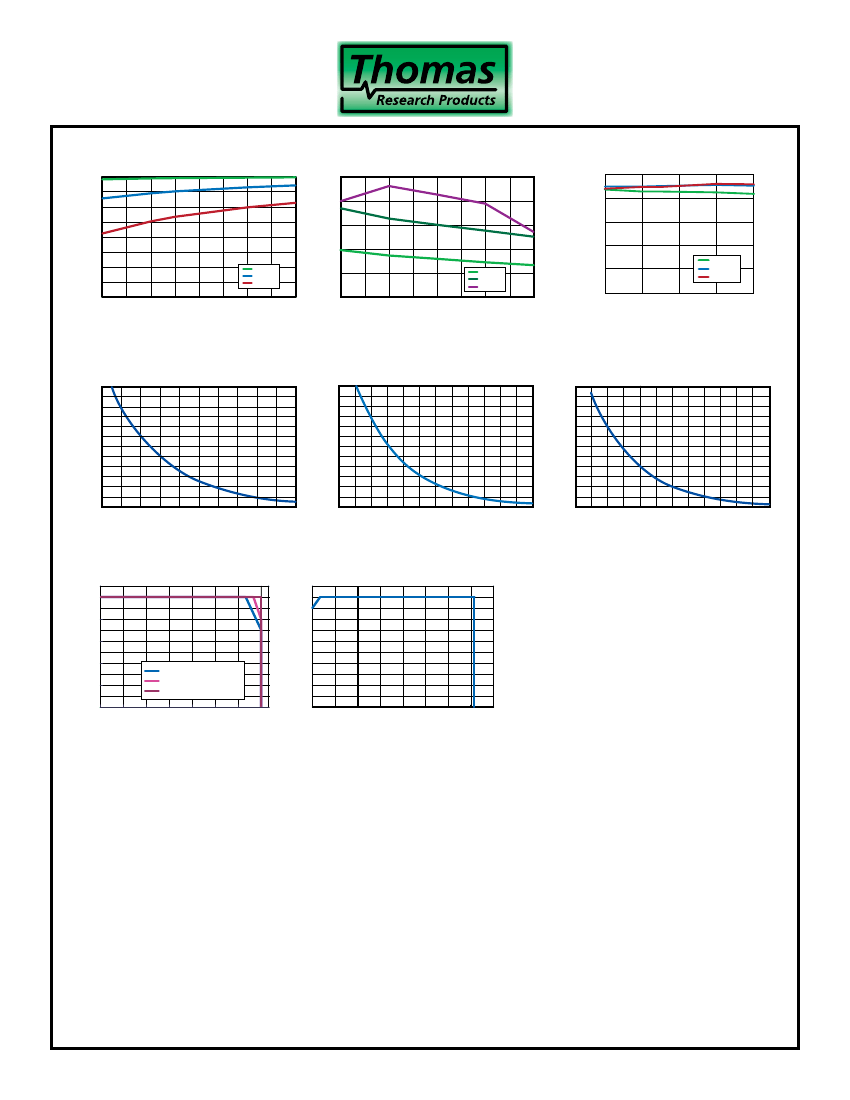

1.00
0.95
0.90
0.85
Power Factor / Output Voltage
20%
16%
12%
8%
4%
0%
60%
THD / Output Voltage
95%
90%
Efficiency / Load
Efficiency
85%
80%
75%
70%
60%
0.80
0.75
0.70
0.65
0.60
60%
70%
80%
90%
120Vac
220Vac
277Vac
THD
PF
120Vac
220Vac
277Vac
120Vac
220Vac
277Vac
70%
80%
90%
100%
Normalized Output Voltage
100%
Normalized Output Voltage
70%
80%
90%
100%
Normalized Output Voltage
300
250
Lifetime / Case Temperature
(350mA)
300
250
Lifetime / Case Temperature
(1400mA)
300
250
Lifetime / Case Temperature
(5950mA)
Lifetime
(kHrs)
Lifetime
(kHrs)
200
150
100
50
0
40
50
60
70
80
90
200
150
100
50
0
30
40
50
60
70
80
90
Lifetime
(kHrs)
200
150
100
50
0
30
40
50
60
70
80
90
Case Temperature
(°C)
Case Temperature
(°C)
Case Temperature
(°C)
Derating Curve
100
80
Derating Curve
100
80
Load
(%)
60
40
20
0
-35
100Vac
100Vac (350mA, 450mA)
277Vac
-20
-5
10
25
40
55
70
Load
(%)
60
40
20
0
90
Ambient Temperature
(°C)
120
150
Input Voltage
(V)
180
210
240
270
300
330
