HPC-7442
4U Rackmount Chassis for EATX/ATX/
MicroATX Motherboard with 4 Hot Swap
Drive Trays
Features
Supports EATX/ATX/MicroATX motherboard
Shock-resistant disk drive bay provides four hot-swap 3.5" or 2.5" SAS/SATA
disk trays, one slim optical disk drive, and one 3.5" internal drive
With optional storage upgrade kit installed, system equipped up to eight
hot-swap HDD trays for higher storage capacity requirement
Supports 80plus single and redundant power supply
Front-accessible system fan without opening top cover for easy maintenance
LED indicators and alarm notification for system fault detection
Built-in Intelligent System Module enabling whole system fan control and
remote manageability
Specifications
Drive Bay
Cooling
Front I/O Interface
Miscellaneous
Intelligent System Module
Remote Monitoring
External
Internal
Slim Optical Drive
1
-
3.5"
-
1
Hot Swap
4 SASII / SATAIII HDDs (support upgrade to 8)
Fan*
1 (12 cm /114 CFM) + 1 (8 cm/55 CFM)
Air Filter
Yes
USB 2.0
2
LED Indicators
Power, HDD, temperature, fan, LAN1, and LAN2
Rear Panel
Five 9-pin D-Sub and one 68-pin SCSI openings
CPU/System fan speed, CPU/System temperature, motherboard voltage
(Only selected Advantech MBs/CPU cards with SUSIAccess installed can fully enable these functions, check with an Advantech local rep. for detailed
information.)
Operating
Non-Operating
Temperature
0 ~ 40 °C (32 ~ 104 °F)
-40 ~ 70 °C (-40 ~ 156 °F)
Humidity
10 ~ 95% @ 40 °C, non-condensing
10 ~ 95% @ 60 °C, non-condensing
Vibration (5 ~ 500 Hz)
1 Grms
2G
Shock
10 G (with 11 ms duration, half sine wave)
Dimensions (W x H x D)
426 x 177 x 600 mm (16.7" x 7.0" x 23.6")
Weight
18.5 kg (40.68 lb)
Environment
Physical Characteristics
* While adding the optional "storage upgrade kit", the chassis will support four more front-accessible SAS/SATA drive trays and one more (8cm/55CFM) fan for SAS/SATA drives.

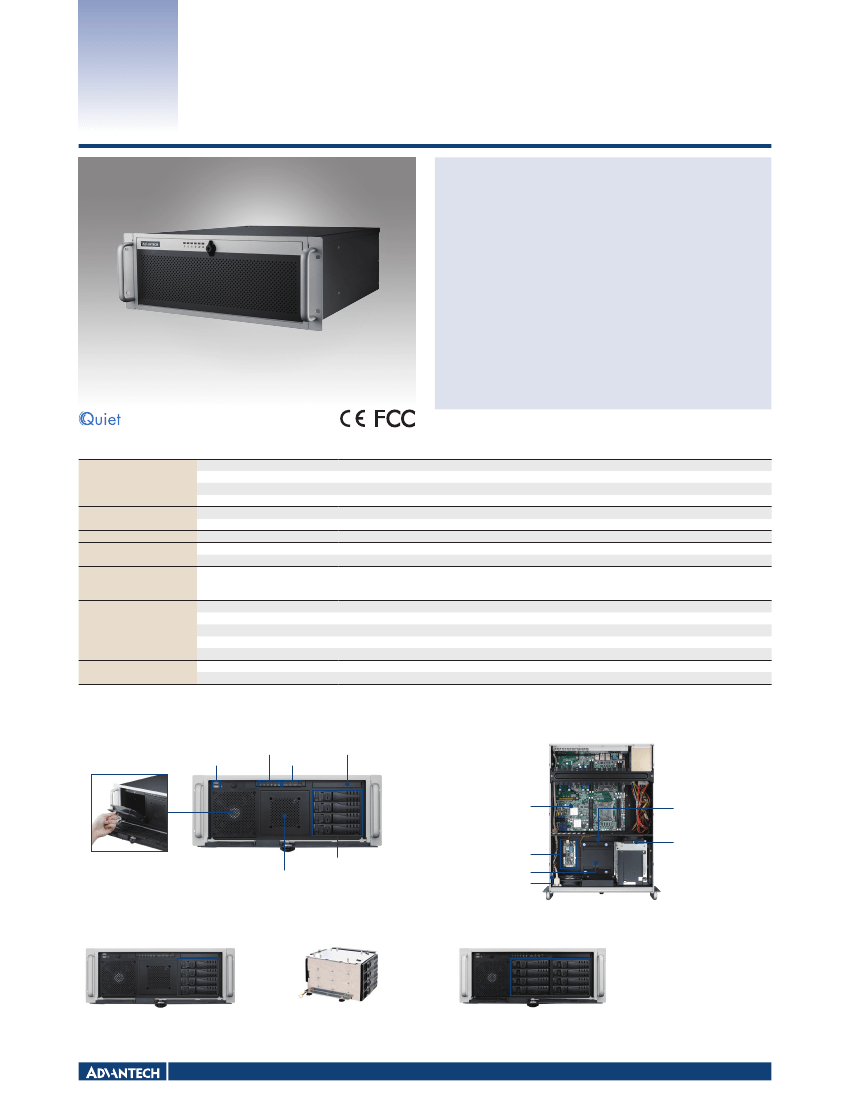

Front View
USB x2
Slim optical
LED indicators
drive bay
Switch/buttons
Inside View
Supports EATX/ATX/
MicroATX form factor
motherboard
Intelligent System
Module
Internal 3.5" drive bay
Case open switch
2nd storage fan if
installing optional
"storage upgrade kit"
Easy-to-maintain
storage fan kit with
thumb screw
Front-accessible fan
without opening top cover
Hot-swap HDD tray x4
Reserved for "storage upgrade kit" to
support 4 more hot-swap HDD trays
Upgrade Features
+
HPC-7442 default SKU
(supports 4 hot-swap HDD trays)
Storage upgrade kit
(optional , 98R2744200E)
=
HPC-7442 8-bay SKU
(supports 8 hot-swap HDD trays)
Industrial Server Chassis
All product specifications are subject to change without notice.
Last updated: 13-Sep-2017
HPC-7442

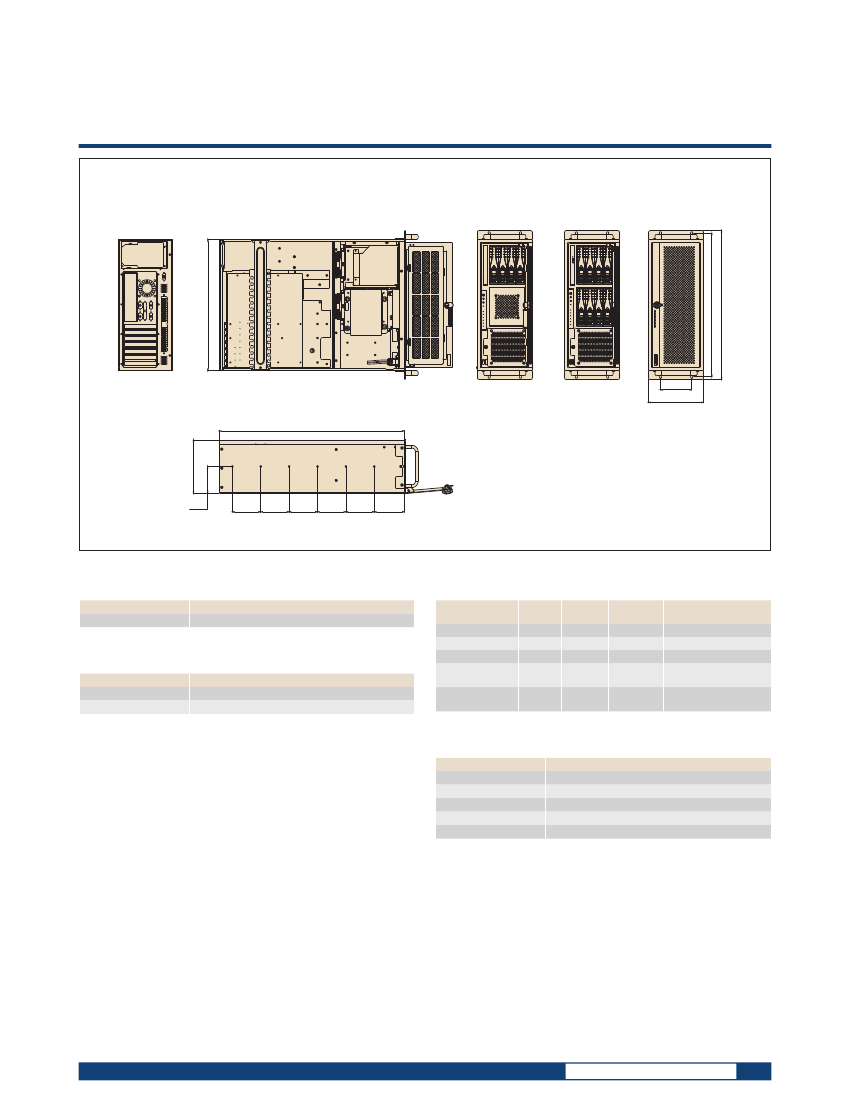

Dimensions
Unit: mm [inch]
426.0 [16.77]
4 Bay (Default)
8 Bay
(After adding optional
storage upgrade kit)
101.6 [4.00]
177.0 [6.97]
600.6 [23.65]
172.7 [6.8]
86.4
[3.4]
92.0 92.0 92.0 92.0 92.0 98.0
[3.62] [3.62] [3.62] [3.62] [3.62] [3.86]
Ordering Information
Part Number
HPC-7442MB-00XE
Description
Without PSU, with ATX switch
Power Supply Options
Part Number
PS8-400ATX-ZE
PS8-500ATX-ZE
PS8-700ATX-ZE
RPS8-500ATX-XE
RPS8-750ATX-XE
80 Plus
Grade
Bronze
Bronze
Bronze
Bronze
Gold
Wattage
400W
500W
700W
500W
750W
Type
Single
Single
Single
( 1+1 )
Redundant
( 1+1 )
Redundant
Input
AC 100 ~ 240 V (full range)
AC 100 ~ 240 V (full range)
AC 100 ~ 240 V (full range)
AC 100 ~ 240 V (full range)
AC 100 ~ 240 V (full range)
Packing List
Part Number
9662132020E
1990021256T000
Description
Black mobile HDD tray
Door filter
Optional Accessories
Part Number
98R2744200E
96CB-SATAPOWER-6P2
96CB-SAS-SATA-4P1
989K008734
9680006905
Description
Storage Upgrade Kit
SATA power wire 6-pin to big 4-pin (for slim ODD)
Mini SAS to 4-port SATA Cable
Internal 3.5" to two 2.5" HDD Frame
26" Slide Rail
Online Download
www.advantech.com/products
465.0 [18.31]
482.0 [18.98]
