LCC22-PV1-131-01 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> LCC22-PV1-131-01

Preview

LCC22-PV1-131-01: DescriptionRectangular Power Connector, 12 Contact(s), Male, Press Fit Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size51KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

LCC22-PV1-131-01 Overview

Rectangular Power Connector, 12 Contact(s), Male, Press Fit Terminal, ROHS COMPLIANT

LCC22-PV1-131-01 Parametric

Parameter Name	Attribute value
Maker	Amphenol
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	MATTE TIN (50) OVER NICKEL (100)
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	LCC22-PV1-131-01
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	POLYETHYLENE
Termination type	PRESS FIT
Total number of contacts	12
UL Flammability Code	94V-0

LCC22-PV1-131-01 Preview

8

7

6

5

4

3

2

1

REVISIONS

REV.

ECN

DESCRIPTION

DATE

14/JAN/05

10/FEB/05

01/MAR/05

04/MAR/05

APPROVED

YK

B

C

D

E

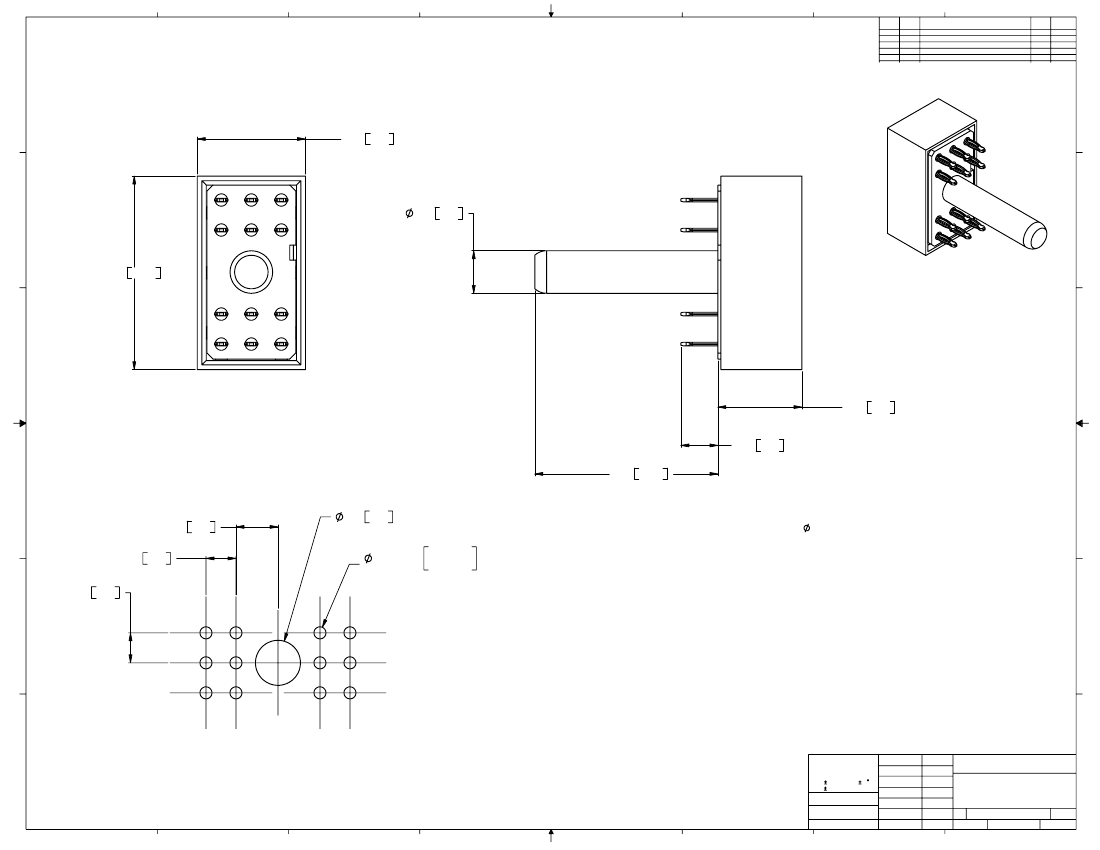

PROPOSAL DRAWING

PIN LENGTH INCREASED.

NON-CONTACT PLATING NOTE ADDED.

F

.361 9.17

E

.142 3.60

E

.645 16.38

D

.280 7.11

.123 3.13

.610 15.50

C

.140 3.56

.100 2.54

B

.150 3.81

+0.04

+.0016

1.02

.040

- 0.02

- .0008

12 PLCS

NOTES:

1) MATERIALS -

3.6MM PIN: TELLURIUM COPPER ALLOY

PRESS FIT PINS: COPPER ALLOY

INTERNAL PLATES: COPPER ALLOY

HOUSING: THERMOPLASTIC, UL94V-0

PLATING: 30 MICROINCHES OF GOLD OVER 100 MICROINCHES

OF NICKEL ON CONTCT AREAS

50 MICROINCHES OF MATTE TIN OVER 100 MICROINCHES OF

NICKEL ON AREAS WHICH CONTACT PCB

2) PERFORMANCE - MECHANICAL: INSERTION FORCE 6 LBS. MAX., 250 CYCLES

ELECTRICAL: 65 AMPS @ 60V

3) ROHS COMPLIANT

4) REFER TO AMPHENOL GENERAL SPECIFICATION GS1281CF FOR FURTHER

DETAILS

5) MINIMUM PCB THICKNESS: .085"

AMPHENOL PART NUMBER: LCC22-PV1-131-01

B

TYPICAL PCB LAYOUT

A

UNLESS OTHERWISE SPECIFIED

DIMENSIONS ARE IN INCHES

TOLERANCES ARE:

DECIMALS

ANGLES

APPROVALS

DRAWN

DESIGNED

CHECKED

QA APP'D

DATE

04/MAR/05

TITLE

YK

Amphenol Canada Corp.

LCC, VERTICAL PIN

ASSEMBLY

PRESS FIT

DWG. NO.

A

DO NOT SCALE DRAWING

THIS DOCUMENT COTAINS PROPRIETARY INFORMATION AND SUCH INFORMATION MAY NOT BE DISCLOSED TO OTHERS FOR ANY PURPOSE

OR USED FOR MANUFACTURING PURPOSES WITHOUT PERMISSION FROM AMPHENOL CANADA CORP.

.XX

.XXX

.030

.015

2

MATERIAL AND FINISH

ENG.REL.NO.

EAR 12683

03554

IE APP'D

DWG APP'D

SIZE

C

CODE IDENT. NO.

SCALE

NTS

8

7

6

5

4

3

2

E

PLCC22-PV1-131-01

PROJECT

SHEET

1 OF 1

LCC

1

REV.

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
