30SCLJQ030_15 Overview

SCHOTTKY RECTIFIER

Preview

Download Datasheet

View All

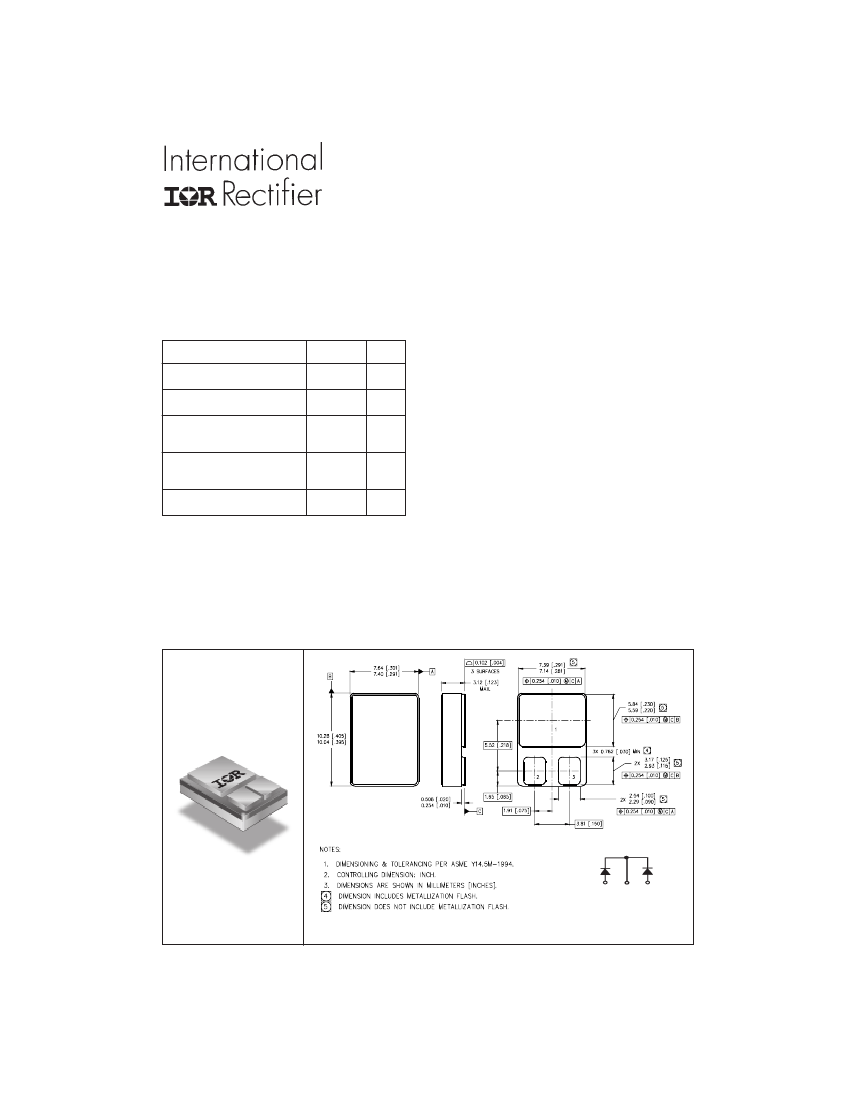

PD-94059B

SCHOTTKY RECTIFIER

HIGH EFFICIENCY SERIES

30SCLJQ030

30 Amp, 30V

Description/Features

°C

The 30SCLJQ030 center tap Schottky rectifier has

been expressly designed to meet the rigorous

requirements of HiRel environments. It is packaged in

the hermetic surface mount SMD-0.5 ceramic package.

The device's forward voltage drop and reverse leakage

current are optimized for the lowest power loss and the

highest circuit efficiency for typical high frequency

switching power supplies and resonent power

converters. Full MIL-PRF-19500 quality conformance

testing is available on source control drawings to TX,

TXV and S quality levels.

Hermetically Sealed

Center Tap

Low Forward Voltage Drop

High Frequency Operation

Guard Ring for Enhanced Ruggedness and Long term

Reliability

• Surface Mount

• Lightweight

•

Major Ratings and Characteristics

Characteristics

F(AV)

RRM

(Per Leg)

FSM

@ tp = 8.3ms half-sine

(Per Leg)

@ 30Apk, T

=125°C

(Per Leg)

Limits

130

0.82

Units

, T

stg

Operating and storage

-55 to 150

CASE STYLE

( ISOLATED BASE )

ANODE COMMON ANODE

CATHODE

Case Outline and Dimensions - SMD-0.5

www.irf.com

03/12/13
