RSB6HM06180125 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> RSB6HM06180125

RSB6HM06180125: Description20A, BARRIER STRIP TERMINAL BLOCK, 1 ROW, 1 DECK, ROHS COMPLIANT; CategoryThe connector terminals; File Size530KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

RSB6HM06180125 Overview

20A, BARRIER STRIP TERMINAL BLOCK, 1 ROW, 1 DECK, ROHS COMPLIANT

RSB6HM06180125 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	POLYPROPYLENE, UL 94V-2
Fastening method	SCREW
Manufacturer's serial number	RSB6
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	6
Rated current	20 A
Rated voltage	300 V
safety certificate	UL; CSA
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Wire gauge	12 AWG

Preview

Download Datasheet

View All

Note:

All part numbers

are RoHS Compliant.

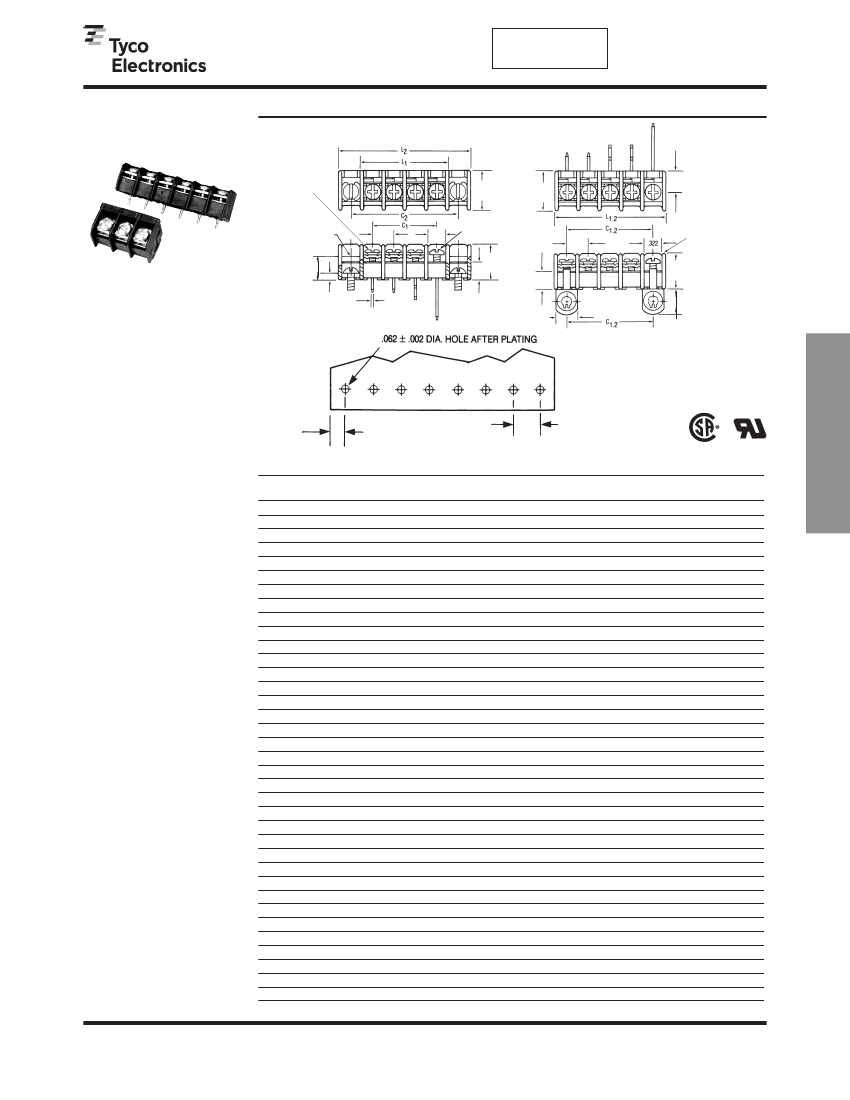

BUCHANAN Terminal Blocks

0.375" [9.53] Pitch, Series RSB6

RSB6RP##1102

Wire

Clamping

Screw

Vertical Mount

Right Angle Mount

.690

[17.52]

.690

[17.52]

.375

[9.52]

Top of

Mounting

Insert L91

.390

[9.90]

.375

[9.52]

.322

[8.17]

Binding Head

Screw

.610

[15.49]

.320

[8.12]

.375

[9.52]

Binding Head

Screw

.610

[15.49]

Material & Finish

Housing Material—Polypropylene

Flammability—UL94V-2

Color—Black

Terminals—Brass,

bright acid tin over

copper plating

Screw—Steel

w/Zinc + Chromate

plating

.060

[1.52]

.032

[0.81]

.320

[8.12]

.360

[9.14]

.440

[11.17]

Barrier Strips

Mechanical Properties

Pitch (Terminal Spacing)—

.375" [9.53]

Screw Size—6-32

Recommended PCB Hole Dia.—

.062" [1.57]

Wire Strip Length—.38"

[9.65]

Recommended Tightening

Torque—12

in-lbs.

Recommended Screwdrivers—

Stanley 1006-4, Sears Craftsman 41581,

Any #2 Phillips-Head

Wire Lug Width (Max.)—8.1mm

[.320"]

.212

[5.38] Min.

.375

[9.52]

Dimensions

Circuits

(not positions)

Recommended PCB Hole Pattern

in.

—

0.37

0.75

1.13

1.50

1.88

2.25

2.63

3.00

3.37

3.75

4.13

4.50

4.88

5.25

5.63

6.00

6.38

6.75

7.13

7.50

7.88

8.25

8.63

9.00

9.38

9.75

10.13

10.50

10.88

11.25

11.63

12.00

12.38

12.75

13.13

L1*

in.

—

0.84

1.22

1.59

1.97

2.34

2.72

3.09

3.47

3.84

4.22

4.59

4.97

5.34

5.72

6.09

6.47

6.84

7.22

7.59

7.97

8.34

8.72

9.09

9.47

9.84

10.22

10.59

10.97

11.34

11.72

12.09

12.47

12.84

13.22

13.59

in.

0.75

1.13

1.50

1.88

2.25

2.63

3.00

3.37

3.75

4.13

4.50

4.88

5.25

5.63

6.00

6.38

6.75

7.13

7.50

7.88

8.25

8.63

9.00

9.75

10.13

10.50

10.88

11.25

11.63

12.00

12.38

12.75

13.13

13.50

13.88

LR25557

E63810

Electrical Properties

Ratings—UL

Class B 20 Amps, 300V

CSA Type C 15 Amps, 150V

CSA Type D 10 Amps, 300V

Wire Range—12-22

AWG

Dielectric Withstand—3500V

Environmental Properties

Operating Temperature Range—-

60ºC to +105ºC [-76ºF to +221ºF]

Computing RSB Block Lengths

Direct Mounting

– Use C1 & L1 for

VP, SP, RP mounting options

End Position Mounting

– Use L2 &

C2 for VM, SM, RM, VE, SE, RE

mounting options

For mating socket, see pg. 163.

Hardware Options

J6—Jumpers,

see page 177

L02—Wire

clamp screw, steel,

see page 178

L09—Wire

clamp screw, brass,

see page 178

L01—Binding

head screw,

see page 178

L04—Binding

head screw, brass,

see page 178

Catalog 1308389

Revised 6-07

www.tycoelectronics.com

L2*

in.

1.22

1.59

1.97

2.34

2.72

3.09

3.47

3.84

4.59

4.97

5.34

5.72

6.09

6.47

6.84

7.22

7.59

7.97

8.34

8.72

9.09

9.47

9.84

10.22

10.59

10.97

11.34

11.72

12.09

12.47

12.84

13.22

13.59

13.97

14.34

171

Dimensions are in millimeters

and inches unless otherwise

specified.

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

USA: 1-800-522-6752

Canada: 1-905-470-4425

Mexico: 01-800-733-8926

C. America: 52-55-1106-0803

South America: 55-11-2103-6000

Hong Kong: 852-2735-1628

Japan: 81-44-844-8013

UK: 8706-080-208
