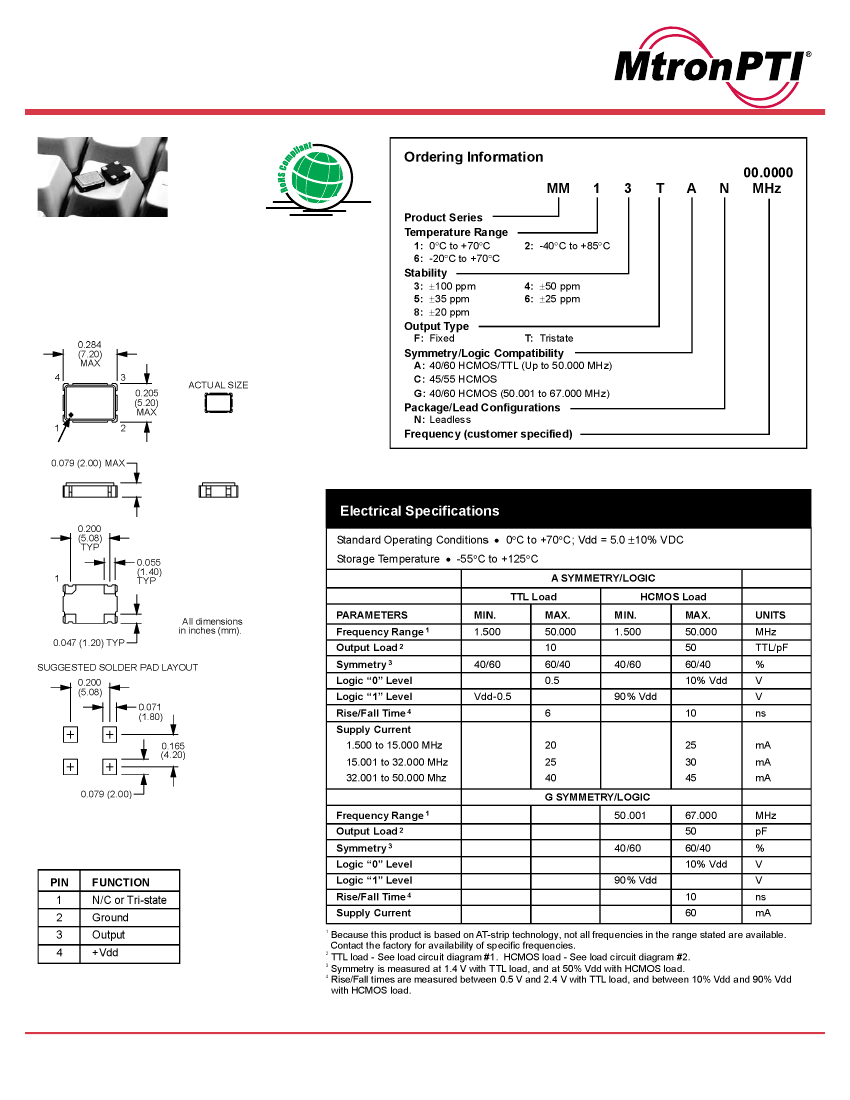

5x7 mm, 5 Volt, HCMOS/TTL, Surface Mount Oscillator
•
•
•
AT-strip crystal in a miniature ceramic
surface mount package.
TTL and HCMOS compatible
Tri-state output is optional
DENOTES PIN 1
NOTE: A capacitor of value 0.01
µF or greater between Vdd and
Ground is recommended.
Tri-state Control Logic
Pin 1 high or floating: clock signal output.
Pin 1 low: output disabled to high impedance.
