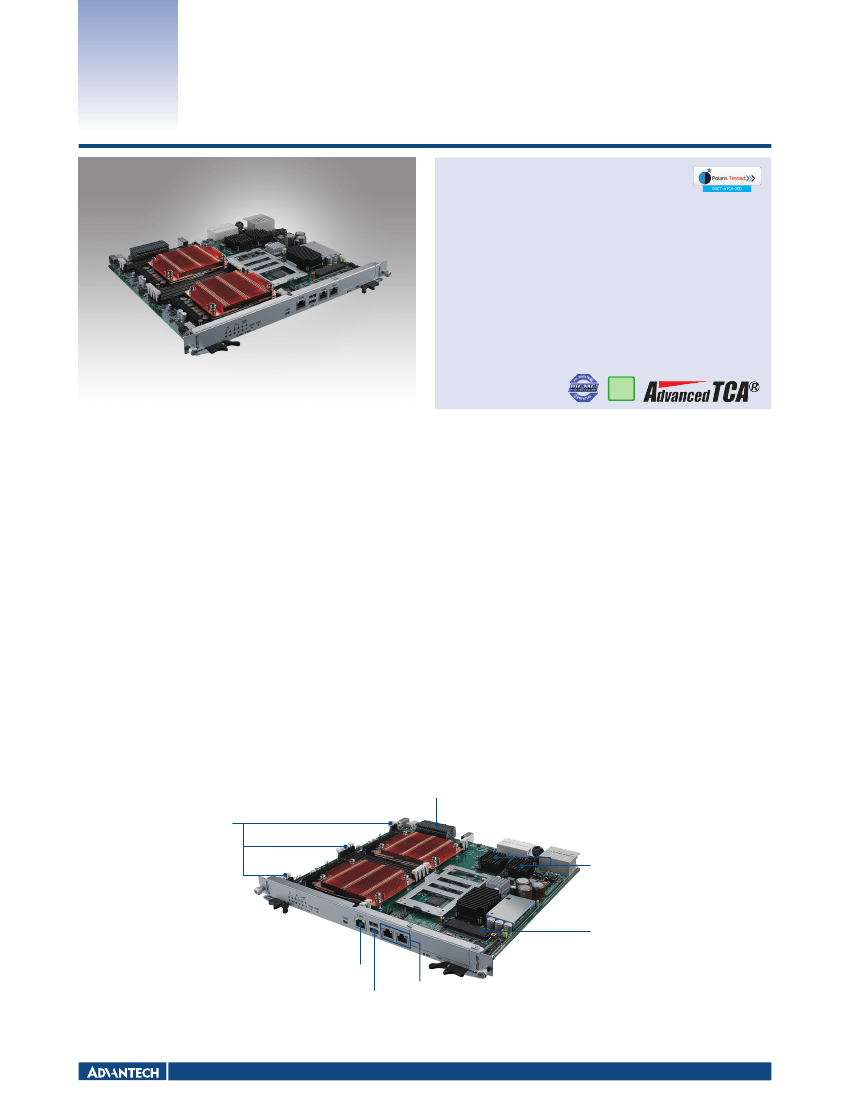

MIC-5342
AdvancedTCA, Dual Socket CPU Blade
with Intel
®
Xeon
®
E5-2600 v3 Series
Processors for Telecom Applications
Features
Two 12-Core Intel
®
Xeon
®
E5-2600 v3 Series processors
Intel
®
Communications Chipset 8900 Series
Eight DDR4 VLP DIMMs with ECC support
Up to four 40GBase-KR4 ports on Fabric interface to support Dual-Dual Star
Topology
Two 10/100/1000Mbps BI ports
Two 10/100/1000BASE-T front panel ports
One Fabric Mezzanine Module (type II) for optional front I/O or additional
acceleration
Fully managed, hot-swappable RTM with 8 PCIe gen.3 lanes
RoHS
COMPLIANT
2002/95/EC
Introduction
Advantech’s MIC-5342 is a dual processor ATCA blade based on the Intel® platform formerly codenamed "River Forest". It enables the highest performance available in the ATCA
form factor with up to 28 cores and 56 threads of processing power, fast PCI Express gen. 3 lanes running at up to 8Gbps, and best in class virtualization support. Two QPI interfaces
between the CPUs improve memory and I/O access throughput and latencies when one processor needs to access resources hosted by the other socket. With four DDR4 DIMMs per
socket in a quad channel design running up to 2133MT/s, the MIC-5342 not only offers superior memory bandwidth over 3-channel designs, but can also support RAM density up
to 256GB. It outperforms previous generation dual socket designs while keeping similar thermal characteristics with balanced airflow resistance.
Fabric connectivity is implemented by two Intel® Ethernet controllers XL710-AM2 devices onboard, connecting to four backplane fabric channels. This allows the MIC-5342 to scale
from legacy 10GbE to high speed 40GbE network interfaces as well as enable optional dual-dual star support for the most demanding applications utilizing 4 hub blades per system.
A Fabric Mezzanine Module type II socket with PCIe x16 connectivity provides on-board expansion capability for additional front panel I/O, offload and acceleration controllers such
as the Intel® Communications Chipset 8900 Series, IPSec offload engines, or customer specific logic.
The onboard IPMI firmware based on Advantech’s advanced IPMI core enhances modularity and flexibility for customization of system management features, and provides a framework
for value-added features that enhance the Reliability, Availability, Serviceability, Usability and Manageability (RASUM) of the product. HPM.1 based updates, including rollback
support, are available for all programmable components such as the BIOS, BIOS settings, IPMC firmware, and FPGA. Advantech’s IPMI solution, combined with an optimized UEFI
BIOS, continues to offer advanced features used on previous generation Advantech MIC-533x blades, such as HPM.2 support, Dynamic Power Budgeting, BIOS redundancy, Real
Time Clock Synchronization and MAC mirroring. Advantech’s IPMI firmware has been tested for CP-TA compliance using the Polaris Networks ATCA Test Suite and against a variety
of AdvancedTCA shelf management solutions.
The MIC-5342 connects 8 PCIe gen.3 lanes to the Zone 3 interface for hot-swappable RTMs such as the RTM-5107, which supports two SAS HDDs. Please contact Advantech for
more information about available RTMs. The MIC-5342 can also be easily customized based on Advantech’s unique Customized COTS framework with custom RTMs, FMMs, or
modifications of the on-board system FPGA, IPMI and/or BIOS firmware.
The optimization of features and unmatched flexibility based on Advantech’s leading FMM technology make the MIC-5342 equally well suited for both control plane and application
workloads in telecom networks.
Zone3 connectors
Eight DDR4 VLP DIMMs
40GBASE-KR4 Fabric Interface
FMM type II site
Console ports
USB ports
Two 10/100/1000BASE-T ports
All product specifications are subject to change without notice
Last updated : 14-Aug-2015
MIC-5342
Specifications
Processor System
CPU
Max. Speed
Chipset
BIOS
QPI
Technology
Max. Capacity
Socket
Fabric Interface
Base Interface
Serial (COM)
Ethernet
USB 2.0
Compatibility
BMC Controller
Site
Interface
Storage
TPM
Configuration
Consumption
RTM
Interface
Dimensions (W x D)
Weight
Temperature
Humidity
Shock
Vibration
Environment
Compliance
PICMG
EMC
Dual Intel
®
Xeon
®
E5-2600 v3 Series processors up to 120W TDP (chassis airflow dependent)
2.5 GHz (SKU dependent)
Intel
®
Communications Chipset 8900 Series
Redundant AMI UEFI based BIOS
9.6 GT/s
Four channel DDR4 2133MHz SDRAM (72-bit ECC Un-/ Registered) to each CPU
Configurable up to 256GB
8 x VLP RDIMMs
Up to four 40GBASE-KR4 ports
2 x 10/100/1000BASE-T ports
1 x 16C550 compatible Serial Port (RJ-45 connector)
2 x 10/100/1000BASE-T ports
2 x Type A ports
CentOS 7.0, Red Hat Enterprise 7.0, Wind River Linux 6.0
Compliant with IPMI 2.0
1 FMM type II socket
1 x PCIe x16
2 x CFast, 1 x MO-297 SATA slim SSD, 2 x M.2 SSD, or 1 x 2.5” SSD
TPM 2.0
2 x E5-2658Av3 (TDP 105W), 8 x DDR4 2133 8GB VLP Memory, FMM-5001F (Single Intel® Ethernet
Controller with 2x SFP+ output to Front Panel), no RTM
Input Voltage: -48V / 300W (Preliminary)
Advantech common RTM interface Type 2
1 x PCIe x8, 1 x PCIe x16, 1x COM, 2x USB 2.0, 2x SATA 3.0
6HP, 322.25 x 280.00 mm (12.69" x 11.02") (PCB size)
2.8 kg
Operating
Non-operating
0 ~ 55° C (32 ~ 131° F) (selected SKUs, only)
-40 ~ 70° C (-40 ~ 158° F)
5 to 95% @ 40° C (non-condensing)
95% @ 60° C (non-condensing)
4 G each axis
-
5 Hz to 20 Hz @ 1 m2/s3 (0.01 g2 /Hz) (flat)
5-200 Hz, 0.5 Grms each axis
20 Hz to 200 Hz @ -3 dB/oct (slope down)
ETSI EN300019-2-1 Class1.2, EN300019-2-2 Class 2.3, ETSI EN300019-2-3 Class 3.1E, Designed to meet
GR-63-CORE
3.0 R3.0, 3.1 R2.0, HPM.1, HPM.2, HPM.3
FCC47 CFR Part15, Class A, CE Mark (EN55022/EN55024/EN300386)
Designed to meet GR-1089-CORE
Memory
Zone 2
Front I/O Interface
Operating System
IPMC
FMM
Miscellaneous
Power Requirement
Zone 3 (RTM)
Physical Characteristics
Environment
Ordering Information
Description
DH8955 Chipset, four 40G FI ports with dual 12C/24T
MIC-5342SA1-P1E
75W (E5-2648Lv3) CPUs, no memory, no CFAST/
MO-297/SSD/M.2
DH8955 Chipset, four 40G FI ports with dual 12C/24T
MIC-5342SA1-P2E
105W (E5-2658Av3) CPUs, no memory, no CFAST/
MO-297/SSD/M.2
DH8955 Chipset, four 40G FI ports with dual 12C/24T
MIC-5342SA1-P3E
120W (E5-2680v3) CPUs, no memory, no CFAST/
MO-297/SSD/M.2
DH8925 Chipset, two 40G FI ports with dual 12C/24T
MIC-5342SA2-P1E
75W (E5-2648Lv3) CPUs, no memory, no CFAST/
MO-297/SSD/M.2
DH8925 Chipset, two 40G FI ports with dual 12C/24T
MIC-5342SA2-P2E
105W (E5-2658Av3) CPUs, no memory, no CFAST/
MO-297/SSD/M.2
DH8925 Chipset, two 40G FI ports with dual 12C/24T
MIC-5342SA2-P3E
120W (E5-2680v3) CPUs, no memory, no CFAST/
MO-297/SSD/M.2
Optional CFAST/MO-297/SSD/M.2 and new FMMs/RTMs are introduced on a regular
basis. Please contact Advantech for an up-to-date list of compatible modules.
Part Number
Related Products
Part Number
RTM-5106SE
RTM-5107SE
FMM-5001FE
FMM-5002E
FMM-5006AE
FMM-5006TE
Description
Niantic 10Gb LAN I/O Extended ATCA RTM (6x SFP+)
Storage Extended ATCA RTM
Niantic 10Gb LAN I/O Extended FMM (2x SFP+)
External VGA Port FMM
Cave Creek Extended FMM (DH8920 chipset)
Coleto Creek Extended FMM (DH8955 chipset)
