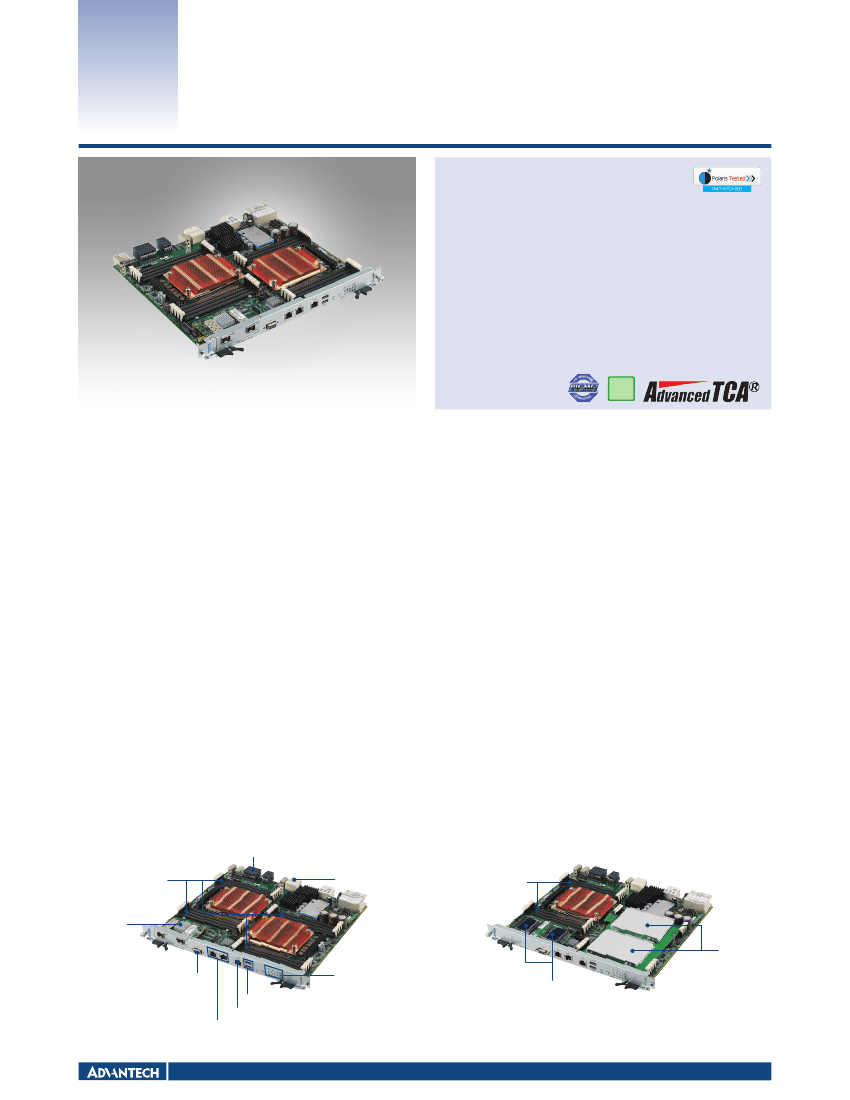

MIC-5345
AdvancedTCA, Dual/Single Socket CPU Blade
with Intel
®
Xeon
®
E5-2600 v3 Series Processors
for Server and NFV Applications
Features
Two SKUs available with one and two Intel
®
Xeon
®
E5-2600 v3 Series
processors
Intel
®
C610 series server class PCH
Sixteen DDR4 VLP DIMMs with ECC support
Two 40GBASE-KR4 Fabric ports
Two 10/100/BASE-T BI ports
Two 10/100/1000Base-T front panel ports
One Fabric Mezzanine Module (type II) for optional front I/O
On-board VGA port
Extended Storage options (2x SSD / 2x CFAST)
RoHS
COMPLIANT
2002/95/EC
Introduction
Advantech’s MIC-5345 is a 40G dual processor ATCA blade based on the Intel
®
server platform formerly codenamed "Grantley". MIC-5345 is offered in two main configurations: As a
dual processor blade supporting 16 DDR4 VLP DIMM slots it offers best in class memory support at lowest cost making it an ideal choice for typical server workloads and virtualized
application scenarios such as NFV. Up to 512GB memory capacity allow users to harness the full capabilities of the Intel
®
E5-2600v3 series processors with up to 24 cores and 48
threads for virtualization by providing an high amount of physical memory per virtual machine.
In a single processor configuration, the MIC-5345 offers a very attractive price point for applications which require lower processing power such as control plane and orchestration.
With support for 8 DIMM sockets, two 2.5" SSDs and the processing performance offered by a 12 core Intel
®
E5-2600v3 processor, the MIC-5345 comes with an optimized feature
set and outperforms 1st and 2nd generation dual socket ATCA blades resulting in a major cost reduction.
Both blade configurations feature two 10/40GbE fabric ports based on the Intel
®
Ethernet controller XL710-AM2 with fast PCI Express gen. 3 technology running at up to 8Gbps per
lane and best-in-class virtualization support.
Two QPI interfaces between the CPUs improve memory and I/O access throughput and latencies when one processor needs to access resources hosted by the other socket. With eight
DDR4 DIMMs per socket in a quad channel design running at up to 2133MT/s (1866MT/s with two DIMMs per channel populated) and RAM density up to 512GB, the MIC-5345
offers the latest memory technology with higher performance and lower power compared to DDR3 technology. It outperforms previous generation dual socket designs while keeping
similar thermal characteristics.
The dual socket SKU of MIC-5345 supports a a Fabric Mezzanine Module type II socket with PCIe x8 connectivity providing extension possibilities for additional front port I/O, offload
and acceleration controllers such as the Intel
®
Communications Chipset 89xx Series, other IPSec offload engines or customer specific logic. The single socket MIC-5345 SKU features
two additional CFAST sockets instead of an FMM site.
The onboard IPMI firmware based on Advantech’s IPMI core offers greater modularity and flexibility for the customization of system management features, and provides the framework
for added value features enhancing Reliability, Availability, Serviceability, Usability and Manageability (RASUM) of the product. HPM.1 based updates are available for all programmable
components (BIOS, BIOS Settings, IPMC firmware, FPGA) including rollback support. Advantech’s IPMI solution, combined with an optimized UEFI BIOS, continues to offer advanced
features used on previous generation MIC-533x blades, such as HPM.2 support, Dynamic Power Budgeting, BIOS redundancy, Real Time Clock Synchronization and MAC Mirroring.
Advantech IPMI firmware has been tested for CP-TA compliance using the Polaris Networks ATCA Test Suite and against a variety of AdvancedTCA shelf management solutions.
The MIC-5345 can be easily customized based on Advantech’s unique Customized COTS framework with custom FMMs, modifications of the on-board system FPGA, IPMI and/or
BIOS firmware.
Dual CPU SKU with 16 DIMM Support
Zone3 connectors
16 DDR4 VLP DIMMs
40GbE/10GbE
Fabric Interfaces
Single CPU SKU with Extended Storage Support
8 DDR4 VLP DIMMs
FMM type II site
2x 2.5" SSDs
VGA port
USB ports
Console port
Two 10/100/1000BASE-T ports
User/Status LEDs
2x CFAST (optional)
All product specifications are subject to change without notice
Last updated : 2-Jul-2015
MIC-5345
Specifications
Processor System
CPU
Max. Speed
Chipset
BIOS
QPI
Technology
Max. Capacity
Socket
Fabric Interface
Base Interface
Serial (COM)
VGA
Ethernet
USB 3.0
Compatibility
BMC Controller
IPMI
Supervision
Interval
Site
Interface
Storage
Real Time Clock
Configuration
Power Requirement
Consumption
Zone 3 (RTM)
Physical Characteristics
RTM
Interface
Dimensions (W x D)
Weight
Temperature
Humidity
Shock
Vibration (5 ~ 500 Hz)
Environment
Compliance
PICMG
EMC
Dual Intel
®
Xeon
®
E5-2600 v3 Series processors up to 105W TDP (chassis airflow dependent)
Use highest GHz for 105W CPUs
Intel
®
C610 series server class PCH
Redundant 128Mbit BIOS firmware flashes with AMI UEFI based BIOS
9.6 GT/s
Four channel DDR4 2133MHz SDRAM (72-bit ECC Un-/ Registered), LR DIMM support
Configurable up to 512GB
16 VLP DIMMs(Dual CPU SKU) / 8VLP DIMMs (Single CPU SKU)
Intel
®
Ethernet Controller XL710-AM2 with 2 x XAUI ports
Intel
®
Ethernet Controller I350-AM4 with GbE MAC/PHYs supporting two 10/100/1000BASE-T ports
1 x 16C550 compatible Serial Port (1 RJ-45 connector)
1x SM750 VGA Port
2 x 10/100/1000BASE-T through Intel
®
Ethernet Controller I350
2 x Type A ports
CentOS7.0, Red Hat Enterprise 7.0, Wind River Linux 6.0,
Aspeed AST1010
Compliant with IPMI 2.0 using Advantech advanced IPMI core
1 for x86 BIOS POST, OS Boot, Application
IPMI compliant
1 FMM type II socket
FMM type II: one PCIe x8 from CPU socket 0 / 2 x SATA III for CFAST option
1x8G on-board NAND flash (Optional), 2x CFAST (Optional) / 2xSATAIII SSD HD (Optional): SKU dependent
Built-in
2x E5-2648V3 (TDP 105W), 16 x DDR4 2133(1866) 8GB VLP Memory,
FMM-5001F (Single Intel
®
82599, with 2x SFP+ output to Front Panel), no RTM
Input Voltage: -48V / 320W (Preliminary)
Input Voltage: -60V / 320W (Preliminary)
Advantech common RTM interface Type 2
2 x PCIe x8, 2 x USB, 1 x COM, 4 x SATA3.0
6HP, 322.25 x 302.00 mm (PCB size)
2.8 kg
Operating
Non-operating
0 ~ 55° C (32 ~ 131° F) (selected SKUs, only)
-40 ~ 70° C (-40 ~ 158° F)
5 to 93% @ 40° C (non condensing)
95% @ 40° C (non-condensing)
4 G each axis
20 G each axis
0.5 Grms
2.16 Grms, 30 mins each axis
ETSI EN300019-2-1 Class1.2, EN300019-2-2 Class 2.3, ETSI EN300019-2-3 Class 3.1E
Designed to meet GR-63-CORE
3.0 R3.0, 3.1 R2.0, HPM.1, HPM.2, HPM.3
FCC47 CFR Part15, Class A, CE Mark (EN55022/EN55024/EN300386)
Designed to meet GR-1089-CORE
Memory
Zone 2
Front I/O Interface
Operating System
IPMC
Watchdog Timer
FMM
Miscellaneous
Environment
Ordering Information
Part Number
Description
MIC-5345SS1-P1E
with single12C/24T 75W (E5-2648L v3) CPU and 1GBase-T BI interface, no memory, no CFAST, no SSD
MIC-5345SD1-P1E
with dual 12C/24T 105W (E5-2658 v3) CPUs 1GBase-T BI interface, no memory, no FMM
Contact Advantech for information on different blade configurations as well as available and future CFAST , SSD, RTM, and FMM availability.
Online Download
www.advantech.com/products
