DSP-8664_15: Description2ch HDMI/SDI Video Encoder Card with SDK; File Size429KB，2 Pages; ManufacturerAdvantech; Websitehttp://www.advantech.com/

Download Datasheet Compare View All

DSP-8664_15 Overview

2ch HDMI/SDI Video Encoder Card with SDK

Preview

Download Datasheet

View All

DSP-8664

NEW

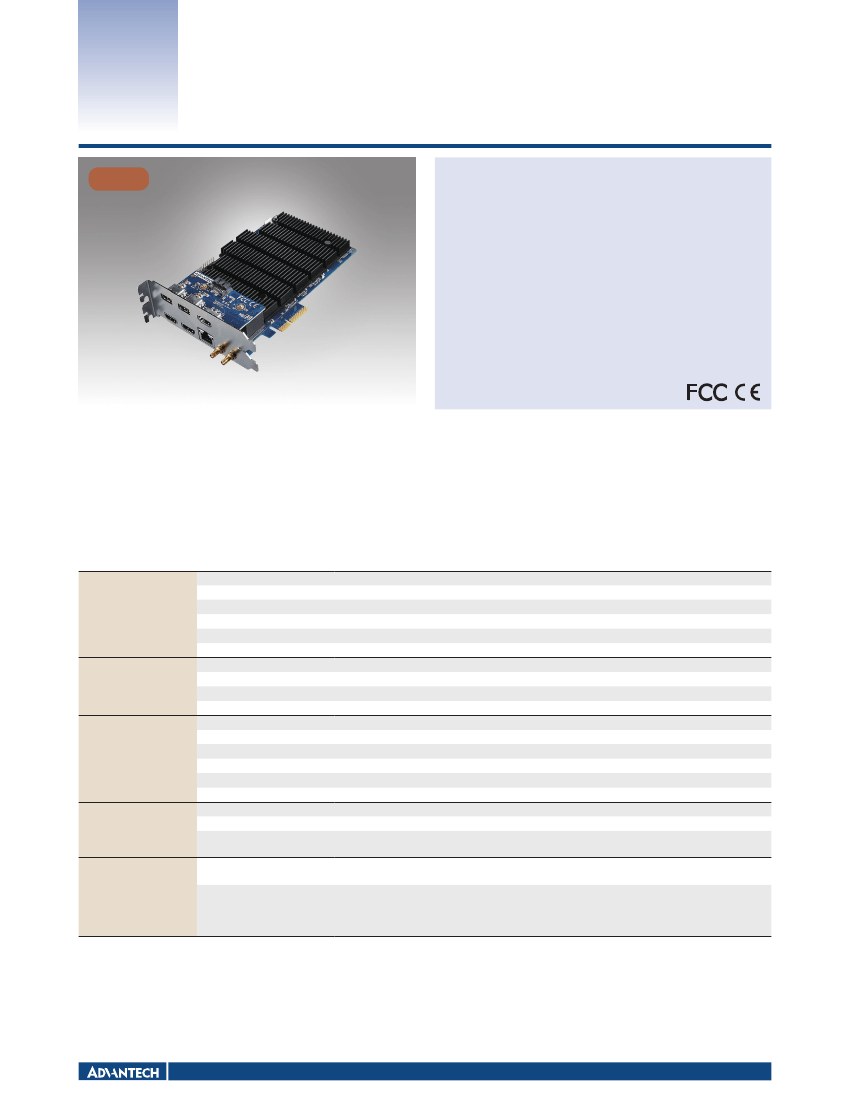

2ch HDMI/SDI Video Encoder Card

with SDK

Features

HW-based H.264 / MJPEG / RAW encoding and decoding

2-channel HDMI or SDI video + audio inputs up to Full HD (1080p) at 60fps

1-channel HDMI video + audio output up to Full HD (1080p) at 60fps

PCIe Gen2 x4 data bus

Versatile peripherals: GbE LAN port, 2x USB, SATA, and UART

Introduction

Designed with TI TMS320DM8168 SoC, DSP-8664 is a full-functional video processing platform with 2-ch HDMI or SDI video + audio inputs and 1-ch HDMI output based on a

standard half-length PCIe board form factor. This board supports H.264 / MJPEG / RAW encoding and decoding up to full HD (1080p) at 60fps per channel. As a versatile video

processing platform, DSP-8664 supports PCIe video encoder and decoder card working on x86 PC system (drivers are available for both Windows and Linux OS); Utilizing the GbE

LAN port as the video stream in/output interface. With an easy-to-use software development kit (SDK), DSP-8664 is an ideal solution for system integrators to implement various

video related applications, to fulfill customers’ requirements.

Specifications

Video Input

Channels

Interface

Resolution

Compression

Max. Frame Rate

Bit Rate Control

Channels

Interface

Format

Sampling Rate

LAN Port

Data Bus

HDMI-out

USB 2.0 OTG

SATA

UART

Power Consumption

Operating Temperature

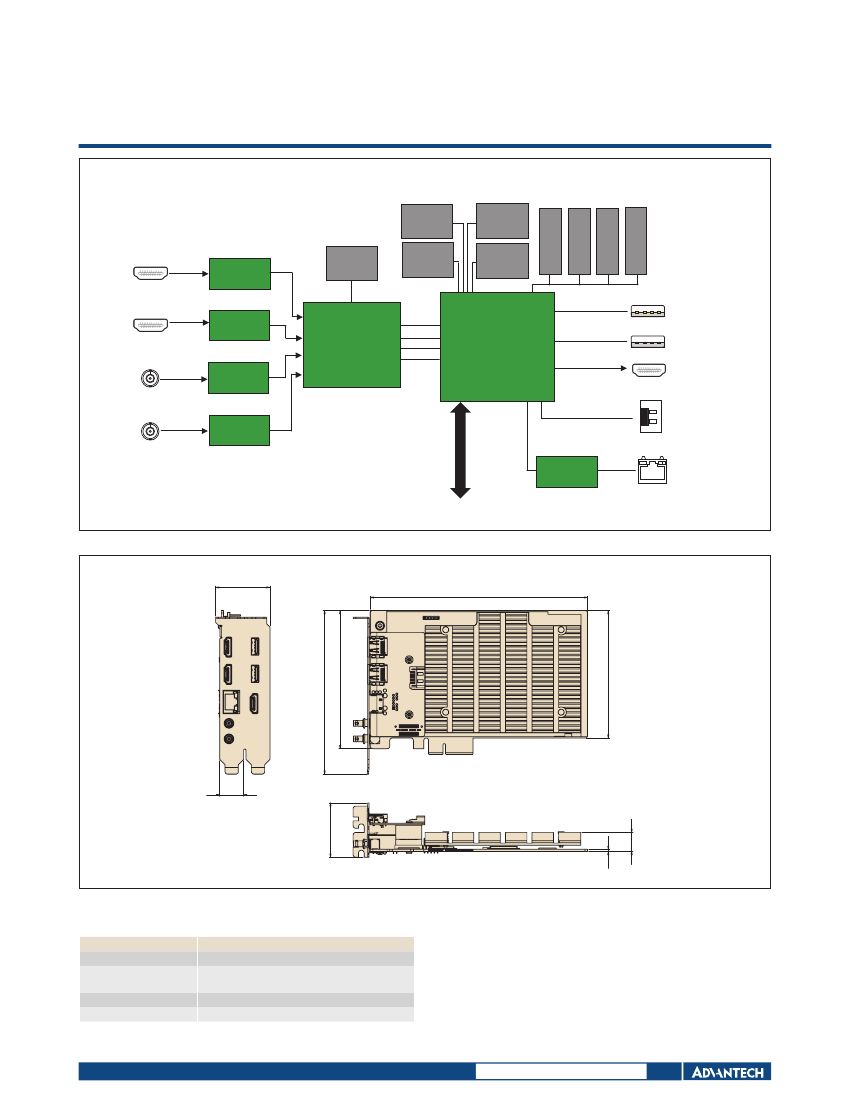

Dimensions

OS supported

Software

SDK

HDMI or SDI (switchable for only one interface)

Up to 1920 x1080p (Full HD 1080p)

H.264 / MJPEG / RAW

120fps (up to 60fps per channel)

CBR / VBR / ABR

HDMI or SDI (shared with video inputs)

RAW

Up to 16-bit, 44KHz, stereo

10/100/1000Mbps LAN port; RJ45 connector

PCIe Gen2 x4

1; Up to 1920 x 1080p at 60fps

2; Type A

1; 3.0Gbps

1; For debug and programming

< 20W

0 ~ 60° C (32 ~ 140° F)

167.65 x 111.15mm

Double width

PC driver for Linux

PC driver for Windows XP / XPe / Vista / 7

User’s manual

Programming guide

Software quick start guide

Host package (Sample code+driver)

Audio Input

Peripherals

Physical Characteristics

DSP Processing Platforms

All product specifications are subject to change without notice

Last updated : 30-Jul-2015
