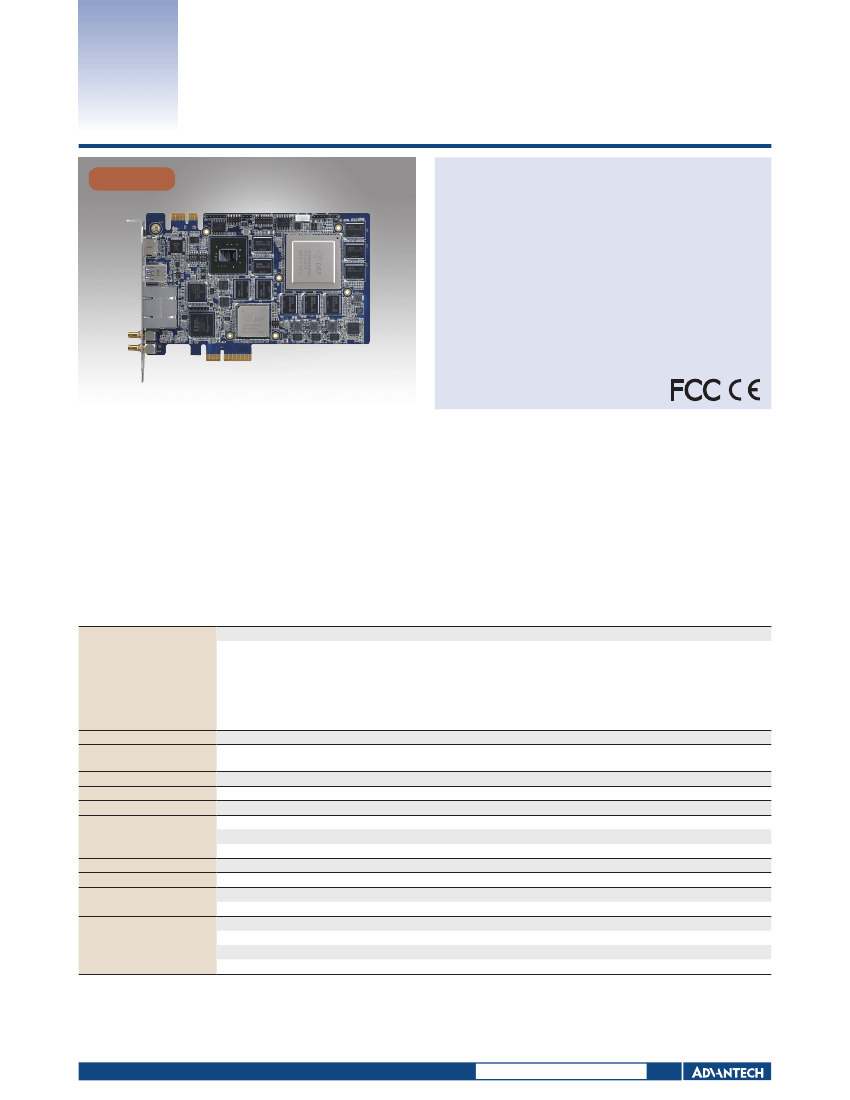

DSP-8683
Preliminary
Half-Length PCI Express Card with
TI 66AK2H12 and TMS320C6678 DSPs
Features
One 66AK2H12, one TMS320C6678 and one XC7K70T FPGA on single half-
length PCI Express Card with PCIe Gen2 x2 interface to the edge connector
Four ARM Cortex-A15 @ 1.4GHz and Eight TMS302C66x™ DSP Core
Subsystems (C66x CorePacs) @ 1.2GHz of 66AK2H12
Eight TMS302C66x™ DSP Core Subsystems (C66x CorePacs) @ 1.25GHz of
TMS320C6678
Supports dual SDI-3G input & output and single HDMI 1.3a input
Supports XDS200 and XDS560v2 evaluation module via JTAG for CCS
connection
Supports new video standards HEVC/H.265 & H.264 codec
For video acquisition, encode, decode, transcode, analytic & streaming
applications
Introduction
The DSP-8683 integrates Texas Instruments 66AK2H12 and TMS320C6678 multicore processors based on the KeyStone architecture, and a Xilinx Kintex-7 XC7K70T FPGA device
to provide the highest computing performance and flexibility in a half-length PCIe form factor for supporting a wide range of applications. The built-in 16 TI C66x DSP cores and 4
ARM Cortex-A15 cores offer unrivalled processing capabilities for data and control plane processing while the reprogrammable Xilinx Kintex-7 FPGA device adds flexibility to the
design by allowing the inclusion of customized hardware functions. Video acquisition is achieved through SDI-3G input/output and HDMI input connectors facilitating connectivity
to external devices for video processing. The Gigabit Ethernet and USB3 interfaces can be used for data streaming between the DSP-8683 and remote systems. A unique standalone
operation mode enables the DSP-8683 to be operated as an autonomous embedded system without the involvement of an additional host processor card or motherboard, allowing
highly cost effective deployment. An innovative and unique, dedicated board-to-board interconnect offers the possibility of synchronizing multiple DSP-8683 cards over dedicated
high-speed serial interfaces. All these unprecedented features make the DSP-8683 ideal for new video standards (such as HEVC/H.265) in broadcasting, machine vision, medical
imaging, cloud computing, and mission critical applications among others.
Specifications
TI 66AK2H12
Four ARM Cortex-A15 cores (@1.4GHz)
Eight TMS320C66x cores (@1.2GHz)
Two 64-bit DDR3 memory channels
Two Serial RapidIO 2.1 x2 interfaces up to 10Gbps bandwidth
One PCIe Gen-2 x2 interface
10/100/1000Mbps Ethernet w/ SGMII
HyperLink interface
Xilinx Kintex-7 XC7K70T FPGA
2 x SDI-SD/HD/3G & ASI input & output
1 x HDMI 1.3a input
PCI Express Gen-2 x2 with PCI Express x4 edge connector
2 x 10/100/1000 Mbps Ethernet ports
1 x USB3.0 connector
Host PC Linux DSP program loader
MCSDK for 66AK2H12 & TMS320C6678
PDK for 66AK2H12 & TMS320C6678
Max. 60 W
Aluminum cooler with fan (4800 RPM, 19.41 CFM)
111.15 x 167.65 mm (4.48" x 6.6")
0.5 kg
Operating temperature: 0 to 50° C
Humidity: 20% to 90 % RH
Storage temperature: -20 to 70° C
Humidity: 5% to 95 % RH
TI TMS320C6678
Eight TMS320C66x cores (@1.25GHz)
One 64-bit DDR3 memory channel
Two Serial RapidIO 2.1 x2 interfaces up to 10Gbps bandwidth
One PCIe Gen-2 x2 interface
10/100/1000Mbps Ethernet w/ SGMII
HyperLink interface
Media Processing Elements
Video Signal Transmitter
Video Interface
Host Interface
Ethernet
USB
Software Support
Power
Cooling
Physical Dimensions
Environment
Online Download
www.advantech.com/products
All product specifications are subject to change without notice
Last updated : 27-Jun-2014
