MIC-3955B1-S1E: Description3U CompactPCIÂ® 4-port RS-232/422/485 Communication Card; File Size465KB，1 Pages; ManufacturerAdvantech; Websitehttp://www.advantech.com/

Download Datasheet Compare View All

MIC-3955B1-S1E Overview

3U CompactPCIÂ® 4-port RS-232/422/485 Communication Card

Preview

Download Datasheet

View All

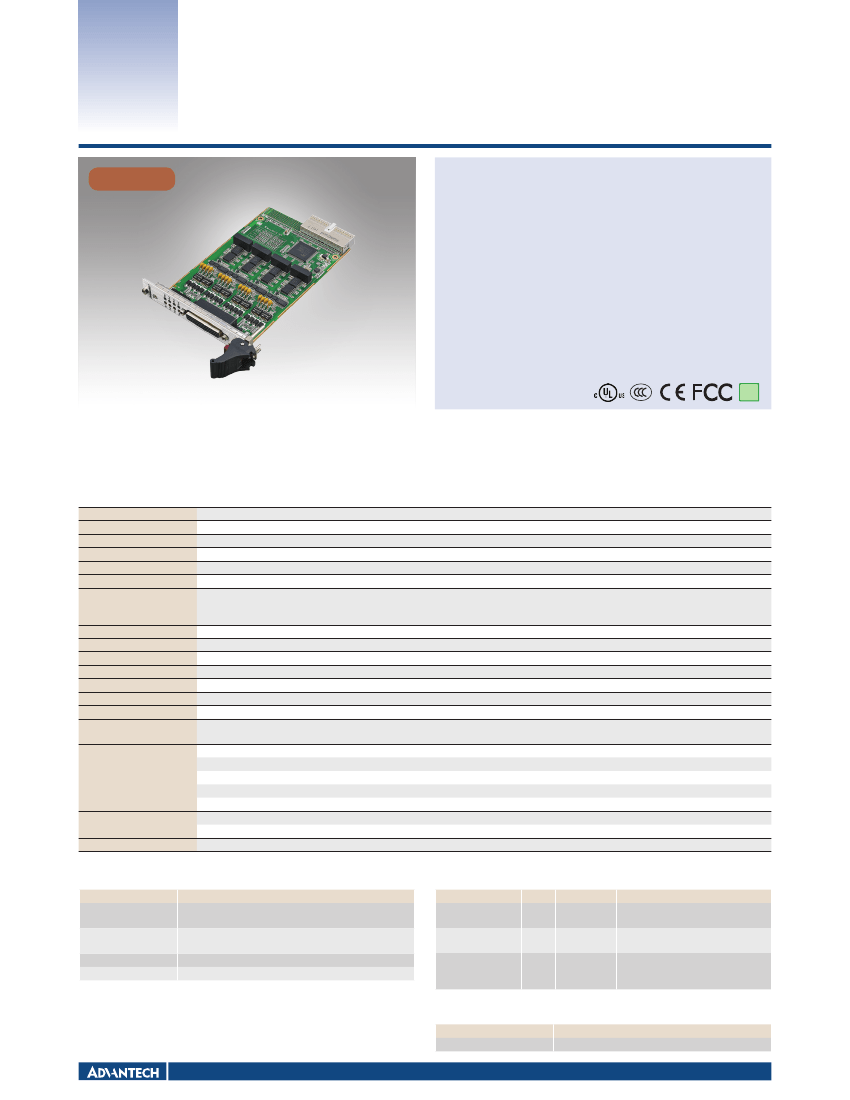

MIC-3955

Preliminary

3U CompactPCI

4-port RS-232/422/485

Communication Card

Features

4-port RS-232/422/485

32bit 33/66MHz PCI bus backplane

Speeds up to 115200 bps

16C954 UARTs with 128-byte standard

2KV Surge protection

Support 5V only power input

RIO Support 4-port RS-232/422/485

PICMG 2.0 Rev. 3.0 compatible

RoHS

COMPLIANT

2002/95/EC

Introduction

The MIC-3955 is a 3U CompactPCI 4-port RS-232/422/485 Communication Card. It supports working with 32bit 33MHz or 66MHz PCI frequency.

Specifications

Speeds

COM port

UART

I/O address

Data flow

LED-Front panel

Data Signals

IRQ

BUS controller

Data Bits

Stop Bits

OS support

Power consumption

Surge Protection

Isolation protection

Temperature

Humidity

Shock

Vibration (5 ~ 500 Hz)

PCB Dimensions (W x H )

Weight

up to 115200 bps

4-port RS-232/422/485

16C954 UARTs with 128-byte standard

automatically assigned by PCI Plug & Play

Automatic RS-485 data flow control

Tx-orange / Rx-Green LED indicator

Data Signals:TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND(for RS-232)

TxD, RxD, RTS, CTS(for RS-422)

DATA+, DATA- (for RS-485)

All ports use the same IRQ assigned by PCI Plug & Play

XR17D154

5, 6, 7, 8

1, 1.5, 2

Windows XP, Windows 7, Red hat 6.1

3.5W

2KV

Board Isolate Protection 2500VRMS

D-SUB Cable protection is AC 1KV Isolation protection

Operating

Non-Operating

-25 ~ 55° C (-13 ~ 131° F)

-40 ~ 80° C (-40 ~ 176° F)

10 ~ 95% @ 40° C, non-condensing

10 ~ 95% @ 60° C, non-condensing

10 G

30 G

1.06 Grms

2 Grms

160 x 100 mm (6.3" x 3.9")

0.5 kg (1.1lb)

MTBF

Environment

Physical Characteristics

Reliability

MIC-3955B1-S1E Related Products

	MIC-3955B1-S1E	MIC-3955A1-S1E	MIC-3955R1-D1E	MIC-3955_15
Description	3U CompactPCIÂ® 4-port RS-232/422/485 Communication Card	3U CompactPCIÂ® 4-port RS-232/422/485 Communication Card	3U CompactPCIÂ® 4-port RS-232/422/485 Communication Card	3U CompactPCIÂ® 4-port RS-232/422/485 Communication Card
