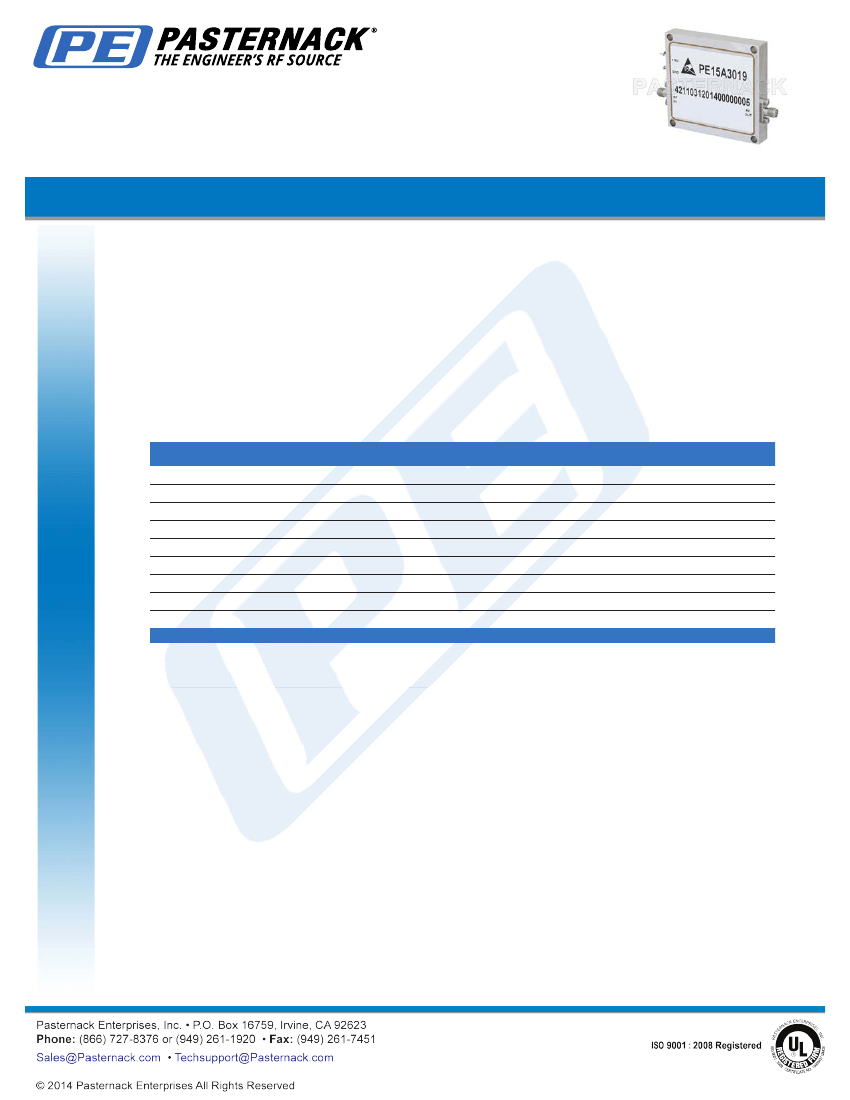

1 Watt P1dB, 6 GHz to 18 GHz, Medium Power
Broadband Amplifier, 30 dB Gain, SMA
TECHNICAL DATA SHEET
PE15A3019
The PE15A3019 is a 30 dBm power amplifier designed for operation in the 6 GHz to 18 GHz frequency range. The amplifier
provides 30 dB of Gain Min over the operating frequency range. High efficiency operation is achieved by using hybrid MIC
designs and advanced GaAs PHEMT devices. The amplifier requires only +12 VDC power supply.
Features
•
6 GHz to 18 GHz Frequency Range
•
P1dB +30 dBm min.
•
Gain 30 dB min.
•
Gain Flatness +/-1.5 dB typ
•
Military Communications
•
Broadband Communication
•
Test & Measurement
Applications
•
Medium Power Amplifier
•
Driver Amp
Electrical Specifications
(TA = +25°C, DC Voltage = 15Volts, DC Current = 1,500mA)
Description
Frequency Range
Gain
Gain Flatness
Output at 1 dB Compression Point
Input VSWR
Output VSWR
Operating DC Voltage
Operating DC Current
Operating Temperature Range (OTR)
..
-40
12
1,500
+70
+30
1.8:1
1.8:1
2:1
2:1
15
Volts
mA
°C
Minimum
6
30
Typical
Maximum
18
Units
GHz
dB
dB
dBm
±1.5
Environmental Specifications
Temperature
Operating Range
.
-40 to +70 deg C
RTCA, DO-160C
RTCA, DO-160C
MIL-STD-883, METHOD 1010
Shock
Vibration
Temperature Cycle
Compliance Certifications
(visit www.Pasternack.com for current document)
Not RoHS Compliant
Plotted and Other Data
Notes:
•
Values at +25 °C, sea level
•
ESD Sensitive Material, Transport material in Approved ESD bags. Handle only in approved ESD Workstation.
•
Heat Sink Required for Proper Operation, Unit is cooled by conduction to heat sink.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications:

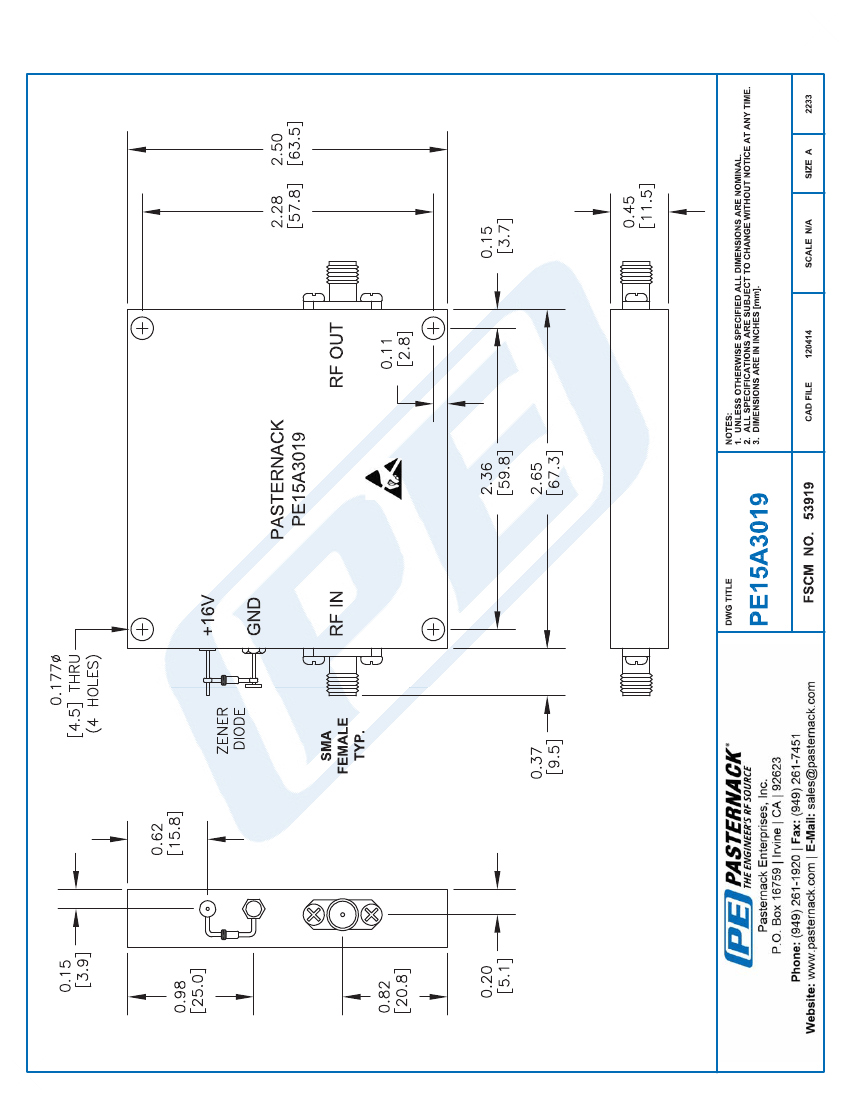

1 Watt P1dB, 6 GHz to 18 GHz, Medium Power Broadband Amplifier, 30 dB Gain, SMA
PE15A3019
PE15A3019 REV 1.0
1
1 Watt P1dB, 6 GHz to 18 GHz, Medium Power
Broadband Amplifier, 30 dB Gain, SMA
TECHNICAL DATA SHEET

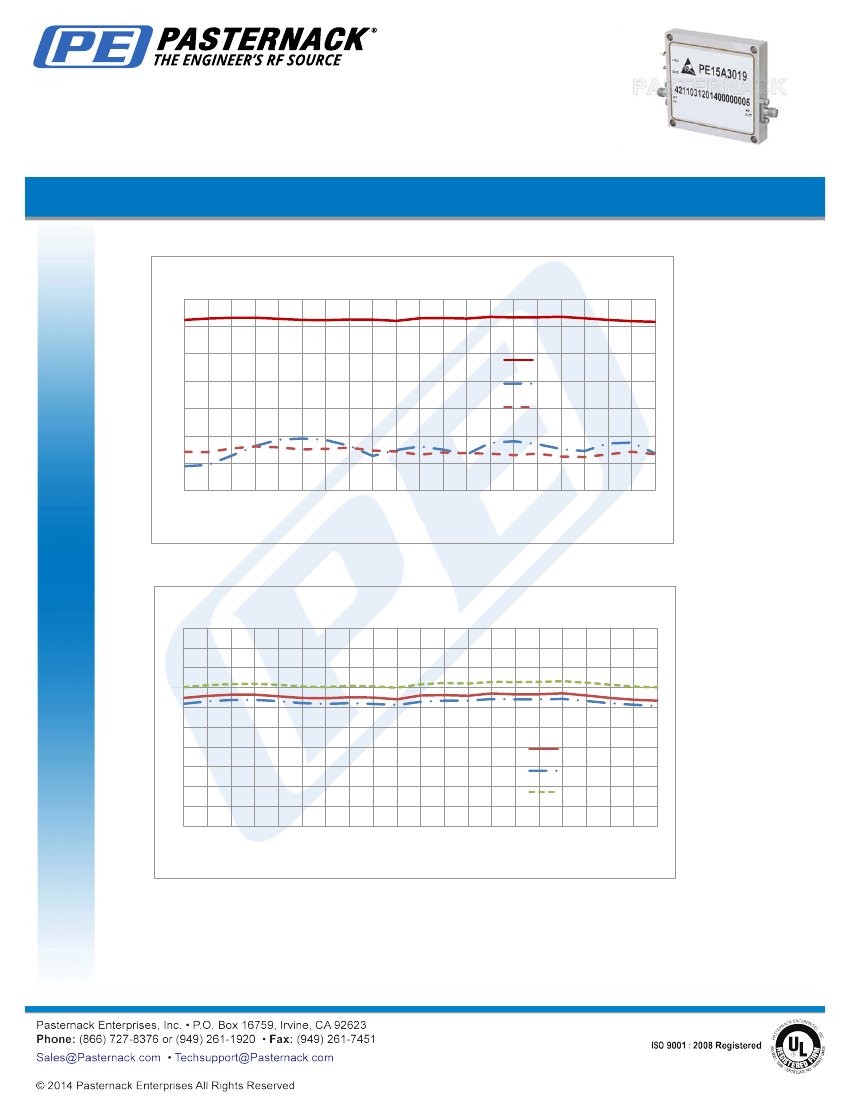

Typical Performance Data
PE15A3019
dB
40
30
20
10
0
-10
-20
-30
6
Gain, Input Return Loss and Output Return Loss
Gain(dB )@+25 C
IN_Return Loss(dB)
OUT_Return Loss(dB)
6.6 7.2 7.8 8.4
9
9.6 10.2 10.8 11.4 12 12.6 13.2 13.8 14.4 15 15.6 16.2 16.8 17.4 18
Freq.(GHz)
dB
50
45
40
35
30
25
20
15
10
5
0
6
6.6 7.2 7.8 8.4
9
Gain vs Temperature
Gain(dB) 70
℃
Gain(dB )@+25 C
Gain(dB) -40
℃
9.6 10.2 10.8 11.4 12 12.6 13.2 13.8 14.4 15 15.6 16.2 16.8 17.4 18
Freq.(GHz)
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications:
1 Watt P1dB, 6 GHz to 18 GHz, Medium Power Broadband Amplifier, 30 dB Gain, SMA
PE15A3019
PE15A3019 REV 1.0
2
1 Watt P1dB, 6 GHz to 18 GHz, Medium Power
Broadband Amplifier, 30 dB Gain, SMA
TECHNICAL DATA SHEET
PE15A3019
dB
36
35
34
33
32
31
30
29
28
27
26
6
6.6 7.2 7.8 8.4
9

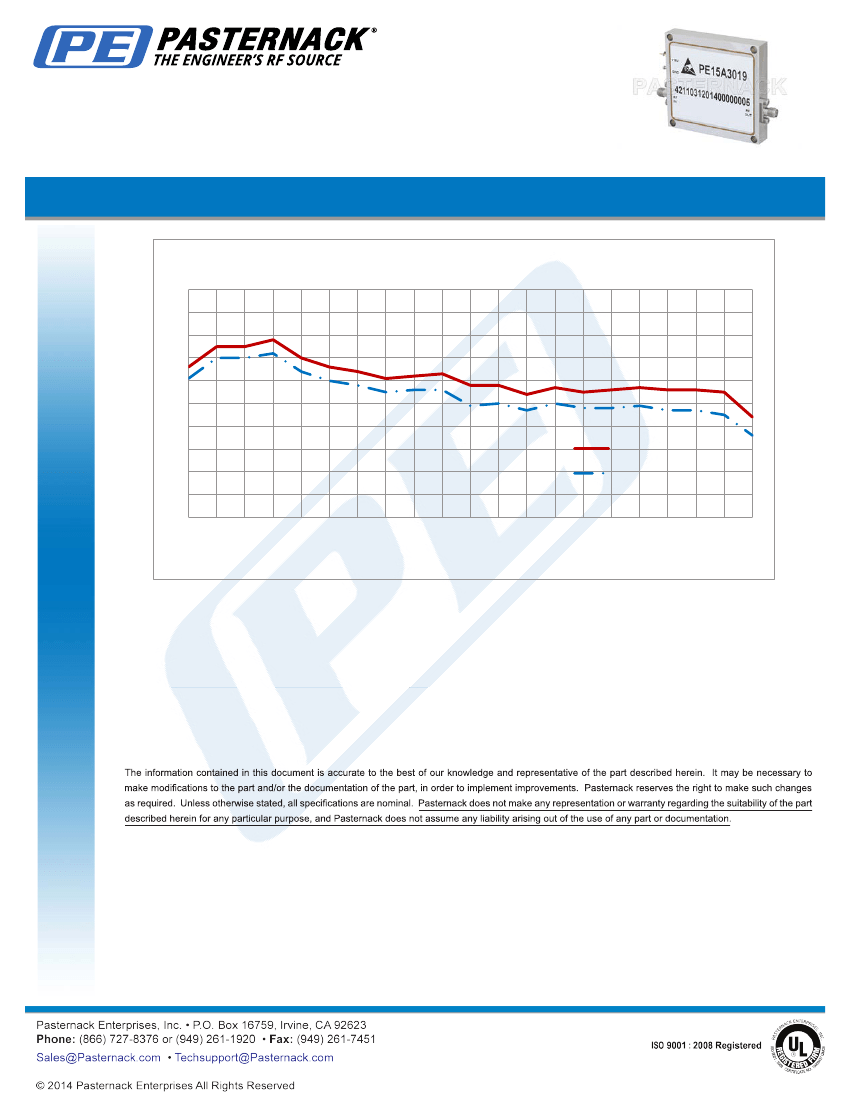

P1dB vs Temperature
P1dB(dBm) @ 25 C
P1dB(dBm) @+70℃
9.6 10.2 10.8 11.4 12 12.6 13.2 13.8 14.4 15 15.6 16.2 16.8 17.4 18
Freq.(GHz)
1 Watt P1dB, 6 GHz to 18 GHz, Medium Power Broadband Amplifier, 30 dB Gain, SMA from Pasternack Enterprises has
same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99%
availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
1 Watt P1dB, 6 GHz to 18 GHz, Medium Power Broadband Amplifier, 30 dB Gain, SMA
PE15A3019
URL:
http://www.pasternack.com/18-ghz-medium-power-broadband-amplifier-30-db-gain-sma-pe15a3019-p.aspx
PE15A3019 REV 1.0
3
1 Watt P1dB, 6 GHz to 18 GHz, Medium Power Broadband Amplifier, 30 dB Gain, SMA
PE15A3019
CAD Drawing
© 2013 Pasternack Enterprises All Rights Reserved
PE15A3019 REV 1.0
