4 Way High Power Broadband Combiner From 20 MHz
to 1,000 MHz Rated at 300 Watts, Type N
TECHNICAL DATA SHEET
PE20S0003
PE20S0003 is a passive 4 way High Power Broadband RF Combiner with 50 ohm N connectors operating from 20 to 1000
MHz, with a max input power at 300 watts. The PE20S0003 has greater than 12 dB typical isolation, less than 0.75 dB typical
low insertion loss and a Max VSWR of 1.25:1; along with a phase balance of ±5 degrees and an amplitude balance of ±0.25
dB. The RF Combiner operates in a temperature range from -55°C to 85°C, with a foot print of 5.10”x4.72”x1.54”.
Features
•
•
•
•
20 to 1000 MHz Frequency
300 watt max power
Insertion Loss: < 0.75 dB
Phase Balance: ±5 degrees
• Amplitude Balance: ±0.25 dB
• Isolation: >12 dB
• High Power Handling Capability
Applications
• Communications Systems
• Power Combining
• PCS,GSM,LTE, Cellular
•
Amplifier Systems
•
Amplifier Power Combining
• Wireless Infrastructures
• Defence Applications
Configuration
Input Connectors
Output Connector
Frequency Range
Design
Number of Input Ports
Housing Material and Plating
N Female
N Female
20 to 1,000 MHz
Reactive
4
Aluminum Alloy
Electrical Specifications
(Values at 25°C, sea level)
Description
Frequency Range
Impedance
Insertion Loss
Input Power
Output VSWR
Isolation
Phase Balance
Flatness
.
12
±5
±0.25
Minimum
20
Typical
50
Maximum
1,000
0.75
300
1.25:1
Units
MHz
Ohms
dB
Watts
dB
Degrees
dB
Specifications by Frequency
Description
Range
Isolation
F1
20 to 125
12
F2
125 to 1,000
15
F3
F4
F5
Units
MHz
dB
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
4 Way High Power Broadband Combiner From 20 MHz to 1,000 MHz Rated at 300 Watts,
Type N PE20S0003
PE20S0003 REV 1.0
1
4 Way High Power Broadband Combiner From 20 MHz
to 1,000 MHz Rated at 300 Watts, Type N
TECHNICAL DATA SHEET
.
PE20S0003
Mechanical Specifications
Temperature
Operating Range
Size
Length
Width
Height
.
-55 to +85 deg C
5.1 in [129.54 mm]
4.72 in [119.89 mm]
1.54 in [39.12 mm]
Connectors
Description
Connector Material and Plating
.
Input Connector
Brass, Nickel
Output Connectors
Brass, Nickel
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Plotted and Other Data
Notes:
• Values at +25 °C, sea level
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
4 Way High Power Broadband Combiner From 20 MHz to 1,000 MHz Rated at 300 Watts,
Type N PE20S0003
PE20S0003 REV 1.0
2
4 Way High Power Broadband Combiner From 20 MHz
to 1,000 MHz Rated at 300 Watts, Type N
TECHNICAL DATA SHEET

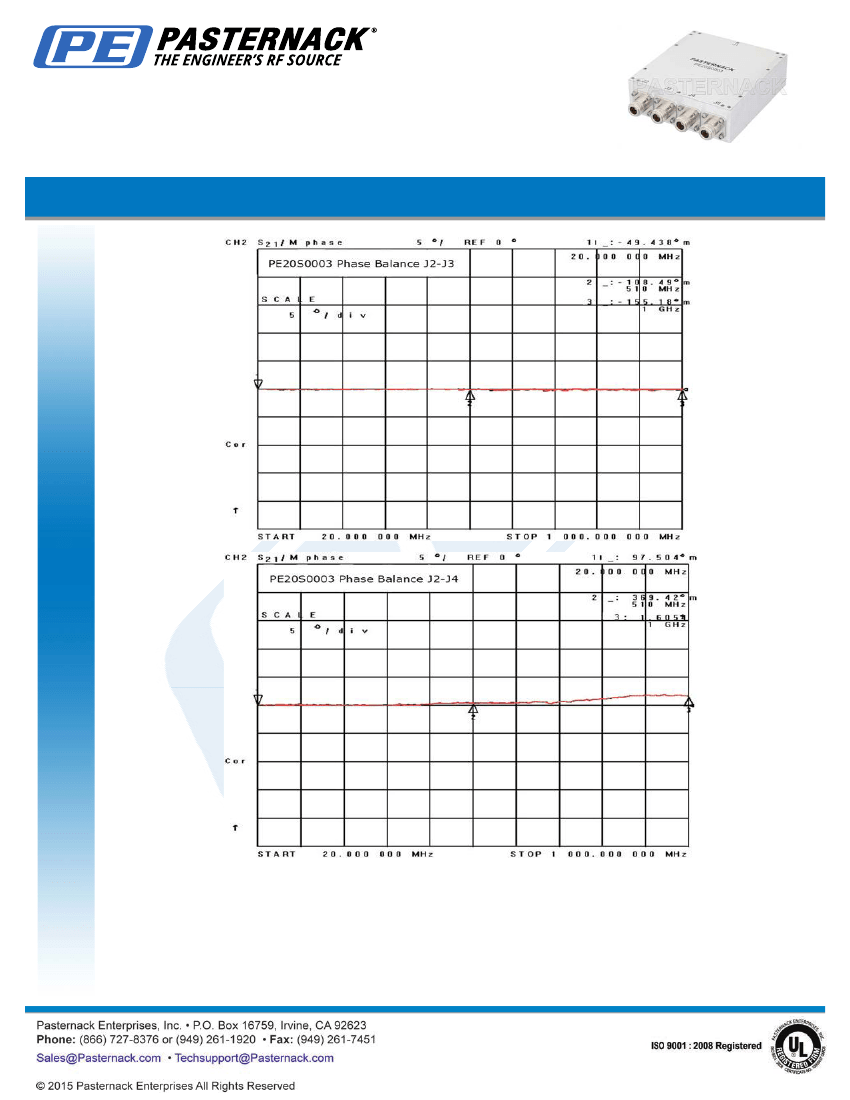

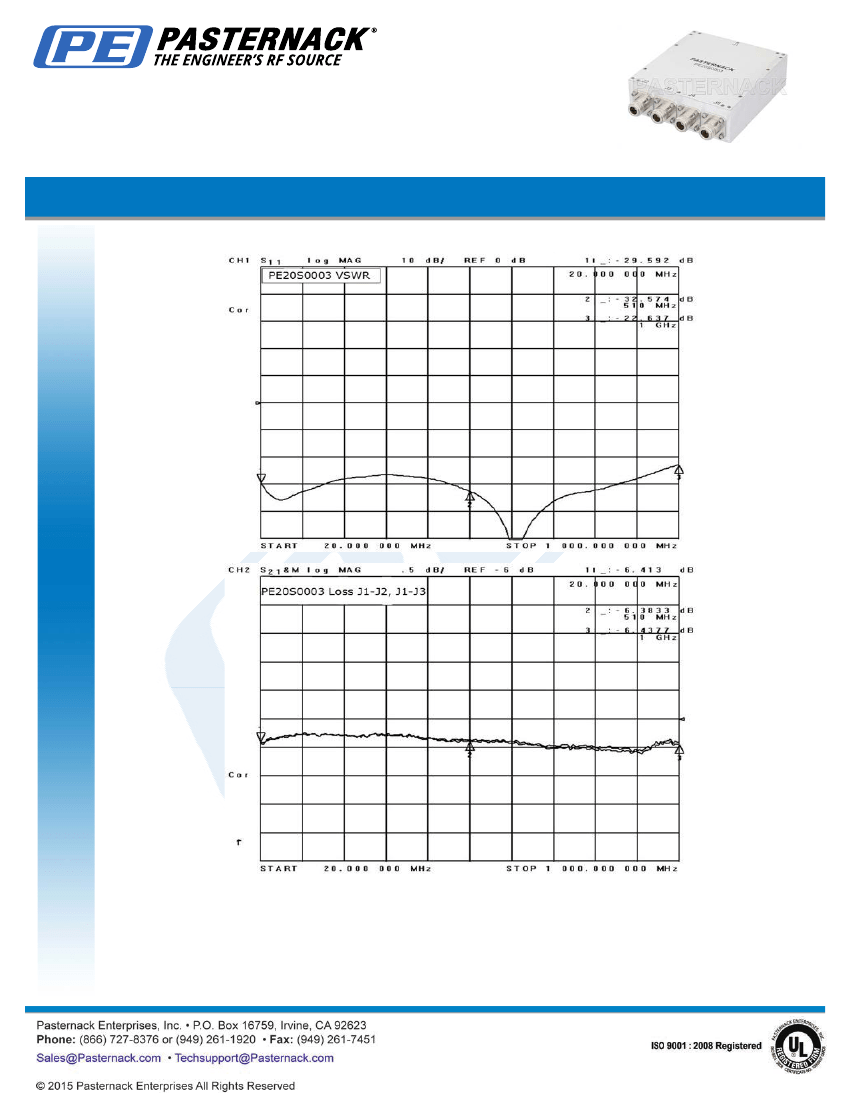

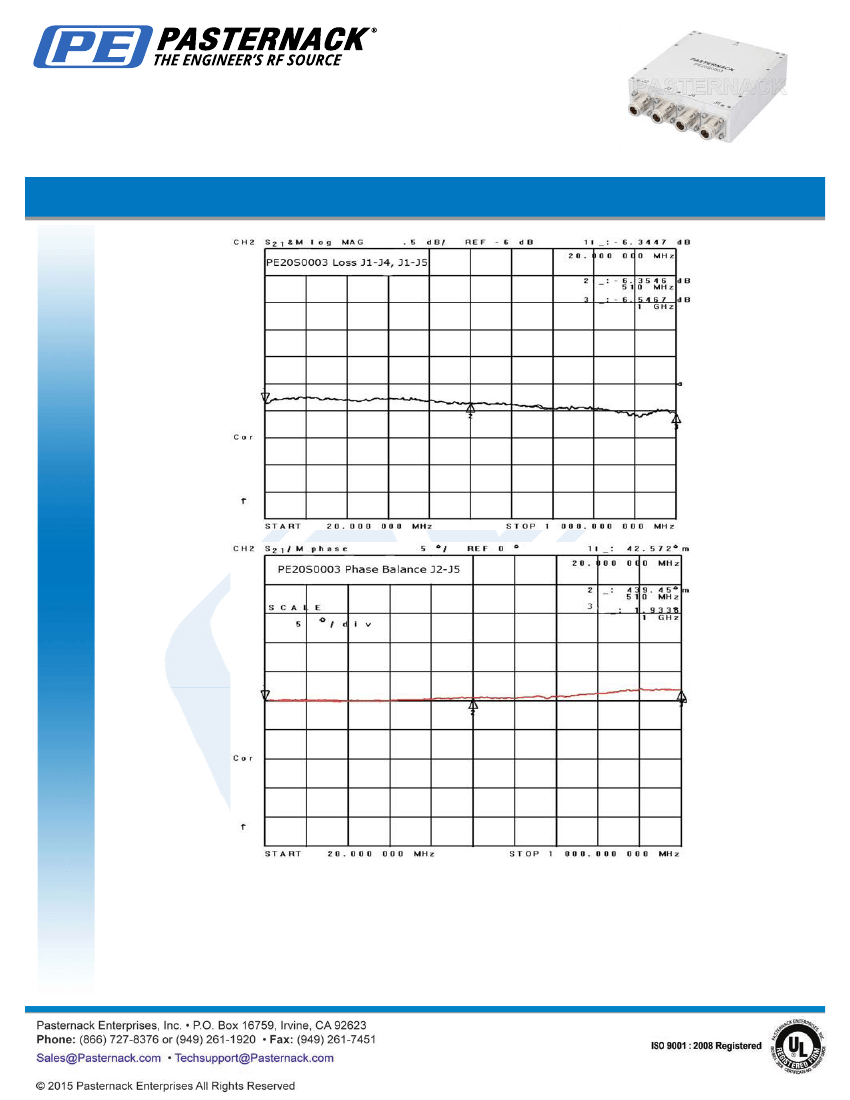

Performance Data
PE20S0003
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
4 Way High Power Broadband Combiner From 20 MHz to 1,000 MHz Rated at 300 Watts,
Type N PE20S0003
PE20S0003 REV 1.0
3
4 Way High Power Broadband Combiner From 20 MHz
to 1,000 MHz Rated at 300 Watts, Type N
TECHNICAL DATA SHEET
PE20S0003
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
4 Way High Power Broadband Combiner From 20 MHz to 1,000 MHz Rated at 300 Watts,
Type N PE20S0003
PE20S0003 REV 1.0
4
4 Way High Power Broadband Combiner From 20 MHz
to 1,000 MHz Rated at 300 Watts, Type N
TECHNICAL DATA SHEET
PE20S0003
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
4 Way High Power Broadband Combiner From 20 MHz to 1,000 MHz Rated at 300 Watts,
Type N PE20S0003
PE20S0003 REV 1.0
5
