LST-13-07-T-D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> LST-13-07-T-D

LST-13-07-T-D: DescriptionBoard Connector, 6 Contact(s), 2 Row(s), Female and Male, Straight, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size631KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

LST-13-07-T-D Overview

Board Connector, 6 Contact(s), 2 Row(s), Female and Male, Straight, Solder Terminal, ROHS COMPLIANT

LST-13-07-T-D Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	FEMALE AND MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	LST
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	6

Preview

Download Datasheet

View All

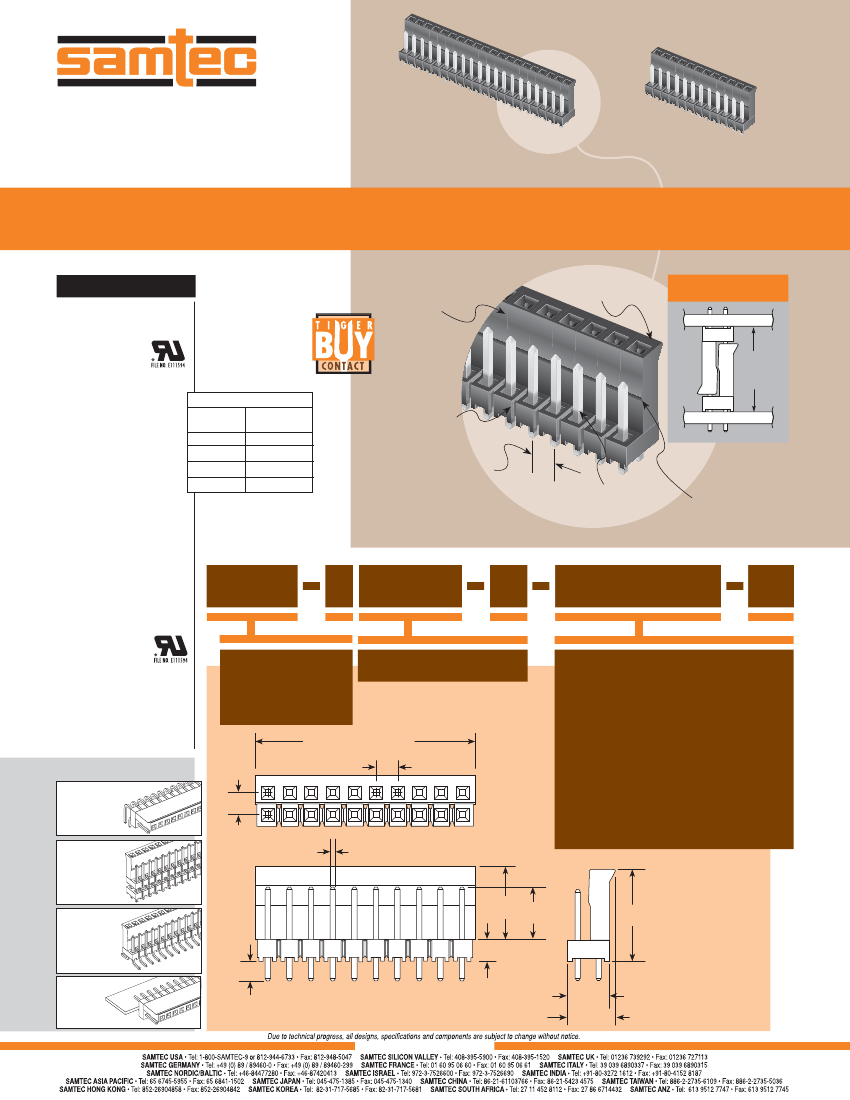

F-209

LST–112–07–S–D

LST–120–07–G–D

.100"

(2,54mm)

SOCKET/TERMINAL

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?LST or

www.samtec.com?HLST

LST, HLST

SERIES

Mates with:

LST, HLST

Hermaphroditic

self-mating

combination

header/socket

system

Polarized

APPLICATION

LST

Insulator Material:

LST: Black

Glass Filled Polyester

Terminal Material:

Phosphor Bronze

Contact Material:

Phosphor Bronze

Plating:

Au or Sn over 50µ"

(1,27µm) Ni

Operating Temp Range:

-55°C to +125°C with Gold

-55°C to +105°C with Tin

Insertion Depth:

(3,68 mm) .145" to

(6,35 mm) .250"

Insertion Force:

(Single contact only)

6oz (1,67N) avg

Withdrawal Force:

(Single contact only)

4oz (1,11N) avg

Cycles:

100 with 10µ" (0,25µm) Au

RoHS Compliant:

Yes

Lead–Free Solderable:

Wave Only

(13,59)

.535

MATED

HEIGHT

CURRENT RATING

AMBIENT

TEMP

20°C

40°C

60°C

80°C

5 Contacts

6.0A

5.3A

4.2A

3.0A

One part

number for

both socket

and terminal

(2,54mm)

.100" pitch

(0,64mm) .025"

square post

Locking feature

increases unmating

force and provides

audible “click” when

properly mated

Note:

Some lengths,

styles and options are

non-standard, non-returnable.

TYPE

STRIP

NO. PINS

PER ROW

PLATING

OPTION

HLST

Same as LST except:

Insulator Material:

Liquid Crystal Polymer

(Socket Black, Header Natural)

LST

= Standard

02 thru 30

–G

= 10µ" (0,25µm) Gold on contact area,

Gold ﬂash on balance

Processing:

Max Processing Temp:

230°C for 60 seconds, or

260°C for 20 seconds 3x

Lead-Free Solderable:

Yes

HLST

= High Temperature

–S

= 30µ" (0,76µm) Gold on contact area,

Matte Tin on tail

No. of Positions x (2,54)

.100 + (0,51) .020

(2,54) .100

(2,54)

.100

(0,64)

.025

Also Available

Right

Angle

Call Samtec.

–F

= Gold ﬂash on contact area,

Matte Tin on tail

–T

= Matte Tin

Elevated

Call Samtec.

Surface

Mount

(8,51)

.335 (6,10)

.240

(2,54)

.100

(2,29)

.090

(11,05)

.435

Call Samtec.

Edge

Mount

Call Samtec.

(5,08)

.200

(5,84)

.230

WWW.SAMTEC.COM
