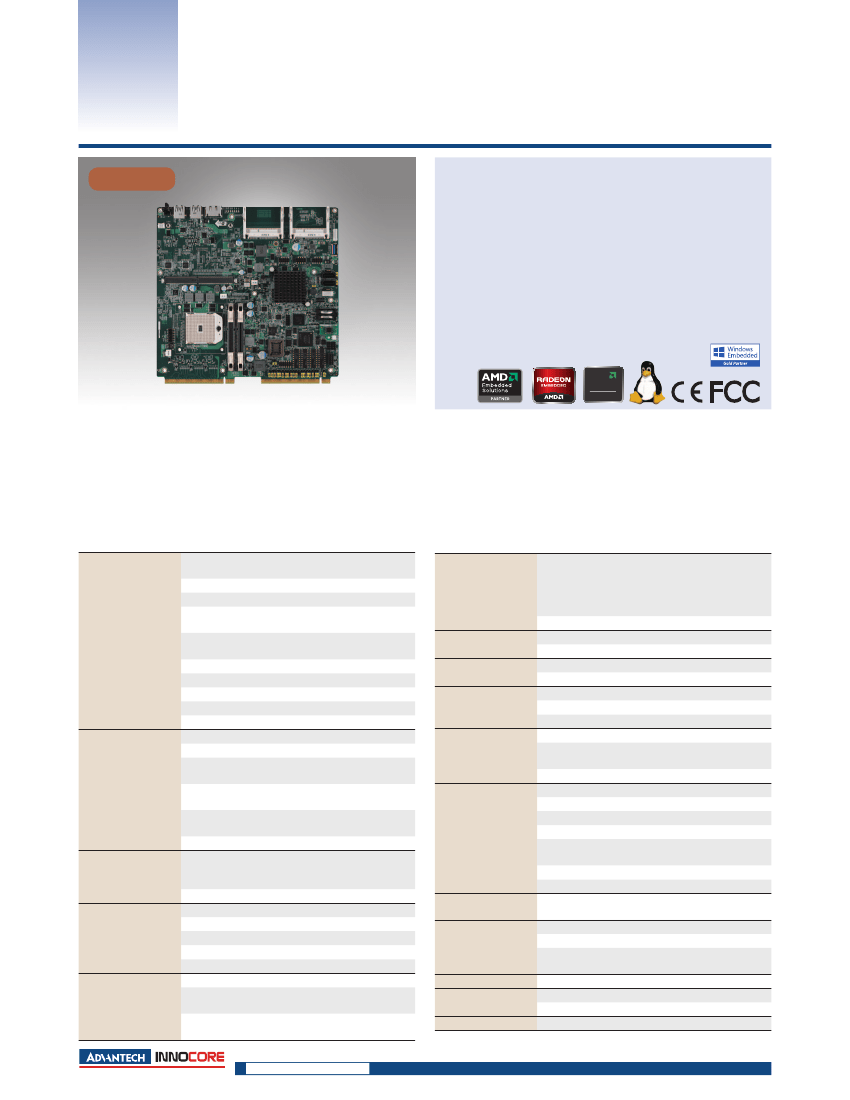

DPX -C710
®
Preliminary
AMD
®
Embedded R-Series Gaming Platform
Features
Very high performance AMD platform
Versatile ConnectBus
®
backplane architecture
Comprehensive gaming features
High performance integrated graphics and PCI-Express graphics module
(MXM)
Up to 10 monitors supported
AMD
EMBEDDED
SOLUTIONS
R
-
SERIES APU
Introduction
The DPX
®
-C710 is a completely integrated motherboard for gaming applications. Based on the 3
rd
generation of Advantech-Innocore’s ConnectBus
®
backplane architecture, the DPX-C710
offers un-paralleled ease of installation and field service. The board uses AMD’s high performance dual and quad core APUs with "Discrete-level Graphics". The chipset graphics (AMD
Radeon HD7000 series) can output to 4 independent monitors and supports DisplayPort 1.2. In addition, the MXM graphics card slot allows the DPX-C710 to be fitted with a selection
of discrete high performance graphics modules. The MXM slot ensures the system is "future proof", ready for the next generation of graphics technology. A full feature set of I/O and
COMs designed specifically for gaming devices is also included making the DPX-C710 an ideal integrated platform for many high end gaming, amusement and kiosk applications.
Specifications
3rd Generation ConnectBus
®
architecture - "Pluggable"
CPU board and robust backplane
All cable connections are made through the backplane
Standard backplane available
Easily customized backplane for specific applications and
retrofit projects
Removable CPU board for easy install, service and
maintenance
AMD Embedded R-Series Dual and Quad Core APUs
Long life cycle 5 years availability
DDR3-1600, 2 SODIMMs up to 16GB
2 x Gigabit Ethernet LAN
HD Audio 7.1 channel
Integrated – AMD Radeon 7000 series graphics engine
Dual, triple and Quad monitor support from APU
Three DP++ interfaces support DisplayPort, DVI, HDMI
and VGA (customizable on backplane)
Incl. one DP v1.2 with MST (multi-monitor, daisy chain)
support
Direct X 11, OpenGL 4.2, OpenCL, DirectCompute
support
UVD3 Multimedia hardware decode and encode.
Full speed PCI-Express x16 MXM v3.0 slot to support
optional high performance graphics cards; AMD Radeon
E6000 series, Radeon E8000 series, Nvidia
®
Field or factory upgradeable
TPM security device on board
Intrusion switch inputs (8 dedicated)
BIOS customization
1 x iButton
®
socket (option)
1 x Security ROM socket
Edge-to-edge drivers and Software API/SDK.
Code portability through consistent API with other
Innocore boards.
Range of Advantech-Innocore software products for
Gaming
www.advantech-innocore.com
CPU/Chipset
System
Memory
BIOS
LAN
Storage
Video (Integrated)
Ports
Video (Discrete)
iButton/GPIO
Discrete I/O
Sound
SRAM (NVRAM)
TPM
Security
Software
AMD Embedded R-Series FS1r2 Accelerated Processing
Unit (APU)
Dual and Quad Core APUs up to 2.7GHz (3.2GHz Turbo)
Up to 4MB L2 cache
Low power (35W) APUs
AMD A75 FCH
2 x SODIMM sockets
Up to16GB DDR3 1600 MT/s SDRAM system RAM
AMI APTIO UEFI BIOS
BIOS can be write protected
2 x Ethernet Gigabit LAN
Full duplex operation
Wake-On-LAN capability
2 x C-Fast™ sockets
2 x SATA 3 (up to 6Gb/s) headers for HDD, SSD or SATA
DOM
1 x eSATA front access
3 x RS232 Serial, 16550 compatible
2 x CCTalk/RS232
2 x RS232/TTL
1 x RS232/485
14 x USB (2x USB 3.0 on front panel, 1x USB 3.0 + 4x
USB 2.0 on board headers, 7x USB 2.0 on backplane)
2 x I2C, 1x SPI interfaces through backplane
24 channel LED drive output
Bi-Directional, programmable GPIO header for iButton,
special purpose device or security module
32 ESD protected inputs
32 OC Outputs (500mA, 50V)
Of which 6 I/O ports can be configured as meter outputs
with disconnect detect
HD 7.1 channel Audio
4096 KB fast SRAM (2 banks) on PCI bus
Battery state software readable
TCPA/TPM 1.2 compliant security device on board.
Innovations in Gaming Computing
See overleaf for continued specification
Last updated : 10-Sep-2014
DPX
®
-C710

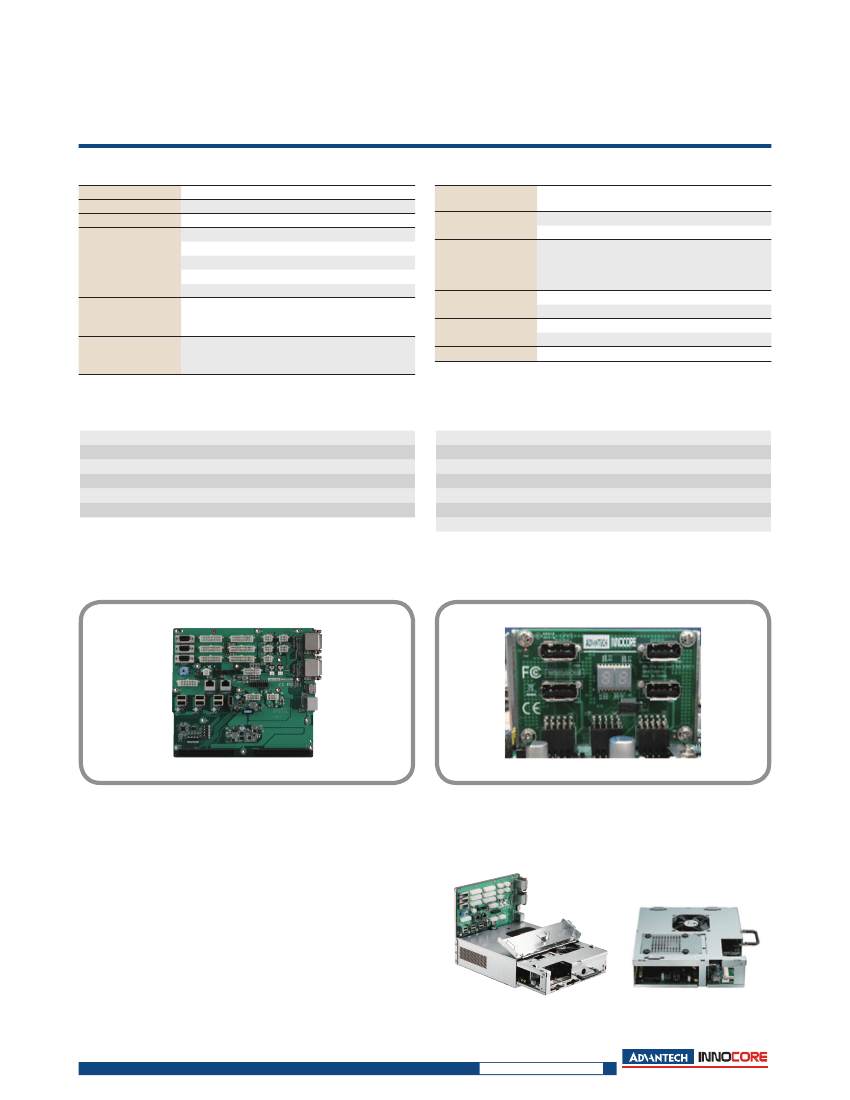

Specifications Cont.
Watchdog Timer
EEPROM
Asset Tag
Programmable time-out
32kB user EEPROM (option for larger)
Unique serial number devices on motherboard
7+1 Intrusion detection input lines
Operates with and without system active
Logs date/time of last 254 events
Logs system resets/brownouts as events
EEPROM backup for 10 years retention
Measurement of CPU core temp. With thermal trip
PWM fan control for APU, MXM, system fans, and
2 other fans through backplane
Optional riser board provides : Dual 7- segment LED
display for POST and diagnostic codes
And 4 USB 2.0 Type A ports
Power Fail Detect
Expansion
Power
Environment
Approvals
Dimensions (D x W)
External sensor input for advanced warning of AC power
fail
1) 2 x I2C, SPI
2) PCI-Express x16 MXM format graphics card
12V DC single input
Intelligent power control
CPU board Backplane “insertion-sense” and protection
for accidental removal
Operating Temperature: 0 ~ 45° C
Storage Temperature: -10 ~ 70° C
EMC: CE, FCC Class A
RoHS, WEEE
Motherboard: 221 x 214 mm (8.7" x 8.4")
Intrusion Detection
System Health
Monitoring
Diagnostic LED display
All product specifications are subject to change without notice .
Optional Accessories
DPX C-series backplane
Range of PCI-E MXM graphics cards
POST Diagnostic LED display and USB riser board
Compact Flash cards, SATA DOM, SSD storage devices
iButtons
®
, iButton carrier
System level enclosure and CPU cassette
Benefits
Best in class integrated and expandable graphics
Single integrated solution
Designed for the Gaming Industry
Serviceable CPU board and backplane
Small size
Low power
Long Lifecycle
DPX C-series backplane board
DPX C-series POST Diagnostic and
USB Riser board
OEM Customization and Product
Development
Advantech-Innocore is part of the Advantech Co., Ltd. Group of Companies.
Advantech-Innocore specializes in the fields of PC-based hardware design and
software development. Our in-depth knowledge and global resources make us your
ideal partner.
Specifications subject to change. E&OE.
Copyright © 2014 Advantech Co., Ltd.
All rights reserved. Advantech-Innocore, the Advantech-Innocore Logo, DPX,
ConnectBus are trademarks of Advantech Co., Ltd. in the UK, US and other
countries.
All other trademarks are acknowledged and respected.
System Level DPX-SC710 Product
The DPX-C710 is also available as a system level product with logic box and CPU cassette
enclosures. See separate datasheet and product information
www.advantech-innocore.com
Innovations in Gaming Computing
