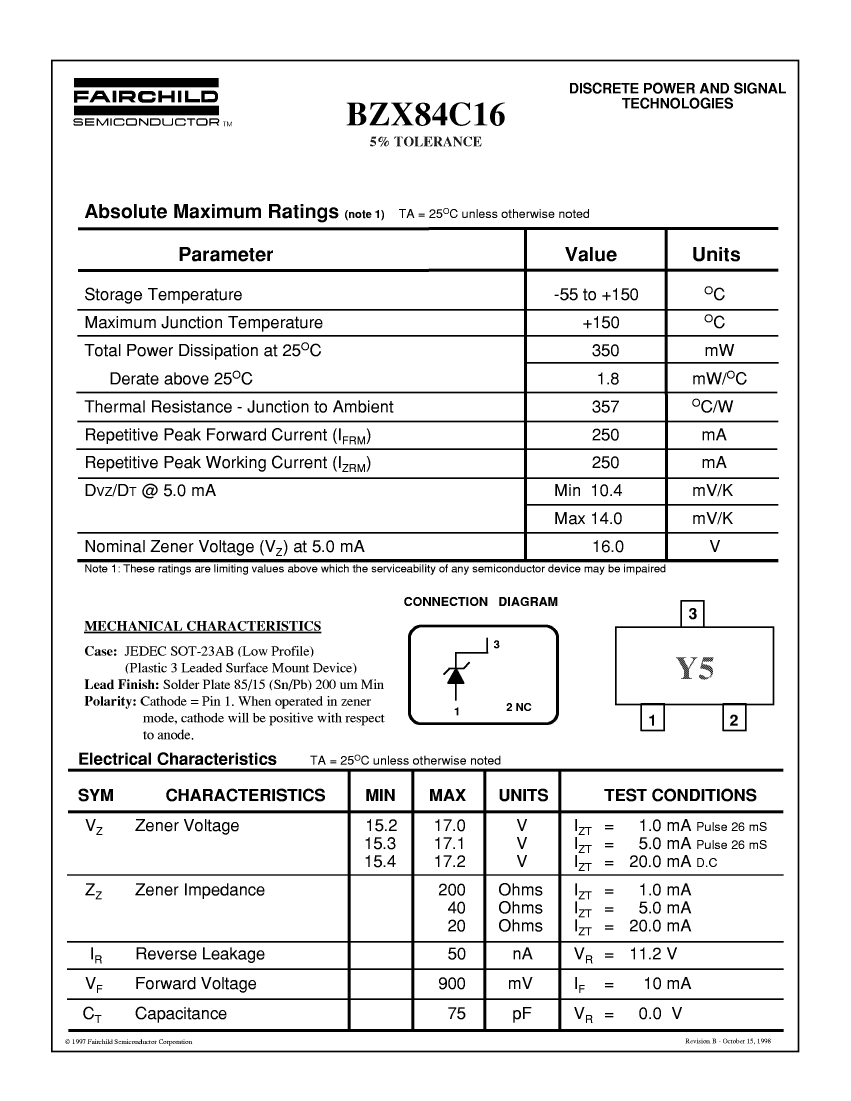

BZX84C16D87Z datasheet, PDF - EEWORLD Datasheet

BZX84C16D87Z: DescriptionZener Diode, 16V V(Z), 5%, 0.35W, Silicon, Unidirectional, 49, 3 PIN; CategoryDiscrete semiconductor diode; File Size62KB，3 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BZX84C16D87Z Overview

Zener Diode, 16V V(Z), 5%, 0.35W, Silicon, Unidirectional, 49, 3 PIN

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Fairchild

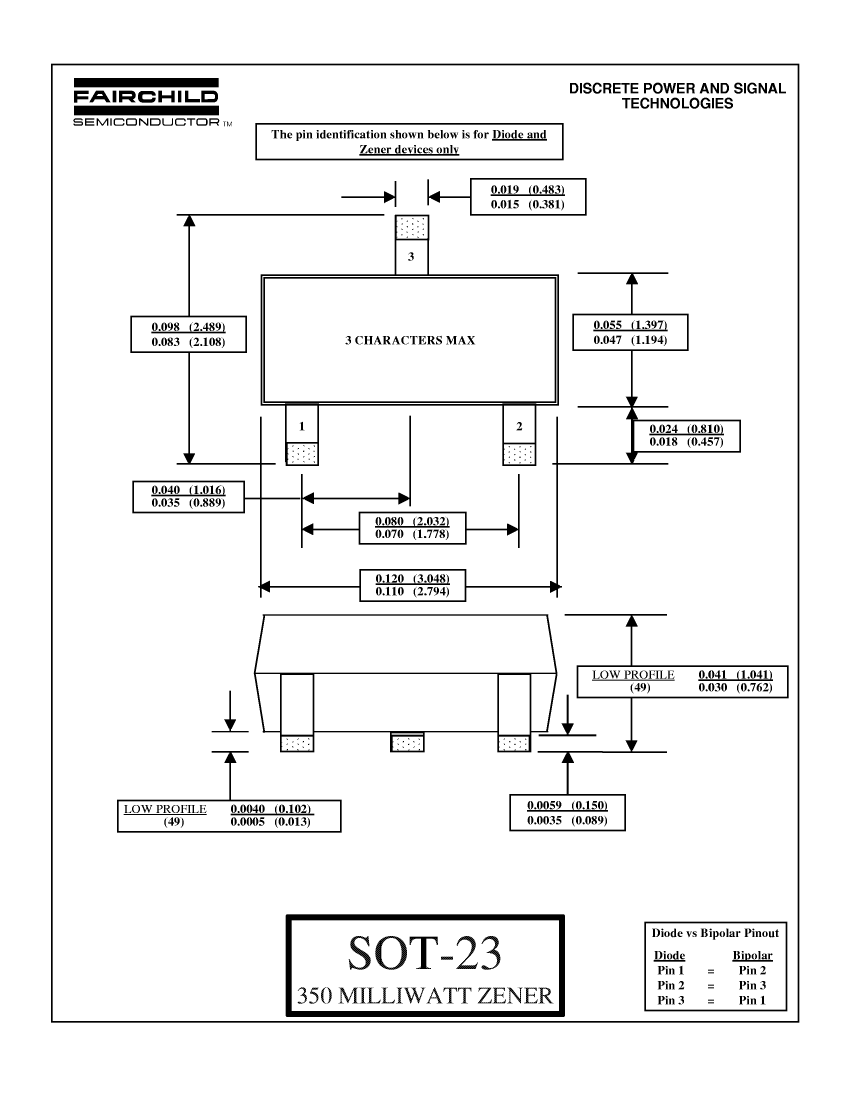

package instruction	49, 3 PIN
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
Maximum dynamic impedance	40 Ω
JESD-30 code	R-PDSO-G3
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.35 W
Certification status	Not Qualified
Nominal reference voltage	16 V
surface mount	YES
technology	ZENER
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal location	DUAL
Maximum voltage tolerance	5%
Working test current	5 mA

	BZX84C16D87Z	BZX84C16L99Z	BZX84C16S62Z
Description	Zener Diode, 16V V(Z), 5%, 0.35W, Silicon, Unidirectional, 49, 3 PIN	Zener Diode, 16V V(Z), 5%, 0.35W, Silicon, Unidirectional	Zener Diode, 16V V(Z), 5%, 0.35W, Silicon, Unidirectional
Reach Compliance Code	compliant	unknow	unknown
ECCN code	EAR99	EAR99	EAR99
Configuration	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON
Diode type	ZENER DIODE	ZENER DIODE	ZENER DIODE
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Number of components	1	1	1
Number of terminals	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL
Maximum power dissipation	0.35 W	0.35 W	0.35 W
Certification status	Not Qualified	Not Qualified	Not Qualified
Nominal reference voltage	16 V	16 V	16 V
surface mount	YES	YES	YES
technology	ZENER	ZENER	ZENER
Terminal form	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL
Maximum voltage tolerance	5%	5%	5%
Working test current	5 mA	5 mA	5 mA
Base Number Matches	-	1	1
