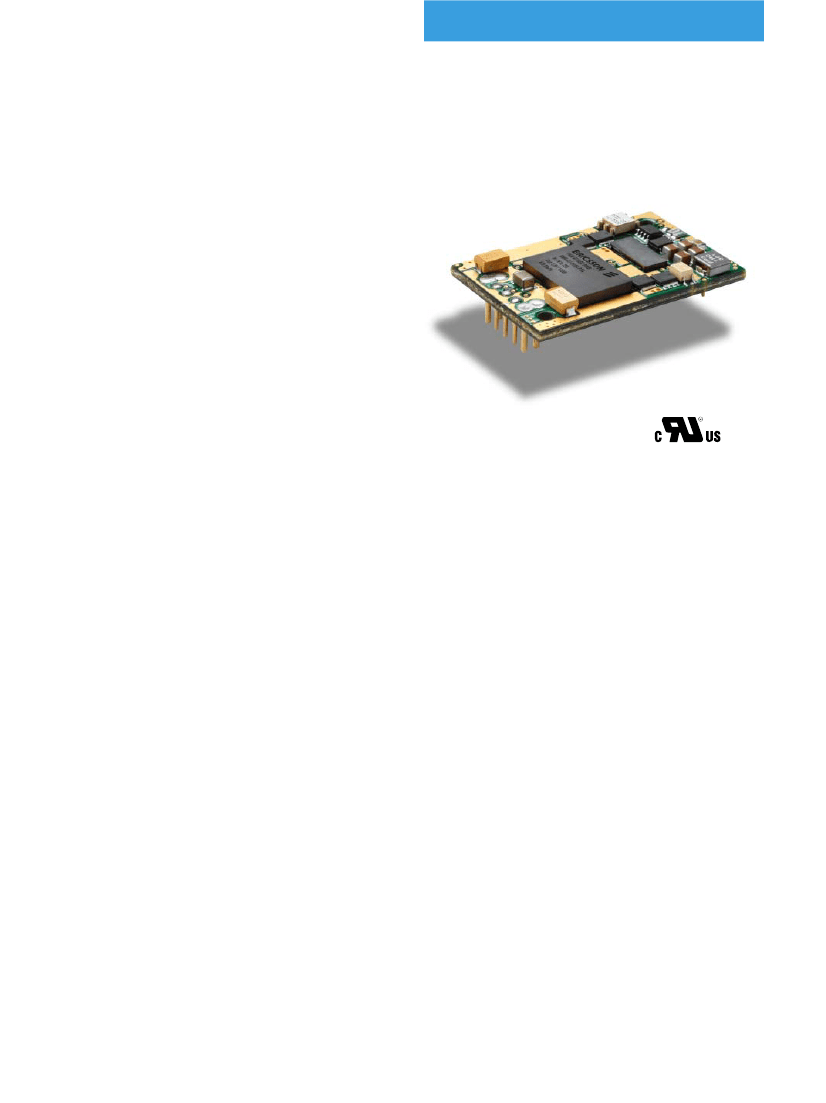

PKM 4000C Series
36-75 Vdc DC/DC converter
Output up to 80 A/200 W
Contents
Product Program . . . . . . . . . . . . . . . . . . . . . . 2

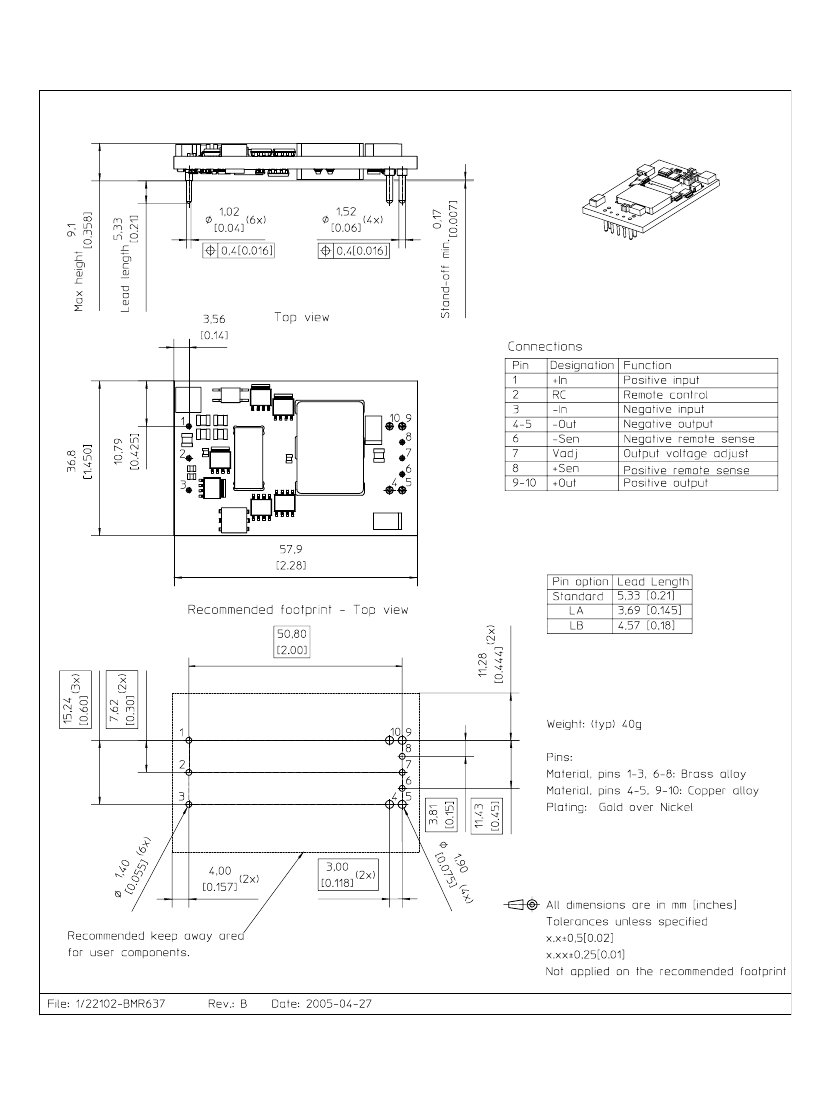

Mechanical Information . . . . . . . . . . . . . . . . . 3
Absolute Maximum Ratings . . . . . . . . . . . . . 4
Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Product Qualification Specification . . . . . . . . 5
Safety Specification . . . . . . . . . . . . . . . . . . . 6
PKM 4918LC PINB - 1.2 V Data . . . . . . . . . . 7
PKM 4118HC PINB - 1.5 V Data . . . . . . . . . 10
PKM 4118GC PINB - 1.8 V Data . . . . . . . . . 13
PKM 4119C PINB - 2.5 V Data . . . . . . . . . . 16
PKM 4110C PINB - 3.3 V Data . . . . . . . . . . 19
PKM 4211C PINB - 5 V Data . . . . . . . . . . . 22
EMC Specification . . . . . . . . . . . . . . . . . . . . 25
Operating Information . . . . . . . . . . . . . . . . . 26
Thermal Consideration . . . . . . . . . . . . . . . . 28
Soldering Information . . . . . . . . . . . . . . . . . 29
Delivery Package Information . . . . . . . . . . . 29
Design for Environment (DfE) . . . . . . . . . . . 29
Reliability . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Quality Statement . . . . . . . . . . . . . . . . . . . . 29
Limitation of Liability . . . . . . . . . . . . . . . . . . 29
Sales Offices and Contact Information . . . . 30
Safety Approvals
Key Features
•
Industry standard quarterbrick and optional double Pin-Out
57.93 x 36.80 x 9.1 mm (2.278 x 1.449 x 0.35 In.)
•
RoHS compliant
•
High efficiency, typ. 92 % at 3.3 Vout half load
•
2250 Vdc input to output isolation, meets isolation
requirements equivalent to basic insulation according
to IEC/EN/UL 60950
•
More than 2.7 million hours predicted MTBF at +40 ºC
ambient temperature
The PKM 4000C series of high efficiency DC/DC
converters are designed to provide high quality on-board
power solutions in distributed power architectures used
in Internetworking equipment in wireless and wired
communications applications.
The PKM 4000C series features a "double-p" footprint
with dual output pins which reduces soldering losses to
the board while increasing the cooling of the module.
The PKM 4000C series uses patented synchronous
rectification technology and achieves an efficiency up to
90% at full load.
Included as standard features are output over-voltage
protection, input under-voltage protection, over temperature
protection, soft-start, output short circuit protection, remote
sense, remote control, and output voltage adjust function.
These converters are designed to meet high reliability
requirements and are manufactured in highly automated
manufacturing lines and meet world-class quality levels.
Ericsson Power Modules is an ISO 9001/14001 certified
supplier.
E
Datasheet
Product Program
V
I
V
O
/I
O
max
Output 1
1.2 V/80 A
1.5 V/80 A
1.8 V/71 A
48/60
2.5 V/55 A
3.3 V/50 A
5.0 V/40 A
12 V/17 A
P
O
max
96 W
120 W
126 W
137.5 W
165 W
200 W
204 W
Ordering No.
PKM 4918LC PINB
PKM 4118HC PNB
PKM 4118GC PINB
PKM 4119C PINB
PKM 4110C PINB
PKM 4211C PINB
PKM 4213C PINB
Comment
Preliminary product code
Option
Positive Remote Control logic
Lead length 3.69 mm (0.145 in)
Single pin-out*
Suffix
P
LA
SP
Example
PKM 4110C PIPNB
PKM 4110C PINBLA
PKM 4110C PINBSP
Note: As an example a positive logic and short pin product would be PKM 4110C PINBLA.
*A single pin option is available but will decrease the maximum available output current.
Ericsson power modules do not recommend that each pin should conduct more than 40A due
to power dissipation inside the pin and the board.
To use more current than stated will have impact on solder joints and current distribution to
the board, the power module will however be safe but will have more power dissipation due to
less conductive material to the board.
PKM 4000C Datasheet
2
EN/LZT 146 035 R3D © Ericsson Power Modules, June 2005
Absolute Maximum Ratings
Characteristics
T
pcb
T
S
V
I
V
ISO
V
tr
V
RC
Positive logic (referenced to -In)
V
adj
Maximum input
-0.5
-0.5
15
2xV
oi
Vdc
Vdc
Maximum Operating T
pcb
Temperature (see thermal consideration section)
Storage temperature
Input voltage
Isolation voltage (input to output test voltage)
Input voltage transient (T
p
100 ms)
Negative logic (referenced to -In)
min
-40
-55
-0.5
typ
max
+125
+125
+100
2250
100
15
Unit
˚C
˚C
Vdc
Vdc
Vdc
Vdc
Stress in excess of Absolute Maximum Ratings may cause permanent damage. Absolute
Maximum Ratings, sometimes referred to as no destruction limits, are normally tested with
one parameter at a time exceeding the limits of Output data or Electrical Characteristics.
If exposed to stress above these limits, function and performance may degrade in an
unspecified manner.
Input
T
Pcb
<T
Pcb max
unless otherwise specified
Characteristics
V
I
V
Ioff
V
Ion
C
I
P
Ii
P
RC
Input voltage range
Turn-off input voltage
Turn-on input voltage
Input capacitance
Input idling power
Input standby power
(turned off with RC)
Conditions
min
36
typ
max
75
Unit
Vdc
Vdc
Vdc
µF
W
W
Ramping from higher voltage
Ramping from lower voltage
32
34
5.4
I
o
= 0, V
I
= 53 V
V
I
= 53 V, RC activated
3.5
0.1
Fundamental Circuit Diagram
10
1
9
8
7
6
2
5
4
3
PKM 4000C Datasheet
4
EN/LZT 146 035 R3D © Ericsson Power Modules, June 2005
