PJ1086
1.5 Amp Low Dropout Positive Voltage Regulators
T
he PJ1086 seriesof high performance positive voltage
regulators designed for use in applications requiring low
dropout performance at full rated current, Additionally,
the PJ1086 Series provides excellent regulation over variations
due to changes in line, load and temperature. Outstanding
features include low dropout performance at rated current, fast
transient response, internal current limiting and thermal
shutdown protection of the output device. The PJ1086 Series
are three
terminal regulators with fixed and adjustable voltage
options available in popular packages.
TO-220
TO-263
TO-252
FEATURES
•
•
•
•
•
•
•
•
•
Low dropout voltage 1.3V max.
Full current rating over line and temperature
Fast transient response
±2%Total
output regulation over line, load and
temperature
Adjust pin current max 120μA over temperature
Line regulation typical 0.015%.
Load regulation typical 0.05%.
Fixed/adjustable output voltage
TO-220 & TO-263 ,TO-252 package
Pin:1.Adj(com)
2.Out
3.In.
NOTE: Contact factory for additional voltage option.
ORDERING INFORMATION
Device
PJ1086CZ
PJ1086CZ-2.5
PJ1086CZ-3.3
PJ1086CM
PJ1086CM-2.5
PJ1086CM-3.3
PJ1086CP
PJ1086CP-2.5
PJ1086CP-3.3
TO-252
-20℃〜+85℃
TO-263
TO-220
Operating Temperature
(Ambient)
Package
BLOCK DIAGRAM
ABSOLUTE MAXIMUM RATING
Parameter
Input Voltage
Power Dissipation
Thermal Resistance Junction to Case
Thermal Resistance Junction to Ambient
Operating Junction Temperature Range
Operating Ambient Temperature Range
Storage Temperature Range
Lead Temperature(Soldering) 10 Sec.
1-6
Symbol
V
IN
P
D
θ
JC
θ
JA
T
J
T
A
T
STG
T
LEAD
Maximum
7
Internally Limited
2.5
50
0 to +125
-20 to +85
-25 to 150
260
2002.rev.A
℃
Units
V
W
℃/W
PJ1086
1.5 Amp Low Dropout Positive Voltage Regulators
ELECTRICAL CHARACTERISTICS
Unless otherwise specified, Adjust VIN=2.75V to 12V and Adjust Io=10mA to 1.5A
Fixed VIN=4.75V to 12V and Fixed Io=10mA to 1.5A
Test Conditions
Parameter
Output Voltage
(1)
Fixed Voltage
Reference Voltage
(1)
Adj Voltage
Line Regulation
(1)
(Vin-Vout=3V)
Load Regulation
(1)
(Vin-Vout=3V)
Dropout Voltage
ΔV
REF
=1%
Current Limit
(Vin-Vout=5V)
Quiescent Current
Fixed Model
Temperature Coefficient
Adjust Pin Current
I
Q
Tc
I
ADJ
25
5V
Ic
L
Over Temp.
12
0.005
55
120
Adjust Pin Current Change
Temperature Stability
Minimum Load Current
Adjust Model
RMS Output Noise
(2)
Ripple Rejection Ratio
(3)
ΔI
ADJ
Ts
Io
V
N
R
A
5V
1.5A
5V
5V
25
Over Temp.
60
500mA Over Temp.
0.2
0.5
5
0.003
72
10
5
%
mA
%Vo
dB
μA
14
mA
%/℃
1.6
V
D
REG
(LOAD)
REG
(LINE)
10mA
V
REF
5V
10mA
Symbol
Vo
V
IN
-V
OUT
5V
I
O
10mA
T
J(4)
25
Over Temp.
25
Over Temp.
25
Over Temp.
25
Over Temp.
25
Min
0.99|Vo|
0.98|Vo|
1.238
1.225
0.015
0.035
0.05
0.2
1
1.1
2.5
1.3
A
0.3
0.4
V
%
1.250
Test Limits
Typ
Vo
Max
1.01|Vo|
1.02|Vo|
1.262
1.275
0.2
V
Units
(1)Low duty cycle pulse testing with Kelvin connections required.
(2)Bandwidth of 10Hz to 10KHz.
(3)120Hz input ripple (C
ADJ
for ADJ) =25μF .
(4)Over Temp.-over specified operating junction temperature range.
2-6
2002.rev.A
PJ1086
1.5 Amp Low Dropout Positive Voltage Regulators

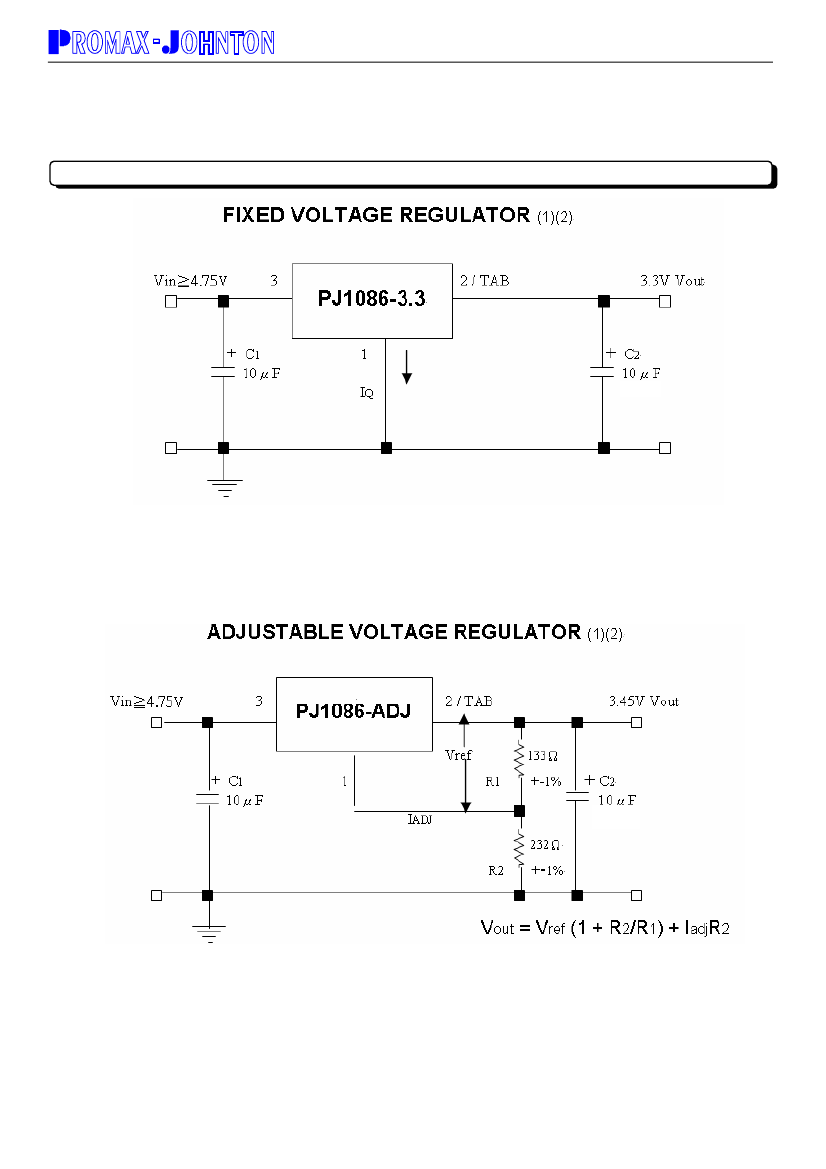

Typical Application Circuit
(1) C
1
NEEDED IF DEVICE IS FAR FROM FILTER CAPACITORS
(2) C
2
REQUIRED FOR STABILITY
(1) C
1
NEEDED IF DEVICE IS FAR FROM FILTER CAPACITORS
(2) C
2
REQUIRED FOR STABILITY
3-6
2002.rev.A
PJ1086
1.5 Amp Low Dropout Positive Voltage Regulators
4-6
2002.rev.A
PJ1086
1.5 Amp Low Dropout Positive Voltage Regulators
TO-220 Mechanical drawing
TO-220 DIMENSION
MILLIMETERS
INCHES
MIN
MAX
MIN MAX
10.00
10.50
0.394 0.413
3.24
4.44
0.128 0.175
2.44
2.94
0.096 0.116
3.565
4.315
0.140 0.170
0.68
0.92
0.027 0.036
1.115
1.485
0.044 0.058
2.345
2.715
0.092 0.107
13.49
14.31
0.531 0.563
4.475
5.225
0.176 0.206
1.15
1.39
0.045 0.055
27.78
29.62
1.094 1.166
2.175
2.925
0.086 0.115
0.297
0.477
0.012 0.019
8.28
8.80
0.326 0.346
14.29
15.31
0.563 0.603
6.01
6.51
0.237 0.256
DIM
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
TO-263 Mechanical drawing
DIM
A
B
C
D
E
F
G
H
I
J
TO-263 DIMENSION
MILLIMETER
INCHES
S
MIN
MAX
MIN
MAX
10.00
10.50
0.394 0.413
14.60
15.87
0.575 0.625
0.68
0.92
0.027 0.036
2.42
2.66
0.095 0.105
4.31
4.83
0.170 0.190
1.14
1.40
0.045 0.055
2.28
2.79
0.090 0.110
0.45
0.73
0.018 0.029
8.28
8.80
0.326 0.346
1.14
1.4
0.045 0.055
5-6
2002.rev.A
