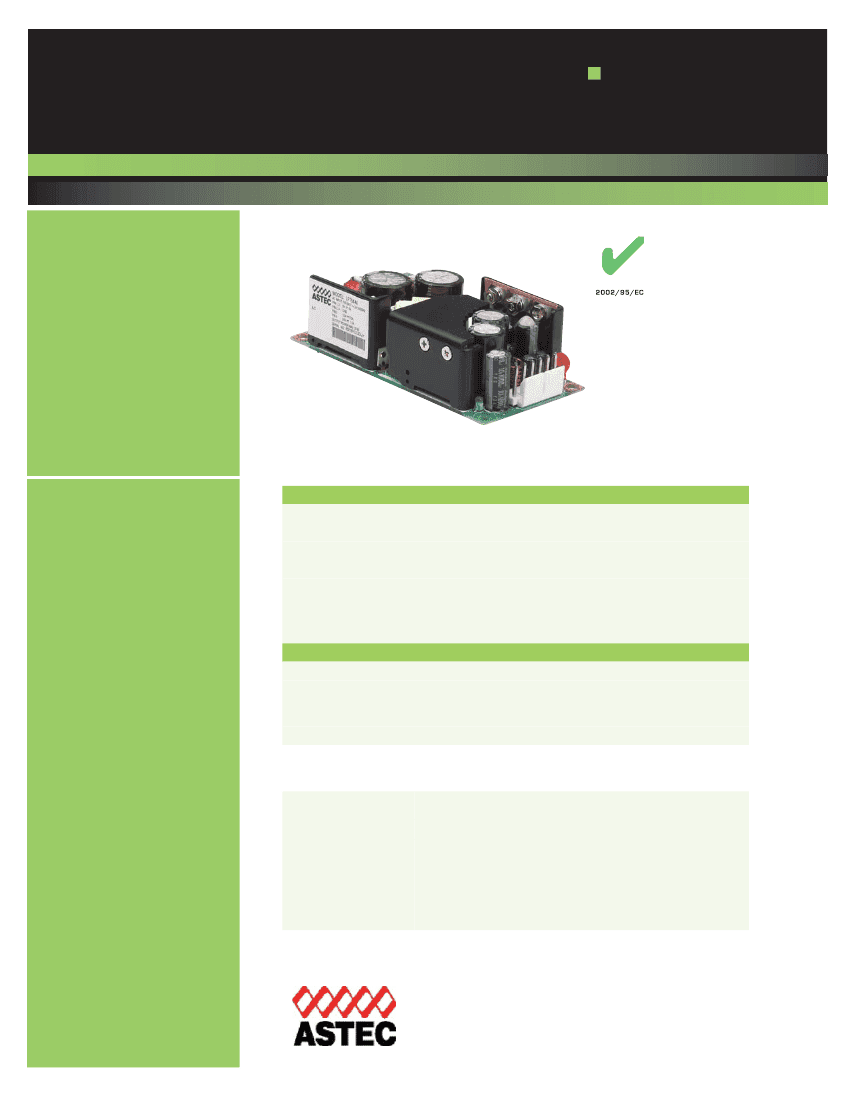

LPT50 Series
50 Watts
Total Power:
Input Voltage:
# of Outputs:
47 - 50 Watts
90-264 VAC
127-300 VDC
Triple
Rev. 03.26.07
LPT50 Series
1 of 3
RoHS
Electrical Specifications
Input
Special Features
• Universal input
• 2" x 4" footprint
• Less than 1U high
• Overpower and short circuit
protection
• High efficiency
• High MTBF
• Built in EMI filter
(CISPR 22 Class B)
• LED power good indicator
• Input power <74 watts
• Complies with EN61000 -3-2
• UL Class I approved
• LPX50 enclosure kit available
Input range
Frequency
Inrush current
Efficiency
EMI RFI
Safety ground
leakage current
90-264 VAC (wide range) 127-300 VDC
47-440 Hz
<60 A peak @ 230 VAC, cold start @ 25°C
80% typical at full load
FCC Class B conducted; CISPR 22 Class B conducted: EN55022
Class B conducted
0.5mA @ 50/60 Hz, 264 VAC input
Output
Maximum power
50 W for convection (LPT51, 47.4W)
Hold-up time
10/20 ms 115/230 VAC input line
Overpower protection Short circuit protection on all outputs
Case overpower protected @ 110 -160% of normal rating
Overvoltage protection 30-50% above nominal output
Environmental Specifications
Safety
UL
CSA
TUV
CB
CE
UL 60950-1
CSA-C22.2 No. 60950-1
EN60950-1
Certificate and report
LVD & EMC
Operating temperature: 0° to 50°C ambient. Derate each output 2.5% per degree
from 50° to 70°C. -20°C start up
Storage temperature:
-40°C to +85°C
Electromagnetic
susceptibility:
Designed to meet EN61000-4; -2, -3, -4, -5, -6, -8, -11 Level 3
Humidity:
Vibration:
MTBF demonstrated:
Operating; non-condensing 10% to 95% RH
IEC68-2-6 to the levels of IEC721-3-2
>550,000 hours at full load and 25°C ambient conditions
Embedded Power for
Business-Critical Continuity
Rev. 03.26.07
LPT50 Series
2 of 3
Ordering Information
Output
Model Number
Voltage
LPT51
+3.3V
+5V
+12V
+5V
+12V
-12V
+5V
+15V
-15V
+5V
+24V
+12V
Minimum
Load
0.8A
0.1A
0A
0.5A
0.1A
0A
0.5A
0.1A
0A
0.5A
0.1A
0A
Maximum Load
with Convection
Cooling
8A
3A
0.5A
8A
3A
0.5A
8A
2.4A
0.5A
8A
1.5A
0.5A
Peak Load 1 Regulation 2 Ripple P/P (PARD)3
9A
4A
1A
9A
4A
1.0A
9A
3.2A
0.7A
9A
2A
0.7A
±2%
±6%
±5%
±2%
±5%
±5%
±2%
±5%
±5%
±2%
±7%
±5%
50 mV
50mV
120mV
50 mV
120mV
120mV
50 mV
150mV
150mV
50 mV
240mV
120mV
LPT52
LPT53
LPT54
1. Peak current lasting <15 seconds with a maximum 10% duty cycle.
2. At 25°C including initial tolerance, line voltage, load currents and output voltages adjusted to factory settings.
3. Peak-to-peak with 20 MHz bandwidth and 10 μF (tantalum capacitor) in parallel with a 0.1 μF capacitor at rated line
voltage and load ranges.
Pin Assignments
Connector LPT51
SK1-1
SK1-3
SK2-1
SK2- 2
SK2- 3
SK2-4
SK2-5
SK2-6
Neutral
Line
+3.3 V
+3.3 V
Common
Common
12V
5V
LPT52
Neutral
Line
+5 V
+5 V
Common
Common
-12V
+12V
LPT53
Neutral
Line
+5V
+5V
Common
Common
-15V
+15V
LPT54
Neutral
Line
+5V
+5V
Common
Common
+12V
+24
Mating Connectors
Molex 09-50-8031 (USA)
09-91-0300 (UK)
PINS: 08-52-0113
DC Outputs: Molex 09-50-8061 (USA)
09-91-0600 (UK)
PINS: 08-52-0113
Astec Connector Kit #70-841-006, includes all of the above
1.
2.
3.
4.
5.
Specifications subject to change without notice.
All dimensions in inches (mm), tolerance is ±0.02" (±0.5mm)
Mounting holes M1 and M2 should be grounded for EMI purposes.
Mounting hole M1 is safety ground connection.
Specifications are for convection rating at factory settings at 115
VAC input, 25°C unless otherwise stated.
6. Warranty: 2 year
7. Weight: 0.45lbs/0.20kg
AC Input:
Embedded Power for
Business-Critical Continuity

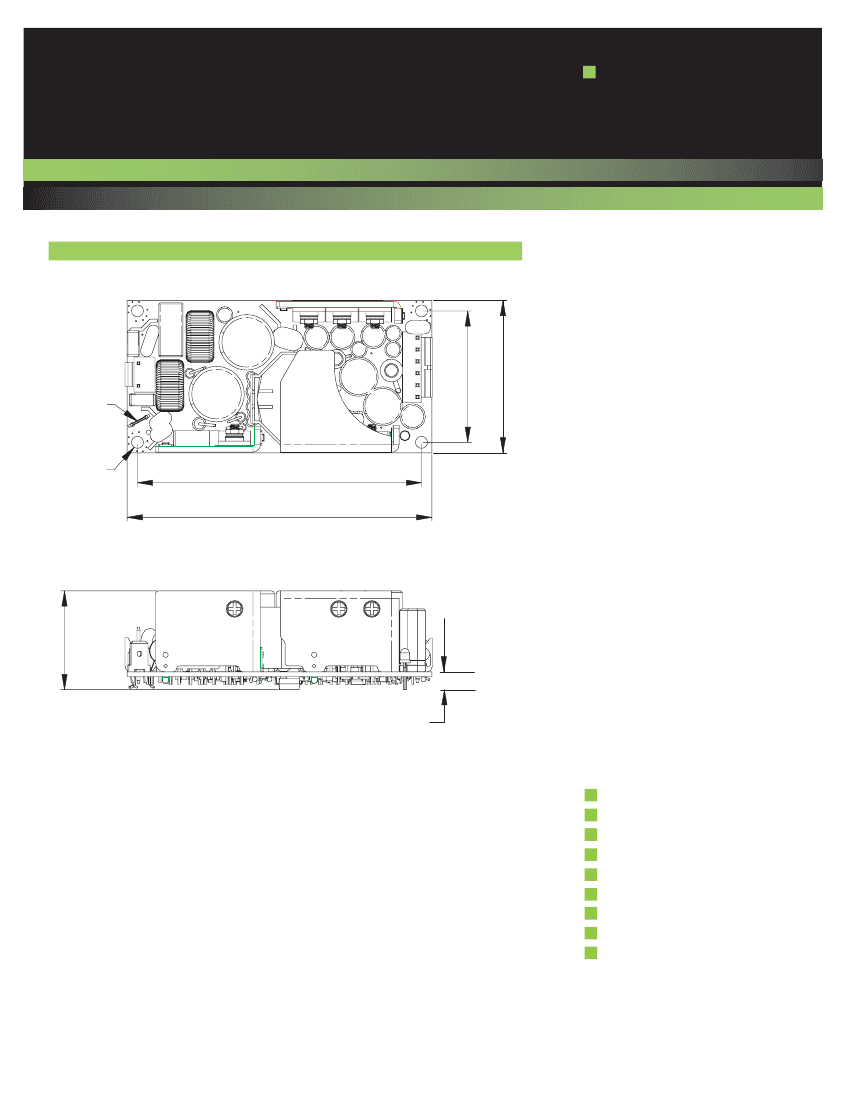

Mechanical Drawing
