SCHOTTKY DIE SPECIFICATION
Product Name: BWS-40-40-SA
General Description:
SYM
VBRM
IFAV
VF MAX
40mil
40V
Standard Barrier
UNIT
Volt
Amp
Volt
ELECTRICAL CHARACTERISTICS
Reverse Breakdown Voltage: Ir=0.20mA
Average Rectified Forward Current
Maximum Instantaneous Forward Voltage
@ 2 Amperes, Ta=25℃
Maximum Instantaneous Reverse Current
VR= 43
Volt, Ta=25℃
MAXIMUM RATINGS
Nonrepetitive Peak Surge Current
Semi-Sine Wave, Duty = 8.3ms、1cycle
Operating Junction Temperature
Storage Temperatures
guarantee device performance after assembly.
Spec. Limit
45
2.0
0.50
IR MAX
0.045
mA
IFSM
Tj
TSTG
50
125
-50 to +125
Amp
℃
℃
BW does not
1. Specification is applied to die only. Actual performance may degrade when assembled.
2. Suggest to storage in Nitrogen cabinet, 45-60% RH, 22-26
℃
for 6 months.
3. Data sheet information is subjected to change without notice.
4. Suggest Soldering profile (Pb92.5%,5%Sn,Ag2.5%): Soldering peak Temp. 340~350
℃
3~5min.

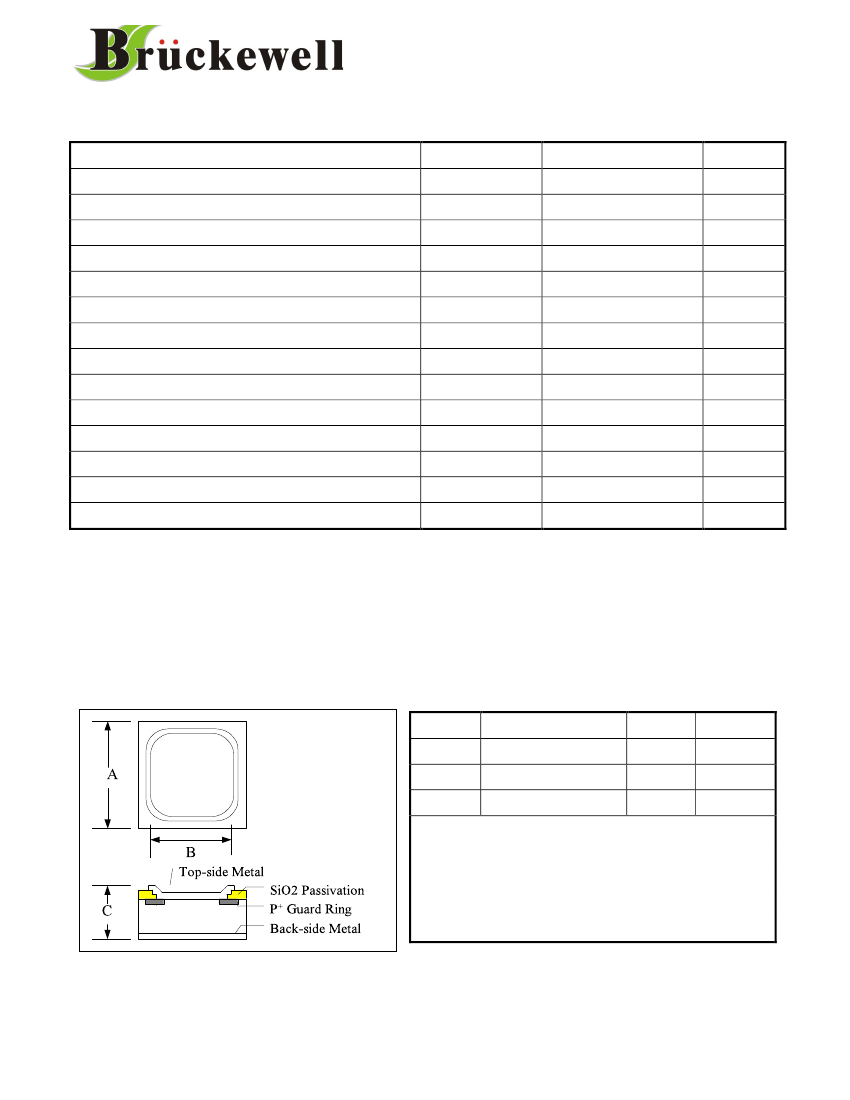

DICE
OUTLINE
DRAWING
DIM
A
B
C
Die Size
ITEM
μ
m
1016
796
280
Mil
40.00
31.34
11.00
Top Metal Pad Size
Thickness
(1)Cutting street width is around 20µm.
(2)Both of top-side and back-side metals are Ti/Ni/Ag.
(3) Top-side Ti/Ni thk: 0.42um, Ag thk: 3.5um
(4) Thickness(C) tolerance: +/-10um
