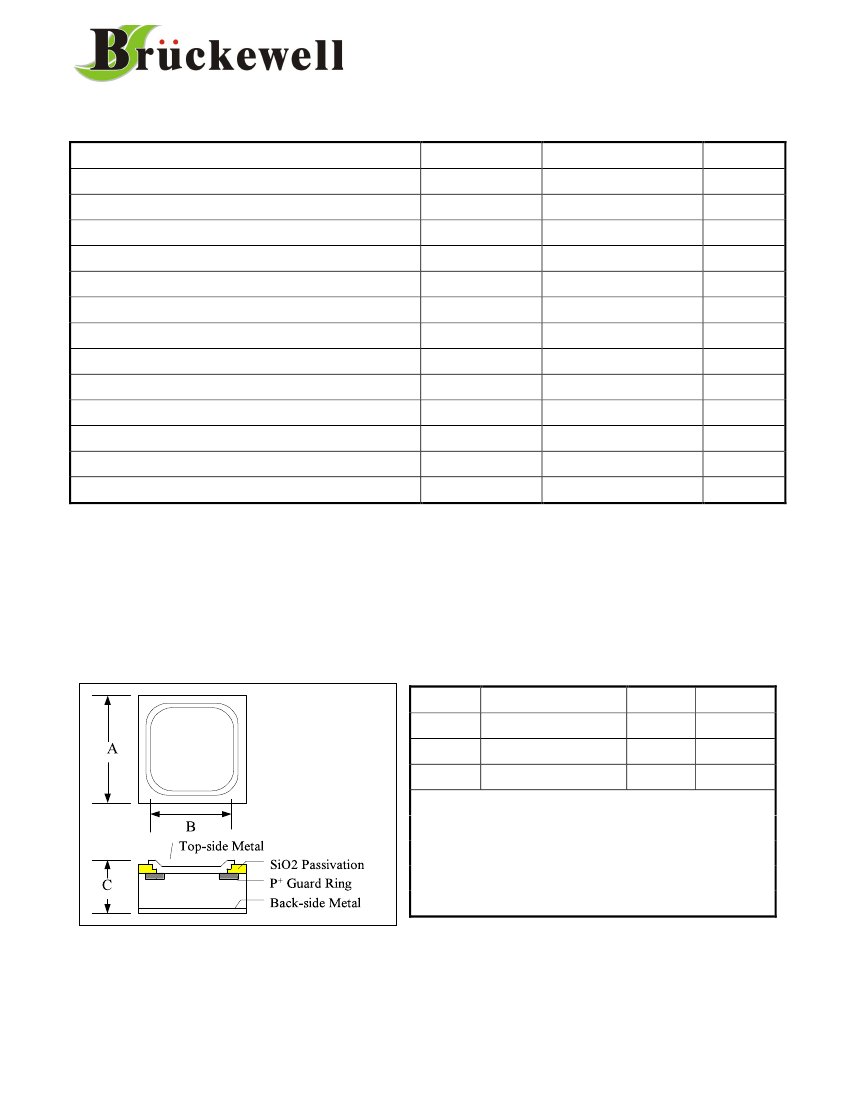

SCHOTTKY DIE SPECIFICATION

Product Name: BWS-45-100-MA

General Description:

SYM

VBRM

IFAV

VF MAX

IR MAX

45mil

100V

High Barrier

UNIT

Volt

Amp

Volt

ELECTRICAL CHARACTERISTICS

Reverse Breakdown Voltage: Ir=0.10mA

Average Rectified Forward Current

Maximum Instantaneous Forward Voltage

@ 2 Amperes, Ta=25℃

Maximum Instantaneous Reverse Current

VR= 103

Volt, Ta=25℃

MAXIMUM RATINGS

Nonrepetitive Peak Surge Current

Semi-Sine Wave, Duty = 8.3ms、1cycle

Operating Junction Temperature

Storage Temperatures

guarantee device performance after assembly.

Spec. Limit

105

2.0

0.790

IFSM

TSTG

150

-50 to +150

Amp

℃

BW does not

1. Specification is applied to die only. Actual performance may degrade when assembled.

2. Suggest to storage in Nitrogen cabinet, 45-60% RH, 22-26

℃

for 6 months.

3. Data sheet information is subjected to change without notice.

4. Suggest Soldering profile (Pb92.5%,5%Sn,Ag2.5%): Soldering peak Temp. 340~350

℃

3~5min.

DICE OUTLINE DRAWING

DIM

Die Size

ITEM

1143

963

280

Mil

45.00

37.91

11.00

Top Metal Pad Size

Thickness

(1)Cutting street width is around 60µm.

(2)Both of top-side and back-side metals are Ti/Ni/Ag.

(3) Top-side Ti/Ni thk: 0.42um, Ag thk: 3.5um

(4) Thickness(C) tolerance: +/-10um
