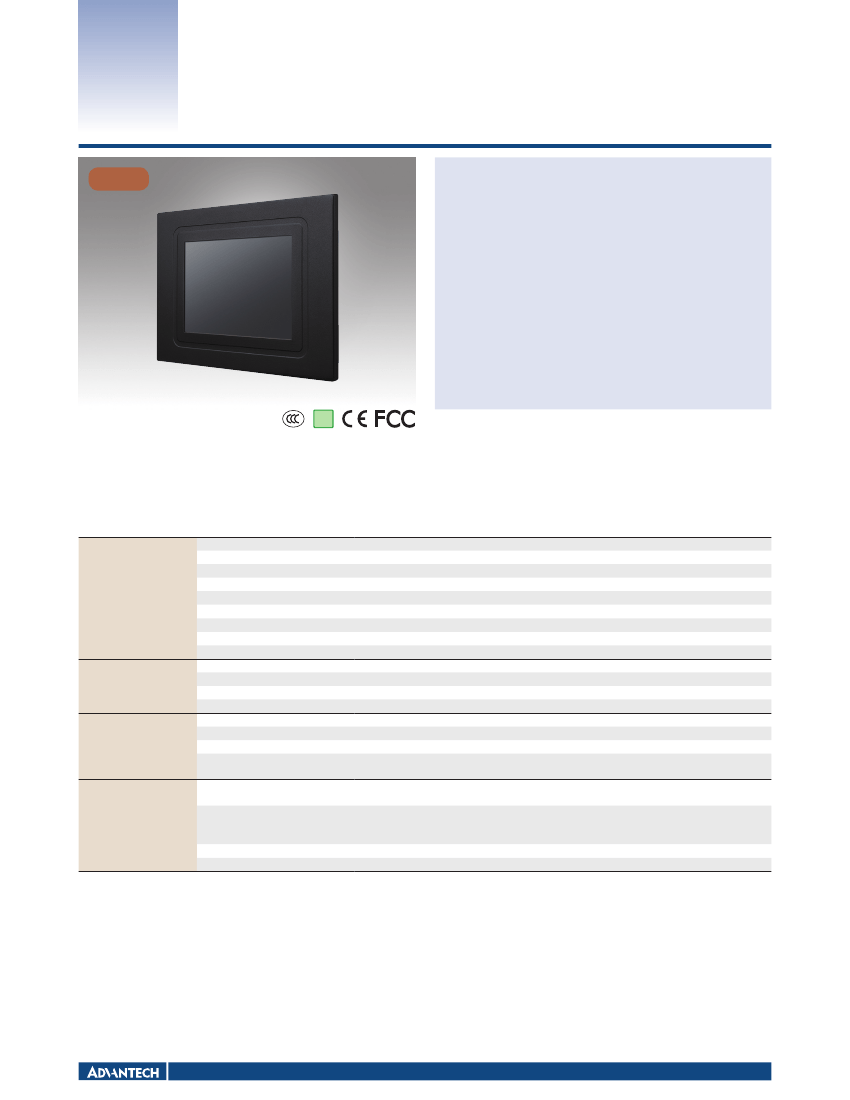

IDS-3206
NEW
6.5" VGA Industrial Panel Mount Monitor
Features
6.5" VGA LCD panel with LED backlight for 20% power saving and
environmental protection
0° C ~ +50° C range operating temperature
4-wire resistive touchscreen solution or 3mm tempered smudge resistant
protected glass
USB touch interface
Dual signal interface with VGA & DVI
Standard integrated frame
Versatile mounting method for rear mounting and VESA mounting
Anti-reflective treatment for sunlight readable enhancement (optional)
RoHS
COMPLIANT
2002/95/EC
Introduction
The Advantech IDS-3206 Embedded Industrial Panel Mount Monitor series offers flexible options for LCD, touchscreen, signal interface and chassis mounting. The series with standard
integrated frame design, supports rear and VESA mounting which brings the benefits of easy installation and provide flexibility for different applications.
Specifications
Model
Size
Resolution
Viewing Angle
Brightness
Color Support
Contrast Ratio
Response Time
Backlight Life (hrs)
T/S Type
Surface Hardness
Durability
Transparency
Operating Temperature
Storage Temperature
Humidity
Vibration
I/O
System
OSD
Power
EMC Compliance
IDS-3206
6.5" LED panel
640 x 480 (VGA)
80°/80° (H), 70°/70° (V)
800 (cd/m
2
)
16.2M/262K colors
600:1
25 [msec]
50,000 hrs
4-Wire Resistive Touch Screen
3H
1 million touches
80% ± 3%
0~ 50° C (32 ~ 122° F)
-20 ~ 60° C ( -4 ~ 140° F)
5 ~ 95% @ 40° C, non-condensing
5-500Hz, 0.026G²/Hz, 2.16Grms, X, Y, Z
1 hour per axis
VGA x1; DVI-D x 1; 12 V
DC
Jack x 1; USB x 1
(USB is reserved for the connection to enable touch usage only)
Keys: Menu, Up, Down, Auto Adjust, Monitor Power on/off
Menu Functions: Brightness, Contrast, Screen Setting, Color Temp, Language OSD Settings, VGA/DVI,
Recall, Auto Adjust.
36 W power adapter, with AC 100 ~ 240 V input and DC +12V @ 3 A output
CE/FCC/CCC
Display
Touchscreen
Environment
Industrial Display Solutions
All product specifications are subject to change without notice
Last updated: 18-Mar-2016

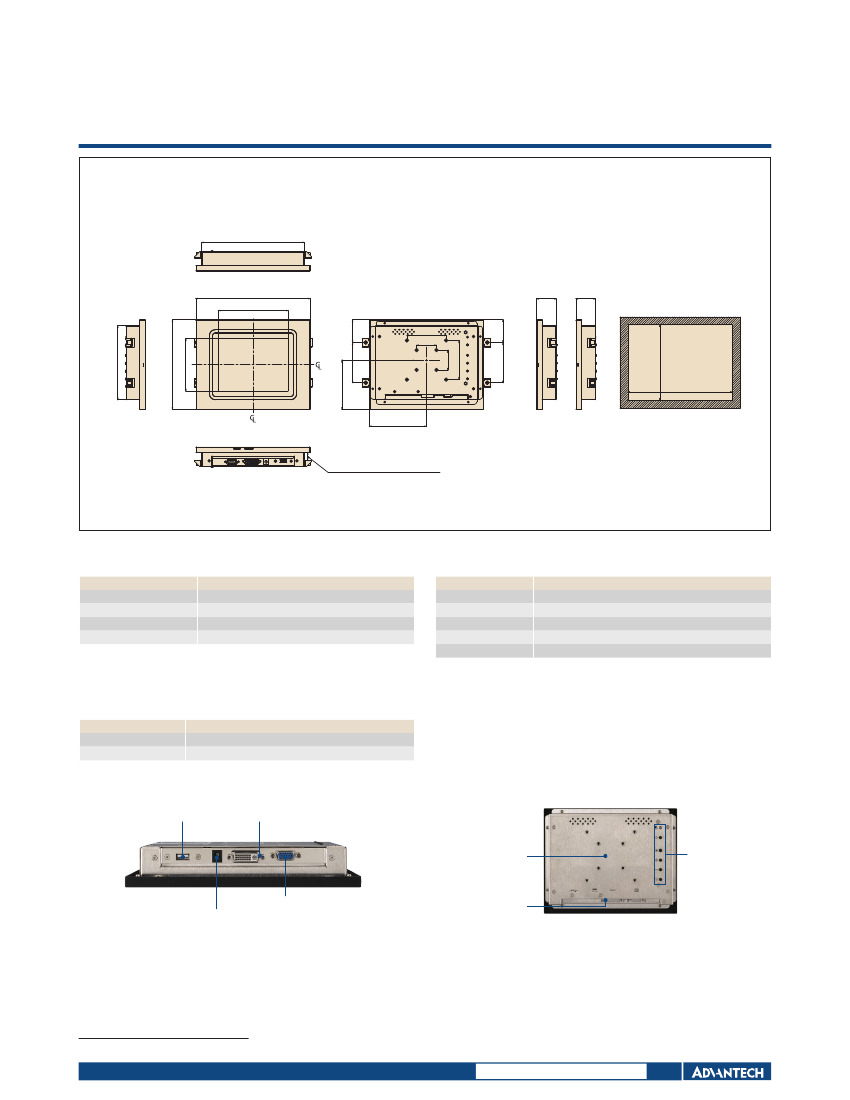

IDS-3206
Dimensions
197
Unit: mm
219
133.4
43.5
75
38
38
75
43.5
37.66(R) 37.66(G)
145±1
142
171.8
100.4
94.8
77
77
CUT OUT
200±1
109.5
Suggested Wall Thickness: 4 ~ 16 mm
Packing List
Part Number
1700002215
1700021332-01
1962055040
1935042520
Description
1 x M Cable USB-A(M)/USB-A(M) 180CM
1 x VGA cable 15P(M) 1.8 meter
4 x Clamper
4 x Screw of clamper M4_25L
Optional Items
Part Number
1700001524
170203183C
1700008921
96PSA-A36W12R1
1700000243-11
Description
3-Pin Power Cord (USA)
3-Pin Power Cord (EU)
3-Pin Power Cord with PSE (Japan)
Adaptor AC100-240V 36W +12V/3A
M cable DVI 19P(M)/DVI 19P(M) 191cm
* USB Cable is only included in IDS-3106R series.
Note: Package contents are subject to change without prior notice
Ordering Information
Model Name
IDS-3206G-80VGA1E
IDS-3206R-80VGA1E
Description
6.5" VGA 800cd/m
2
LED Panel Mount Monitor
6.5" VGA 800cd/m
2
LED Panel Mount Touch Monitor
IO view
Touchscreen (USB)
DVI port
Rear View
OSD Key
VESA Mounting
• 38 x 38 mm
• 75 x 75 mm
• Power
• Menu
• Auto
• Adjust +
• Adjust –
I/O Port
VGA port
12V DC Power
• 12V DC
• VGA
• DVI
• USB
For more compatible embedded board solution, please visit our Build Your display web page as bellow
http://www.advantech.com/buildyourdisplay
