IDS-3212
NEW
12" SVGA / XGA Industrial Panel Mount Monitor
Features
12.1" SVGA / XGA LCD panel with LED backlight for 20% power savings, and
environmental protection
-20° C ~ +60° C wide range operating temperature
5-wire resistive touch screen solution or 3mm tempered smudge resistant
protected glass
Combo touch interface, both RS-232 and USB
Dual signal interface with VGA & DVI
Standard integrated frame
Versatile mounting method for rear mounting and VESA mounting
Anti-Reflective treatment (optional)
Ultra high brightness solution of 1200 cd/m
2
for outdoor applications
(optional)
RoHS
COMPLIANT
2002/95/EC
Introduction
The Advantech IDS-3212 Embedded Industrial Panel Mount Monitor series offers flexible options for LCD, touchscreen, signal interface and chassis mounting. The series with standard
integrated frame design, supports rear and VESA mounting which brings the benefits of easy installation, and flexibility for different applications.
Specifications
Model
Size
Resolution
Viewing Angle
Brightness
Color Support
Contrast Ratio
Response Time
Backlight Life (hrs)
T/S Type
Surface Hardness
Durability
Transparency
Operating Temperature
Storage Temperature
Humidity
Vibration
IDS-3212 (XGA)
IDS-3212 (SVGA)
IDS-3212E (SVGA)
12.1" LED panel
12.1" LED panel
12.1" LED panel
1024 x 768 (XGA)
800 x 600 (SVGA)
800 x 600 (SVGA)
80°/80° (H), 70°/70° (V)
80°/80° (H), 65°/75° (V)
80°/80° (H), 65°/75° (V)
600 (cd/m
2
)
450 (cd/m
2
)
450 (cd/m
2
)
16.2M/262K colors
16.2M/262K colors
16.2M/262K colors
700:1
700:1
700:1
16 [msec]
35 [msec]
35 [msec]
50,000 hrs
50,000 hrs
50,000 hrs
5-Wire Resistive Touch Screen
3H
10 million touches
80% ± 3%
-20 ~ 60° C (-4 ~ 140° F)
-20 ~ 60° C (-4 ~ 140° F)
0~ 45° C (32 ~ 113° F)
-30 ~ 70° C (-22 ~ 158° F)
-30 ~ 70° C (-22 ~ 158° F)
-20 ~ 60° C ( -4 ~ 140° F)
5 ~ 95% @ 40° C, non-condensing
5-500Hz, 0.026G²/Hz, 2.16Grms, X, Y, Z
1 hour per axis
VGA x 1; DVI-D x 1; 12V
DC
Jack
VGA x1; DVI-D x 1; 12 V
DC
Jack
VGA x 1; 12 V
DC
Jack x 1; USB x
x 1; USB x 1; RS-232 x 1 (USB
x 1; USB x 1; RS-232 x 1 (USB
1; RS-232 x 1 (USB & RS-232
& RS-232 are reserved for the
& RS-232 are reserved for the
are reserved for the connection to
connection to enable touch usage connection to enable touch usage
enable touch usage only)
only)
only)
Keys; Menu, Up, Down, Auto
Keys; Menu, Up, Down, Auto
Keys: Menu, Up, Down, Auto
Adjust, Monitor Power on/off
Adjust, Monitor Power on/off
Adjust, Monitor Power on/off
Menu Function: Brightness,
Menu Functions: Brightness,
Menu Functions: Brightness,
Contrast, Screen Setting, Color
Contrast, Screen Setting, Color
Contrast, Color Adjust, Color
Temp, Language OSD settings,
Temp, Language OSD Settings,
Temp, Auto Color, and Language
VGA/DVI, Recall, Auto Adjust
VGA/DVI, Recall, Auto Adjust.
36 W power adapter, with AC 100 ~ 240 V input and DC +12V @ 3 A output
CE/FCC/CCC
Display
Touchscreen
Environment
I/O
System
OSD
Power
EMC Compliance
Industrial Display Solutions
All product specifications are subject to change without notice
Last updated: 18-Mar-2016

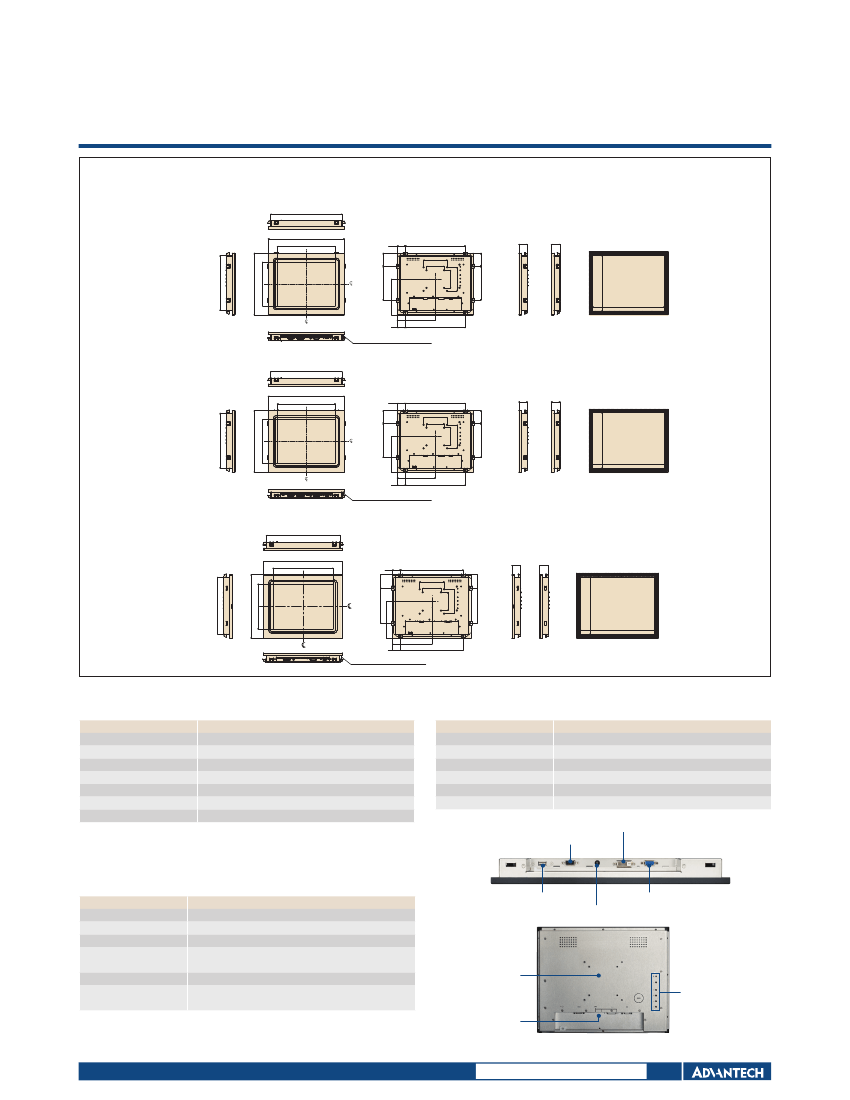

IDS-3212
Dimensions
IDS-3212 (XGA) Series
302.2
323.7
247
55.2
33.35
257
100
75
75
100
Unit: mm
36.5(R)
55.2
36.5(G)
237.06±1
36.5(R)
36.5(G)
237.06±1
36.5(ER) 36.5(EG)
237.06±1
262.4
186
234
145
151.8
145
CUT OUT
305.2±1
33.35
161.85
257
Suggested Wall Thickness: 4 ~ 16 mm
IDS-3212 (SVGA) Series
302.2
323.7
247
55.2
33.35
257
100
75
75
100
262.4
186
234
55.2
145
151.8
145
CUT OUT
305.2±1
33.35
161.85
257
Suggested Wall Thickness: 4 ~ 16 mm
IDS-3212E (SVGA) Series
302.2
323.7
247
55.2
33.35
257
100
75
75
100
55.2
145
151.8
262.4
186
234
145
CUT OUT
305.2±1
33.35
161.85
257
Suggested Wall Thickness: 4 ~ 16 mm
Packing List
Part Number
1700002215
1700021332-01
1962055040
1935042520
1992610005
1933030500
1992602010
Description
1 x M Cable USB-A(M)/USB-A(M) 180CM
1 x VGA cable 15P(M) 180 cm
4 x Clamper
4 x Screw of clamper M4_25L
1 x Cable clamp
1 x Screw of cable clamp
1 x Cable tie
Optional Items
Part Number
1700001524
170203183C
1700008921
96PSA-A36W12R1
1700000243-11
1700091800
Description
3-Pin Power Cord (USA)
3-Pin Power Cord (EU)
3-Pin Power Cord with PSE (Japan)
Adaptor AC100-240V 36W +12V/3A
M cable DVI 19P(M)/DVI 19P(M) 191cm
CABLE 9P/9P 1.8M M/F (T/S RS-232 Cable)
* USB Cable is only included with IDS-3212R and IDS-3212ER series. Note: Package
contents are subject to change without prior notice
IO view
DVI port
Touchscreen (RS-232)
Ordering Information
Model Name
IDS-3212G-60XGA1E
IDS-3212R-60XGA1E
IDS-3212G-45SVA1E
IDS-3212R-45SVA1E
IDS-3212EG-45SVA1E
IDS-3212ER-45SVA1E
Description
12.1" XGA 600 cd/m
2
LED Panel Mount Monitor
12.1" XGA 600 cd/m
2
LED Panel Mount Touch Monitor
12.1" SVGA 450 cd/m
2
LED Panel Mount Monitor
12.1" SVGA 450 cd/m
2
LED Panel Mount Touch
Monitor
12.1" SVGA 450 cd/m
2
LED Panel Mount Monitor
12.1" SVGA 450 cd/m
2
LED Panel Mount Touch
Monitor
Rear View
VESA Mounting
• 75 x 75mm
• 100 x100mm
Touchscreen (USB)
VGA port
12V DC Power
OSD Key
• Power
• Menu
• Auto
• Adjust +
• Adjust –
I/O Port
• 12V DC
• VGA
• DVI
• RS-232
• USB
Online Download
www.advantech.com/products
Embedded System
