PEL12S-2017F-N224 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> PEL12S-2017F-N224

PEL12S-2017F-N224: DescriptionRotary Position Encoder, Single, 2 Channels, ROHS COMPLIANT PACKAGE-5; CategoryLED optoelectronic/LED photoelectric; File Size368KB，4 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric View All

PEL12S-2017F-N224 Overview

Rotary Position Encoder, Single, 2 Channels, ROHS COMPLIANT PACKAGE-5

PEL12S-2017F-N224 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Bourns
package instruction	ROHS COMPLIANT PACKAGE-5
Reach Compliance Code	compliant
Configuration	SINGLE, 2 CHANNELS
Number of functions	1
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Optoelectronic device types	ROTARY POSITION ENCODER

Preview

Download Datasheet

View All

Features

■

Compact design, long life and high

reliability

■

Vertical and horizontal mount versions

■

Flatted and knurled shaft styles

■

Variety of LED colors available

PEL12S - 12 mm Encoder with Illuminated Shaft

Electrical Characteristics

Output ............................................................................................................................................................................................. 2-bit gray code

Closed Circuit Resistance ........................................................................................................................................................... 3 ohms maximum

Contact Rating .............................................................................................................................................................................. 0.5 mA @ 5 VDC

Insulation Resistance .....................................................................................................................................................100 megohms @ 250 VDC

Dielectric Withstanding Voltage

Sea Level ................................................................................................................................................................................ 300 VAC minimum

Electrical Travel...................................................................................................................................................................................... Continuous

Contact Bounce (15 RPM).........................................................................................................................................................2.0 ms. maximum**

RPM (Operating) ............................................................................................................................................................................. 100 maximum**

Environmental Characteristics

Operating Temperature Range .......................................................................................................................-10 °C to +70 °C (+14 °F to +158 °F)

Storage Temperature Range .......................................................................................................................... -40 °C to +85 °C (-40 °F to +185 °F)

Operating Humidity ................................................................................................................................................................... 25 % to 85 % R.H.

Rotational Life ....................................................................................................................................................................30,000 cycles minimum

IP Rating .......................................................................................................................................................................................................... IP 40

Mechanical Characteristics

Mechanical Angle ......................................................................................................................................................................... 360 ° continuous

Detent Torque ................................................................................................................................................. 30 to 200 g-cm (0.42 to 2.77 oz.-in.)

Running Torque ......................................................................................................................................................50 g-cm (0.69 oz-in.) maximum

Shaft Strength (Push-Pull) ............................................................................................................................................................... 5 kgf (11.0 lbs.)

Weight ............................................................................................................................................................................... 3 gm (0.1 oz.) maximum

Terminals ................................................................................................................................................................. Printed circuit board terminals

Soldering Condition

Wave Soldering ....................................................................Sn95.5/Ag2.8/Cu0.7 solder with no-clean ﬂux: 260 °C max. for 5 ± 1 seconds

Hand Soldering ..................................................................................................................................................................Not recommended

Hardware .............................................................................................................................................................................. No hardware supplied

How To Order

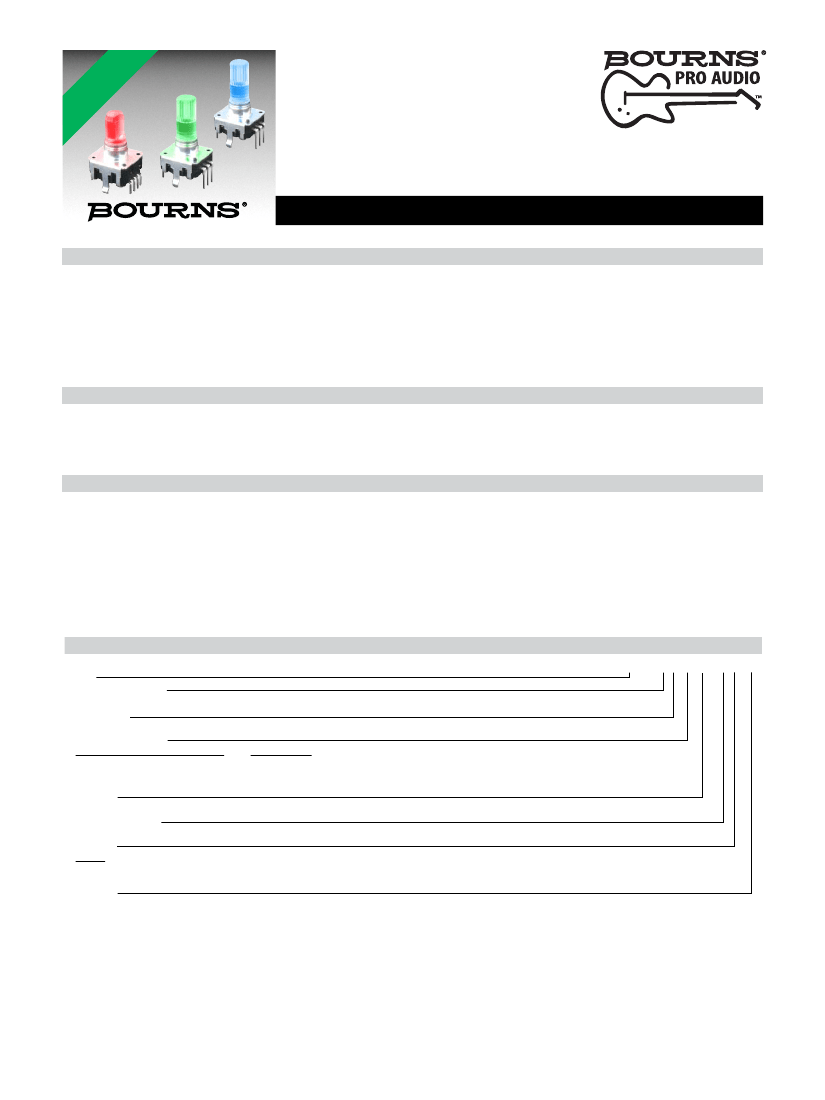

PEL12S - 4 0 20 F - N 1 024

Model

Terminal Conﬁguration

2 = Vertical Mount/Side Exit PC Pin

Detent Option

0 = No Detents

2 = 24 Detents

Standard Shaft Length

Flatted:

15 = 15.0 mm

25 = 25.0 mm

17 = 17.5 mm

30 = 30.0 mm

20 = 20.0 mm

Shaft Style

F = Insulated Flatted Shaft

Switch Conﬁguration

N = No Switch

LED Color

Single:

1 = Red

3 = Blue

2 = Green

4 = Orange

Resolution

024 = 24 Pulses per 360 ° Rotation

4 = Horizontal Mount/Rear Exit PC Pin

Knurled:

24 = 24.0 mm

S = Insulated Knurled Shaft (18 Teeth)

5 = White

*RoHS Directive 2002/95/EC Jan 27, 2003 including Annex.

**Devices are tested using standard noise reduction ﬁlters. For optimum performance, designers should use noise reduction ﬁlters in their circuits.

Speciﬁcations are subject to change without notice.

Customers should verify actual device performance in their speciﬁc applications.
