FHW0603UC075JGT datasheet, PDF

Datasheet> All Categories > Passive components> inductor> FHW0603UC075JGT

FHW0603UC075JGT: DescriptionGeneral Purpose Inductor, 0.075uH, 5%, 1 Element, Ceramic-Core, SMD, 0603, CHIP, 0603; CategoryPassive components inductor; File Size673KB，10 Pages; ManufacturerFenghua (HK) Electronics Ltd.

Download Datasheet Parametric View All

FHW0603UC075JGT Overview

General Purpose Inductor, 0.075uH, 5%, 1 Element, Ceramic-Core, SMD, 0603, CHIP, 0603

FHW0603UC075JGT Parametric

Parameter Name	Attribute value
Maker	Fenghua (HK) Electronics Ltd.
package instruction	CHIP, 0603
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	0603
structure	Wirewound Chip
core material	CERAMIC
DC Resistance	0.6 Ω
Nominal inductance(L)	0.075 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e4
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	0.95 mm
Package length	1.6 mm
Package form	SMT
Package width	0.8 mm
method of packing	TR
Minimum quality factor (at nominal inductance)	30
Maximum rated current	0.4 A
self resonant frequency	1400 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	GOLD
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	150 MHz
Tolerance	5%

Preview

Download Datasheet

View All

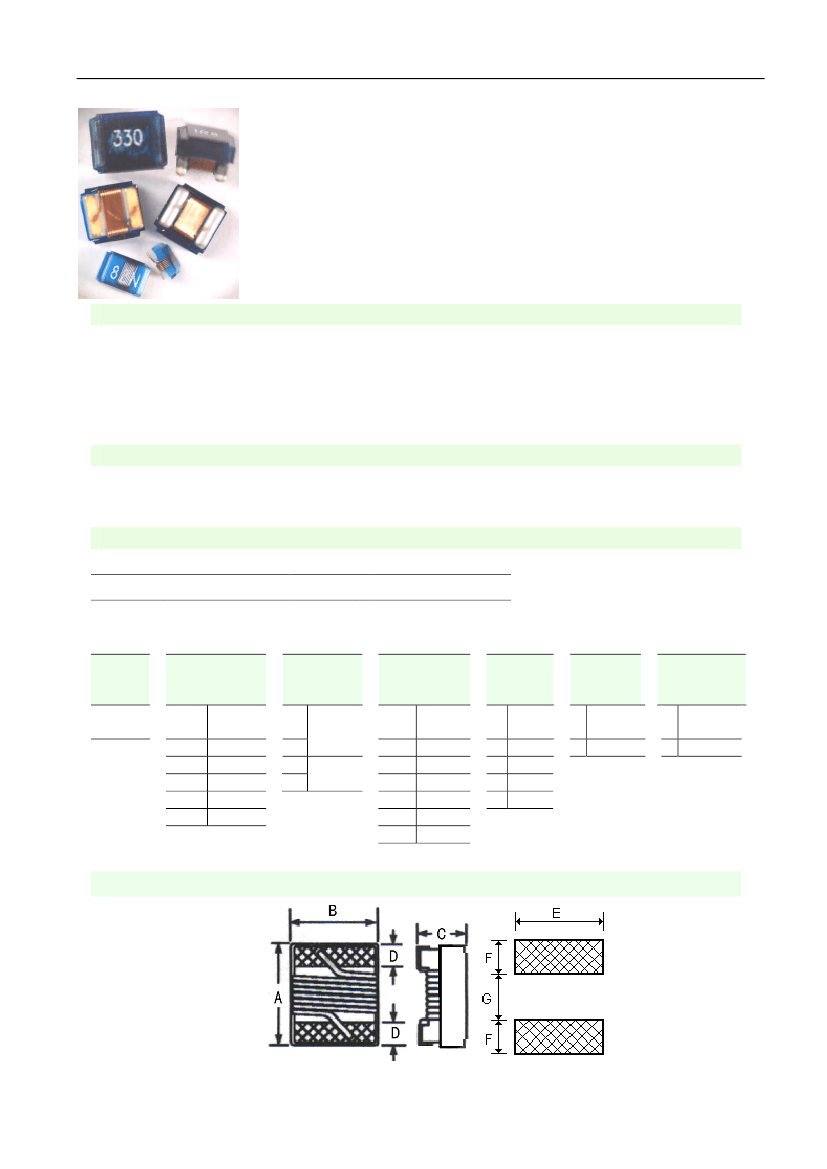

广东肇庆英达电感器件有限公司

GUANGDONG ZHAOQING YINGDA INDUCTOR CO.，LTD

表面贴装元件

SMD COMPONENTS

绕线型片式电感器 Wire Wound Chip Inductor

绕线型片式电感器是对传统电感器进行技术改进，缩小½积，把引线改为适

合表面贴装的端电极结构，是采用高精度的线圈骨架及高超的绕线技术相结合的

完美结合物。

Wire wound chip inductor is a perfect combine by means of combining hing

precision coil framework with superb wound technology. Comparable with

traditional inductor, it is improved technology, reduced volume and changed the

lead into a kind of terminal electrode structure suitable for SMT.

特征 FEATURES

·½积小，适合高密度表面贴装

·采用端电极结构，很½地抑制了引线引起的寄生

元件效应，具有高可靠性

·优良的焊接性和耐焊性

·更½的频率特性和更强的抗干扰½力

·Minature

size, suitable for SMT

Using terminal electrode structure to restrain the

parasitic component effect quite caused by lead;

·Execellent

in solderability and heat resistance;

·Best

frequency special property and intense ability to

resist interference.

应用 APPLICATIONS

·移动通信、PDA

·各种高频回路

·抑制各种高频杂波

·Portable

communication equipment and PDA

·High

speed electronic device

·Used

for radiation high speed noise suppression

产品规格型号表示方法 ORDERING CODE

FHW

①

产品代号

Code

0805

②

规格尺寸

Dimensions

(L×W) (mm)

③

材料

068

④

⑤

④

感量(nH)

⑥

⑦

⑤

误差(%)

Tolerance

⑥

电极

Terminal

⑦

包装方式

Packaging Style

卷带盘装

Tape&Reel

Meterial

Inductance

FHW

0402

0603

0805

1008

1210

1812

1.0×0.5

1.6×0.8

2.0×1.2

2.5×2.0

3.2×2.5

4.5×3.2

陶瓷芯

Ceramic

1N0

010

R10

1R0

100

101

102

1.0

100

1000

10000

100000

1000000

±1

±2

±5

±10

±20

G GOLD

S TIN

散装

Bulk

铁氧½芯

IF Ferrite

外½尺寸 Dimensions
