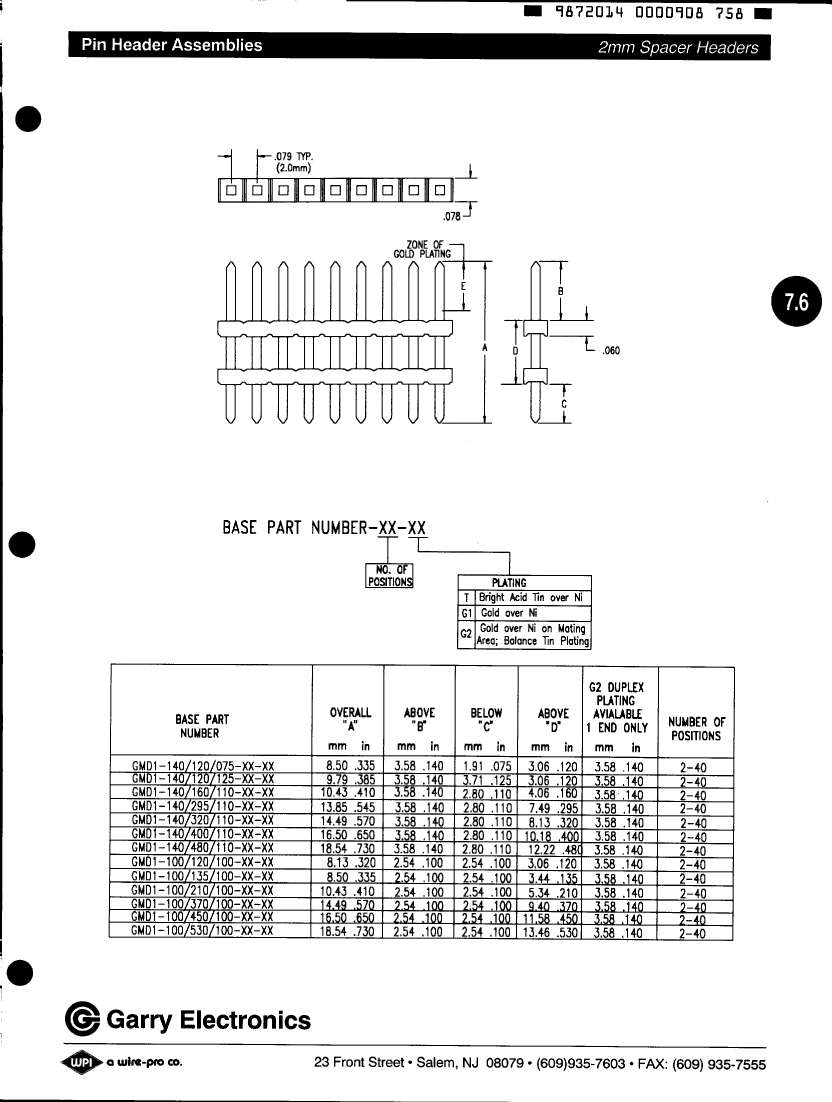

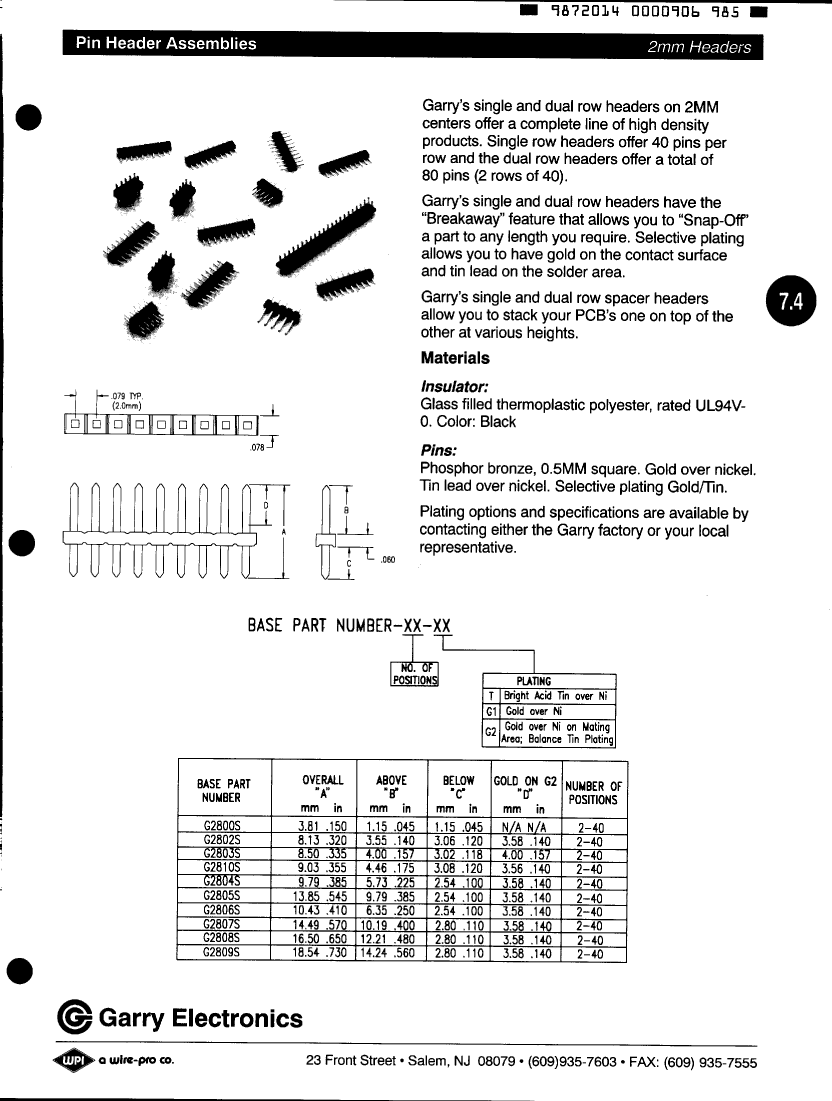

GMD1-140/120/075-11-G1: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,11 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL,BLACK; CategoryThe connector The connector; File Size174KB，2 Pages; ManufacturerCooper Industries

Download Datasheet Parametric View All

GMD1-140/120/075-11-G1 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,11 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL,BLACK

Parameter Name	Attribute value
Maker	Cooper Industries
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.078 inch
subject depth	0.12 inch
body length	0.869 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Insulator color	BLACK
insulator material	POLYESTER
Manufacturer's serial number	GMD1
Plug contact pitch	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
PCB contact pattern	RECTANGULAR
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.075 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	11
