UMS-300-R16-
G OCTAVE
BAND VOLT-
AGE CON-
TROLLED
OSCILLATOR
UMS-300-R16-G
OCTAVE BAND VOLTAGE CONTROLLED
OSCILLATOR
Package: R16, 12.7mm x 12.7mm x 4.57mm
V
CC
Features
Octave Band Tuning
Frequency: 150MHz to 300MHz
Resonator: Microstrip
PCB: Rogers
Package Size: 12.7mm x
12.7mm x 4.57mm (0.5in x 0.5in
x 0.18in)
Voltage Controlled Oscillator (VCO)
V
TUNE
Tank Circuit
Resonator
Active
Circuit
RF Output
Applications
Wide Band Applications
Built-in Test Applications
First LO Applications
Frequency Sythesizers
Functional Block Diagram
Product Description
This series of VCO modules features full octave bands (typical), low phase noise,
low harmonics, and linear tuning.
Ordering Information
UMS-300-R16-G
Contact us at 1-480-756-6070
Optimum Technology Matching® Applied
GaAs HBT
GaAs MESFET
InGaP HBT
SiGe BiCMOS
Si BiCMOS
SiGe HBT
GaAs pHEMT
Si CMOS
Si BJT
GaN HEMT
BiFET HBT
LDMOS
RF MICRO DEVICES®, RFMD®, Optimum Technology Matching®, Enabling Wireless Connectivity™, PowerStar®, POLARIS™ TOTAL RADIO™ and UltimateBlue™ are trademarks of RFMD, LLC. BLUETOOTH is a trade-
mark owned by Bluetooth SIG, Inc., U.S.A. and licensed for use by RFMD. All other trade names, trademarks and registered trademarks are the property of their respective owners. ©2006, RF Micro Devices, Inc.
DS120302
7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical
support, contact RFMD at (+1) 336-678-5570 or customerservice@rfmd.com.
1 of 3
UMS-300-R16-G
Absolute Maximum Ratings
Parameter
Operating Ambient Temperature[1]
Storage Temperature
Rating
-40 to +85
-55 to +125
Unit
°C
°C
Caution! ESD sensitive device.
Exceeding any one or a combination of the Absolute Maximum Rating conditions may
cause permanent damage to the device. Extended application of Absolute Maximum
Rating conditions to the device may reduce device reliability. Specified typical perfor-
mance or functional operation of the device under Absolute Maximum Rating condi-
tions is not implied.
The information in this publication is believed to be accurate and reliable. However, no
responsibility is assumed by RF Micro Devices, Inc. ("RFMD") for its use, nor for any
infringement of patents, or other rights of third parties, resulting from its use. No
license is granted by implication or otherwise under any patent or patent rights of
RFMD. RFMD reserves the right to change component circuitry, recommended appli-
cation circuitry and specifications at any time without prior notice.
RoHS (Restriction of Hazardous Substances): Compliant per EU Directive
2002/95/EC.
[1] Frequency drift: 2.0MHz typical, 4.0MHz maximum at -40°C and 2.0MHz
typical, 3.0MHz maximum at +85°C.
Parameter
Overall
Frequency Range
Tuning Voltage
Tuning Sensitivity
Output Power
Output Phase Noise
Min.
150
1
Specification
Typ.
Max.
300
16
Unit
MHz
V
DC
MHz/V
dBm
At V
T
= 0
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc
MHz p-p
pF
kHz
3dB BW
1kHz
10kHz
100kHz
1000kHz
10000kHz
Condition
12
7
5
-78
-103
-123
-143
-155
-73
-96
-116
-136
-150
-20
3
10
12
Second Harmonic
Frequency Pulling
Tuning Port Capacitance
Modulation Bandwidth
Frequency Pushing
-28
1
330
100
0.2
12
16
At 12dBr, all phases
0.5
MHz/V
V
mA
Power Supply
Operating Voltage
Supply Current
2 of 3
7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical
support, contact RFMD at (+1) 336-678-5570 or customerservice@rfmd.com.
DS120302
UMS-300-R16-G

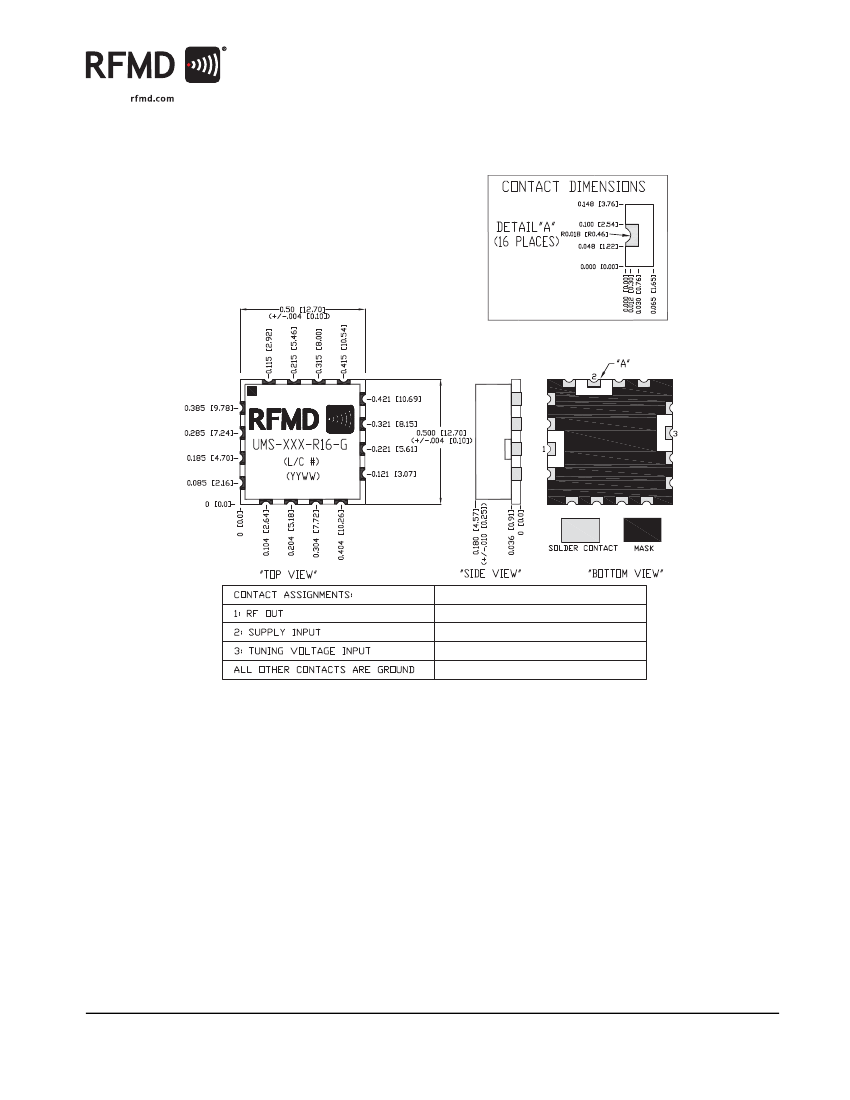

Package Drawing & Pin Outs
12.7mm x 12.7mm x 4.57mm (0.5in x 0.5in x 0.18in)
DS120302
7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical
support, contact RFMD at (+1) 336-678-5570 or customerservice@rfmd.com.
3 of 3
