PRODUCT SPECIFICATION
Part Number
PLC3020-WCWW75-N0x
Details
Single Color Surface Mount LED
PLCC-2 3.0 x 2.0 x 0.8mm
Package: 4,000 piece reels
Emitting Color: Warm White
InGaN dice used
Features
High luminous intensity
Wide viewing angle 120ﾟ
JEDEC MSL 2a
Compatible lead-free reflow soldering
process
RoHS Compliant

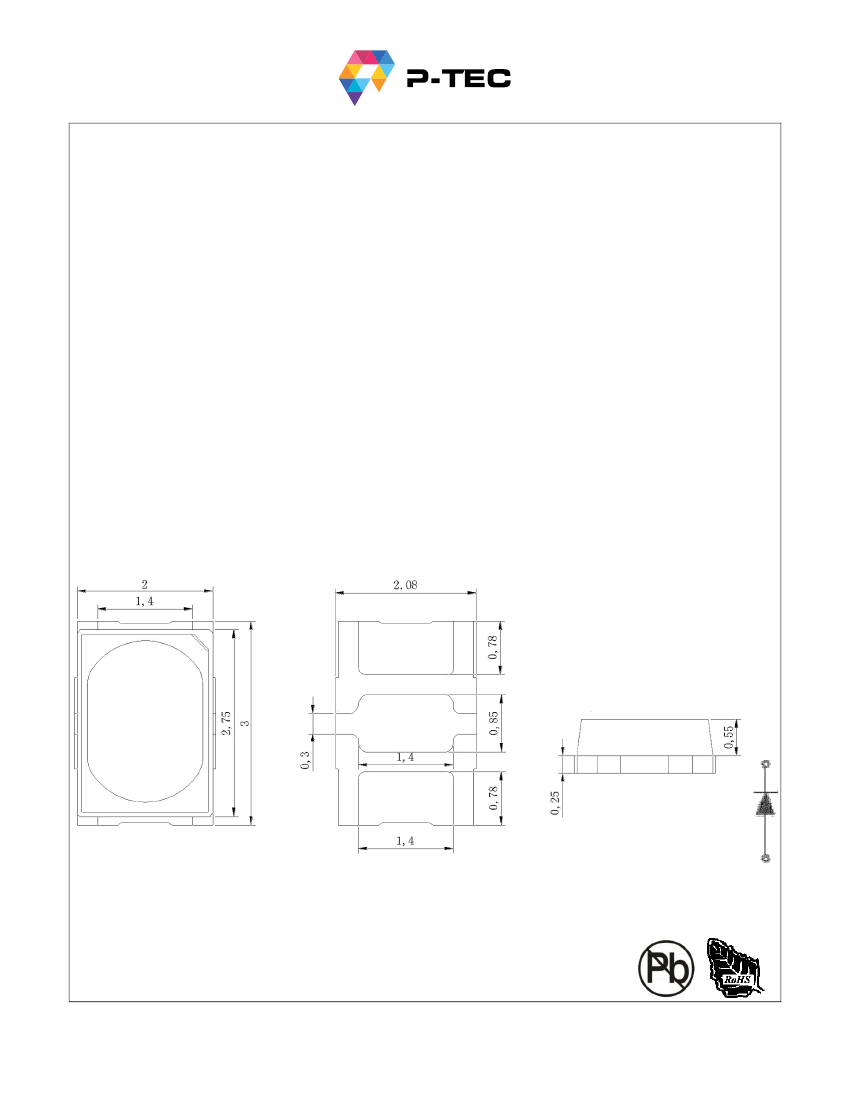

Mechanical Dimensions
Notes:
1. Specifications subject to change without notice
2. Tolerance of measurement of dimensions: ±0.2mm
www.p-tec.net
011314 Rev1 MS
Page
1
of
16
Device Selection Guide
Model Number
PLC3020-WCWW75-N0x
Material
InGaN
Chip
Emitting Color
Warm White
Encapsulation
Silicone Resin
Absolute Maximum Ratings at Ta=25
Parameter
Power Dissipation
Forward Current
Peak Forward Current
(1)
Reverse Voltage
LED Junction Temperature
(2)
Operating Temperature
Storage Temperature
Soldering Temperature
Symbol
Pd
IF
I
FP
VR
T
j
T
opr
T
stg
T
sol
Rating
186
60
100
5
110
-40~+85
-40~+100
Reflow Soldering: 260
Hand Soldering: 350
Unit
mW
mA
mA
V
for 10 sec
for 3 sec
Notes: 1. Pulse width
≦
0.1 msec, duty
≦
1/10
2. Proper current rating must be observed to maintain junction temperature below the maximum at all the time.
Electrical and Optical Characteristics at Ta=25
Parameter
Forward Voltage
Luminous Flux
Color Rendering Index
Viewing Angle
Reverse Current
Symbol
V
F
Φv
Ra
2θ 1/2
I
R
Min.
--
--
--
--
--
Typ.
3.1
17.5
75
120
--
Max.
--
--
--
--
10
Unit
V
mcd
CRI
deg
μA
Condition
I
F
=60mA
V
R
=5V

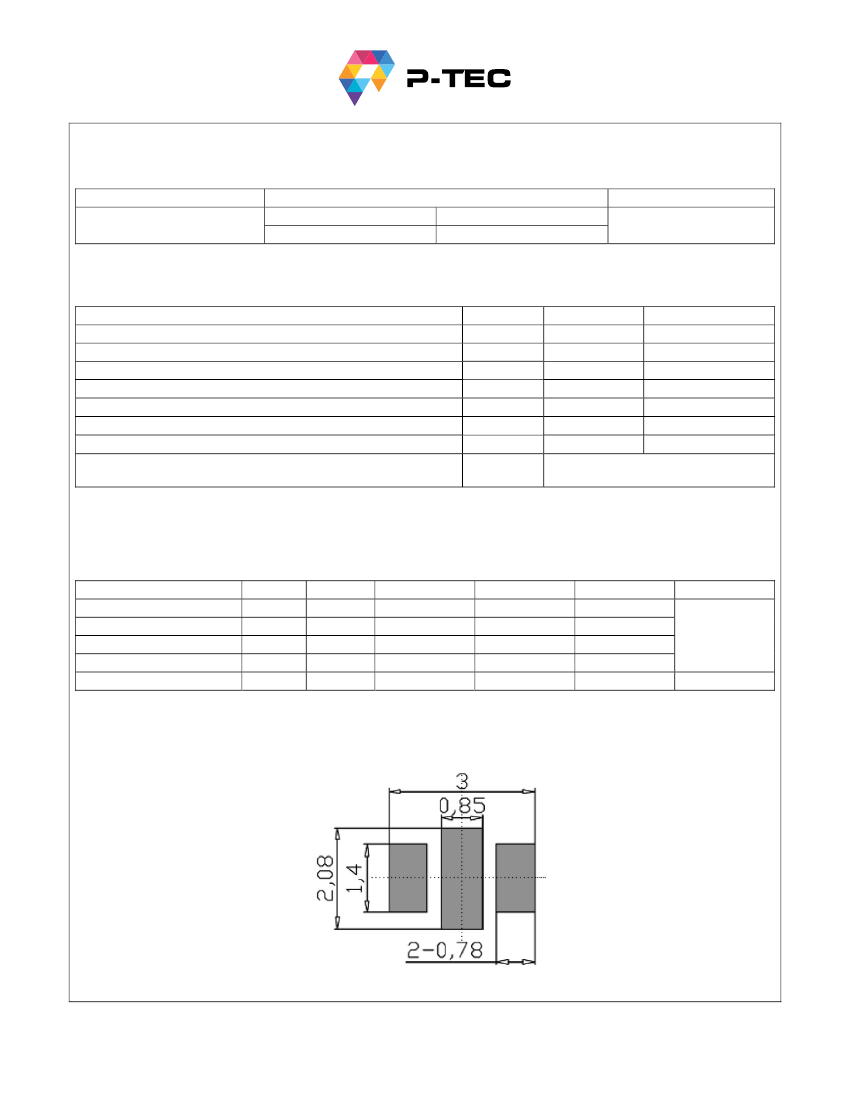

Recommended Soldering Pad Pattern
www.p-tec.net
011314 Rev1 MS
Page
2
of
16
Luminous Intensity Rank Limits (IF = 60mA)
Part Number
PLC3020-WCNW75-N0x
P157
15.7-17.3
Luminous Flux
P173
P190
17.3-19.0
19.0-23.0
P230
23.0-25.3
Note: Tolerance of measurement of luminous flux: ±7%
Forward Voltage Rank Limits
VF Rank
V28
V29
V30
V31
V32
V33
Min
2.8
2.9
3.0
3.1
3.2
3.3
Max
2.9
3.0
3.1
3.2
3.3
3.4
Unit
Condition
V
IF = 60mA

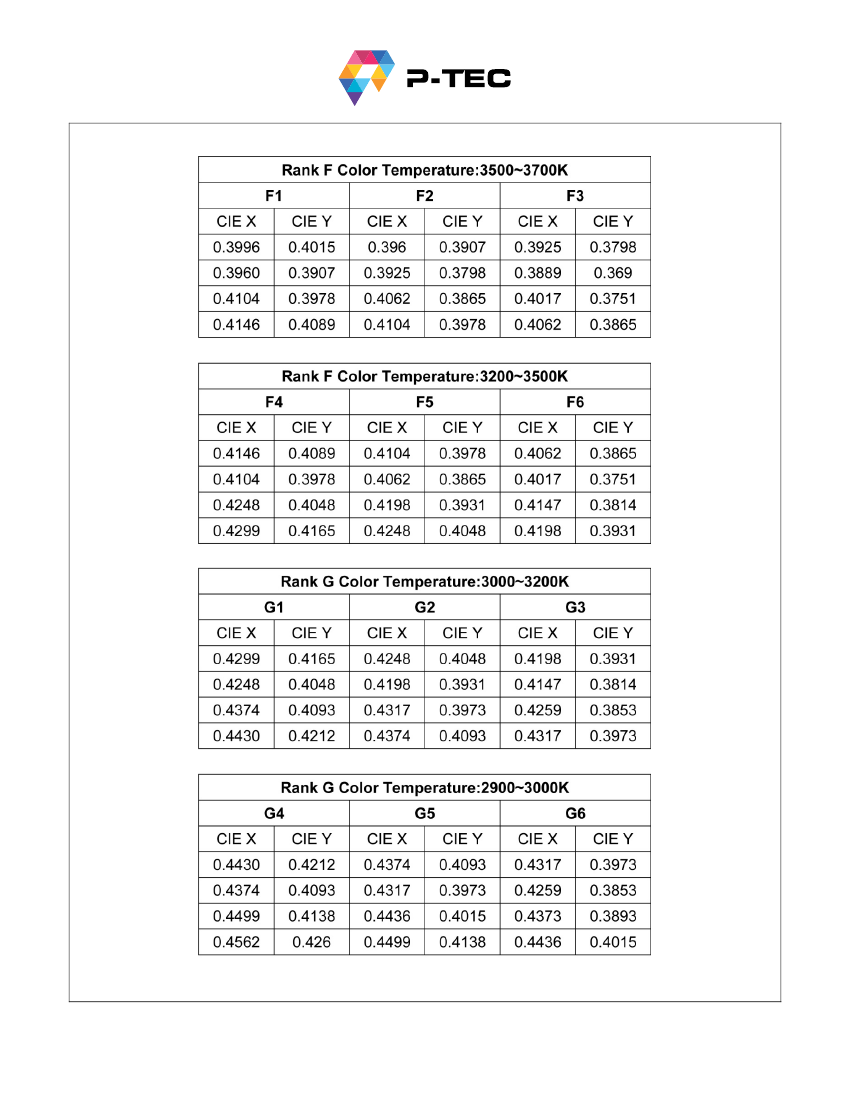

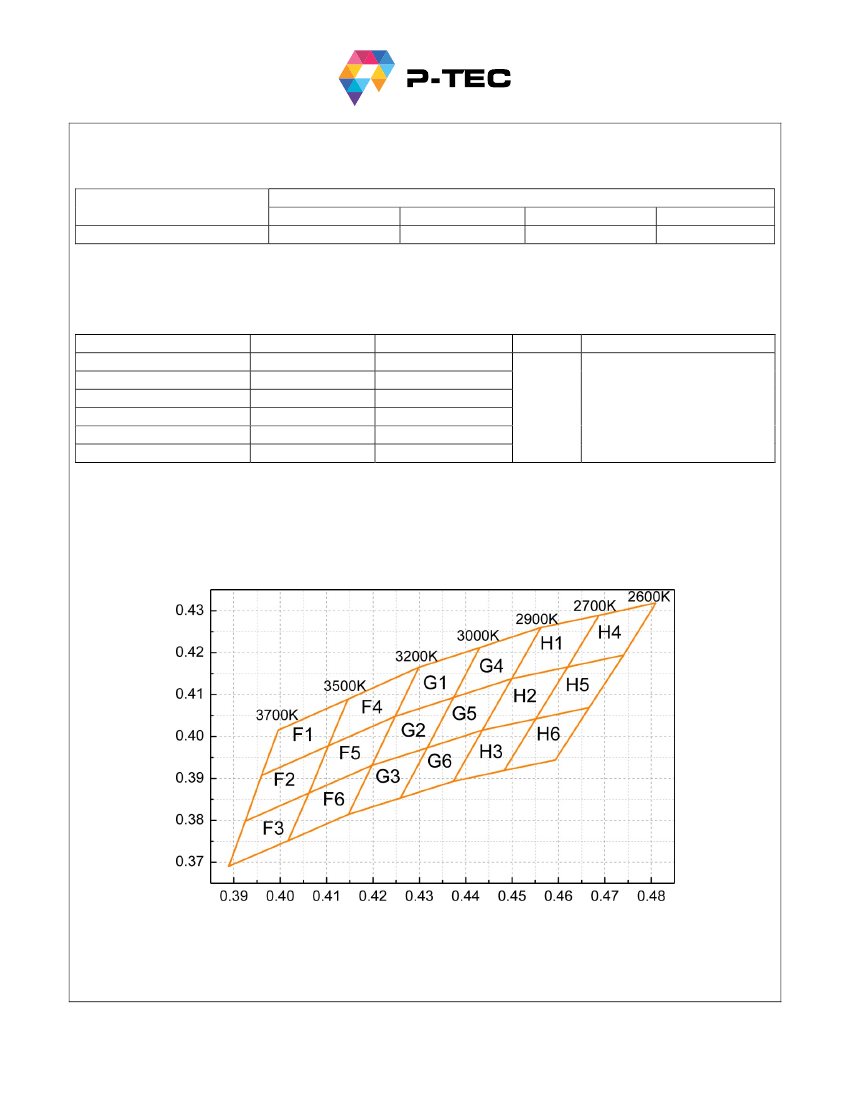

Color Rank Limits (IF = 60mA)
www.p-tec.net
011314 Rev1 MS
Page
3
of
16
www.p-tec.net
011314 Rev1 MS
Page
4
of
16

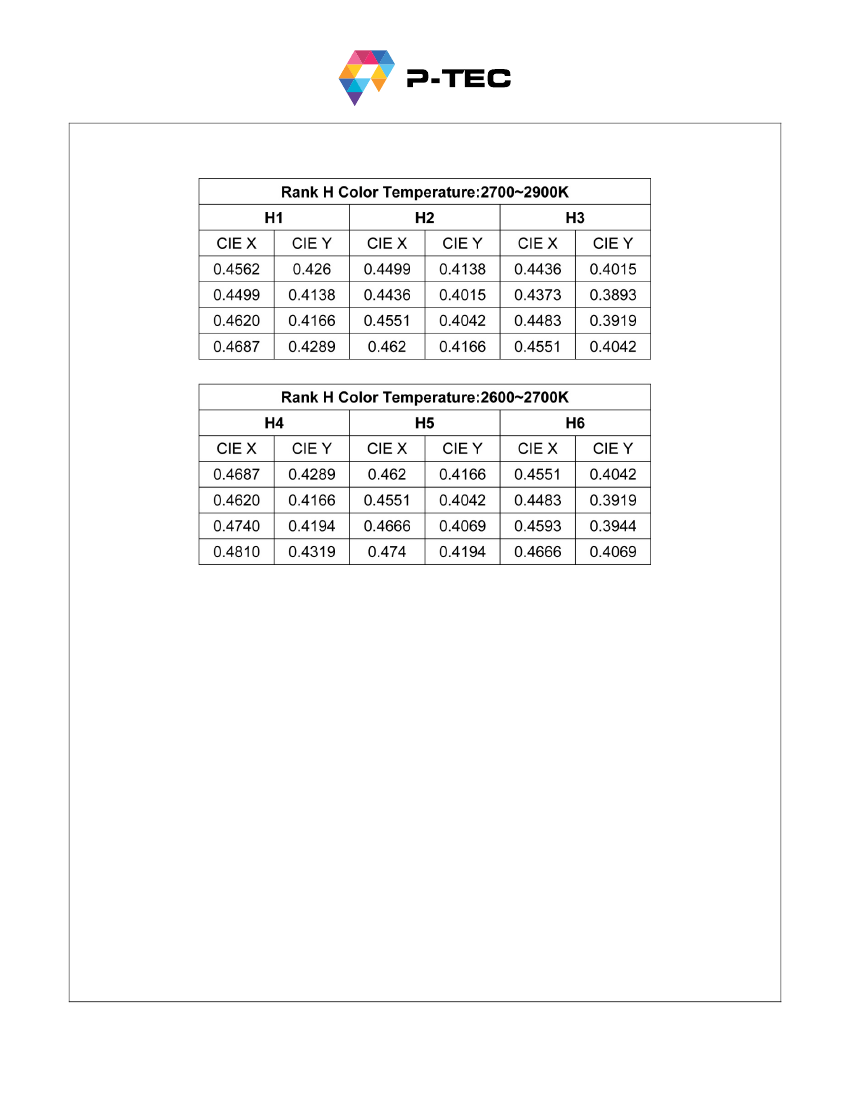

Note: Tolerance of measurement of color coordinates: ±0.01
www.p-tec.net
011314 Rev1 MS
Page
5
of
16
