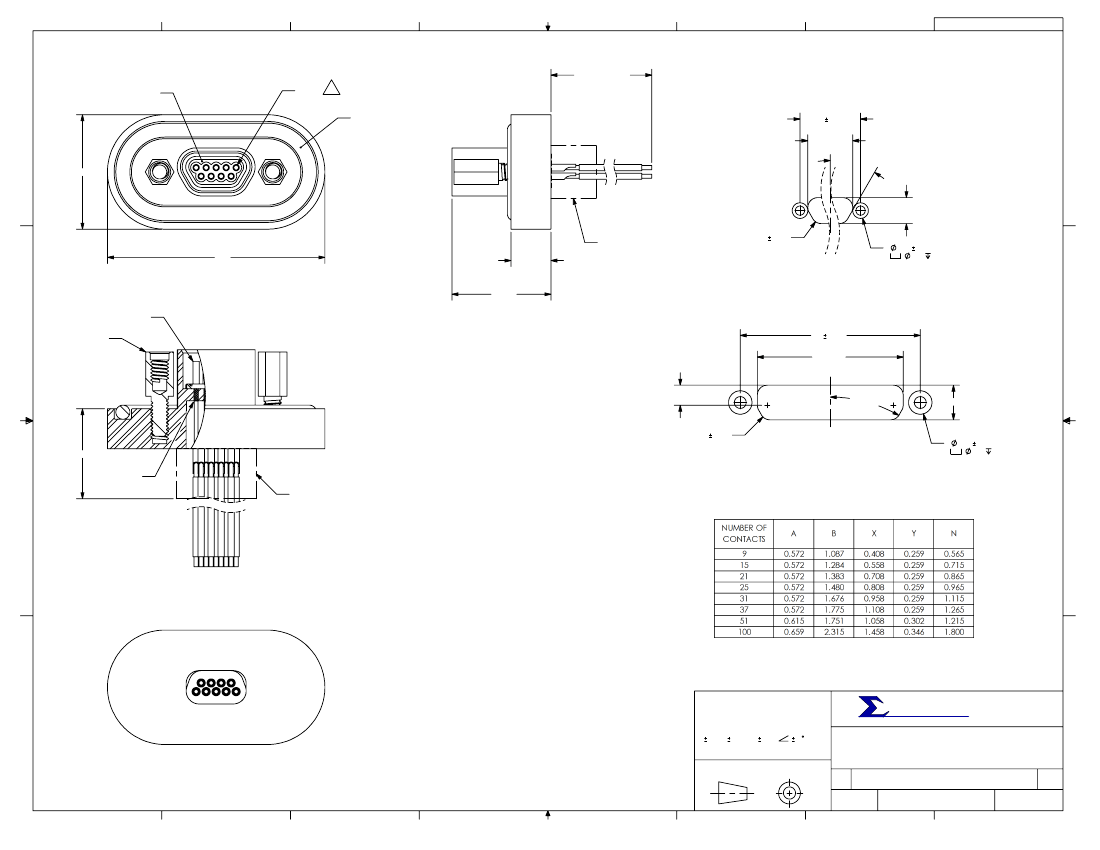

SRIMD2002 CONNECTOR, MICRO-D, WIRED, O-RING PANEL MOUNT
• DESIGNED FOR PANEL-MOUNT WITH AN O-RING SEAL
• AVAILABLE IN STAINLESS STEEL
D
• CONFORMS TO MIL-PRF-83513 AND ARE AVAILABLE IN 9, 15, 21, 25, 31, 37, 51,
AND 100 COUNT PIN/SOCKET CONFIGURATIONS.
• INCORPORATES BERYLLIUM-COPPER PIN/SOCKETS INDIVIDUALLY SEALED USING
CERAMAX® PROPRIETARY CERAMIC TO ESTABLISH A DURABLE HERMETIC SEAL.
D
1. LEAK RATE: LESS THAN OR EQUAL TO 1X10E-9 CC/SEC He AT ONE ATMOSPHERE DIFFERENTIAL PRESSURE.
2. INTERFACE AND MOUNTING HOLES IN ACCORDANCE WITH MIL-PRF-83513/2.
3. MATERIALS:
CONTACT: BERYLLIUM-COPPER ALLOY 172/173 PER ASTM B196/197.
INSULATOR: CERAMAX PROPRIETARY CERAMIC.
SHELL: STAINLESS STEEL ALLOY 304L PER SAE-AMS-QQ-S-763.
INTERFACIAL SEAL: FLUOROSILICONE RUBBER PER MIL-R-25988, CLASS 1, TYPE II, GRADE 60
OR FLUOROCARBON RUBBER (VITON®)
O-RING GASKET: FLUOROCARBON RUBBER, BLACK (VITON®)
JACKPOST: STAINLESS STEEL 302 OR 303 PER SAE-AMS-QQ-S-763
WIRE: COLOR CODED, INSULATED 7-STRAND 26AWG COATED COPPER PER HP3-EXBDB( )
4. FINISH:
CONTACTS: NICKEL PLATE PER QQ-N-290, .000100 / .000250 THICK.
GOLD PLATE PER ASTM B488-01, TYPE III, CODE A, .000050 / .000125 THICK.
PLATE ENTIRE EXPOSED PIN, BOTH ENDS.
PLATING IN SOCKETS NOT REQUIRED BENEATH BLEED HOLE.
SHELL: PASSIVATED.
C
C
5. ORDERING INSTRUCTIONS:
SPECIFY BASE NUMBER FOLLOWED BY DASH NUMBERS INDICATING PIN COUNT AND CONFIGURATION (SEE SHEET 2+):
EXAMPLE: SRIMD2002 - 25 - 18 - V
ADD - V FOR VITON INTERFACIAL SEAL
WIRE LENGTH (INCHES)
PIN COUNT = 25 (SEE TAB)
BASE NUMBER
B
B
A
UNLESS OTHERWISE SPECIFIED
DIMENSIONING IAW ASME Y14.5M-1994
DIMENSIONS APPLY AFTER PROCESSES
DIMENSIONS IAW US CUSTOMARY UNITS
.X .1, .XX .01, .XXX .005,
.5
.010 MAX OUTSIDE R, .005 MAX INSIDE R
125 RMS SURFACE FINISH
SRI HERMETICS
TITLE
(321) 254-4067
WWW.SRIHERMETICS.COM
A
CONNECTOR, MICRO-D, SST PANEL MOUNT, WIRED
SIZE DOCUMENT
SCALE
THIRD ANGLE PROJECTION
A
SRIMD2002
3PJY7
SHEET
REV
E
1:1
CAGE CODE
1 OF 2
FORM 300067 REV -
7
6
5
4
3
2
1
8
7
6
5
4
3
2
DOCUMENT
SRIMD2002
WIRE LENGTH
INTERFACIAL SEAL
PIN #1
D
D
O-RING GASKET
(SHIPPED LOOSE)
N .003
X
+.005
-.002
D
A
2X 30°
Y
+.005
-.002
B
.200
(STRAIN RELIEF POTTING
NOT SHOWN FOR CLARITY)
4X R.095 .005
.092 .003 THRU
.156 .063 FROM FARSIDE
.495
PANEL CUTOUT DETAIL
(9-51 PIN CONFIGURATIONS)
C
JACKSCREW
(SHIPPED LOOSE)
CONTACT
N .003
X
+.005
-.002
C
2X .201
+.005
-.002
2X 30°
Y
+.005
-.002
6X R.095 .005
.45 MAX
PANEL CUTOUT DETAIL
(100 PIN CONFIGURATION)
INSULATOR
(STRAIN RELIEF POTTING
NOT SHOWN FOR CLARITY)
.118 .003 THRU
.234 .063 FROM FARSIDE
B
B
A
UNLESS OTHERWISE SPECIFIED
DIMENSIONING IAW ASME Y14.5M-1994
DIMENSIONS APPLY AFTER PROCESSES
DIMENSIONS IAW US CUSTOMARY UNITS
.X .1, .XX .01, .XXX .005,
.5
.010 MAX OUTSIDE R, .005 MAX INSIDE R
125 RMS SURFACE FINISH
SRI HERMETICS
TITLE
(321) 254-4067
WWW.SRIHERMETICS.COM
A
CONNECTOR, MICRO-D, SST PANEL MOUNT, WIRED
SIZE DOCUMENT
SCALE
THIRD ANGLE PROJECTION
A
SRIMD2002
3PJY7
SHEET
REV
E
1:1
CAGE CODE
2 OF 2
FORM 300067 REV -
7
6
5
4
3
2
1
