UMZ-T2-226-O16-G datasheet, PDF

Datasheet> All Categories > UMZ-T2-226-O16-G

Preview

UMZ-T2-226-O16-G: DescriptionVOLTAGE CONTROLLED OSCILLATOR WITH; File Size258KB，3 Pages; ManufacturerRF Micro Devices (Qorvo)

Download Datasheet View All

UMZ-T2-226-O16-G Overview

VOLTAGE CONTROLLED OSCILLATOR WITH

Preview

Download Datasheet

View All

UMZ-T2-226-

O16-GVoltage

Controlled

Oscillator With

Internal Dou-

bler

UMZ-T2-226-O16-G

VOLTAGE CONTROLLED OSCILLATOR WITH

INTERNAL DOUBLER

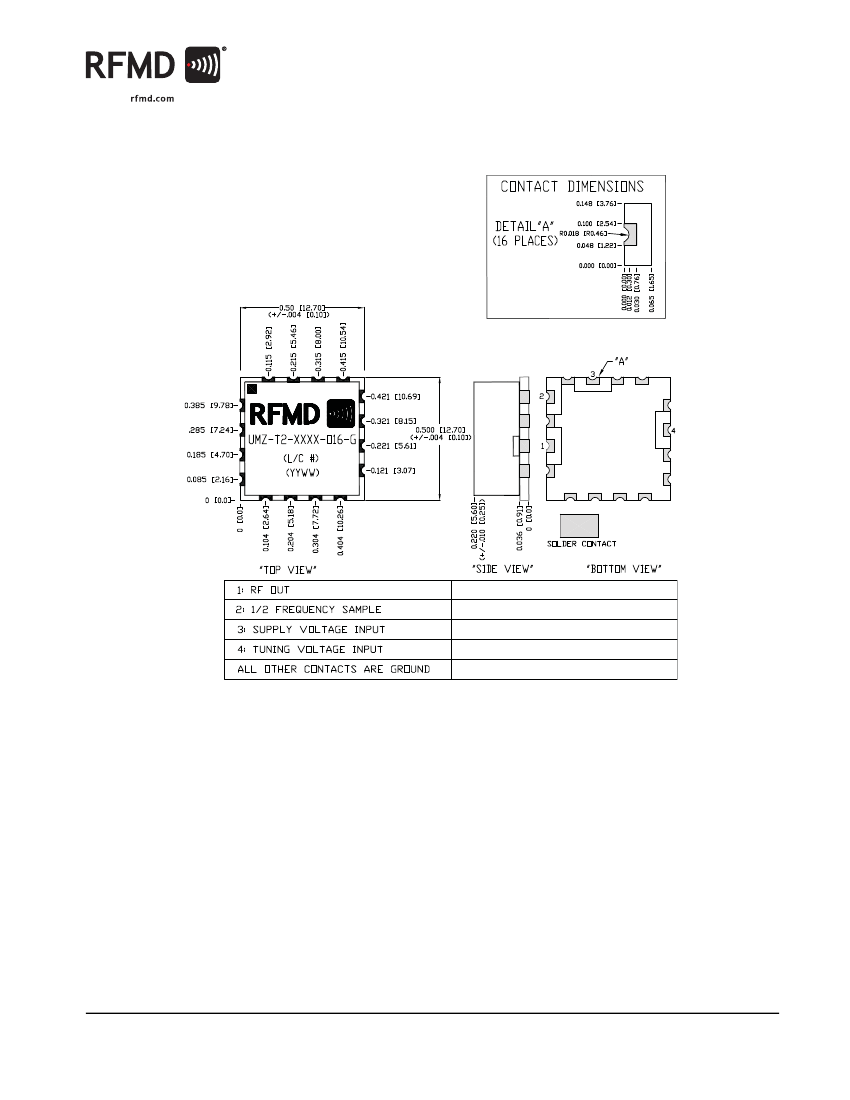

Package: O16, 12.7mm x 12.7mm x 5.59mm

Features



Internal Frequency Doubler and

Buffer AMP

1/2 Frequency Output Provided

Frequency: 4700MHz to

5118MHz

Resonator: Microstrip

PCB: Rogers

Package Size: 12.7mm x

12.7mm x 5.59mm (0.5in x 0.5in

x 0.22in)

Voltage Controlled Oscillator (VCO)

TUNE

Tank Circuit



Active

Circuit

½ Frequency

Sample Port

Resonator

RF Output



Applications



DRO Replacements

Higher Frequency Applications

Wide Bandwidth Applications

Test Instrumentation

Functional Block Diagram

Product Description

This series of VCO modules offers ultra-linear tuning across their specified fre-

quency band.

Ordering Information

UMZ-T2-226-O16-G Contact us at 1-480-756-6070

Optimum Technology Matching® Applied

GaAs HBT

GaAs MESFET

InGaP HBT

SiGe BiCMOS

Si BiCMOS

SiGe HBT



GaAs pHEMT

Si CMOS

Si BJT

GaN HEMT

BiFET HBT

LDMOS

RF MICRO DEVICES®, RFMD®, Optimum Technology Matching®, Enabling Wireless Connectivity™, PowerStar®, POLARIS™ TOTAL RADIO™ and UltimateBlue™ are trademarks of RFMD, LLC. BLUETOOTH is a trade-

mark owned by Bluetooth SIG, Inc., U.S.A. and licensed for use by RFMD. All other trade names, trademarks and registered trademarks are the property of their respective owners. ©2006, RF Micro Devices, Inc.

DS110907

7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical

support, contact RFMD at (+1) 336-678-5570 or customerservice@rfmd.com.

1 of 3
