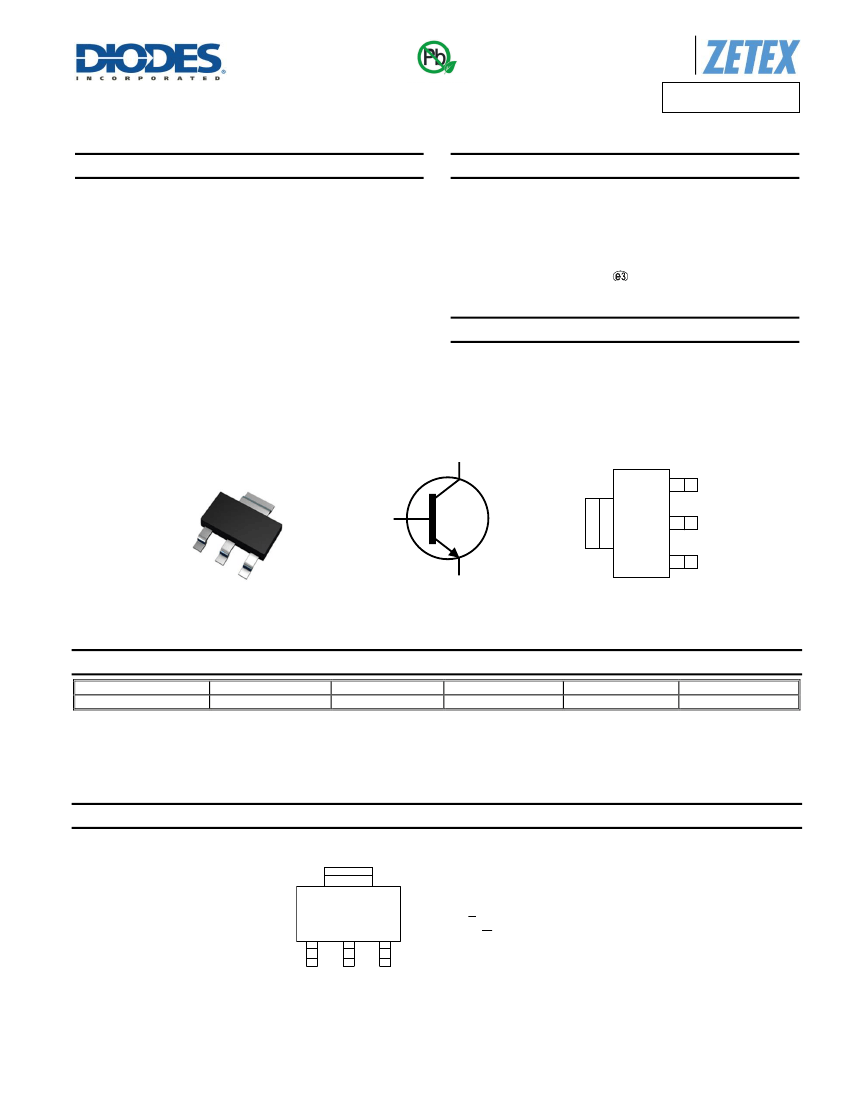

ZXTN19020DG
20V NPN HIGH GAIN TRANSISTOR IN SOT223
Features
BV
CEX
> 70V
BV
CEO
> 20V
BV
ECO
> 4.5V
I
C
= 9A High Continuous Current
Low Saturation Voltage V
CE(sat)
< 35mV @ 1A
R
CE(sat)
= 20mΩ
Complementary PNP Type: ZXTP19020DG
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case: SOT223
Case Material: Molded Plastic, “Green” Molding Compound;
UL Flammability Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin Plated Leads; Solderable per
MIL-STD-202, Method 208
Weight: 0.112 grams (Approximate)
Applications
PSU Start-Up Circuit
DC-DC Converters
Motor Drive
Relay, Lamp and Solenoid Drive
SOT223
C
E
B
C
C
B
E
Top View
Device Symbol
Top View
Pin-Out
Ordering Information
(Note 4)
Product
ZXTN19020DGTA
Notes:
Compliance
AEC-Q101
Marking
ZXTN19020D
Reel size (inches)
7
Tape width (mm)
12
Quantity per reel
1,000
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
SOT223
ZXTN19
020D
ZXTN19020D = Product Type Marking Code
YWW = Date Code Marking
Y or Y = Last Digit of Year (ex: 5= 2015)
WW or WW = Week Code (01~53)
YWW
ZXTN19020DG
Document Number DS33678 Rev. 2 - 2
1 of 7
www.diodes.com
June 2015
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZXTN19020DG
Absolute Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Collector-Base Voltage
Collector-Emitter Voltage (forward blocking)
Collector-Emitter Voltage
Emitter-Collector Voltage (reverse blocking)
Emitter-Base Voltage
Continuous Collector Current
Base Current
Peak Pulse Current
Symbol
V
CBO
V
CEX
V
CEO
V
ECX
V
EBO
I
C
I
B
I
CM
Value
70
70
20
6
7
9
1
20
Unit
V
V
V
V
V
A
A
A
Thermal Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
(Note 5)
Power Dissipation
Linear Derating Factor
(Note 6)
P
D
(Note 7)
(Note 8)
(Note 5)
(Note 6)
(Note 7)
(Note 8)
(Note 9)
Symbol
Value
1.2
9.6
1.6
12.8
3
24
5.3
42
104
78
42
23.5
16
-55 to +150
Unit
W
mW/°C
Thermal Resistance, Junction to Ambient
Thermal Resistance, Junction to Lead
Operating and Storage Temperature Range
R
θJA
R
θJL
T
J,
T
STG
°C/W
°C
ESD Ratings
(Note 10)
Characteristic
Electrostatic Discharge - Human Body Model
Electrostatic Discharge - Machine Model
Notes:
Symbol
ESD HBM
ESD MM
Value
4,000
400
Unit
V
V
JEDEC Class
3A
C
5. For a device mounted with the collector lead on 15mm x 15mm 1oz copper that is on a single-sided 1.6mm FR4 PCB; device is measured under still air
conditions whilst operating in steady-state.
6. Same as Note 6, except the device is mounted on 25mm x 25mm 1oz copper.
7. Same as Note 6, except the device is mounted on 50mm x 50mm 2oz copper.
8. Same as Note 8 measured at t<5 seconds.
9. Thermal resistance from junction to solder-point (at the end of the collector lead).
10. Refer to JEDEC specification JESD22-A114 and JESD22-A115.
ZXTN19020DG
Document Number DS33678 Rev. 2 - 2
2 of 7
www.diodes.com
June 2015
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZXTN19020DG

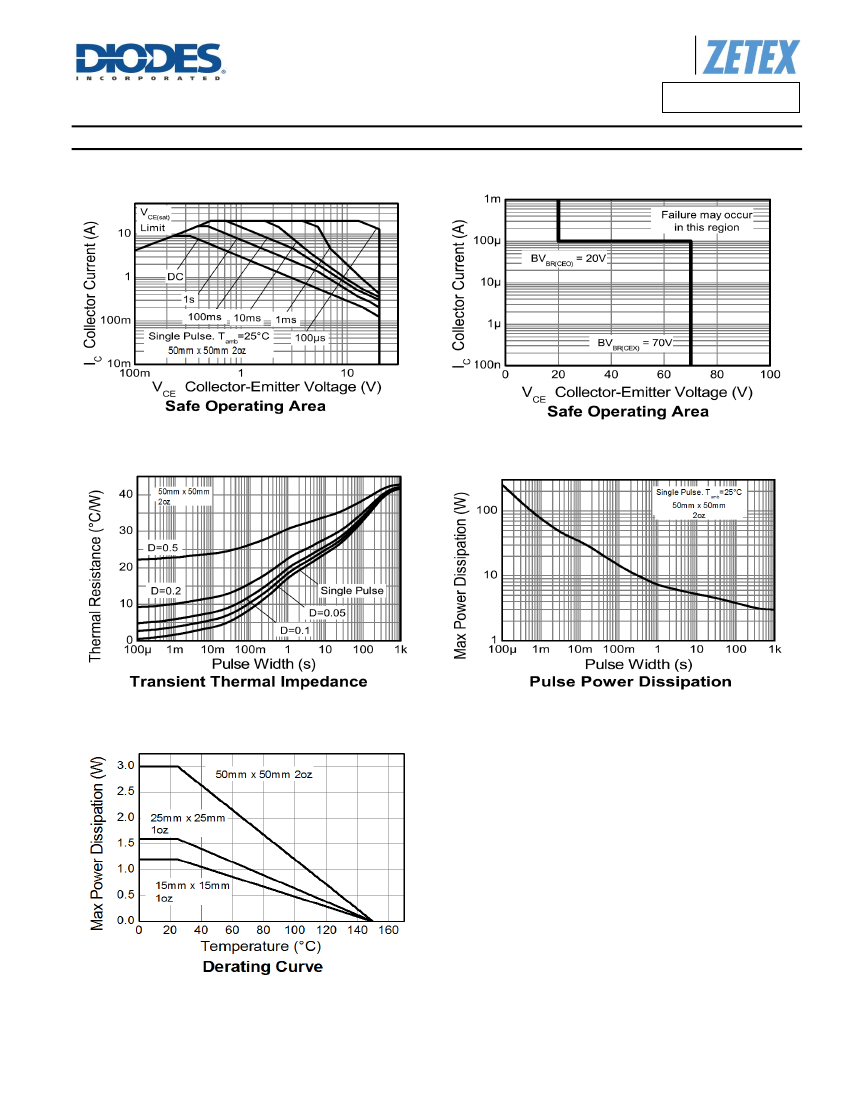

Thermal Characteristics and Derating Information
(@T
A
= +25°C, unless otherwise specified.)
ZXTN19020DG
Document Number DS33678 Rev. 2 - 2
3 of 7
www.diodes.com
June 2015
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZXTN19020DG
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Symbol
BV
CBO
BV
CEX
BV
CEO
BV
ECX
BV
ECO
BV
EBO
I
CBO
I
CEX
I
EBO
Min
70
70
20
6
4.5
7
300
260
130
50
Typ
100
100
30
8.4
5.7
8.4
< 1
<1
27
50
80
63
85
200
1040
910
450
390
175
75
30
160
297
32.6
129
96
398
90
Max
50
0.5
100
50
35
70
100
80
110
250
1150
1050
900
400
40
Unit
V
V
V
V
V
V
nA
µA
nA
nA
mV
mV
mV
mV
mV
mV
mV
mV
MHz
pF
pF
ns
ns
ns
ns
Test Condition
I
C
= 100µA
I
C
= 100µA, R
BE
<1kΩ or
-1V< V
BE
> 0.25V
I
C
= 10mA
I
C
= 100µA, R
BC
<1kΩor
0.25V< V
BC
> -0.25V
I
E
= 100µA
I
E
= 100µA
V
CB
= 70V
V
CB
= 70V, T
A
= +100°C
V
CE
= 70V, R
BE
<1kΩ or
-1V < V
BE
> 0.25V
V
EB
= 5.6V
I
C
= 1A, I
B
= 100mA
I
C
= 1A, I
B
= 10mA
I
C
= 2A, I
B
= 20mA
I
C
= 2A, I
B
= 40mA
I
C
= 4A, I
B
= 400mA
I
C
= 9A, I
B
= 450mA
I
C
= 9A, I
B
= 450mA
I
C
= 9A, V
CE
= 2V
I
C
= 100mA, V
CE
= 2V
I
C
= 2A, V
CE
= 2V
I
C
= 9A, V
CE
= 2V
I
C
= 15A, V
CE
= 2V
I
C
= 20A, V
CE
= 2V
V
CE
= 10V, I
C
= 50mA,
f = 100MHz
V
EB
= 0.5V, f = 1MHz
V
CB
= 10V, f = 1MHz
I
C
= 1A, V
CC
= 10V,
I
B1
= -I
B2
= 10mA
Characteristic
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown Voltage
(forward blocking)
Collector-Emitter Breakdown Voltage (Note 11)
Emitter-Collector Breakdown Voltage
(reverse blocking)
Emitter-Collector Breakdown Voltage
(reverse blocking)
Emitter-Base Breakdown Voltage
Collector Cut-Off Current
Collector-Emitter Cut-Off Current
Emitter Cut-Off Current
Collector-Emitter Saturation Voltage (Note 11)
V
CE(sat)
Base-Emitter Saturation Voltage (Note 11)
Base-Emitter Turn-On Voltage (Note 11)
V
BE(sat)
V
BE(on)
DC Current Gain (Note 11)
h
FE
Current Gain-Bandwidth Product (Note 11)
Input Capacitance (Note 11)
Output Capacitance (Note 11)
Delay Time
Rise Time
Storage Time
Fall Time
Note:
f
T
C
ibo
C
obo
t
d
t
r
t
s
t
f
11. Measured under pulsed conditions. Pulse width ≤ 300µs. Duty cycle ≤ 2%.
ZXTN19020DG
Document Number DS33678 Rev. 2 - 2
4 of 7
www.diodes.com
June 2015
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZXTN19020DG

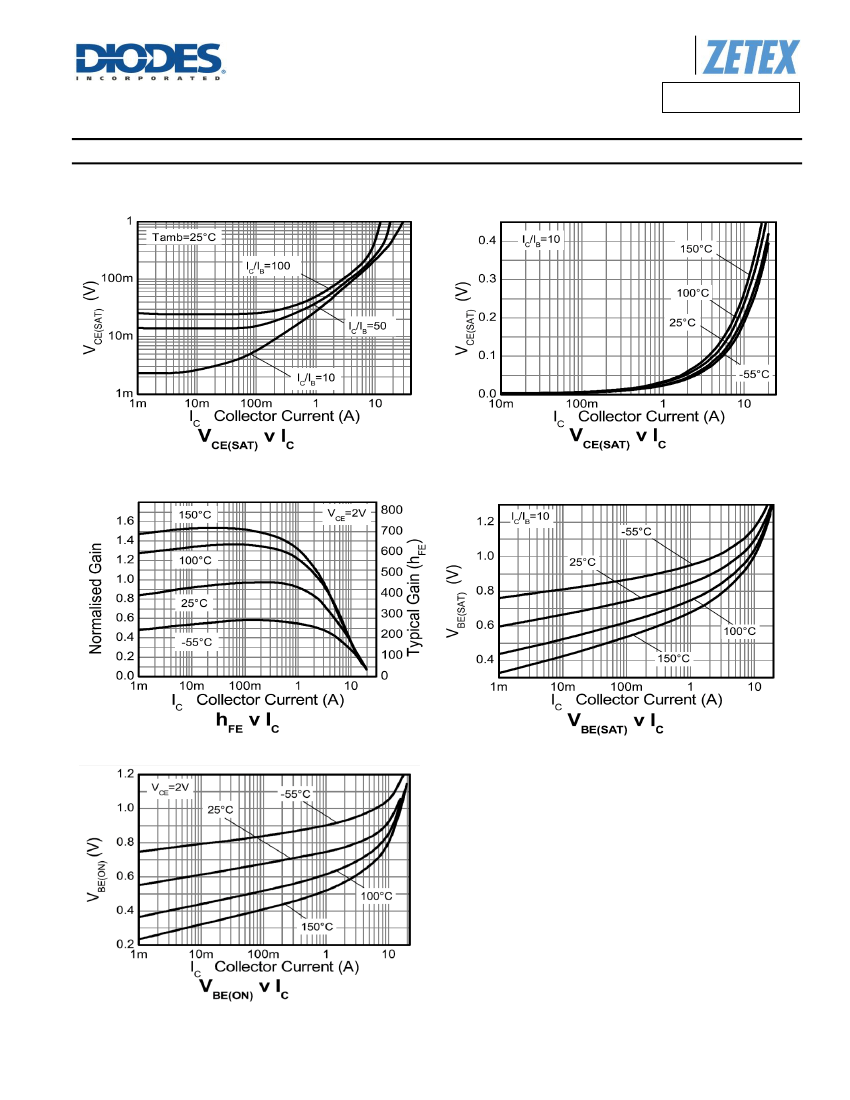

Typical Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
ZXTN19020DG
Document Number DS33678 Rev. 2 - 2
5 of 7
www.diodes.com
June 2015
© Diodes Incorporated
