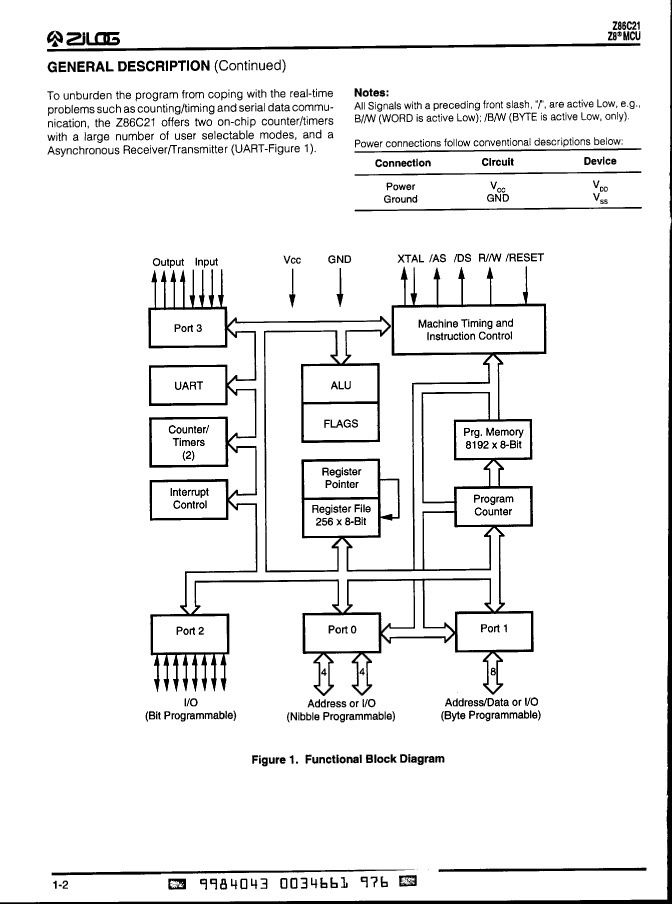

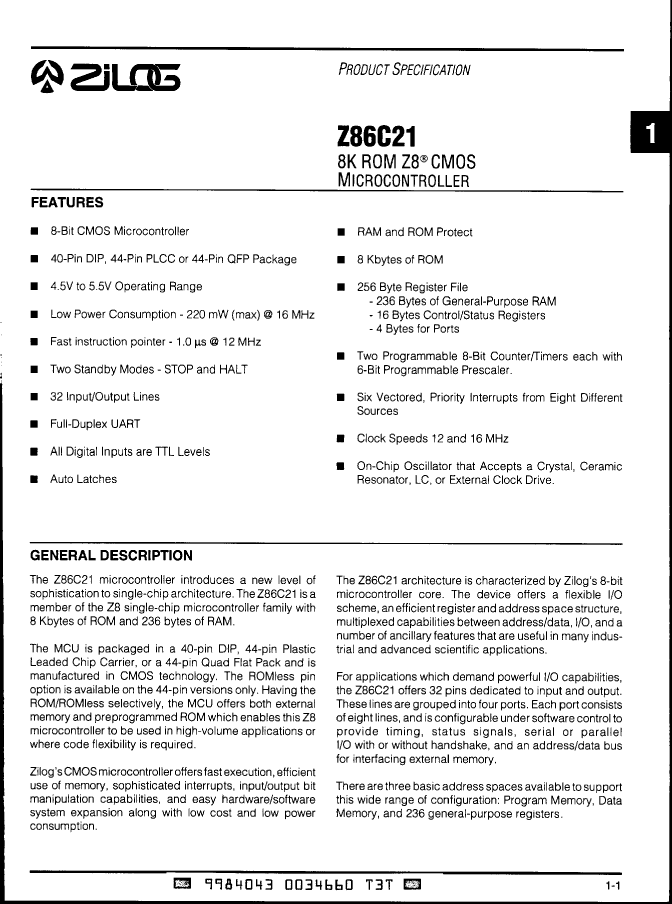

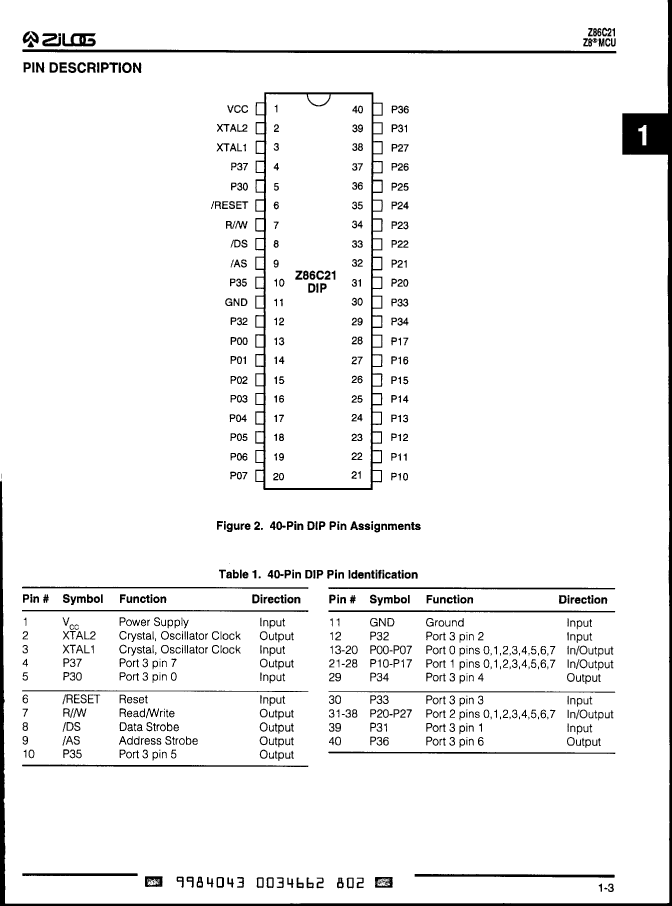

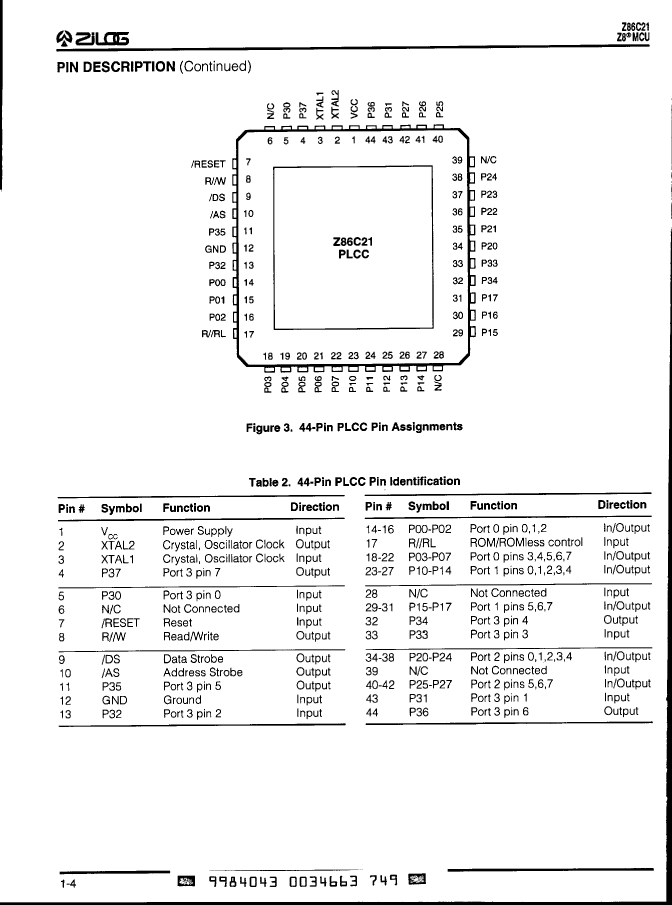

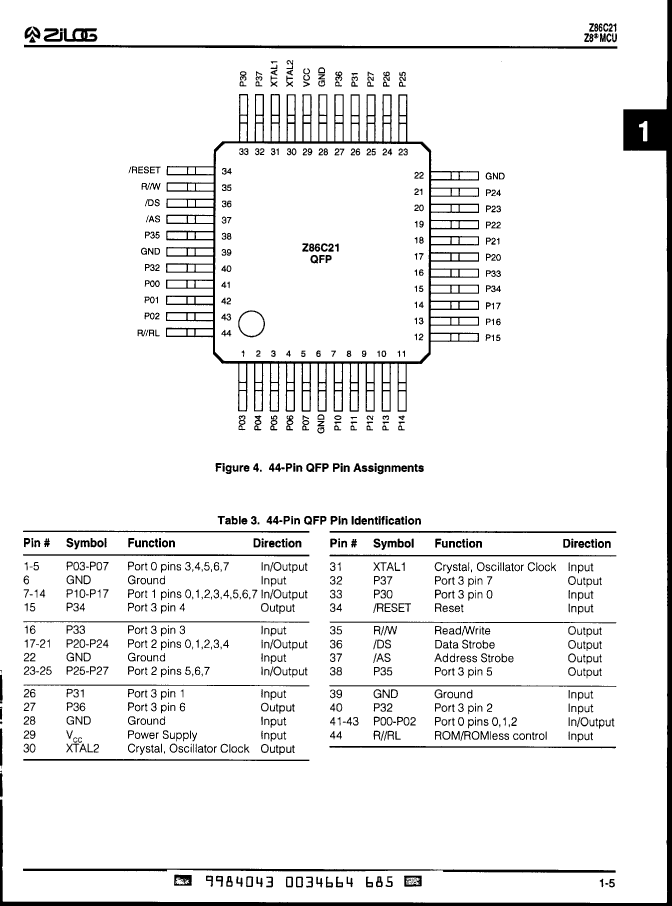

Microcontroller, 8-Bit, MROM, Z8 CPU, 16MHz, CMOS, PQCC44
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | IXYS |
| Contacts | 44 |
| Reach Compliance Code | unknown |
| Has ADC | NO |
| Address bus width | 16 |
| bit size | 8 |
| CPU series | Z8 |
| maximum clock frequency | 20 MHz |
| DAC channel | NO |
| DMA channel | NO |
| External data bus width | 8 |
| JESD-30 code | S-PQCC-J44 |
| JESD-609 code | e0 |
| length | 16.59 mm |
| Number of I/O lines | 32 |
| Number of terminals | 44 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| PWM channel | NO |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | QCCJ |
| Encapsulate equivalent code | LDCC44,.7SQ |
| Package shape | SQUARE |
| Package form | CHIP CARRIER |
| power supply | 5 V |
| Certification status | Not Qualified |
| RAM (bytes) | 236 |
| rom(word) | 8192 |
| ROM programmability | MROM |
| speed | 16 MHz |
| Maximum slew rate | 50 mA |
| Maximum supply voltage | 5.5 V |
| Minimum supply voltage | 4.5 V |
| Nominal supply voltage | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | J BEND |
| Terminal pitch | 1.27 mm |
| Terminal location | QUAD |
| width | 16.59 mm |
| Z86C2116VSCRXXX | Z86C2112FSCRXXX | Z86C2112PSCRXXX | Z86C2116PSCRXXX | Z86C2112VECRXXX | |
|---|---|---|---|---|---|
| Description | Microcontroller, 8-Bit, MROM, Z8 CPU, 16MHz, CMOS, PQCC44 | Microcontroller, 8-Bit, MROM, Z8 CPU, 12MHz, CMOS, | Microcontroller, 8-Bit, MROM, Z8 CPU, 12MHz, CMOS, PDIP40, | Microcontroller, 8-Bit, MROM, Z8 CPU, 16MHz, CMOS, PDIP40, | Microcontroller, 8-Bit, MROM, Z8 CPU, 12MHz, CMOS, PQCC44, |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | IXYS | IXYS | IXYS | IXYS | IXYS |
| Reach Compliance Code | unknown | unknown | unknown | unknow | unknown |
| Has ADC | NO | NO | NO | NO | NO |
| Address bus width | 16 | 16 | 16 | 16 | 16 |
| bit size | 8 | 8 | 8 | 8 | 8 |
| CPU series | Z8 | Z8 | Z8 | Z8 | Z8 |
| DAC channel | NO | NO | NO | NO | NO |
| DMA channel | NO | NO | NO | NO | NO |
| External data bus width | 8 | 8 | 8 | 8 | 8 |
| length | 16.59 mm | 10 mm | 52.325 mm | 52.325 mm | 16.59 mm |
| Number of I/O lines | 32 | 32 | 32 | 32 | 32 |
| Number of terminals | 44 | 44 | 40 | 40 | 44 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C | 85 °C |
| PWM channel | NO | NO | NO | NO | NO |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | QCCJ | QFP | DIP | DIP | QCCJ |
| Encapsulate equivalent code | LDCC44,.7SQ | FL(UNSPEC) | DIP40,.6 | DIP40,.6 | LDCC44,.7SQ |
| Package shape | SQUARE | SQUARE | RECTANGULAR | RECTANGULAR | SQUARE |
| Package form | CHIP CARRIER | FLATPACK | IN-LINE | IN-LINE | CHIP CARRIER |
| power supply | 5 V | 5 V | 5 V | 5 V | 5 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| RAM (bytes) | 236 | 236 | 236 | 236 | 236 |
| rom(word) | 8192 | 8192 | 8192 | 8192 | 8192 |
| ROM programmability | MROM | MROM | MROM | MROM | MROM |
| speed | 16 MHz | 12 MHz | 12 MHz | 16 MHz | 12 MHz |
| Maximum slew rate | 50 mA | 50 mA | 50 mA | 50 mA | 50 mA |
| Maximum supply voltage | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | NO | NO | YES |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | INDUSTRIAL |
| Terminal form | J BEND | GULL WING | THROUGH-HOLE | THROUGH-HOLE | J BEND |
| Terminal pitch | 1.27 mm | 0.8 mm | 2.54 mm | 2.54 mm | 1.27 mm |
| Terminal location | QUAD | QUAD | DUAL | DUAL | QUAD |
| width | 16.59 mm | 10 mm | 15.24 mm | 15.24 mm | 16.59 mm |
| JESD-30 code | S-PQCC-J44 | - | R-PDIP-T40 | R-PDIP-T40 | S-PQCC-J44 |
