2PH2RA-44-SG-SMT-10-A10503 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 2PH2RA-44-SG-SMT-10-A10503

2PH2RA-44-SG-SMT-10-A10503: DescriptionBoard Connector, 44 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size80KB，1 Pages; ManufacturerAdam Tech; Environmental Compliance

Download Datasheet Parametric Compare View All

2PH2RA-44-SG-SMT-10-A10503 Overview

Board Connector, 44 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle

2PH2RA-44-SG-SMT-10-A10503 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Adam Tech
Reach Compliance Code	compliant
Other features	ROHS COMPLIANT
body width	0.157 inch
subject depth	0.321 inch
body length	1.738 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	1000 Cycles
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e3
Manufacturer's serial number	2PH
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	10u inch
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.11 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	44

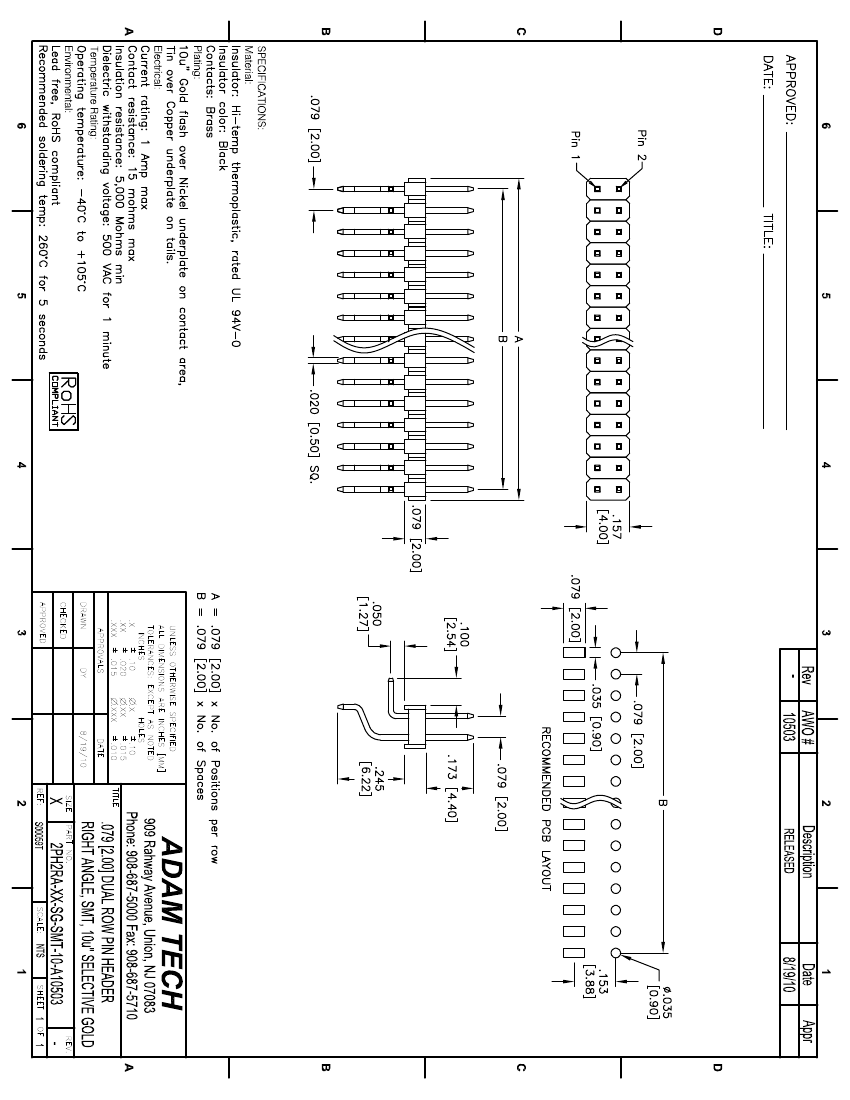

2PH2RA-44-SG-SMT-10-A10503 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

2PH2RA-44-SG-SMT-10-A10503 Related Products

	2PH2RA-44-SG-SMT-10-A10503	2PH2RA-42-SG-SMT-10-A10503	2PH2RA-18-SG-SMT-10-A10503
Description	Board Connector, 44 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle	Board Connector, 42 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle	Board Connector, 18 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle
Is it Rohs certified?	conform to	conform to	conform to
Maker	Adam Tech	Adam Tech	Adam Tech
Reach Compliance Code	compliant	compliant	compli
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.157 inch	0.157 inch	0.157 inch
subject depth	0.321 inch	0.321 inch	0.321 inch
body length	1.738 inch	1.659 inch	0.711 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	Tin (Sn)	Tin (Sn)	Tin (Sn)
Contact point gender	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	15 mΩ	15 mΩ	15 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V
Durability	1000 Cycles	1000 Cycles	1000 Cycles
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	BLACK	BLACK	BLACK
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
JESD-609 code	e3	e3	e3
Manufacturer's serial number	2PH	2PH	2PH
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
PCB row number	2	2	2
Number of rows loaded	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	10u inch	10u inch	10u inch
Rated current (signal)	1 A	1 A	1 A
Guideline	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.11 inch	0.11 inch	0.11 inch
Terminal pitch	2.0066 mm	2.0066 mm	2.0066 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	44	42	18
