ZTX751QSTZ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> ZTX751QSTZ

ZTX751QSTZ: Description2000 mA, 60 V, PNP, Si, SMALL SIGNAL TRANSISTOR; Categorysemiconductor Discrete semiconductor; File Size370KB，7 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/

Download Datasheet Parametric Compare View All

ZTX751QSTZ Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ZTX751QSTZ	-	-	View	Buy Now

ZTX751QSTZ Overview

2000 mA, 60 V, PNP, Si, SMALL SIGNAL TRANSISTOR

ZTX751QSTZ Parametric

Parameter Name	Attribute value
Number of terminals	3
Transistor polarity	PNP
Maximum collector current	2 A
Maximum Collector-Emitter Voltage	60 V
Processing package description	TO-92 COMPATIBLE, E-LINE PACKAGE-3
Lead-free	Yes
EU RoHS regulations	Yes
China RoHS regulations	Yes
state	ACTIVE
packaging shape	RECTANGULAR
Package Size	IN-LINE
Terminal form	WIRE
terminal coating	MATTE TIN
Terminal location	SINGLE
Packaging Materials	PLASTIC/EPOXY
structure	SINGLE
Number of components	1
transistor applications	SWITCHING
Transistor component materials	SILICON
Maximum ambient power consumption	1 W
Transistor type	GENERAL PURPOSE SMALL SIGNAL
Minimum DC amplification factor	40
Rated crossover frequency	100 MHz

Preview

Download Datasheet

View All

A Product Line of

Diodes Incorporated

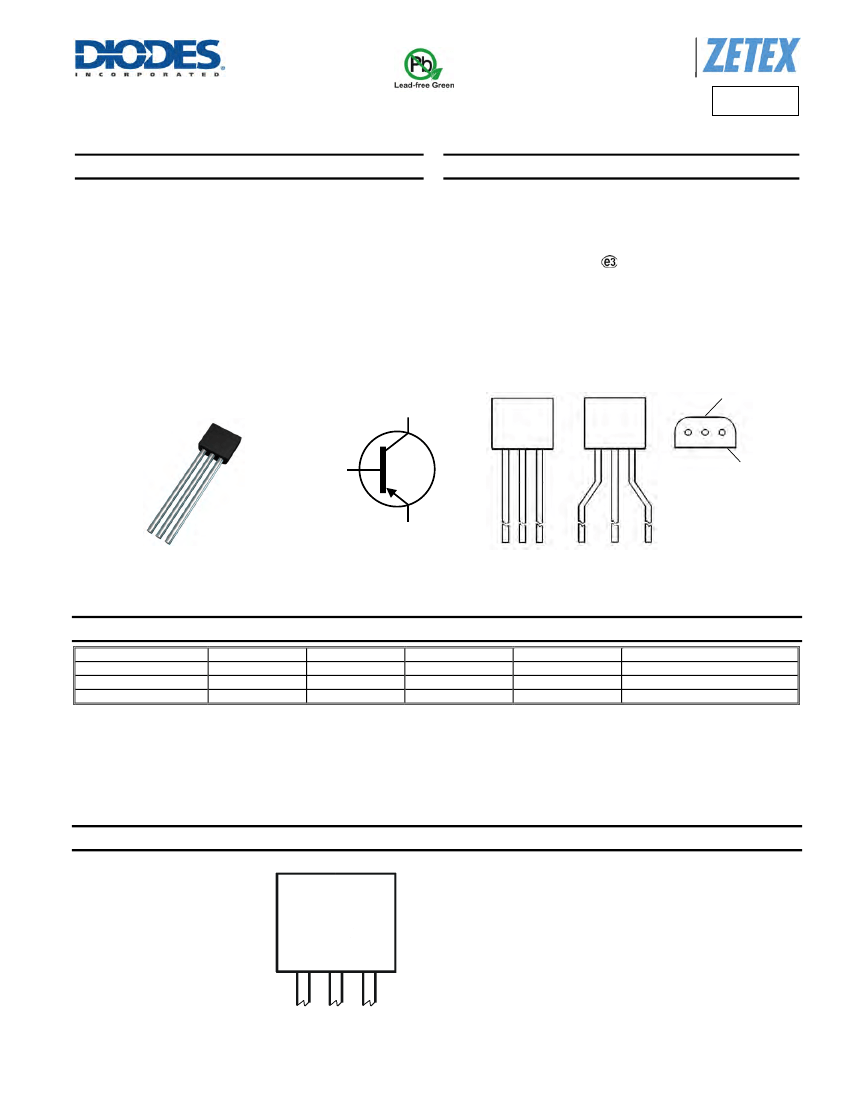

ZTX751

60V PNP MEDIUM POWER TRANSISTOR IN E-LINE

Features



CEO

> -60V

= -2A High Continuous Collector Current

= -6A Peak Pulse Current

up to +200°C for High Temperature Operation

Low Saturation Voltage < -0.3V @ -1A

= 1W Power dissipation

Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

PPAP Capable (Note 4)

E-Line

(TO-92 Compatible)

Mechanical Data



Case: E-Line (TO-92 Compatible)

Case Material: molded plastic, “Green” Molding Compound

UL Flammability Classification Rating 94V-0

Terminals: Finish – Matte Tin Plated Leads, Solderable per

MIL-STD-202, Method 208

Weight: 0.159 grams (approximate)

Part Mark on

Rounded Face

C B E

Bottom View

Ejection Mark

on Flat Face

C B E

Flat Face View

Device Symbol

Rounded Face View

Pin-Out Configuration

Ordering Information

(Notes 4 & 5)

Part Number

ZTX751

ZTX751STZ

ZTX751QSTZ

Notes:

Compliance

AEC-Q101

Automotive

Marking

ZTX751

Case

E-Line

Leads

Straight

Joggled

Quantity

4,000 loose in a Box

2,000 taped per Ammo Box

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the

same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.

5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

ZTX

751

ZTX751 = Product type Marking Code

Rounded Face View

ZTX751

Document number: DS36459 Rev. 3 - 2

1 of 7

www.diodes.com

July 2013

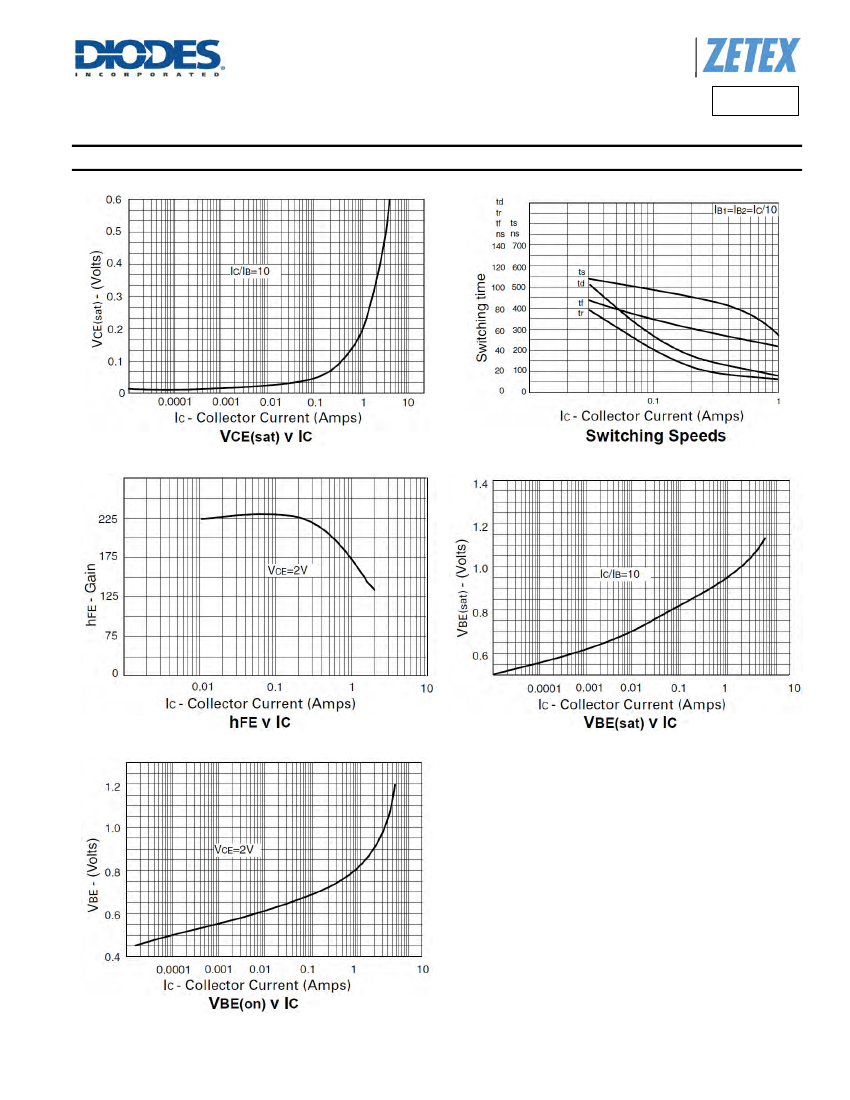

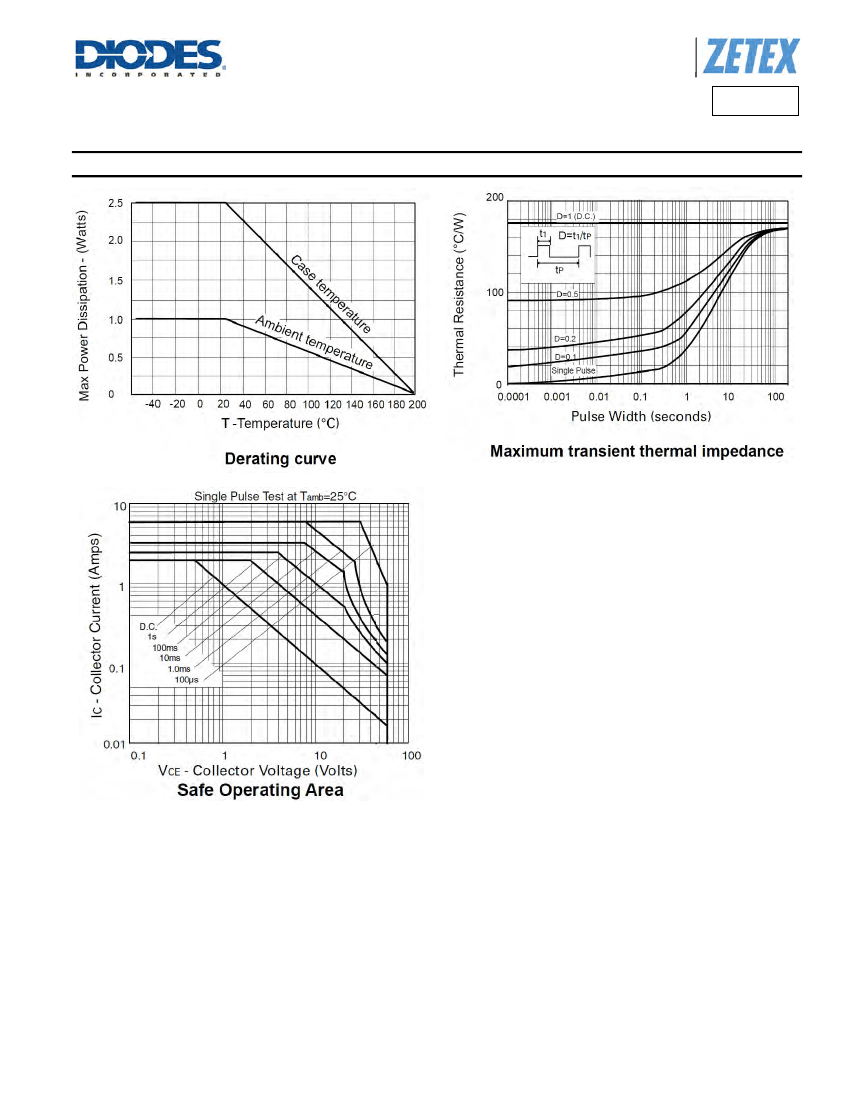

ZTX751QSTZ Related Products

	ZTX751QSTZ	ZTX750_15
Description	2000 mA, 60 V, PNP, Si, SMALL SIGNAL TRANSISTOR	2000 mA, 60 V, PNP, Si, SMALL SIGNAL TRANSISTOR
Number of terminals	3	3
Transistor polarity	PNP	PNP
Maximum collector current	2 A	2 A
Maximum Collector-Emitter Voltage	60 V	60 V
Processing package description	TO-92 COMPATIBLE, E-LINE PACKAGE-3	TO-92 COMPATIBLE, E-LINE PACKAGE-3
Lead-free	Yes	Yes
EU RoHS regulations	Yes	Yes
China RoHS regulations	Yes	Yes
state	ACTIVE	ACTIVE
packaging shape	RECTANGULAR	RECTANGULAR
Package Size	IN-LINE	IN-LINE
Terminal form	WIRE	WIRE
terminal coating	MATTE TIN	MATTE TIN
Terminal location	SINGLE	SINGLE
Packaging Materials	PLASTIC/EPOXY	PLASTIC/EPOXY
structure	SINGLE	SINGLE
Number of components	1	1
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
Maximum ambient power consumption	1 W	1 W
Transistor type	GENERAL PURPOSE SMALL SIGNAL	GENERAL PURPOSE SMALL SIGNAL
Minimum DC amplification factor	40	40
Rated crossover frequency	100 MHz	100 MHz
