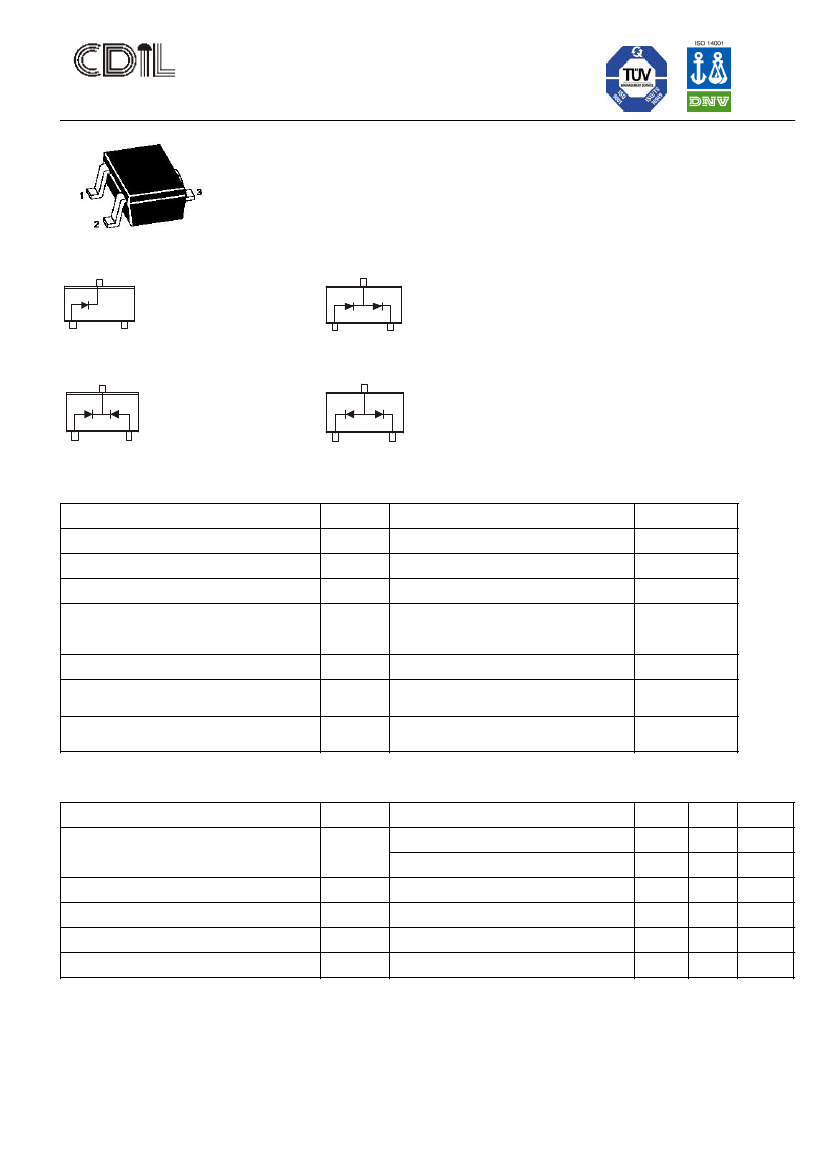

SURFACE MOUNT SCHOTTKY BARRIER DIODE
BAS40W, BAS40-04W
BAS40-05W, BAS40-06W
SOT-323
Surface Mount Plastic Package
BAS40W (Marking Code : 43)
3
BAS40-04W (Marking Code : 44)
3
Pin Configuration
1 = ANODE
2 = NC
3 = CATHODE
Pin Configuration
1 = ANODE
2 = CATHODE
3 = ANODE/
CATHODE
1
2
1
2
BAS40-05W (Marking Code : 45)
3
BAS40-06W (Marking Code : 46)
3
Pin Configuration
1 = ANODE
2 = ANODE
3 = CATHODE
Pin Configuration
1 = CATHODE
2 = CATHODE
3 = ANODE
1
2
1
2
ABSOLUTE MAXIMUM RATINGS
DESCRIPTION
Repetitive Peak Reverse Voltage
DC Blocking Voltage
Forward Continuous Current
Peak Forward Surge Current
(at tp </=8.3ms)
Power Dissipation
Junction Temperature
Storage Temperature Range
SYMBOL
V
RRM
V
R
I
F
I
FSM
P
D
T
j
T
stg
VALUE
40
40
200
600
200
150
- 65 to +150
UNIT
V
V
mA
mA
mW
ºC
ºC
ELECTRICAL CHARACTERISTICS (T
a
=25ºC unless specified otherwise )
DESCRIPTION
SYMBOL
TEST CONDITION
MIN
MAX
UNIT
Forward Voltage
Reverse Breakdown Voltage
Reverse Current
Total Capacitance
Reverse Recovery Time
BAS40W_04_05_06 0 180412E
V
F
V
(BR)R
I
R
C
T
t
rr
I
F
=1mA
I
F
=40mA
I
R
=10µA
V
R
=30V
V
R
=0, f=1MHz
I
F
=I
R
=10mA, I
rr
=0.1I
R
40
0.38
1
V
V
V
200
5
5
nA
pF
ns
Continental Device India Limited
Data Sheet
Page 1 of 3
Continental Device India Limited
An ISO/TS 16949, ISO 9001 and ISO14001 Certified Company
SURFACE MOUNT SCHOTTKY BARRIER DIODE
BAS40W, BAS40-04W
BAS40-05W, BAS40-06W

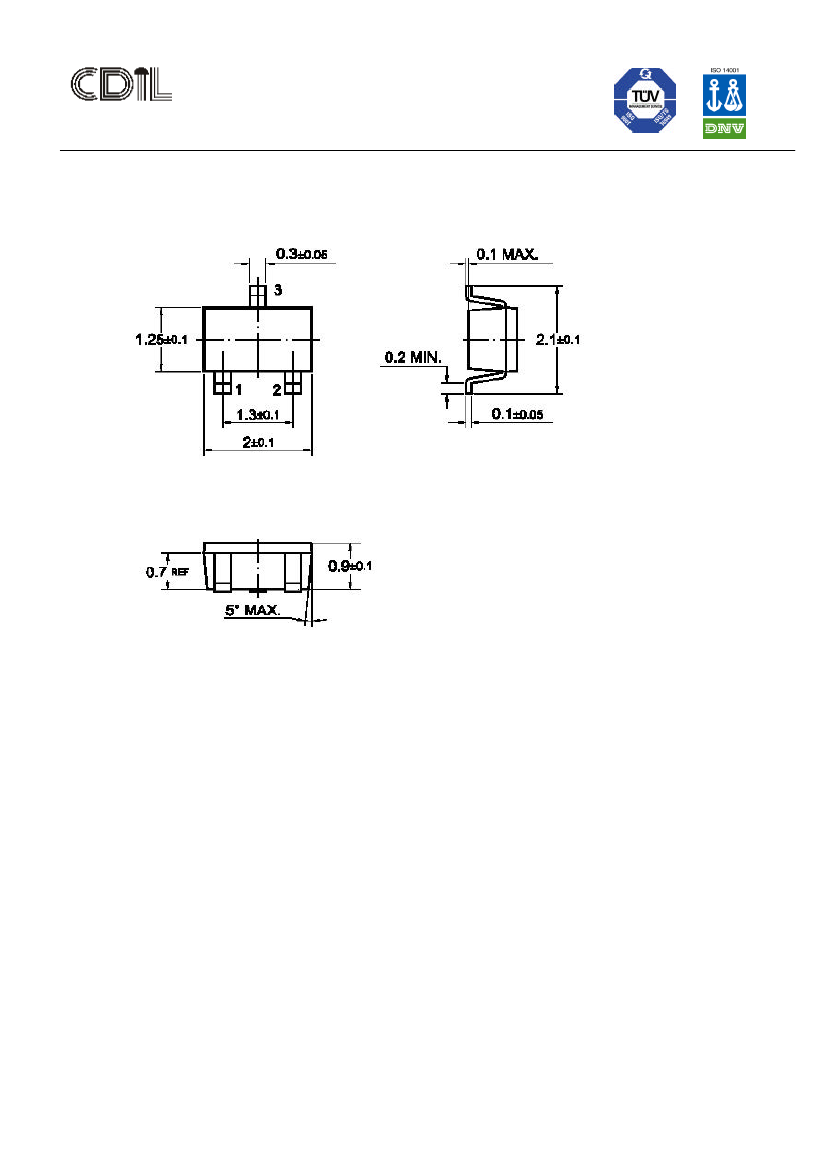

SOT-323 Package Outline and Dimension ( in mm)
BAS40W_04_05_06 0 180412E
Continental Device India Limited
Data Sheet
Page 2 of 3
Continental Device India Limited
An ISO/TS 16949, ISO 9001 and ISO14001 Certified Company
Customer Notes
BAS40W, BAS40-04W
BAS40-05W, BAS40-06W
Component Disposal Instructions
1. CDIL Semiconductor Devices are RoHS compliant, customers are requested to please
dispose as per prevailing Environmental Legislation of their Country.
2.
In Europe, please dispose as per EU Directive 2002/96/EC on Waste Electrical and
Electronic Equipment (WEEE).
Disclaimer
The product information and the selection guides facilitate selection of the CDIL's Semiconductor Device(s) best suited for application in
your product(s) as per your requirement. It is recommended that you completely review our Data Sheet(s) so as to confirm that the
Device(s) meet functionality parameters for your application. The information furnished in the Data Sheet and on the CDIL Web Site/CD
are believed to be accurate and reliable. CDIL however, does not assume responsibility for inaccuracies or incomplete information.
Furthermore, CDIL does not assume liability whatsoever, arising out of the application or use of any CDIL product; neither does it convey
any license under its patent rights nor rights of others. These products are not designed for use in life saving/support appliances or
systems. CDIL customers selling these products (either as individual Semiconductor Devices or incorporated in their end products), in any
life saving/support appliances or systems or applications do so at their own risk and CDIL will not be responsible for any damages resulting
from such sale(s).
CDIL strives for continuous improvement and reserves the right to change the specifications of its products without prior notice.
Continental Device India Limited
C-120 Naraina Industrial Area, New Delhi 110 028, India.
Telephone + 91-11-2579 6150, 4141 1112 Fax + 91-11-2579 5290, 4141 1119
email@cdil.com
www.cdil.com
BAS40W_04_05_06 0 180412E
CDIL is a registered Trademark of
Continental Device India Limited
Data Sheet
Page 3 of 3
