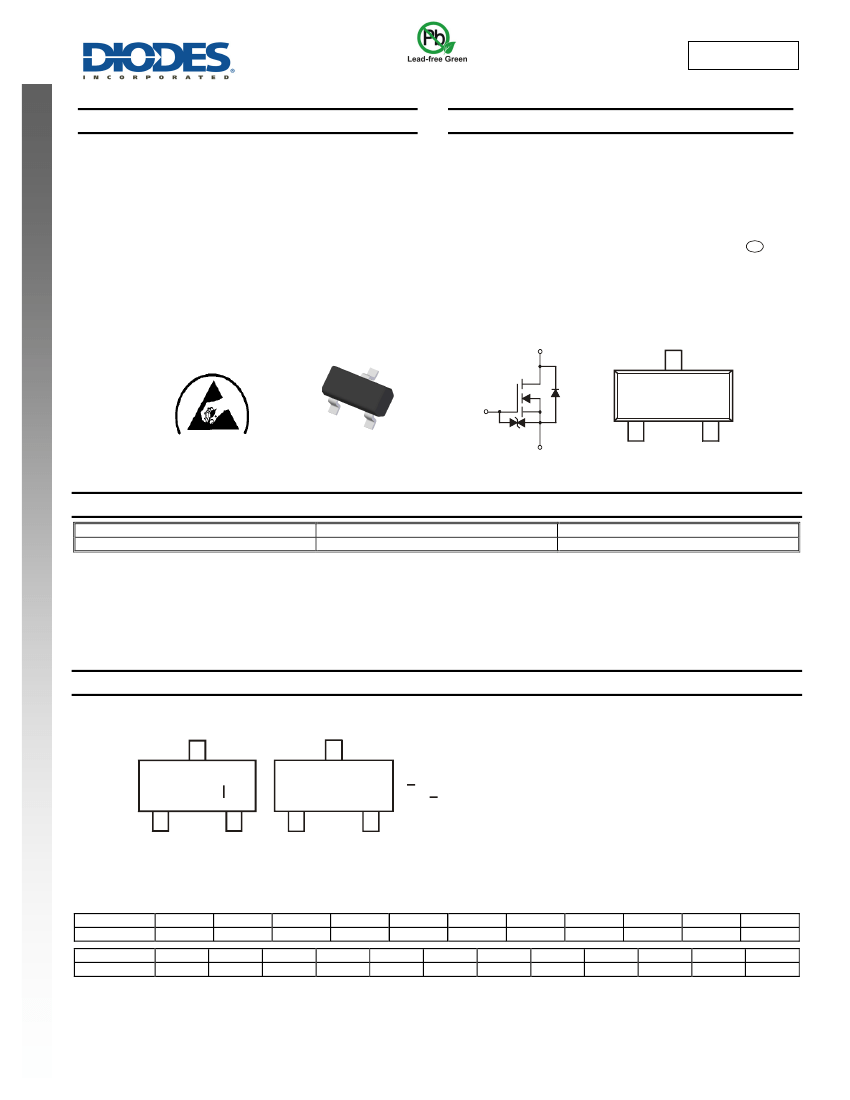

DMN3200U

N-CHANNEL ENHANCEMENT MODE FIELD EFFECT TRANSISTOR

Features



Low On-Resistance



90 m @ V

= 4.5V



110 m @ V

= 2.5V

200 m @ V

= 1.5V

Mechanical Data



Case: SOT-23

Case Material: Molded Plastic, “Green” Molding Compound.

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminal Connections: See Diagram

Terminals: Finish



Matte Tin annealed over Copper

leadframe. Solderable per MIL-STD-202, Method 208

Weight: 0.008 grams (approximate)

NEW PRODUCT



Very Low Gate Threshold Voltage

Low Input Capacitance

ESD Protected Gate

Fast Switching Speed

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

SOT-23

Drain

Gate

ESD PROTECTED TO 3kV

TOP VIEW

Gate

Protection

Diode

Source

TOP VIEW

Equivalent Circuit

Ordering Information

Part Number

DMN3200U-7

Notes:

(Note 4)

Case

SOT-23

Packaging

3000/Tape & Reel

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

32N

Chengdu A/T Site

Shanghai A/T Site

Date Code Key

Year

Code

Month

Code

2007

Jan

2008

Feb

2009

Mar

2010

Apr

32N

32N = Marking Code

YM = Date Code Marking for SAT (Shanghai Assembly/ Test site)

= Date Code Marking for CAT (Chengdu Assembly/ Test site)

Y or

= Year (ex: A = 2013)

M = Month (ex: 9 = September)

2011

May

Jun

2012

Jul

2013

Aug

2014

Sep

2015

Oct

2016

Nov

2017

Dec

DMN3200U

Document number: DS31188 Rev. 5 - 2

1 of 5

www.diodes.com

October 2013
