SMB1W-770R
TECHNICAL DATA

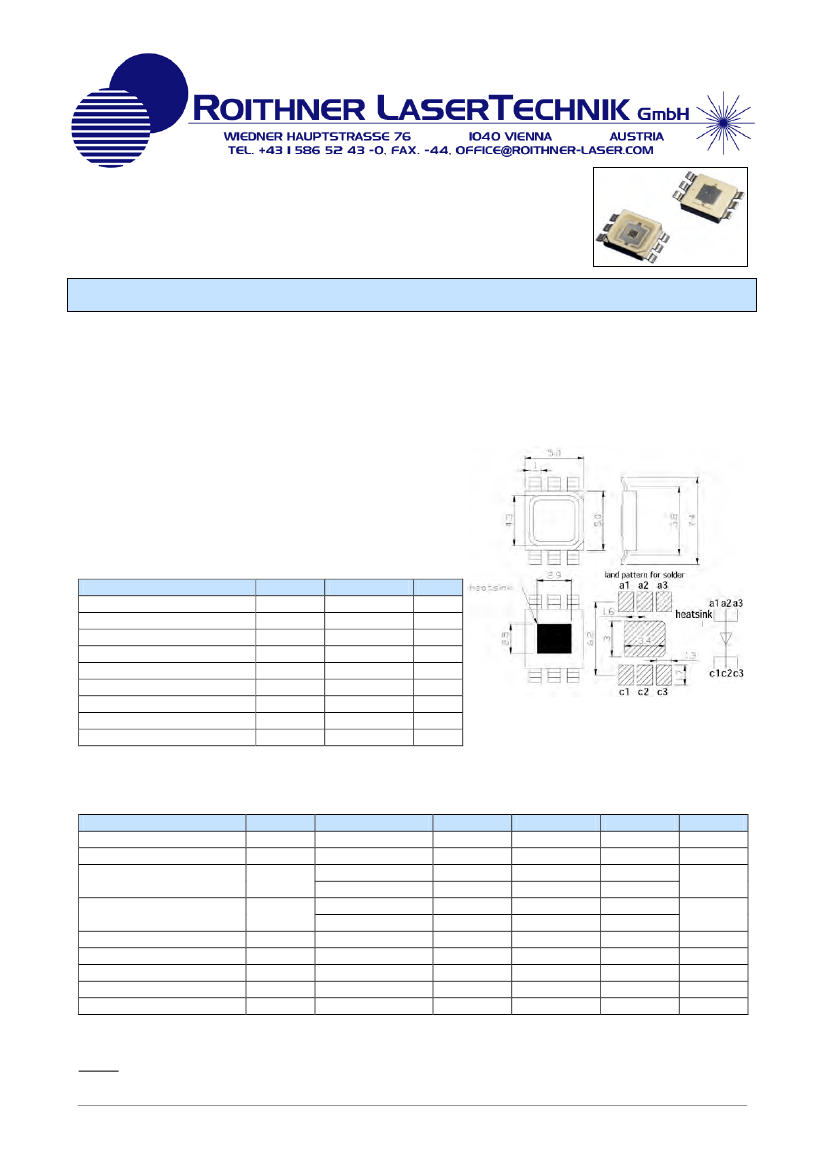

High Power LED, SMD
AlGaAs
SMB1W-770R are AlGaAs High Power LEDs mounted on a cooper heat sink with a 5x5 mm SMD
package and molded with silicone resin. On forward bias, it emits a radiation of typical 330 mW at
a peak wavelength of 770 nm.
Specifications
•
•
•
•
Structure: AlGaAs, 1W high power chip
Peak Wavelength: typ. 770 nm
Optical Output Power: typ. 330 mW
Package
SMD, PPA resin
Lead frame die: silver plated on copper
Lens: silicone resin
Absolute Maximum Ratings (T
a
=25°C)
Item
Power Dissipation
Forward Current
1
Pulse Forward Current *
Reverse Voltage
Thermal Resistance
Junction Temperature
Operating Temperature
Storage Temperature
2
Soldering Temperature *
1
Symbol
P
D
I
F
I
FP
V
R
R
th
T
J
T
opr
T
stg
T
sol
Value
2500
800
3000
5
10
135
-40 … +125
-40 … +125
255
Unit
mW
mA
mA
V
K/W
°C
°C
°C
°C
(Unit: mm)
* duty = 1%, pulse width = 10 µs
2
* must be completed within 5 seconds
Electro-Optical Characteristics
Item
Forward Voltage
Pulsed Forward Current
Total Radiated Power
Radiant Intensity
Peak Wavelength
Half Width
Viewing Half Angle
Rise Time
Fall Time
Symbol
V
F
V
FP
P
O
I
E
λ
P
Δλ
Θ
1/2
t
r
t
f
Condition
I
F
= 800 mA
I
FP
= 3 A
I
F
= 800 mA
I
FP
= 3 A
I
F
= 800 mA
I
FP
= 3 A
I
F
= 100 mA
I
F
= 100 mA
I
F
= 100 mA
I
F
= 100 mA
I
F
= 100 mA
Min.
-
-
-
-
-
-
-
-
-
-
-
Typ.
2.0
3.5
330
1250
145
550
770
25
±62
80
80
Max.
2.5
5.5
-
-
-
-
-
-
-
-
-
Unit
V
V
mW
mW/sr
nm
nm
deg.
ns
ns
Total Radiated Power is measured by S3584-08
Radiant Intensity is measured by Tektronix J-6512
Notes: Do not view directly into the emitting area of the LED during operation!
The above specifications are for reference purpose only and subjected to change without prior notice.
23.02.2012
SMB1W-770R
1 of 5
Typical Performance Curves

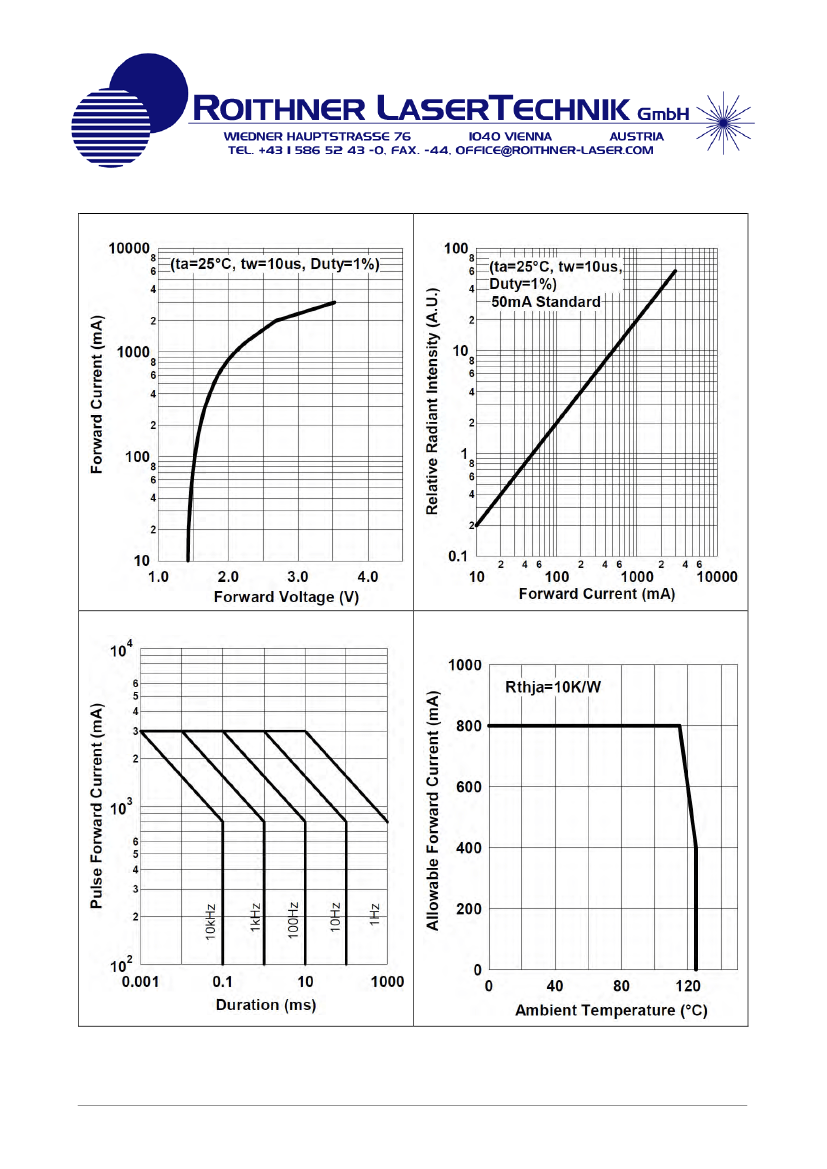

Forward Current – Forward Voltage
Relative Radiant Intensity –Forward Current
Forward Current – Pulse Duration
Allowed Forward Current – Ambient Temperature
23.02.2012
SMB1W-770R
2 of 5

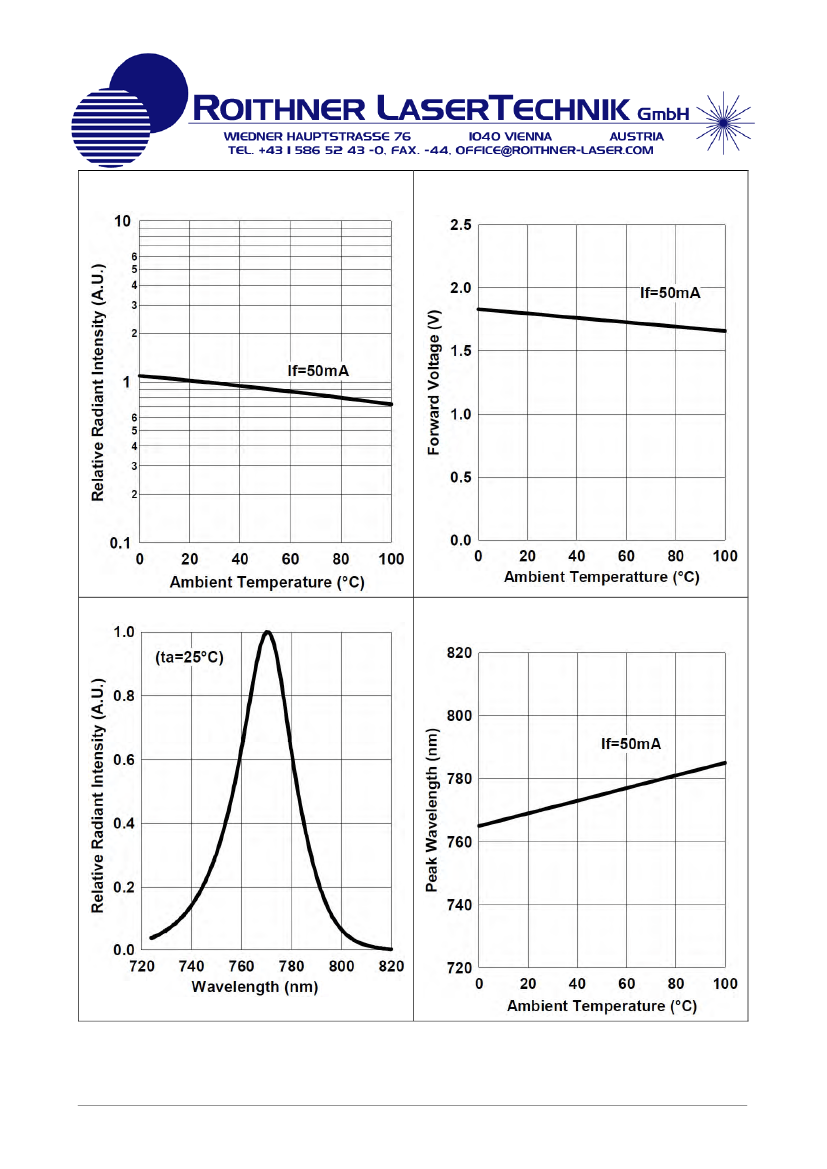

Relative Radiant Intensity – Ambient
Temperature
Forward Voltage – Ambient Temperature
Peak Wavelength
Peak Wavelength – Ambient Temperature
23.02.2012
SMB1W-770R
3 of 5

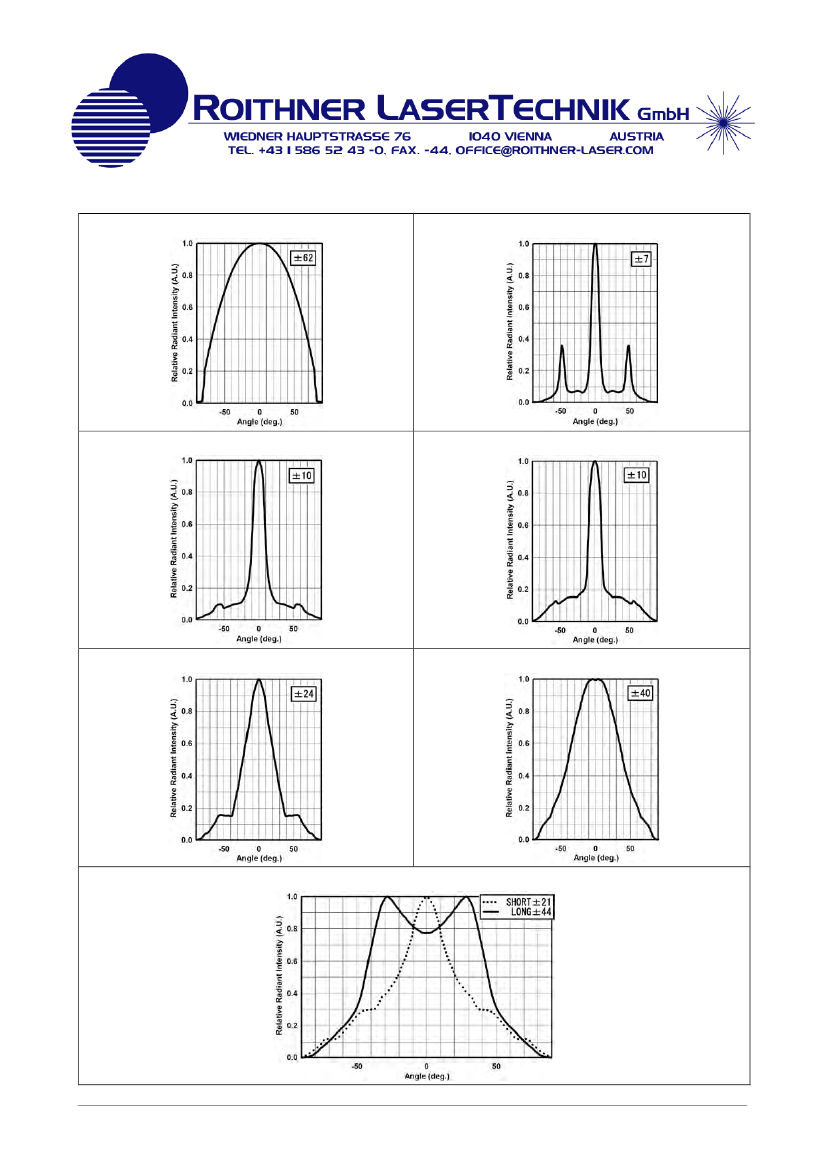

Radiation pattern
SMB1W-770R
SMB1W-770R-01
SMB1W-770R-02
SMB1W-770R-03
SMB1W-770R-04
SMB1W-770R-05
SMB1W-770R-09
23.02.2012
SMB1W-770R
4 of 5

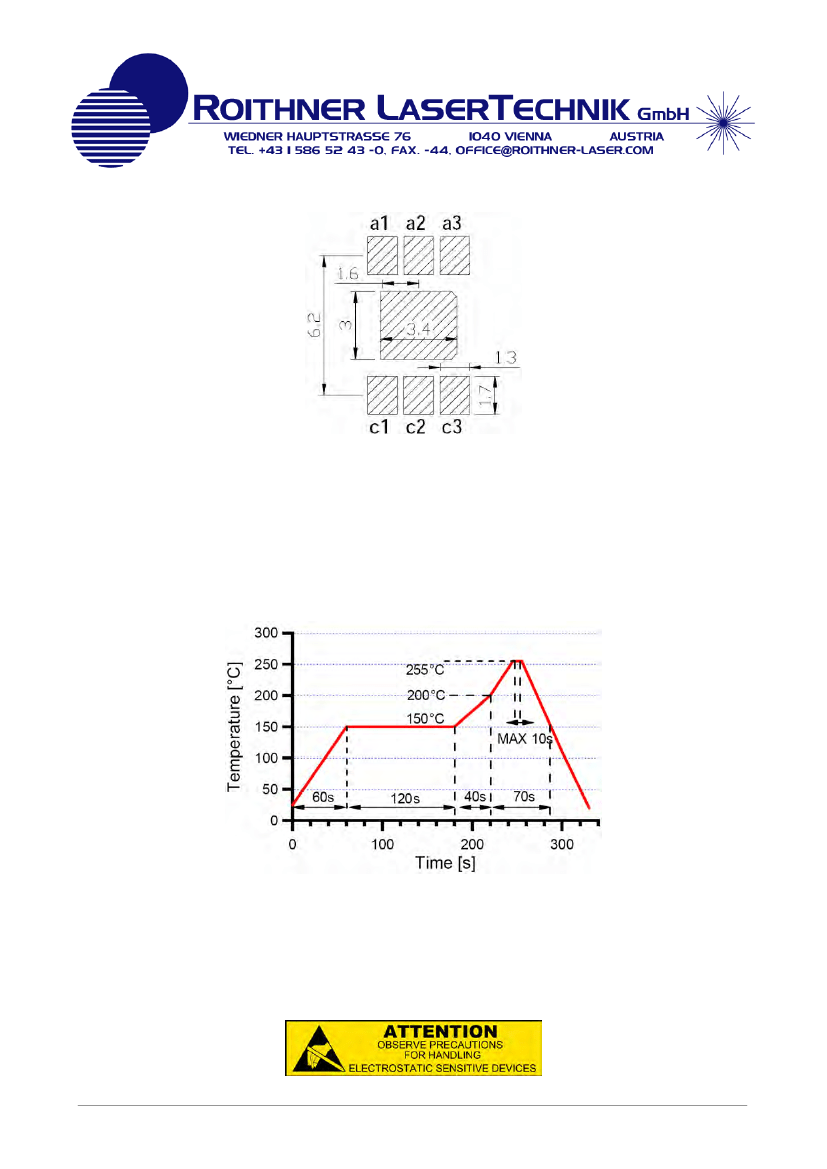

Recommended Land Layout (Unit: mm)
1. Soldering Conditions
•
DO NOT apply any stress to the lead particularly when heat.
•
After soldering the LEDs should be protected from mechanical shock or vibration until the
LEDs return to room temperature.
•
When it is necessary to clamp the LEDs to prevent soldering failure, it is important to
minimize the mechanical stress on the LEDs.
Soldering Conditions
2. Static Electricity
•
The LEDs are very sensitive to Static Electricity and surge voltage. So it is recommended
that a wrist band or an anti-electrostatic glove be used when handling the LEDs.
•
All devices, equipment and machinery must be grounded properly. It is recommended that
precautions should be taken against surge voltage to the equipment that mounts the LEDs.
23.02.2012
SMB1W-770R
5 of 5
