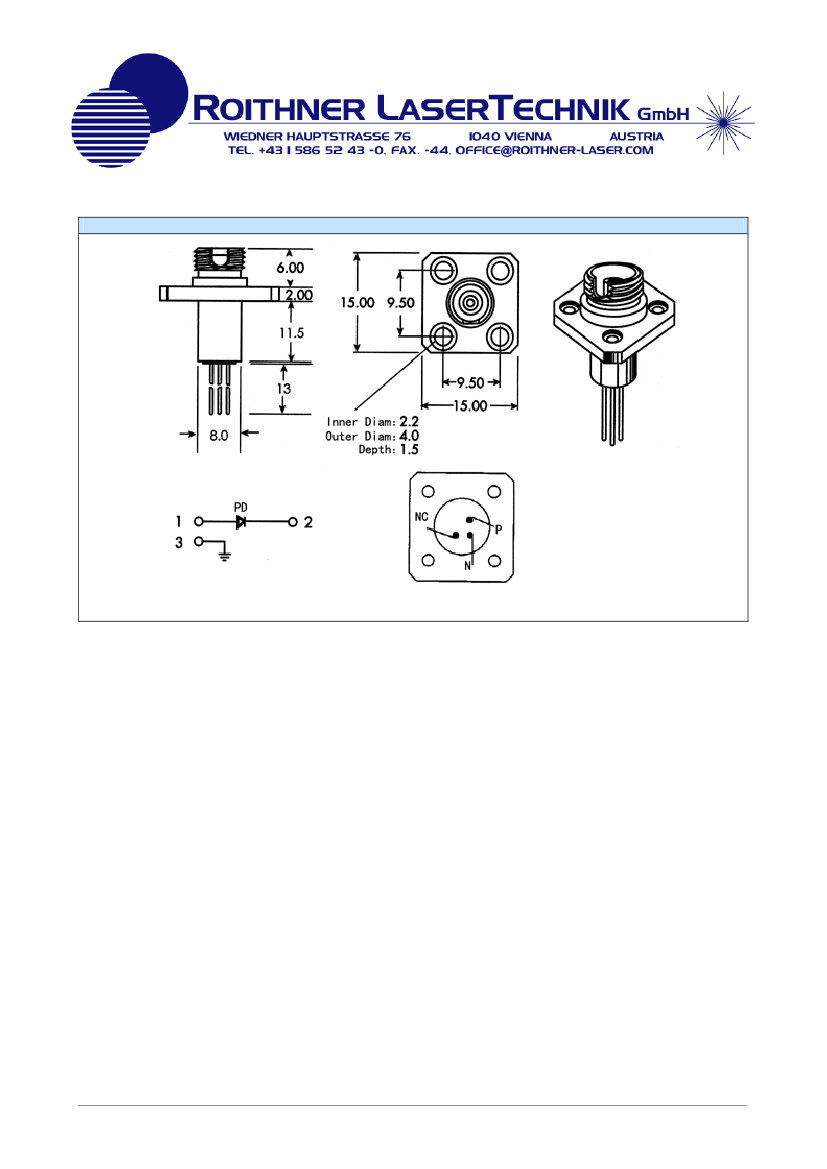

PF512
TECHNICAL DATA
FC InGaAs Photodiode
PF512 is an InGaAs PIN structure based photodiode with FC connector and ball lens. An internal optical
attenuator allows measurements up tp 20 dBm with a normal spectral range of 1,0 – 1,65 µm and an
extended range of 0,65 – 1,65 µm.
Absolute Maximum Ratings
Item
Symbol
Reverse Voltage
U
R
Optical Current
I
PD
Forward current
I
F
Power Dissipation
P
D
Operating Temperature
T
opr
Storage Temperature
T
stg
Soldering Temperature *
T
sol
*
must be completed within 10 seconds
Value
25
10
10
100
-40 … +85
-40 … +85
260
Unit
V
mA
mA
mW
°C
°C
°C
Specifications (25°C)
Item
Wavelength Range
Sensitive Area
Linear Range
Responsibility (0 V)
Capacitance (-5 V)
Dark Current (-5 V)
Operating Voltage
Inserting Deviation
Inserting lifetime
850 nm
1310 nm
1550 nm
Value
1.00 - 1.65
Ø 300
-50… +20
≥ 0.20
≥ 0.75
≥ 0.80
≤12
≤5
0… -10
±0.1
5
10
Unit
µm
µm
dBm
A/W
pF
nA
V
dB
h
28.02.2012
PF512
1 of 3

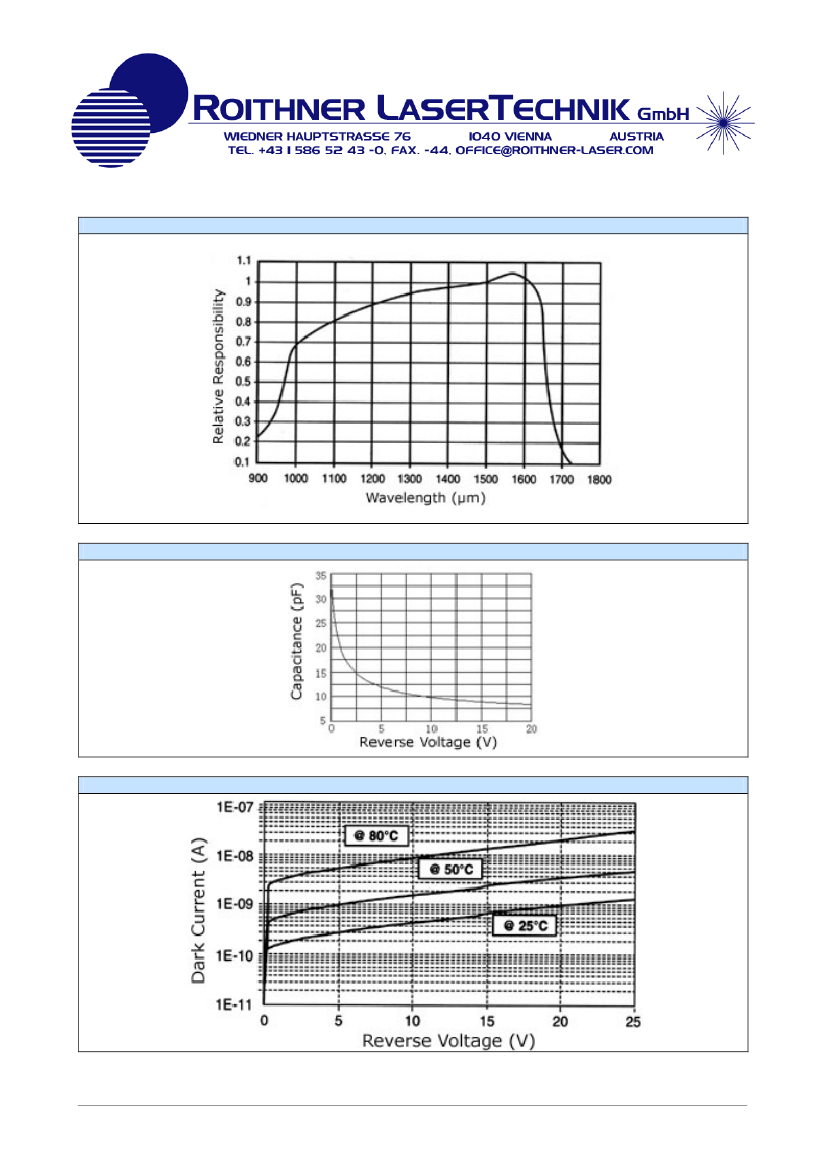

Typical Performance
Relative responsivity vs wavelenght
Capacitance vs reverse voltage
Dark current vs reverse voltage
28.02.2012
PF512
2 of 3
