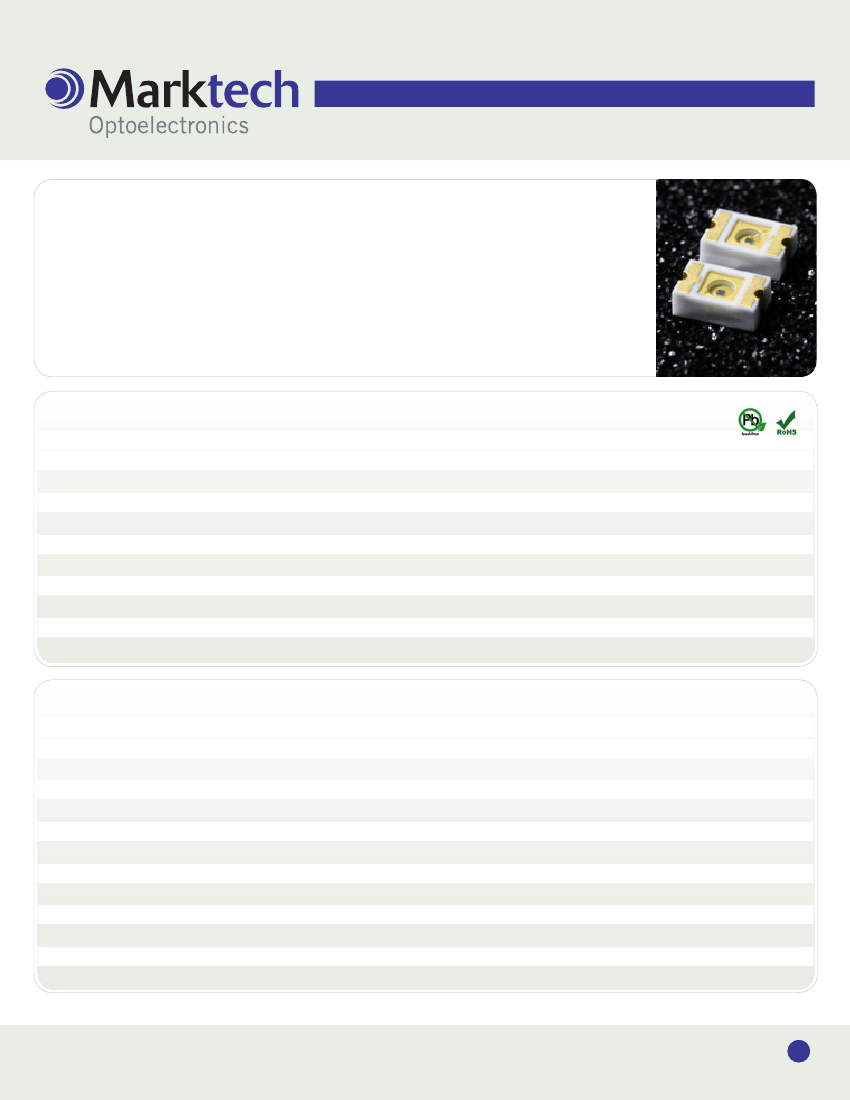

Visible Red Point Source Emitter
Product No:
MTPS9067MC
Peak Emission Wavelength: 650nm
The 650nm Point Source Series is designed for applications requiring high accurary and precision. Custom
package solutions and sorting are available.
FE AT U R E S
A PPL I C A TI O N S
>
3.5×2.2×1.24 Flat Top Ceramic SMT
>
Emitting Window Diameter Ф 150μm
>
High Reliability / High Output Power
>
Optical Sensing / Optical Instruments
>
Linear & Rotary Encoder
> Machine Vision / CCD
Absolute Maximum Ratings (Ta=25ºC)
IT E M S
SY M BO L
RA TI N GS
UNIT
Forward Current (DC)
Forward Current (Pulse)*1
Reverse Voltage
Power Dissipation
Operating Temperature Range
Storage Temperature Range
IF
IFP
VR
PD
Topr
Tstg
50
0.15
5
100
-20 ~ +85
-30 ~ +100
mA
A
V
mW
ºC
ºC
*1: Tw=10μsec, T=10msec.
Electrical & Optical Characteristics (Ta = 25ºC)
IT E M S
SY M BO L
C O N D I TI O N S
MIN
T YP
MA X
UNIT
Power Output
Forward Voltage
Reverse Current
Peak Emission Wavelength
Spectral Line Half Width
Half Intensity Beam Angle
PO
VF
IR
λp
∆λ
Ө
IF=20mA
IF=20mA
VR=5V
IF=20mA
IF=20mA
IF=20mA
--
--
--
--
--
--
0.7
2.2
--
650
20
±50
--
2.5
10
--
--
--
mW
V
μA
nm
nm
deg
2011-06-02
Global Headquarters, 3 Northway Lane North, Latham, NY 12110, USA
TOLL FREE:
www.marktechopto.com
EMAIL:
1
1-800-984-5337
•
PHONE:
518-956-2980
•
FAX:
518-785-4725
•
info@marktechopto.com
Visible Red Point Source Emitter
Product No:
MTPS9067MC

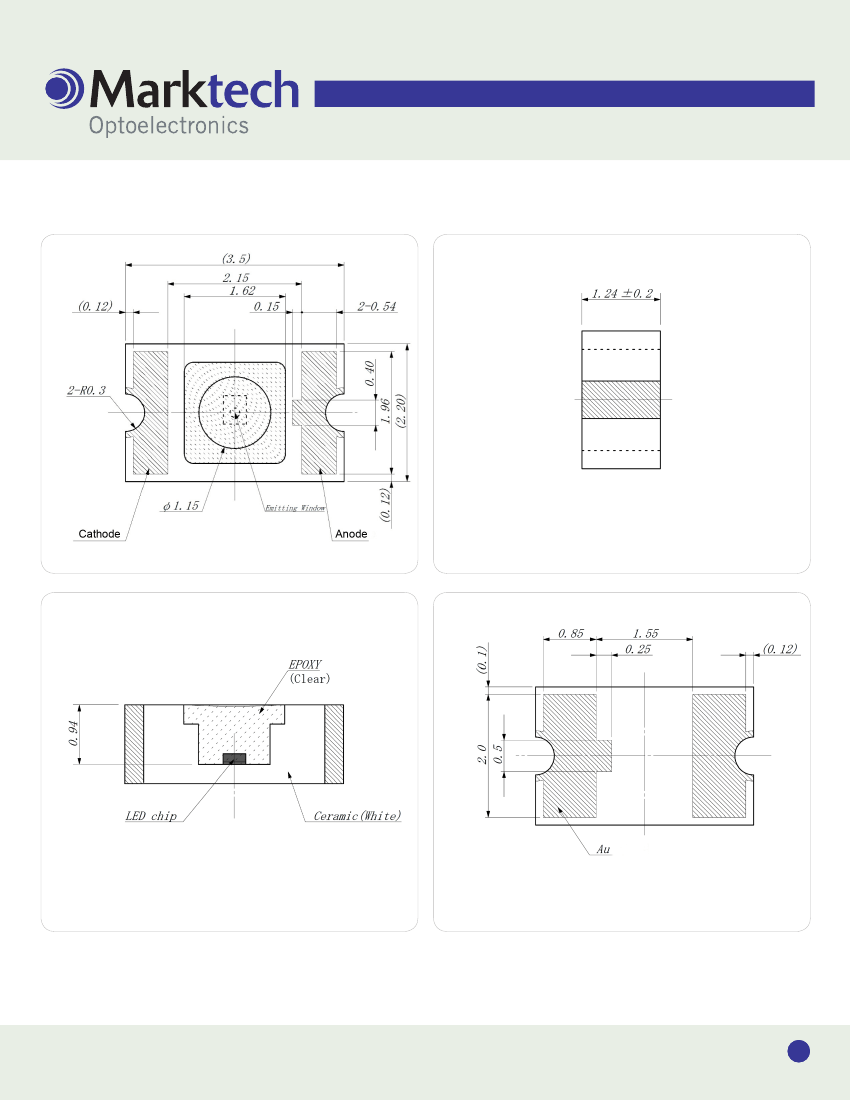

Unit: mm, Tolerance: ±0.2
2011-06-02
Global Headquarters, 3 Northway Lane North, Latham, NY 12110, USA
TOLL FREE:
www.marktechopto.com
EMAIL:
2
1-800-984-5337
•
PHONE:
518-956-2980
•
FAX:
518-785-4725
•
info@marktechopto.com

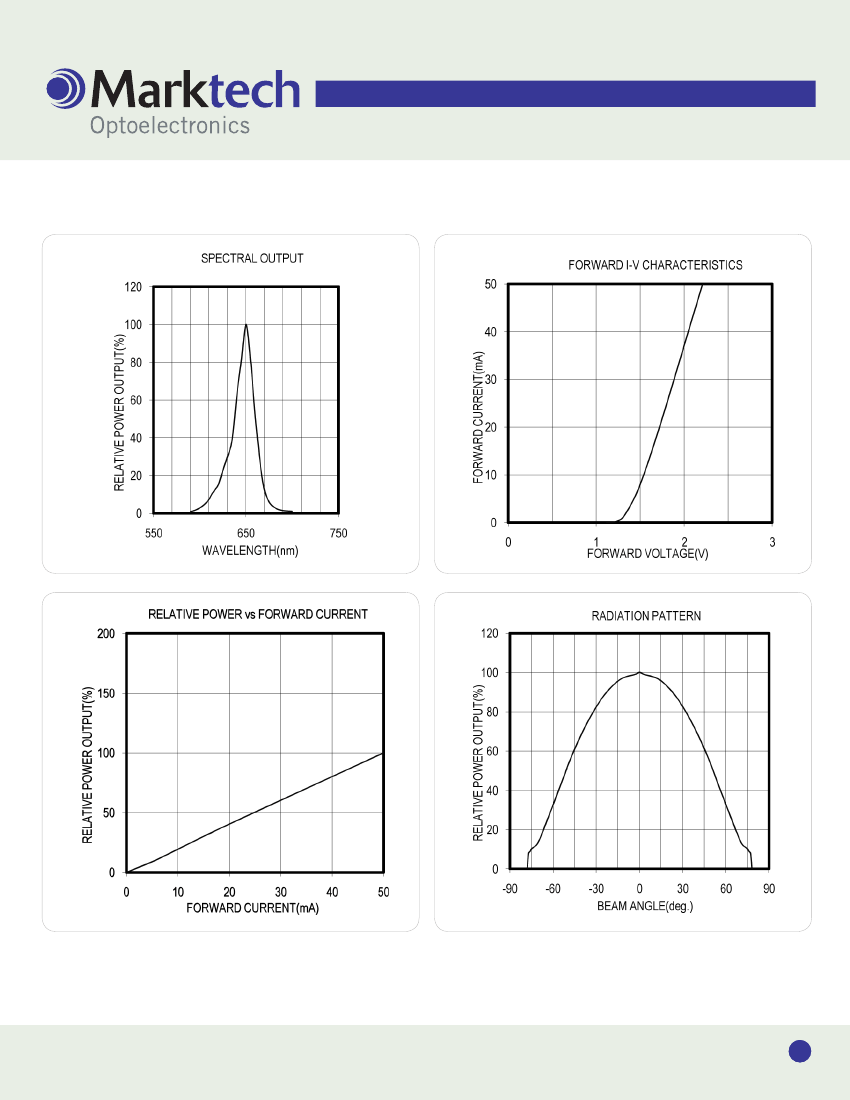

Visible Red Point Source Emitter
Product No:
MTPS9067MC
2011-06-02
Global Headquarters, 3 Northway Lane North, Latham, NY 12110, USA
TOLL FREE:
www.marktechopto.com
EMAIL:
3
1-800-984-5337
•
PHONE:
518-956-2980
•
FAX:
518-785-4725
•
info@marktechopto.com

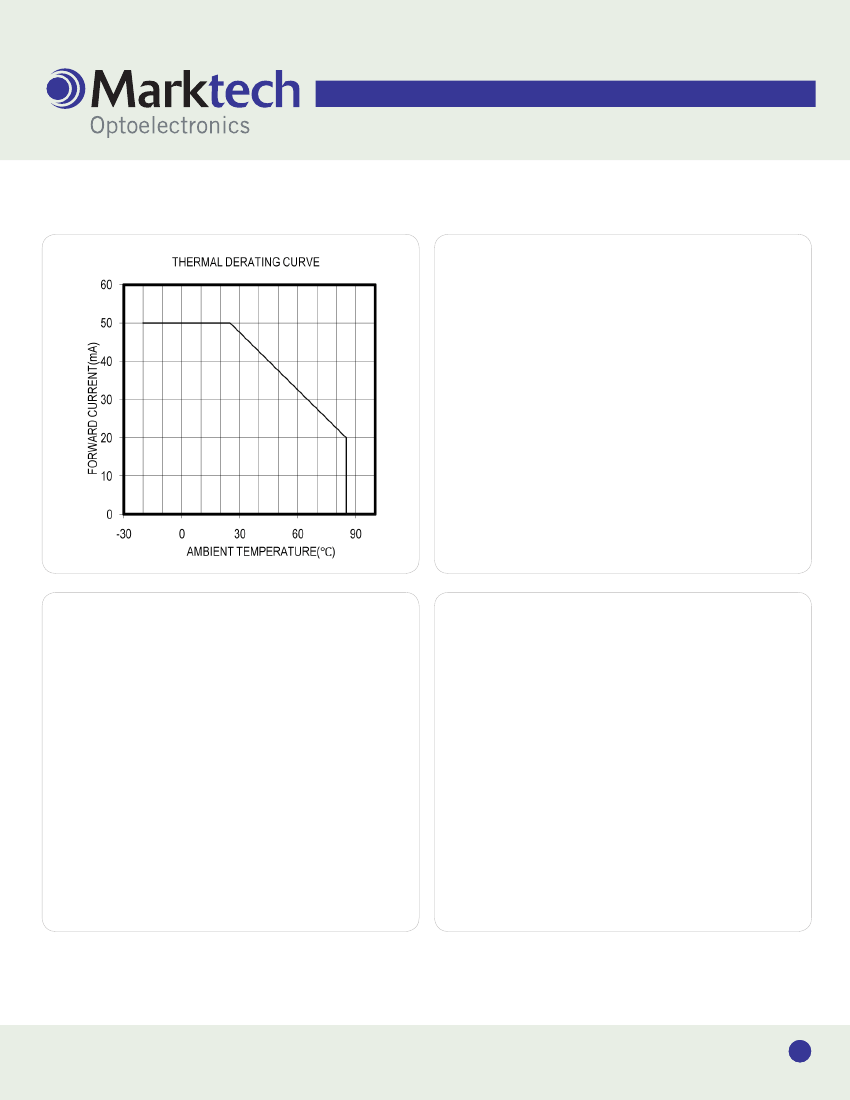

Visible Red Point Source Emitter
Product No:
MTPS9067MC
The information contained herein is subject to change without notice.
