NSPV151M16V10X8TR15 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> NSPV151M16V10X8TR15

NSPV151M16V10X8TR15: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, SOLID POLYMER, POLARIZED, 16V, 150uF, SURFACE MOUNT, 4141; CategoryPassive components capacitor; File Size48KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric Compare View All

NSPV151M16V10X8TR15 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, SOLID POLYMER, POLARIZED, 16V, 150uF, SURFACE MOUNT, 4141

NSPV151M16V10X8TR15 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Nichicon
package instruction	, 4141
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	150 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (SOLID POLYMER)
ESR	29 mΩ
high	8 mm
JESD-609 code	e6
leakage current	0.48 mA
length	11.6 mm
Manufacturer's serial number	NSPV
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
Package form	SMT
method of packing	TR, 15 INCH
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	16 V
ripple current	3430 mA
series	NSPV(16V)
size code	4141
surface mount	YES
Terminal surface	Tin/Bismuth (Sn97Bi3)
Terminal shape	FLAT
width	10.3 mm

Preview

Download Datasheet

View All

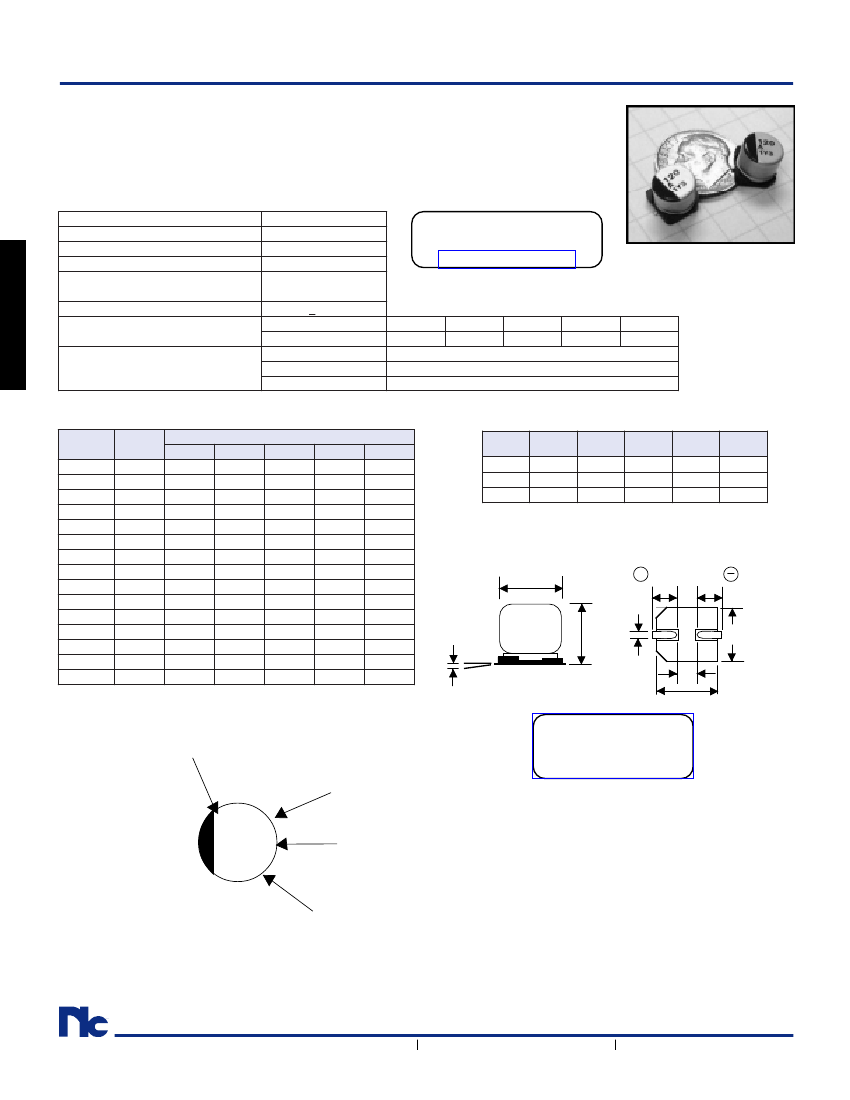

Solid Polymer Aluminum Electrolytic Capacitor

FEATURES

• CYLINDRICAL LEADLESS TYPE FOR SURFACE MOUNTING

• CAPACITANCE VALUES UP TO 680µF

• LOW ESR & HIGH RIPPLE CURRENT AT 100K Hz

• 8x7mm ~ 10x10.5 CASE SIZE

• COMPATIBLE WITH REFLOW SOLDERING

CHARACTERISTICS

Rated Voltage Range

Rated Capacitance Range

Operating Temp. Range

Capacitance Tolerance

Max. Leakage Current

After 2 Minutes @ 20°C

Tan

@ 120Hz/20°C

Working and Surge Voltage Ratings

Load LifeTest @ 105°C

1,000 Hours

6.3 ~ 25 Vdc

22 ~ 680

µF

-55 ~ +105°C

±20%(M)

Less than 0.2CV

< 15%

W.V. (Vdc)

S.V. (Vdc)

Capacitance Change

Tan

Leakage Current

6.3

8.0

Within ± 20% of initial measured value

Less than specified max. value

NSPV Series

SURFACE MOUNT

LOW ESR COMPONENT

SOLID POLYMER ELECTROLYTE

For Performance Data

see www.LowESR.com

STANDARD PRODUCTS AND CASE SIZES (mm)

Cap (

100

120

150

180

220

270

330

390

470

560

680

Code

220

330

470

820

101

121

151

181

221

271

331

391

471

561

681

6.3

8x7

10x8

10x10.5

Working Voltage (Vdc)

8x7

10x8

8x7

10x8

10x10.5

10x8

10x10.5

10x8

10x10.5

10x10.5 10x10.5

10x10.5

8x7

10x8

10x10.5

CASE DIMENSIONS (mm)

Dφ ±0.5

8.0

L max.

7.0

8.0

10.5

A ±0.2

8.3

10.3

W ±0.2

0.9

3.4

3.5

3.1

4.6

Dφ

0.3mm max.

SEE PAGE 38

For Case Size Data

SEE PAGE 39

For Taping/Packaging Data

Series Code

Date/Factory Code

PV342

150

Capacitance Value

Voltage

NIC COMPONENTS

www.niccomp.com

www.lowESR.com

www.RFpassives.com

NSPV151M16V10X8TR15 Related Products

	NSPV151M16V10X8TR15	NSPV151M10V8X7TR15	NSPV101M16V8X7TR15	NSPV471M6.3V10X10.5TR15
Description	CAPACITOR, ALUMINUM ELECTROLYTIC, SOLID POLYMER, POLARIZED, 16V, 150uF, SURFACE MOUNT, 4141	CAPACITOR, ALUMINUM ELECTROLYTIC, SOLID POLYMER, POLARIZED, 10V, 150uF, SURFACE MOUNT, 3333	CAPACITOR, ALUMINUM ELECTROLYTIC, SOLID POLYMER, POLARIZED, 16V, 100uF, SURFACE MOUNT, 3333	CAPACITOR, ALUMINUM ELECTROLYTIC, SOLID POLYMER, POLARIZED, 6.3V, 470uF, SURFACE MOUNT, 4141
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	Nichicon	Nichicon	Nichicon	Nichicon
Reach Compliance Code	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99
capacitance	150 µF	150 µF	100 µF	470 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (SOLID POLYMER)	ALUMINUM (SOLID POLYMER)	ALUMINUM (SOLID POLYMER)	ALUMINUM (SOLID POLYMER)
ESR	29 mΩ	35 mΩ	39 mΩ	20 mΩ
high	8 mm	7 mm	7 mm	10.5 mm
JESD-609 code	e6	e6	e6	e6
leakage current	0.48 mA	0.3 mA	0.32 mA	0.5922 mA
length	11.6 mm	9.9 mm	9.9 mm	11.6 mm
Manufacturer's serial number	NSPV	NSPV	NSPV	NSPV
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
negative tolerance	20%	20%	20%	20%
Number of terminals	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
Package form	SMT	SMT	SMT	SMT
method of packing	TR, 15 INCH	TR, 15 INCH	TR, 15 INCH	TR, 15 INCH
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED
positive tolerance	20%	20%	20%	20%
Rated (DC) voltage (URdc)	16 V	10 V	16 V	6.3 V
ripple current	3430 mA	2800 mA	2500 mA	5100 mA
series	NSPV(16V)	NSPV(10V)	NSPV(16V)	NSPV(6.3V)
size code	4141	3333	3333	4141
surface mount	YES	YES	YES	YES
Terminal surface	Tin/Bismuth (Sn97Bi3)	Tin/Bismuth (Sn97Bi3)	Tin/Bismuth (Sn97Bi3)	Tin/Bismuth (Sn97Bi3)
Terminal shape	FLAT	FLAT	FLAT	FLAT
width	10.3 mm	8.3 mm	8.3 mm	10.3 mm
package instruction	, 4141	-	, 3333	, 4141
