Infrared Point Source Emitter

Product No:

MTPS8085M1

Peak Emission Wavelength: 855nm

The 850nm Point Source Series is designed for applications requiring high accuracy and precision as well

as uniform spectral emission. Custom package solutions and sorting are available.

F EA T UR E S

A PPL I C A TI O N S

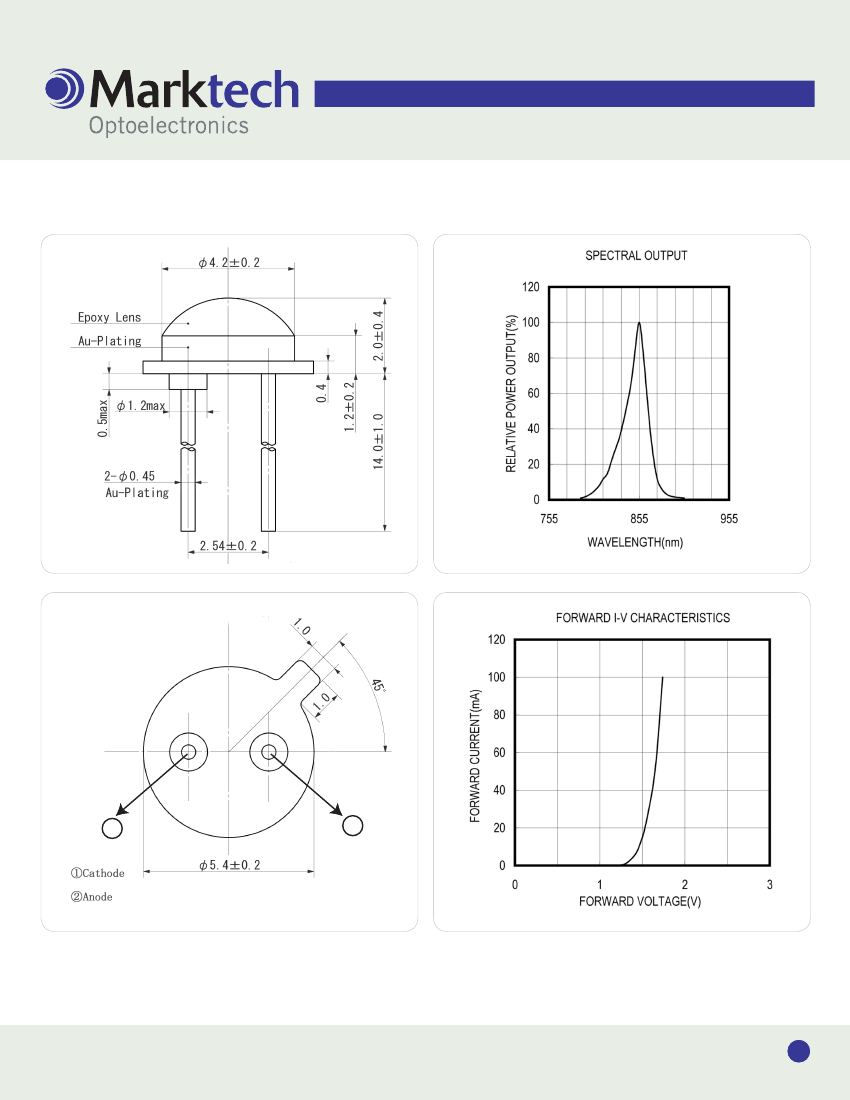

TO-46 Drip Lens

Emitting Window Diameter Ф 150μm

High Reliability / High Output Power

Optical Scanning

Linear & Rotary Encoder

> Edge Sensing

> Optical Sensors

Absolute Maximum Ratings (Ta=25ºC)

IT E M S

SY M BO L

RA TI N GS

UNIT

Forward Current (DC)

Forward Current (Pulse)*1

Reverse Voltage

Power Dissipation

Operating Temperature Range

Storage Temperature Range

IFP

Topr

Tstg

0.8

160

-20 ~ +85

-30 ~ +100

ºC

*1: Tw=10µsec, T=10msec.

Electrical & Optical Characteristics (Ta = 25ºC)

IT E M S

SYM B O L

C O N D I TI O N S

MIN

TYP

MA X

UNIT

Power Output

Forward Voltage

Reverse Current

Peak Emission Wavelength

Spectral Line Half Width

Half Intensity Beam Angle

λp

∆λ

IF=50mA

VR=5V

IF=50mA

4.5

8.0

1.7

855

±40

2.2

100

µA

deg

2011-05-23

Global Headquarters, 3 Northway Lane North, Latham, NY 12110, USA

TOLL FREE:

www.marktechopto.com

EMAIL:

1-800-984-5337

•

PHONE:

518-956-2980

•

FAX:

518-785-4725

•
