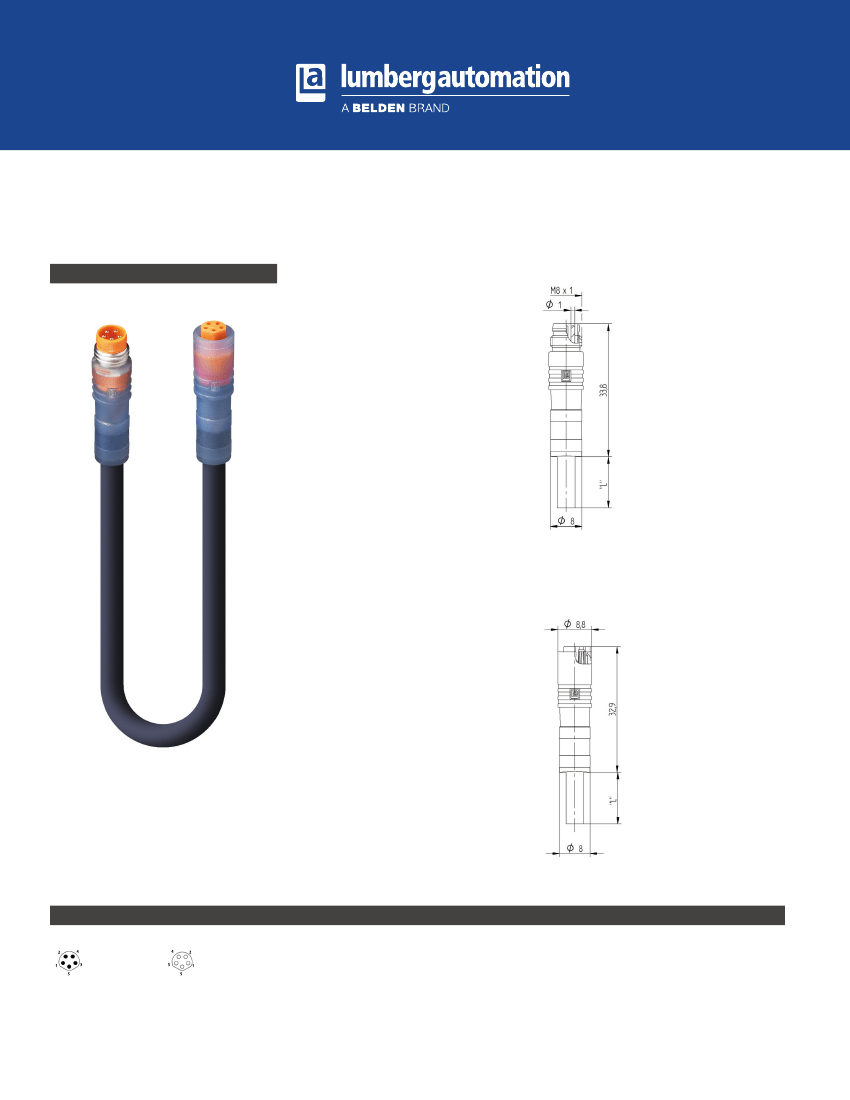

M8-Round-Plug 5 Pole Snap Connector, Double-Ended Cordsets,
IEC 61076-2-104
RSM 5-RKM 5
5-Pole
Datasheet
RSM 5
M8 sensor/actuator cordset double-ended 5-pole
male straight connector to 5-pole female straight
connector with snap joint and molded black PUR
halogen-free or PVC cable
Datasheet
RKM 5
Datasheet
The information/details in this datasheet merely contain general descriptions or performance factors which, when applied in an actual situation, do not alway
correspond with the described form, and may be amended by way of the further development of products. The desired performance factors shall only be
binding if these are expressly agreed on conclusion of the contract.
Datasheet-No. 934-876-999
EN Revison: 00
Type:
krueck
Created: 2015-11-06
RSM 5-…/… M
M8 male connector snap 5-poles
Page: 1 of 3
Pin Assignments
M8
RKM Male 5 poles
1=
2=
3=
4=
5=
brown
white
blue
black
gray
RSM Female 5 poles
1=
2=
3=
4=
5=
brown
white
blue
black
gray
The information/details in this datasheet merely contain general descriptions or performance factors which, when applied in an actual situation, do not alway
correspond with the described form, and may be amended by way of the further development of products. The desired performance factors shall only be
binding if these are expressly agreed on conclusion of the contract.
The information/details in this datasheet merely contain general descriptions or performance factors which, when applied in an actual situation, do not alway
n general descriptions or performance factors which, when applied in an actual situation, do not alway
correspond with the described form, and may be amended by way of the further development of products. The desired performance factors shall only be
ded by way of the further development of products. The desired performance factors shall only be
binding if these are expressly agreed on conclusion of the contract.
the contract.
Datasheet-No. 934-871-999
EN Revison: 00
Type:
krueck
Created: 2015-11-06
RKM 5-…/… M
M8 female connector snap 5-poles
Page: 1 of 3
pe:
krueck
Datasheet-No. 934-871-999 Type:
RSM 5-…/… M
EN Revison: 00
M8 male connector
Created:
5-poles
snap
2015-11-06 krueck
RKM 5-…/… M
M8 female
of 3
Page: 1
connector snap 5-poles
Page: 1 of 3
Data sheet | 01/28/16
Technical Support:
1-717-217-2289
www.lumberg-automationusa.com
Be Certain with Belden
M8-Round-Plug 5 Pole Snap Connector, Double-Ended Cordsets,
IEC 61076-2-104
Technical Data
Environmental
Degree of protection
Operating temperature range
Type
Type of contacts
Number of contacts
Standard
Construction type
Conductor size
Mechanical
Over molding
Contact bearer
Contact
Contact plating
Electrical data
Contact resistance
Rated current
Rated voltage
Rated impulse voltage
Insulation resistance
Pollution degree
IP 65
-40°C (-40°F) / +90°C (+194°F)
Male to Female
5
IEC 61076-2-104
B-coded
0.25 mm², 0.34 mm²
TPU
PA
Cu
Au
≤
5 mΩ
3 A (0.25 mm²)/4 A (0.34 mm²)/UL: 3A
63 V AC\DC, UL: 30 V AC\DC
0.8 kV
> 10
9
Ω
3 acc. to IEC 60664-1 (VDE 0110-1)
Cable Specifications
Cable No. Outer Jacket
293
506
507
671
PUR,
halogen-free
PUR,
halogen-free
PVC
PVC
Conductor Size
5
x 0.34 mm²
5
x 0.25 mm
2
5
x 0.25 mm
2
5
x 0.34 mm²
Gauge
22
24
24
Jacket Color OD
Black
Black
Black
Black
0.197" (5.0 mm)
0.197" (5.0 mm)
0.197" (5.0 mm)
0.204" (5.2 mm)
22
Part Number
RSM 5-RKM 5-293/…M
RSM 5-RKM 5-506/…M
RSM 5-RKM 5-507/…M
RSM 5-RKM 5-671/…M
Pins
5
5
5
5
Overmold
PUR, halogen-free
PUR, halogen-free
PVC
PVC
Gauge
22
24
24
22
Standard Cable Lengths
0.3M / 0.6M / 1M / 2M / 3M / 5M / 10M / 15M
0.3M / 0.6M / 1M / 2M / 3M / 5M / 10M / 15M
0.3M / 0.6M / 1M / 2M / 3M / 5M / 10M / 15M
0.3M / 0.6M / 1M / 2M / 3M / 5M / 10M / 15M
Characteristics
www.lumberg-automationusa.com
Technical Support:
1-717-217-2289
Data sheet | 01/28/16
