High Power Infrared Emitter
Product No:
MTE8600C2
Peak Emission Wavelength: 850nm
The MTE8600C2 consists of a 850nm high output infrared die in a water-clear 3mm plastic molded
package. Custom package solutions and sorting are available.
F EA T UR E S
A PPL I C A TI O N S
>
High Output Power
>
Wide Beam Angle
>
High Reliability
>
Optical Switches & Sensors
>
Fiber Optical Communication
Absolute Maximum Ratings (Ta=25ºC)
IT E M S
SY M BO L
RA TI N GS
UNIT
Forward Current (DC)
Forward Current (Pulse)*1
Reverse Voltage
Power Dissipation
Operating Temperature Range
Storage Temperature Range
Junction Temperature
Lead Soldering Temperature*2
IF
IFP
VR
PD
Topr
Tstg
Tj
Tls
100
1
5
190
-20 ~ +80
-30 ~ +100
100
260
mA
A
V
mW
ºC
ºC
ºC
ºC
*1: Tw=10µsec, T=10msec. *2: Time 5 Sec max, Position: Up to 3mm from the body.
Electrical & Optical Characteristics (Ta = 25ºC)
IT E MS
SYM B O L
C O N D I TI O N S
MIN
T YP
MA X
UNIT
Power Output
Forward Voltage
Reverse Current
Peak Emission Wavelength
Spectral Line Half Width
Half Intensity Beam Angle
PO
VF
IR
λp
∆λ
Ө
IF=50mA
IF=50mA
VR=5V
IF=50mA
IF=50mA
IF=50mA
--
--
--
--
--
--
18.0
1.45
--
850
30
±45
--
1.9
100
--
--
--
mW
V
µA
nm
nm
deg
2012-08-06
Global Headquarters, 3 Northway Lane North, Latham, NY 12110, USA
TOLL FREE:
www.marktechopto.com
EMAIL:
1
1-800-984-5337
•
PHONE:
518-956-2980
•
FAX:
518-785-4725
•
info@marktechopto.com
High Power Infrared Emitter
Product No:
MTE8600C2

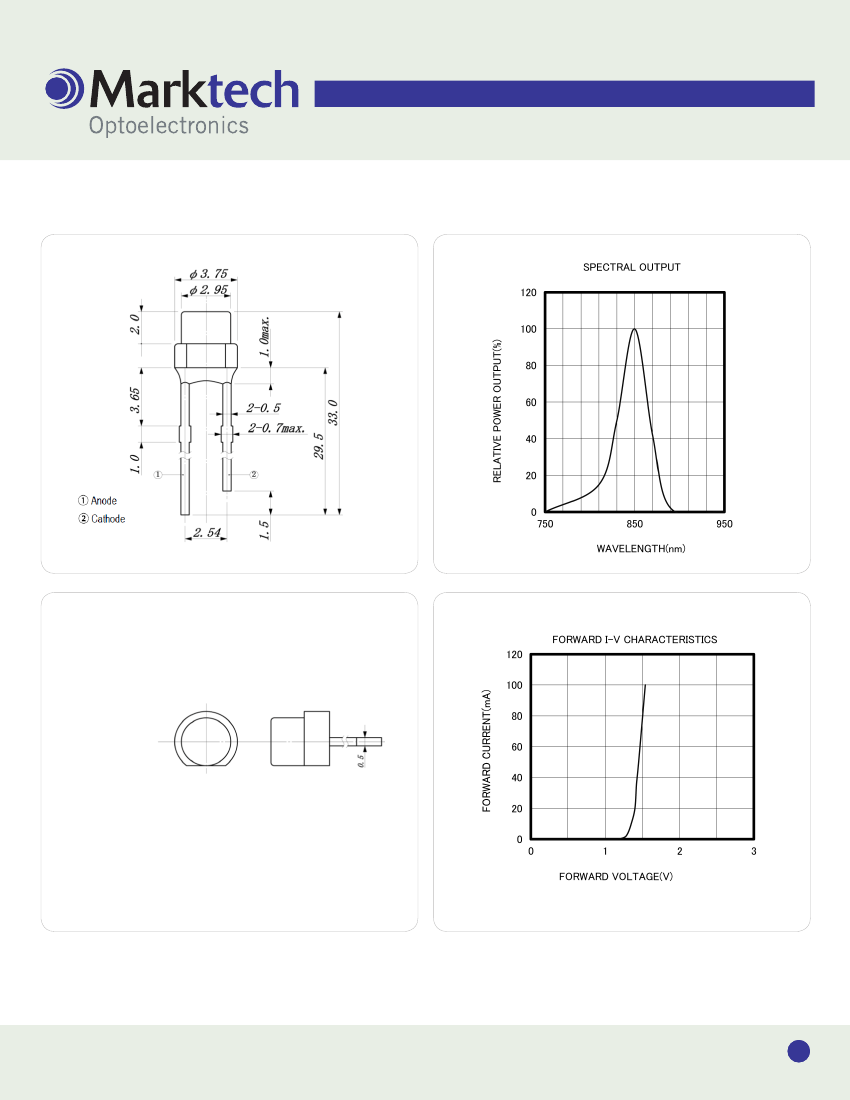

Unit: mm, Tolerance: ±0.2
2012-08-06
Global Headquarters, 3 Northway Lane North, Latham, NY 12110, USA
TOLL FREE:
www.marktechopto.com
EMAIL:
2
1-800-984-5337
•
PHONE:
518-956-2980
•
FAX:
518-785-4725
•
info@marktechopto.com
High Power Infrared Emitter
Product No:
MTE8600C2

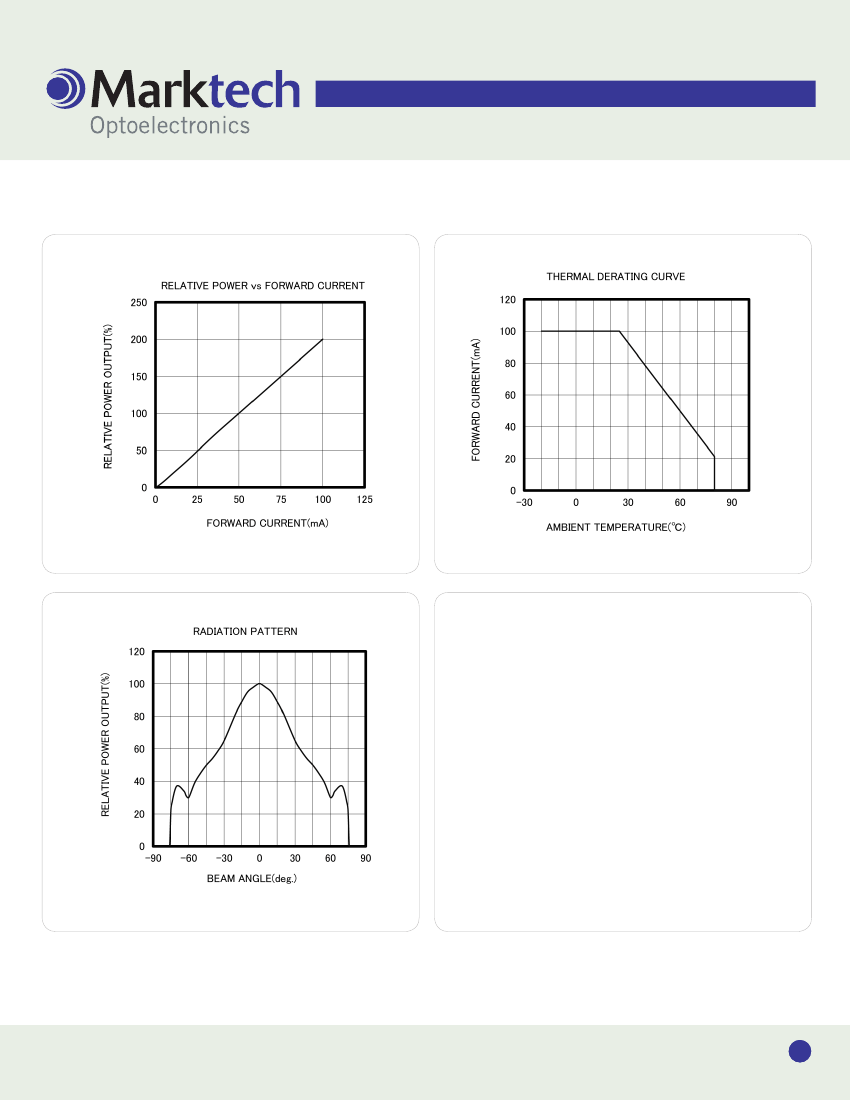

The information contained herein is subject to change without notice.
