SMC780
TECHNICAL DATA
Visible LED, SMD
AlGaAs
SMC780 is a AlGaAs LED mounted on a ceramic SMD package and sealed with silicone or epoxy resin for
damp proof. On forward bias, it emits a radiation of typical 10 mW at a peak wavelength of 780 nm.
Specifications
•
•
•
•
Structure: AlGaAs
Peak Wavelength: typ. 780 nm
Optical Output Power: typ. 10 mW
Package: Ceramic SMD, silicone / epoxy resin
Absolute Maximum Ratings (T
a
=25°C)
Item
Symbol
Value
Power Dissipation
P
D
190
Forward Current
I
F
100
Pulse Forward Current**
I
FP
500
Reverse Voltage
V
R
5
Operating Temperature
T
opr
-30 … +80
Storage Temperature
T
stg
-40 … +80
Soldering Temperature *
T
sol
240
* must be completed within 5 seconds
** max duty cycle 1%, max puls width 10µs
Unit
mW
mA
mA
V
°C
°C
°C
(Unit: mm)
Electro-Optical Characteristics
Item
Forward Voltage
Reverse Current
Total Radiated Power*
Radiation Intensity
Peak Wavelength
Half Width
Viewing Half Angle
Rise Time
Fall Time
Symbol
V
F
I
R
P
O
I
E
λ
P
Δλ
Θ
1/2
t
R
t
F
Condition
I
F
= 50 mA
V
R
= 5 V
I
F
= 50 mA
I
F
= 50 mA
I
F
= 50 mA
I
F
= 50 mA
I
F
= 50 mA
I
F
= 50 mA
I
F
= 50 mA
Min.
-
-
5.0
2.0
765
-
-
Typ.
1.75
-
10.0
5.0
780
35
±55
80
80
Max.
1.95
10
-
-
795
-
-
Unit
V
µA
mW
mW/sr
nm
nm
deg.
ns
ns
* Total Radiated Power is measured by Photodyne #500
Notes
•
Do not view directly into the emitting area of the LED during operation!
•
The above specifications are for reference purpose only and subjected to change without prior notice.
14.11.2013
SMC780
1 of 2

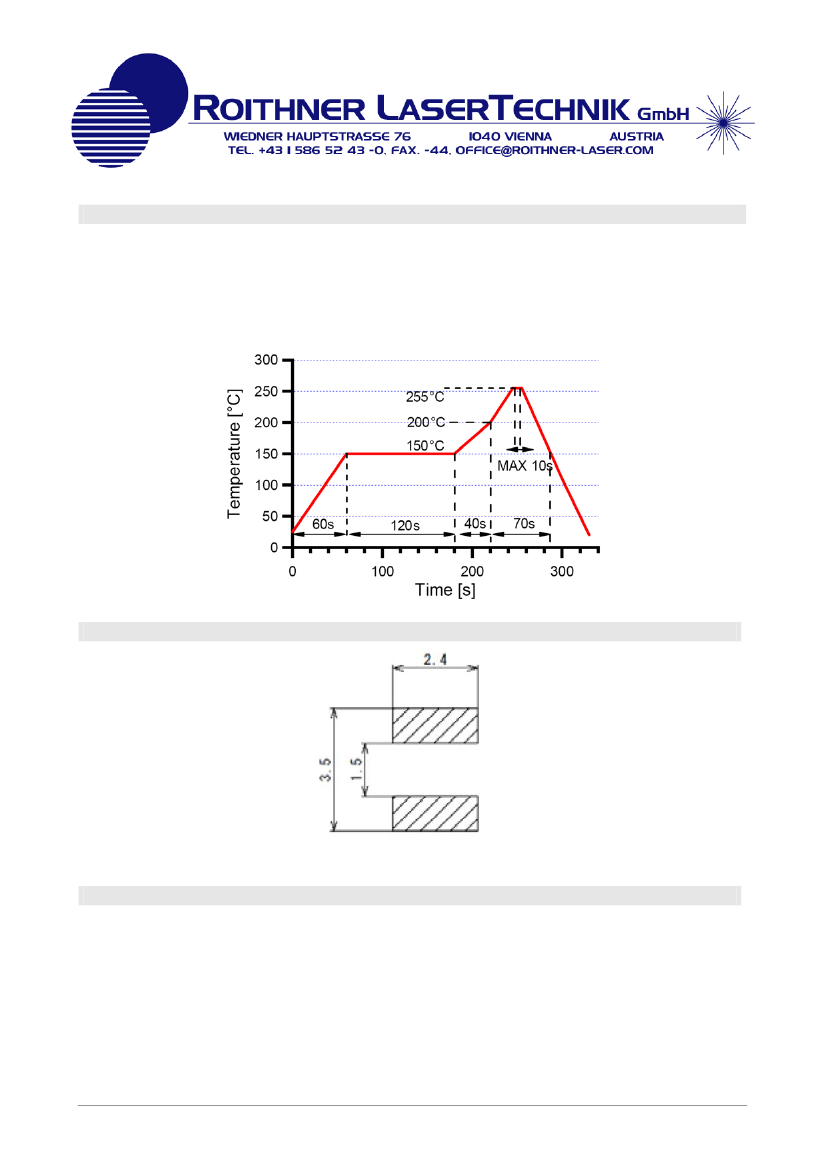

Soldering Conditions
•
•
•
DO NOT apply any stress to the lead particularly when heat.
After soldering the LEDs should be protected from mechanical shock or vibration until the LEDs
return to room temperature.
When it is necessary to clamp the LEDs to prevent soldering failure, it is important to minimize the
mechanical stress on the LEDs.
Temperature Profile
PCB Footprint Layout
(Unit: mm)
Static Electricity
•
•
LEDs are very sensitive to Static Electricity and surge voltage. It is recommended to always wear
a wrist band or an anti-electrostatic glove when handling the LEDs.
All devices, equipment and machinery must be grounded properly. It is recommended that
precautions should be taken against surge voltage to the equipment that mounts the LEDs.
14.11.2013
SMC780
2 of 2
