CTLSH10-45M364
SURFACE MOUNT
LOW VF
SILICON SCHOTTKY RECTIFIER
w w w. c e n t r a l s e m i . c o m
DESCRIPTION:
The CENTRAL SEMICONDUCTOR CTLSH10-45M364
is a high performance 10 amp silicon Schottky rectifier
designed for applications as a by-pass diode in low
profile solar panels.
MARKING CODE: CTSH1045
TLM364 CASE
APPLICATIONS:
•
The CTLSH10-45M364 is optimized for
use as a by-pass diode in low profile solar
(PV) panels.
MAXIMUM RATINGS:
(TA=25°C)
Peak Repetitive Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Forward Current (TL=100°C)
Peak Forward Surge Current, tp=8.3ms
Operating and Storage Junction Temperature
Thermal Resistance (Note 1)
Thermal Resistance
ELECTRICAL
SYMBOL
IR
IR
BVR
VF
VF
VF
VF
CJ
FEATURES:
•
Low forward voltage, VF=0.49V TYP @ 10A
•
Low reverse leakage current, IR=20μA TYP @ 45V
•
High surge capability
•
Low profile 1.2mm MAX package height
SYMBOL
VRRM
VR
VR(RMS)
IO
IFSM
TJ, Tstg
UNITS
V
V
V
A
A
°C
°C/W
°C/W
45
45
32
10
300
-55 to +150
60
7.0
MAX
50
Θ
JA
Θ
JL
CHARACTERISTICS:
(TA=25°C unless otherwise noted)
TEST CONDITIONS
MIN
TYP
VR=45V
20
VR=45V, TA=125°C
IR=0.5mA
IF=5.0A
IF=5.0A, TA=125°C
IF=10A
IF=10A, TA=125°C
VR=10V, f=1.0MHz
9.0
45
0.44
0.34
0.49
0.42
620
UNITS
μA
mA
V
V
V
0.55
V
V
pF
Notes: (1) FR-4 epoxy PCB with minimum copper pad area.
R1 (2-August 2012)
CTLSH10-45M364
SURFACE MOUNT
LOW VF
SILICON SCHOTTKY RECTIFIER

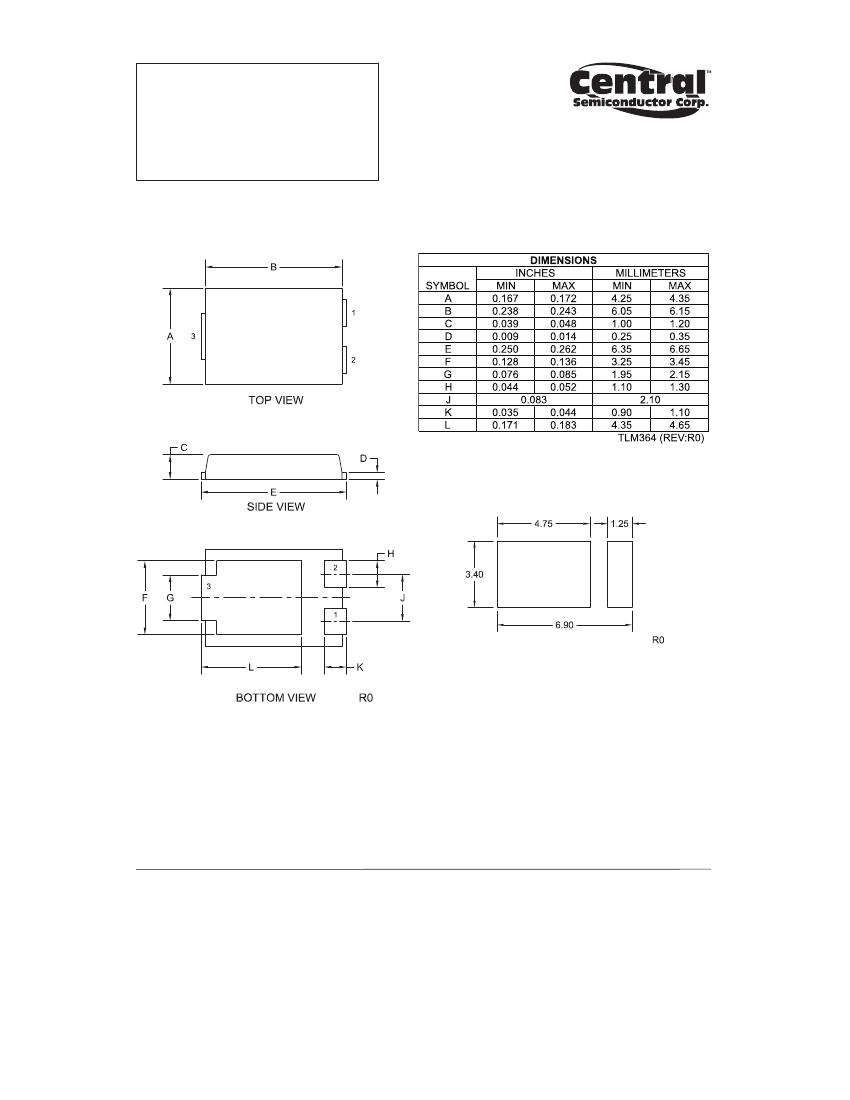

TLM364 CASE - MECHANICAL OUTLINE
SUGGESTED MOUNTING PADS
(Dimensions in mm)
LEAD CODE:
1) Anode
2) Anode
3) Cathode
MARKING CODE: CTSH1045
R1 (2-August 2012)
w w w. c e n t r a l s e m i . c o m
