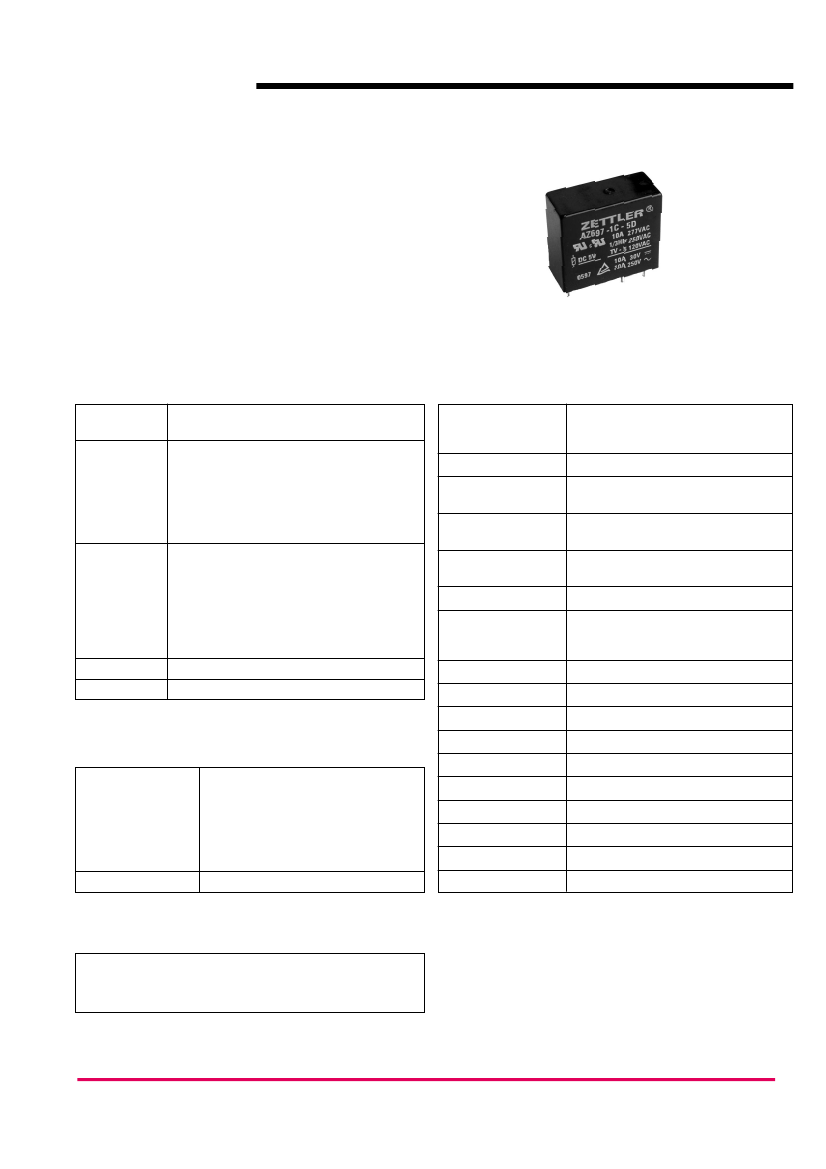

AZ697
10 AMP MINIATURE
POWER RELAY
FEATURES
Dielectric strength 5000 Vrms
10 Amp switching — single pole contacts
UL TV-5
Isolation spacing greater than 8mm (1 Form A)
6mm (1 Form C)
•
Epoxy sealed version available
•
UL, CUR file E44211
•
TÜV file R9659061
CONTACTS
Arrangement
Ratings
SPST (1 Form A)
SPDT (1 Form C)
Resistive load:
Max. switched power: 300 W or 2500 VA
Max. switched current: 10 A
Max. switched voltage: 150 VDC* or 380 VAC
*
Note: If switching voltage is greater than 30 VDC,
•
•
•
•
GENERAL DATA
Life Expectancy
Mechanical
Electrical
Operate Time (typical)
Release Time (typical)
Minimum operations
1 x 10
7
1 x 10
5
at 10 A 250 VAC Res.
8 ms at nominal coil voltage
5 ms at nominal coil voltage
(with no coil suppression)
special precautions must be taken.
Please contact the factory.
Dielectric Strength
5000 Vrms coil to contact
(at sea level for 1 min.)
1000 Vrms between open contacts
Insulation
Resistance
Dropout
Ambient Temperature
Operating
Storage
Vibration
Shock
Enclosure
1000 megohms min. at 20°C, 500 VDC
50% RH
Greater than 10% of nominal coil voltage
At nominal coil voltage
-40°C (-40°F) to 85°C (185°F)
-40°C (-40°F) to 105°C (221°F)
0.062" (1.5 mm) DA at 10–55 Hz
10 g
P.B.T. polyester
Tinned copper alloy, P. C.
270°C (518°F)
5 seconds
80°C (176°F)
30 seconds
18 grams
50 per plastic tray / 500 per carton box
Rated Load
UL, CUR
TV-5 120 AC
10 A 277 VAC
10 A 30 VDC resistive
1
/ HP 250 VAC
3
1
/
4
HP 125 VAC N. O.
TÜV
Material
Resistance
10 A 250 VAC, 30 VDC resistive, 100k cycles
Silver cadmium oxide
< 50 milliohms initially
COIL
Power
At Pickup Voltage
(typical)
Max. Continuous
Dissipation
Temperature Rise
Temperature
257 mW
1.9 W at 20°C (68°F) ambient
34°C (61°F) nominal coil voltage
Max. 130°C (266°F)
Terminals
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
Max. Immersion Time
Weight
Packing unit in pcs
NOTES
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.
ZETTLER
electronics GmbH
Tel. +49 89 800 97 0
Fax +49 89 800 97 200
office@ZETTLERelectronics.com
www.ZETTLERelectronics.com
2005-03-08
Junkersstrasse 3, D-82178 Puchheim, Germany
AZ697
RELAY ORDERING DATA
COIL SPECIFICATIONS
Nominal Coil
VDC
3
5
6
9
12
18
24
48
60
110 **
Must Operate
VDC
2.1
3.5
4.2
6.3
8.4
12.6
16.8
33.6
42.0
79.3
Max. Continuous
VDC
5.7
9.4
11.4
17.4
22.8
27.9
45.7
89.0
115.3
170.5
Coil Resistance
Ohm
17 ±10%
47 ±10%
68 ±10%
160 ±10%
275 ±10%
650 ±10%
1,100 ±15%
4,170 ±15%
7,000 ±15%
22,900 ±15%
ORDER NUMBER*
Form A
(SPST)
AZ697–1A–3D
AZ697–1A–5D
AZ697–1A–6D
AZ697–1A–9D
AZ697–1A–12D
AZ697–1A–18D
AZ697–1A–24D
AZ697–1A–48D
AZ697–1A–60D
AZ697–1A–110D
Form C
(SPDT)
AZ697–1C–3D
AZ697–1C–5D
AZ697–1C–6D
AZ697–1C–9D
AZ697–1C–12D
AZ697–1C–18D
AZ697–1C–24D
AZ697–1C–48D
AZ697–1C–60D
AZ697–1C–110D
*Add suffix “E” for epoxy sealed version. ** 110VDC coil not TÜV approved.
MECHANICAL DATA
Form A and C
PC BOARD LAYOUT
.138 .138
.649 (3.5) (3.5)
(16.5)
1.14
(29)
.160 ± .015
(4.2 ± .4)
.51
(13)
.295 (7.5)
1.02
(25.9)
.08
(2.1)
(Form C only)
.015
(0.38)
5 x ø .05
[ø 1.3]
Viewed toward terminals
WIRING DIAGRAMS
Terminal No. Dimensions Tol.: ± 0.005 (0.13)
1,2,3,5
0.018 (0.457) x 0.038 (0.965)
4
0.011 (0.279) x 0.038 (0.965)
1
5
4
Form A
3
1
5
Form C
2
4
3
Viewed toward terminals
Dimensions in inches with metric equivalents in parentheses. Tolerance: ± .010"
