805-302ZNU22G195HF4 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 805-302ZNU22G195HF4

805-302ZNU22G195HF4: DescriptionRectangular Connector; CategoryThe connector The connector; File Size503KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric Compare View All

805-302ZNU22G195HF4 Overview

Rectangular Connector

805-302ZNU22G195HF4 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Connector type	RECTANGULAR CONNECTOR
Manufacturer's serial number	805
Base Number Matches	1

Preview

Download Datasheet

View All

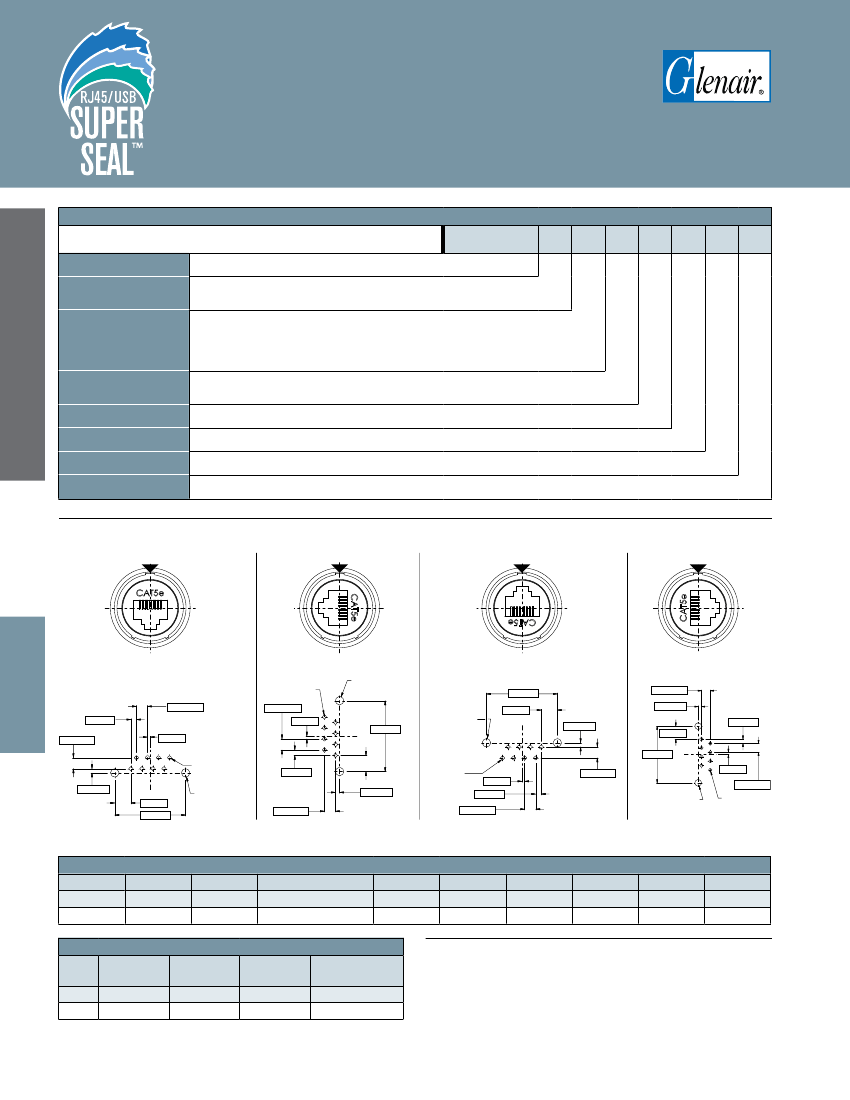

RJ45 CAT 5E ETHERNET COMPATIBLE

Series 801, 804 and 805 Mighty Mouse

805-302 Triple-Start Receptacle with

RJ45 Jack to PC Tail Termination

How To Order

Sample Part Number

Series

Material and Finish

805-302

= PC Tail

= Aluminum/Cadmium, Olive Drab

= Aluminum/Electroless Nickel

= Aluminum/Nickel PTFE

ZNU

= Aluminum/Black Zinc Nickel

= Front or Rear Panel Mount Square Flange Receptacle

= Rear Panel Mount Square Flange Receptacle with “Non-Locking” Clinch Nuts

= Rear Panel Mount Square Flange Receptacle with “Locking” Clinch Nuts

= Rear Panel Mount Jam Nut Receptacle

= Shielded and grounded to shell

For improved 360° shielding performance select shell size 21

= Shell Size 19

= Cat 5E

= Shell Size 21

For Cat 6A applications consult factory

805-302

Series 805 Triple Start

Shell Style

Grounding

Shell Size

RJ45 Category

Aternate Key Positions

RJ45 Orintation Option

A, B, C, D, E, F;

A = Normal

1, 2, 3, 4

RJ45 RECEPTACLE ORIENTATION OPTIONS AND PCB FOOTPRINT (PARTIAL VIEWS SHOWN)

MASTER KEYWAY

.040 (1.02)

4X .080 (2.03)

4X .030 (.76)

CODE 1

8X Ø.030 (.76)

±.005 (.13)

.080 (2.03) TYP

CODE 2

2X Ø.060 (1.52)±.005

CODE 3

.514 (13.06)

.117 (2.97)

CODE 4

4X .080 (2.03)

4X .030 (.76)

.040 (1.02)

.117 (2.97)

.020 (.508)

8X Ø.030 (.76)

±.005 (.13)

.040 (1.02)

2X Ø.060 (1.52)±.005

.514 (13.06)

8X Ø.030 (.76)

±.005 (.13)

4X .030 (.76)

.514 (13.06)

4X .080 (2.03)

.020 (.508)

.080 (2.03) TYP

2X Ø.060 (1.52)±.005

8X Ø.030 (.76)

±.005 (.13)

.117 (2.97)

.514 (13.06)

.020 (.508)

.040 (1.02)

2X Ø.060 (1.52)±.005

4X .080 (2.03)

.080 (2.03) TYP

PCB Layout (Solder Side Shown)

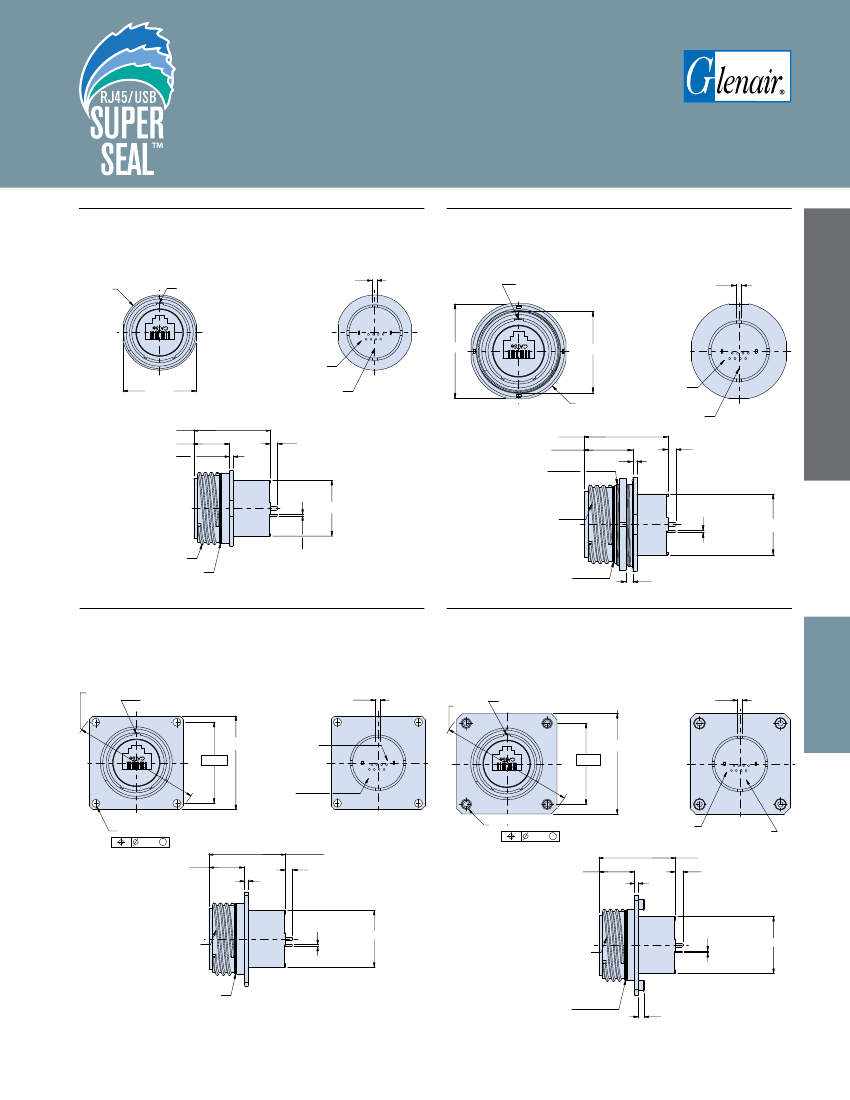

Square Flange Mount Dimensions

Shell Size

ØA

1.235 (31.69)

1.360 (34.54)

B Flat

1.205 (30.61)

1.330 (33.78)

C Thread

1.1875-.1P-.3L-TS-2A

1.3125-.1P-.3L-TS-2A

ØD

0.912 (23.16)

1.017 (25.83)

ØE

2.094 (53.19)

2.270 (57.66)

F SQ

1.537 (39.04)

G BSC

1.327 (33.71)

ØH

2.197 (55.80)

J SQ

1.647 (41.83)

1.772 (45.01)

1.663 (42.24) 1.452 (36.88) 2.380 (60.45)

Jam Nut and Plug Dimensions

Shell

Size

ØK

1.450 (36.83)

1.590 (40.39)

1.420 (36.07)

1.560 (39.62)

M Flat

1.221 (31.01)

1.350 (34.29)

N Thread

1.2500-28 UN-2A

1.3750-28 UN-2A

NOTES

1. See Section A for recommended panel cutout dimensions,

additional finishes and alternate keyway positions

2. Meets IP67 sealing requirement in unmated condition

K-24

Dimensions in Inches (millimeters) are subject to change without notice.

805-302ZNU22G195HF4 Related Products

	805-302ZNU22G195HF4	805-302ZNU22G195HE4	805-302ZNU22G215HE4	805-302ZNU22G215HF4	805-302ZNU12G195HF4	805-302ZNU12G215HF4	805-302ZNU12G215HE4	805-302ZNU12G195HE4
Description	Rectangular Connector	Rectangular Connector	Rectangular Connector	Rectangular Connector	Rectangular Connector	Rectangular Connector	Rectangular Connector	Rectangular Connector
Reach Compliance Code	compli	compli	compli	compli	compliant	compliant	compliant	unknown
Connector type	RECTANGULAR CONNECTOR	RECTANGULAR CONNECTOR	RECTANGULAR CONNECTOR	RECTANGULAR CONNECTOR	RECTANGULAR CONNECTOR	RECTANGULAR CONNECTOR	RECTANGULAR CONNECTOR	RECTANGULAR CONNECTOR
Base Number Matches	1	1	1	1	1	1	1	1
Manufacturer's serial number	805	805	805	805	805	805	805	-
