A-BRIGHT
A-BRIGHT INDUSTRIAL CO., LTD.
Part No.
3 mm
AL-31-30IRC-850
High Power
Diff No.
Type：LED Lamps

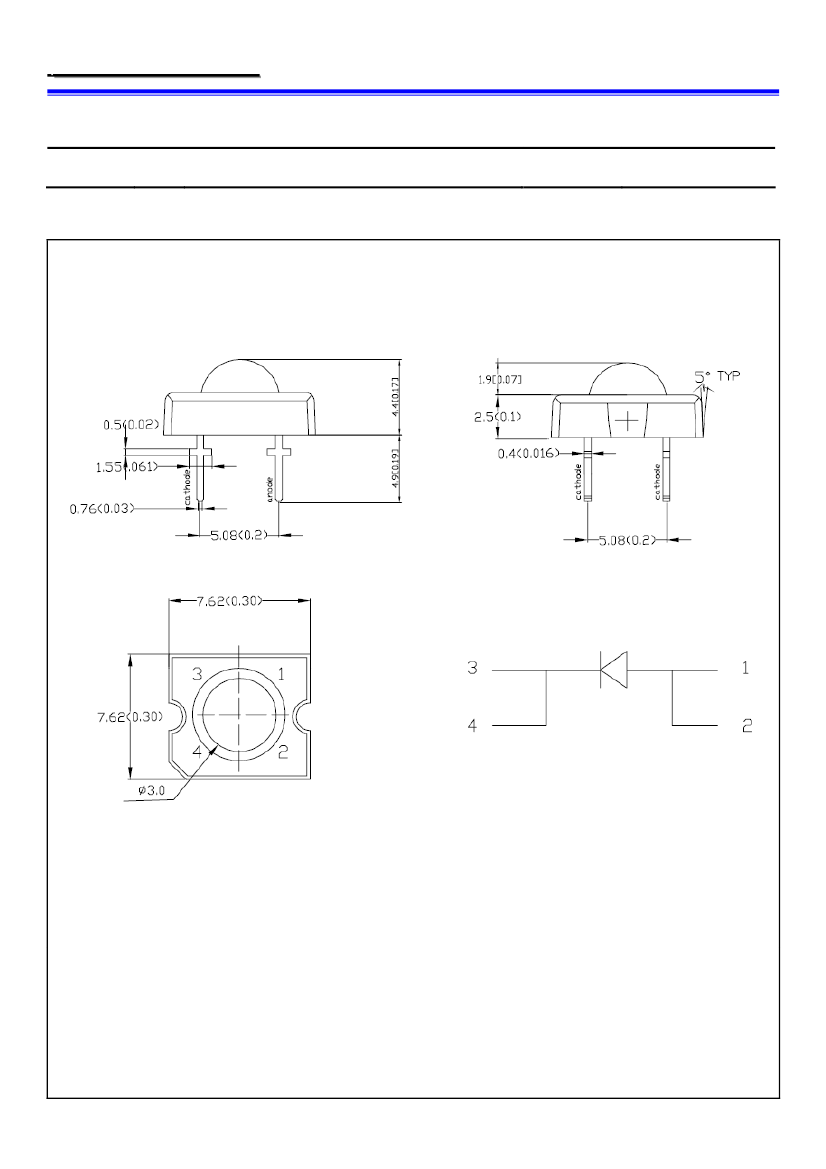

Package Dimension:
Notes:
1. All dimensions are in millimeter.
2. An epoxy meniscus may extend about.
1.5mm(0.059") down to the lead
3. Tolerances unless Dimension ±0.25mm.
1
2008/3/20
A-BRIGHT
A-BRIGHT INDUSTRIAL CO., LTD.
Part No.
3 mm
AL-31-30IRC-850
High Power
Diff No.
Type：LED Lamps
Lens Color
Water Clear
LED Parts P/N.
AL-31-30IRC-850
Chip
Material
Emitted Color
GaAlAs
Infrared
Absolute Maximum Ratings at Ta=25℃
Parameter
Continuous Forward Current
Operating Temperature
Storage Temperature
Soldering Temperature
Power Dissipation
Peak Forward Current
（Duty
1/10@1KHz）
Reverse Voltage
Symbol
I
F
Topr
Tstg
Tsol
P
D
I
F
（Peak）
V
R
Rating
50
-55 to +100
-55 to +100
260 ± 5
120
1
5
Unit
mA
℃
℃
℃
mW
A
V
Electronic Optical Characteristics :
Parameter
Radiant Intensity
Viewing Angle
Peak Wavelength
Spectrum Radiation Bandwidth
Forward Voltage
Reverse Current
Symbol
P
O
2θ1/2
λp
△λ
V
F
I
R
Min.
／
／
／
／
／
／
Typ.
50
30
850
50
1.5
／
Max.
／
／
／
／
1.6
10
Unit Condition
mW/sr I
F
=50mA
deg
nm
nm
V
µA
Note
I
F
=50mA
I
F
=50mA
I
F
=50mA
V
R
=5V
Note :
θ1/2
is the off-axis angle at which the luminous is half the axial luminous intensity.
2
2008/3/20
A-BRIGHT
A-BRIGHT INDUSTRIAL CO., LTD.
Part No.
3 mm
AL-31-30IRC-850
High Power
Diff No.
Type：LED Lamps
Reliability test items and conditions :
The reliability of products shall be satisfied with items listed below.
Confidence level: 90%
LTPD: 10%
Test
Sample
NO
ITEM
Test Conditions
Ac/Re
hours/cycle Q’ty
1
Solder Heat
Temp：260℃±5℃
H：+85℃ 30min
2
Temperature Cycle
5min
100 cycles 80 pcs
〜
0/1
5 sec
80 pcs
0/1
L：-40℃ 30min
H：+100℃ 5min
3
Thermal Shock
10sec
100 cycles 80 pcs
〜
0/1
L：-10℃ 5min
4
5
6
7
High Temperature Storage
Low Temperature Storage
DC Operating Life
High Temperature／
High Humidity
Ta=100℃
Ta=-40℃
Temp：25℃
I
F
=20mA
85℃／85%RH
1000 hrs
1000 hrs
1000 hrs
1000 hrs
80 pcs
80 pcs
80 pcs
80 pcs
0/1
0/1
0/1
0/1
3
2008/3/20
A-BRIGHT
A-BRIGHT INDUSTRIAL CO., LTD.
Part No.
3 mm
AL-31-30IRC-850
High Power
Diff No.
Type：LED Lamps

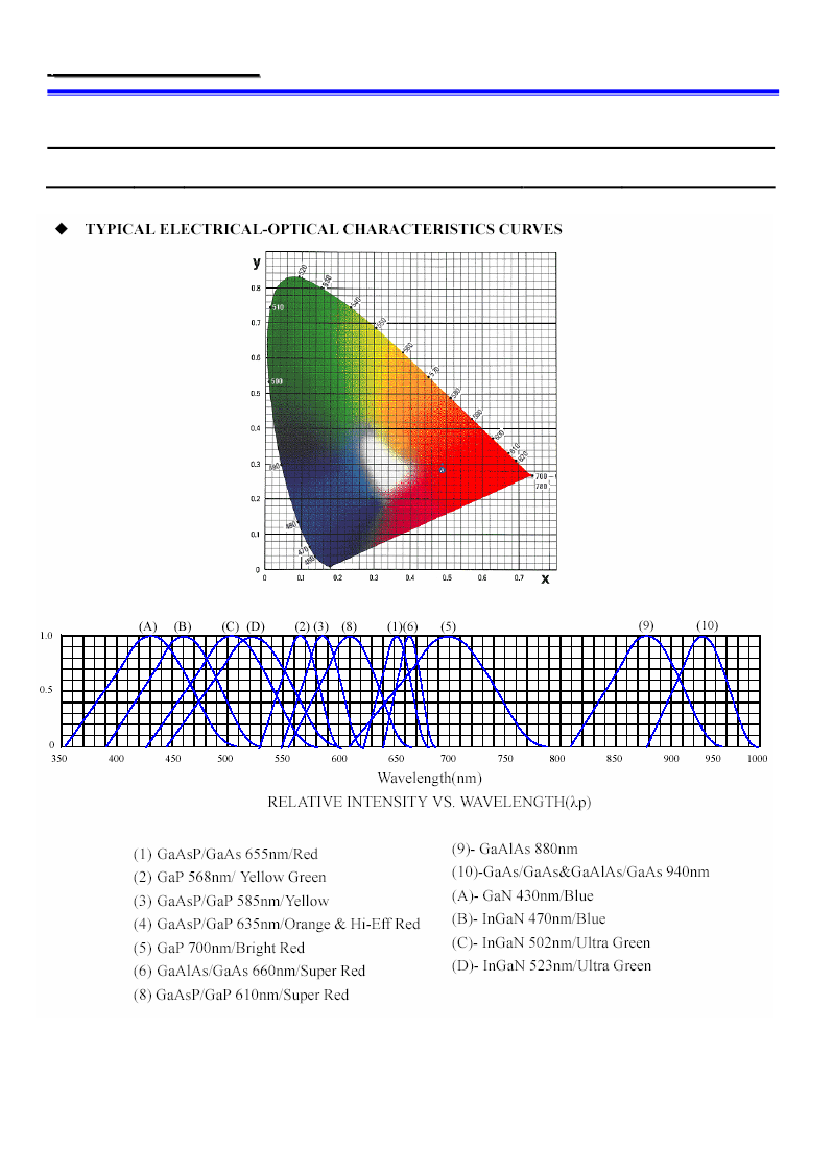

4
2008/3/20
A-BRIGHT
A-BRIGHT INDUSTRIAL CO., LTD.
Part No.
3 mm
AL-31-30IRC-850
High Power
Diff No.
Type：LED Lamps

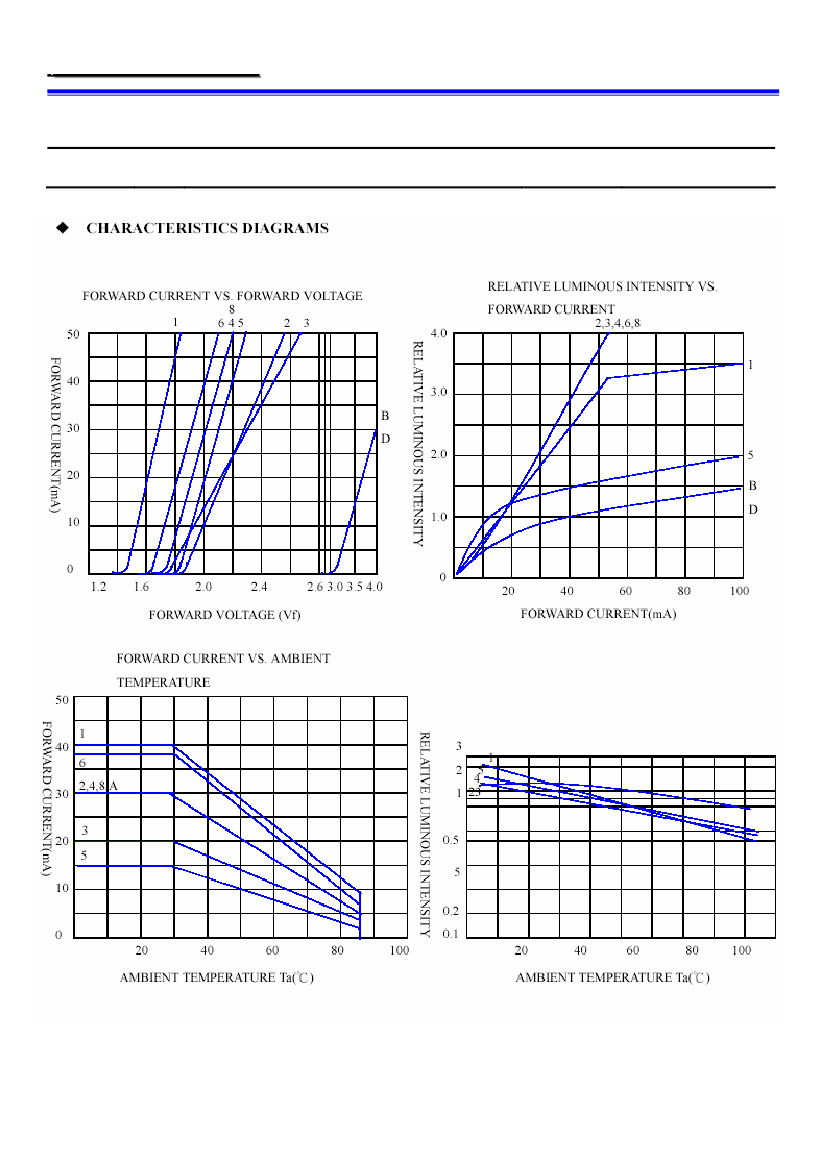

5
2008/3/20
