BAS16V
DUAL SURFACE MOUNT SWITCHING DIODE
Features
•
•
•
•
•
•
Fast Switching Speed
Surface Mount Package Ideally Suited for Automated Insertion
For General Purpose Switching Applications
High Conductance
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. "Green" Device (Note 3)
Mechanical Data
•
•
•
•
•
SOT-563
Case: SOT-563
Case Material: Molded Plastic.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminals: Finish - Matte Tin Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.003 grams (Approximate)
C
1
NC
A
2
A
1
NC
C
2
TOP VIEW
BOTTOM VIEW
TOP VIEW
Internal Schematic
Note 5
Ordering Information
(Note 4)
Part Number
BAS16V-7
Notes:
Case
SOT-563
Packaging
3,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
5. Package is non-polarized. Parts may be on reel in orientation illustrated, 180° rotated, or mixed (both ways).
Marking Information
SOT-563
KAM YM
Date Code Key
Year
2004
Code
R
Month
Code
KAM = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: T = 2006)
M = Month (ex: 9 = September)
2005
S
Jan
1
2006
T
Feb
2
2007
U
Mar
3
2008
V
Apr
4
2009
W
May
5
2010
X
Jun
6
2011
Y
Jul
7
2012
Z
2013
A
Aug
8
2014
B
Sep
9
2015
C
Oct
O
2016
D
Nov
N
2017
E
Dec
D
BAS16V
Document number: DS30447 Rev. 8 - 2
1 of 5
www.diodes.com
April 2015
© Diodes Incorporated
BAS16V
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Non-Repetitive Peak Reverse Voltage
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Forward Continuous Current
Average Rectified Output Current
Non-Repetitive Peak Forward Surge Current
(Note 6)
(Note 6)
@ t = 1.0µs
@ t = 1.0s
Symbol
V
RM
V
RRM
V
RWM
V
R
V
R(RMS)
I
FM
I
O
I
FSM
Value
100
75
53
300
200
2.0
1.0
Unit
V
V
V
mA
mA
A
Thermal Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Power Dissipation
Thermal Resistance Junction to Ambient Air
Operating and Storage Temperature Range
(Note 6)
(Note 6)
Symbol
P
d
R
θ
JA
T
j
, T
STG
Value
150
833
-65 to +150
Unit
mW
°
C/W
°
C
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Reverse Breakdown Voltage (Note 7)
Forward Voltage
Symbol
V
(BR)R
V
F
Min
75
Max
0.715
0.855
1.0
1.25
1.0
50
30
25
2.0
4.0
Unit
V
V
Test Condition
I
R
= 100µA
I
F
= 1.0mA
I
F
= 10mA
I
F
= 50mA
I
F
= 150mA
V
R
= 75V
V
R
= 75V, T
j
= +150°
C
V
R
= 25V, T
j
= +150°
C
V
R
= 20V
V
R
= 0, f = 1.0MHz
I
F
= I
R
= 10mA,
I
rr
= 0.1 x I
R
, R
L
= 100
Leakage Current (Note 7)
Total Capacitance
Reverse Recovery Time
Notes:
I
R
C
T
t
rr
µA
µA
A
nA
pF
ns
6. Device mounted on FR-4 PCB, 1 inch x 0.85 inch x 0.062 inch; pad layout as shown on Diodes Inc. suggested pad layout document AP02001, which can
be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.
7. Short duration pulse test used to minimize self-heating effect.
BAS16V
Document number: DS30447 Rev. 8 - 2
2 of 5
www.diodes.com
April 2015
© Diodes Incorporated
BAS16V
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
250
Note 6
1
P
d
, PO WER DISSIPATION (mW)
200
150
0.1
T
A
= 150ºC
T
A
= 75ºC
T
A
= 25ºC
T
A
= 0ºC
T
A
= -40ºC
100
0.01
50
0
-50
0
50
100
150
0.001
0
T
A
, AMBIENT TEMPERATURE (
°
C)

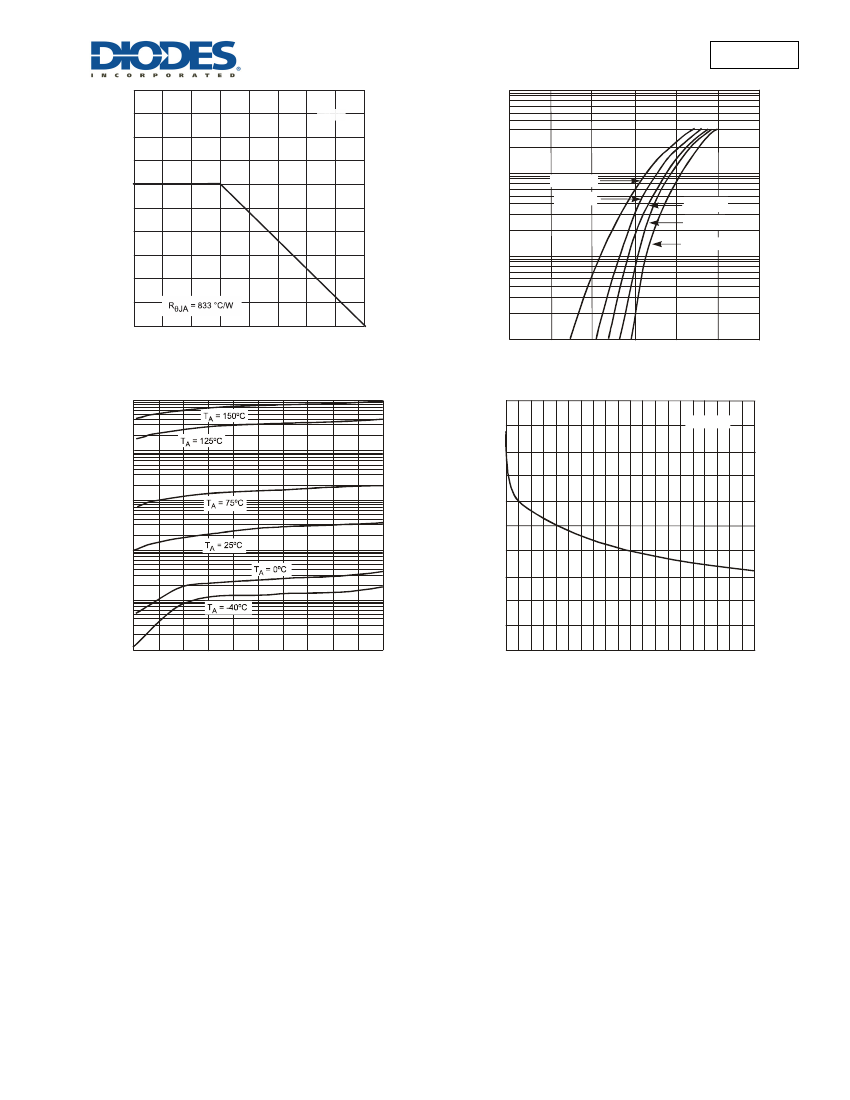

Fig. 1, Derating Curve - Total
I
R
, INSTANTANEOUS REVERSE CURRENT (nA)
10,000
2.0
1.8
C
T
, TOTAL CAPACITANCE (pF)
1.0
0.5
1.5
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Forward Characteristics
f = 1.0MHz
1,000
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
100
10
1
0.1
0
20
40
60
80
100
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 3 Typical Reverse Characteristics
0.0
0
30
40
20
V
R
, REVERSE VOLTAGE (V)
Fig. 4 Typical Capacitance vs. Reverse Voltage
10
BAS16V
Document number: DS30447 Rev. 8 - 2
3 of 5
www.diodes.com
April 2015
© Diodes Incorporated
BAS16V
Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for the latest version.
A
B C
D
G
K
H
M
SOT563
Dim Min
Max Typ
A
0.15 0.30 0.20
B
1.10 1.25 1.20
C
1.55 1.70 1.60
D
-
-
0.50
G
0.90 1.10 1.00
H
1.50 1.70 1.60
K
0.55 0.60 0.60
L
0.10 0.30 0.20
M
0.10 0.18 0.11
All Dimensions in mm
L
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
C2
C2
Z
G
C1
Dimensions Value (in mm)
Z
2.2
G
1.2
X
0.375
Y
0.5
1.7
C1
0.5
C2
Y
X
BAS16V
Document number: DS30447 Rev. 8 - 2
4 of 5
www.diodes.com
April 2015
© Diodes Incorporated
BAS16V
