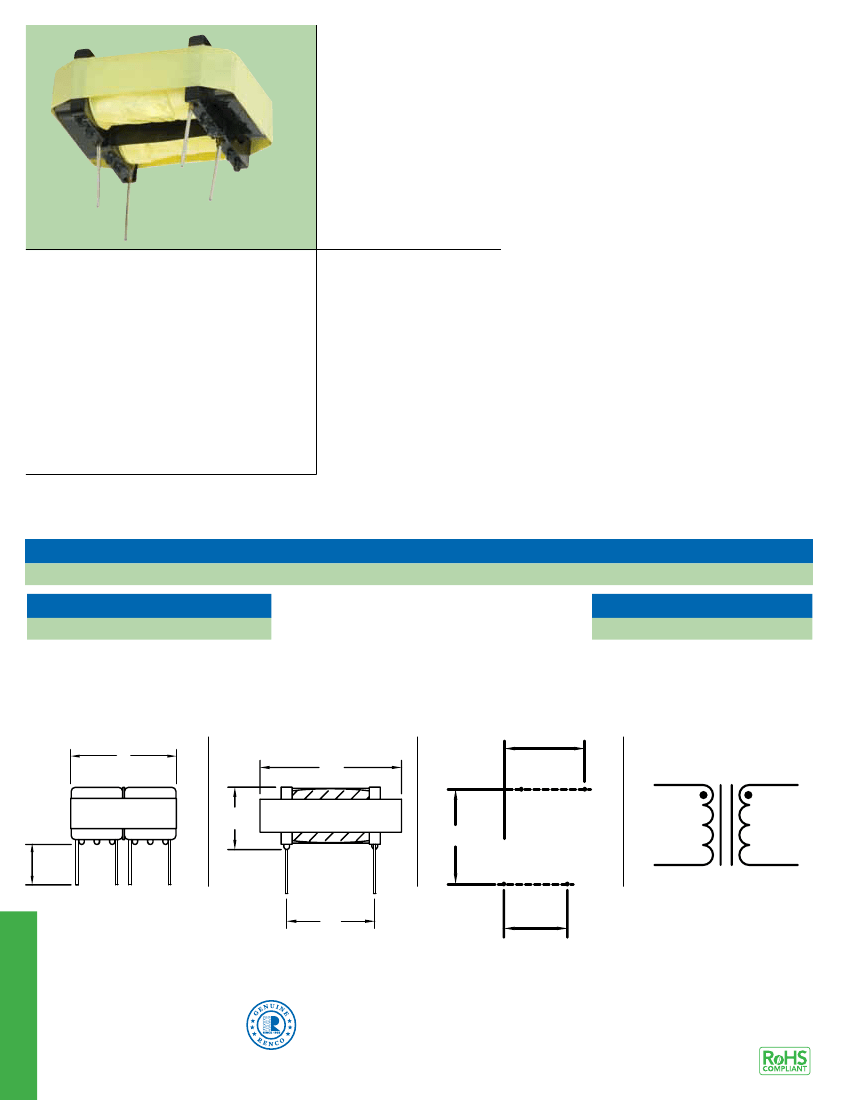

RL-1329
DESCRIPTION
• Common Mode Chokes
• U-Core Design
COMMON MODE CHOKES
U-CORE DESIGN
FEATURES & APPLICATIONS
• Wide range of standard inductances with current ratings up to 35 A
• Leads are pre-tinned for ease of soldering in PCB mounting applications
• Typical applications include: filters, SCR and TRIAC controls,
power supplies, and RFI supression
• Windings balanced within 1%
• At +80ºC ambient, +40ºC rise
• Dielectric withstanding voltage rated at 2500 VAC line to line
ENVIRONMENTAL DATA
•
•
Storage temperature range:
-55°C to +130°C
Operating temperature range:
-55°C to +130°C
PACKAGING INFORMATION
• Packaging information: pg. 493
Verify operation with sample in actual circuit. Order samples at www.rencousa.com.
MECHANICAL DIMENSIONS
U.S. Standard (mm)
PART NUMBER
RL-1329
A (MAX.)
1.397 (35.48)
B (MIN.)
0.500 (12.70)
C (MAX.)
1.660 (42.16)
D (MAX.)
0.718 (18.23)
E (REF.)
1.000 (25.40)
F (REF.)
1.187 (30.15)
PART NUMBER
RL-1329
PART WEIGHT
65.0g (2.29oz)
G (REF.)
1.000 (25.40)
H (REF.)
0.656 (16.66)
FRONT VIEW
A
SIDE VIEW
C
RECOMMENDED PCB LAYOUT
F
SCHEMATIC
1
3
2
D
3
G
B
1
2 4
3
1
4
3
4
2
4
COMMON MODE CHOKES
(2PL)
E
H
RENCO ELECTRONICS INC.
595 International Place, Rockledge, FL 32955-4200 USA • www.rencousa.com • ISO 9001 Certified
Toll Free Engineering Hot Line: 800.645.5828 • P: 321.637.1000 • F: 321.637.1600
RL-1329-2, RL-1329-3
Renco Part No.
RL-1329-2
RL-1329-2-47
RL-1329-2-68
RL-1329-2-100
RL-1329-2-150
RL-1329-2-220
RL-1329-2-330
RL-1329-2-470
RL-1329-2-680
RL-1329-2-1000
RL-1329-2-1500
RL-1329-2-1800
RL-1329-2-2200
RL-1329-2-3300
RL-1329-2-4700
RL-1329-2-6800
RL-1329-2-10000
RL-1329-2-12000
RL-1329-2-15000
RL-1329-2-18000
RL-1329-2-22000
Inductance
(µH)
47.0
68.0
100.0
150.0
220.0
330.0
470.0
680.0
1000.0
1500.0
1800.0
2200.0
3300.0
4700.0
6800.0
10000.0
12000.0
15000.0
18000.0
22000.0
DCR
Max.
(Ohms)
0.021
0.022
0.025
0.031
0.035
0.044
0.048
0.058
0.072
0.077
0.095
0.099
0.121
0.132
0.176
0.216
0.242
0.355
0.500
0.555
Leakage
Inductance
(µH) Max.
5.0
6.0
10.0
20.0
30.0
55.0
75.0
90.0
100.0
110.0
130.0
138.0
210.0
242.0
418.0
627.0
781.0
924.0
1100.0
1430.0
Renco Part No.
RL-1329-3
RL-1329-3-47
RL-1329-3-68
RL-1329-3-100
RL-1329-3-150
RL-1329-3-220
RL-1329-3-330
RL-1329-3-470
RL-1329-3-680
RL-1329-3-1000
RL-1329-3-1500
RL-1329-3-2200
RL-1329-3-3300
RL-1329-3-4700
RL-1329-3-6800
Inductance
(µH)
47.0
68.0
100.0
150.0
220.0
330.0
470.0
680.0
1000.0
1500.0
2200.0
3300.0
4700.0
6800.0
DCR
Max.
(Ohms)
0.010
0.011
0.013
0.017
0.021
0.024
0.027
0.034
0.041
0.052
0.062
0.074
0.120
0.185
Leakage
Inductance
(µH) Max.
5.0
6.0
7.0
11.0
17.0
22.0
30.0
42.0
57.0
88.0
132.0
190.0
264.0
410.0
NOTES:
1. ELECTRICAL SPECIFICATIONS MEASURED AT 25ºC
2. Irms - 3 Amps
3. Irms - CURRENT THAT CAUSES THE TEMPERATURE TO RISE
APPROX. 40ºC ABOVE AMBIENT OF 25ºC
4. INDUCTANCE VALUES ± 25% TESTED AT 1 kHz, 1.0 Vrms
NOTES:
1. ELECTRICAL SPECIFICATIONS MEASURED AT 25ºC
2. Irms - 2 Amps
3. Irms - CURRENT THAT CAUSES THE TEMPERATURE TO RISE
APPROX. 40ºC ABOVE AMBIENT OF 25ºC
4. INDUCTANCE VALUES ± 25% TESTED AT 1 kHz, 1.0 Vrms
RENCO ELECTRONICS INC.
595 International Place, Rockledge, FL 32955-4200 USA • www.rencousa.com • ISO 9001 Certified
Toll Free
Engineering Hot Line: 800.645.5828 • P: 321.637.1000 • F: 321.637.1600
COMMON MODE CHOKES
RL-1329-5, RL-1329-10
Renco Part No.
RL-1329-5
RL-1329-5-47
RL-1329-5-68
RL-1329-5-100
RL-1329-5-120
RL-1329-5-150
RL-1329-5-180
RL-1329-5-220
RL-1329-5-270
RL-1329-5-330
RL-1329-5-390
RL-1329-5-470
RL-1329-5-560
RL-1329-5-680
RL-1329-5-820
RL-1329-5-1000
RL-1329-5-1200
RL-1329-5-1500
RL-1329-5-1800
RL-1329-5-2200
RL-1329-5-2700
RL-1329-5-3300
RL-1329-5-3900
RL-1329-5-4700
RL-1329-5-5600
Inductance
(µH)
47.0
68.0
100.0
120.0
150.0
180.0
220.0
270.0
330.0
390.0
470.0
560.0
680.0
820.0
1000.0
1200.0
1500.0
1800.0
2200.0
2700.0
3300.0
3900.0
4700.0
5600.0
DCR
Max.
(Ohms)
0.009
0.010
0.011
0.012
0.013
0.014
0.015
0.016
0.017
0.018
0.019
0.021
0.023
0.025
0.029
0.031
0.034
0.036
0.042
0.058
0.060
0.085
0.120
0.175
Leakage
Inductance
(µH) Max.
6.0
8.0
10.0
13.0
16.0
18.0
20.0
30.0
35.0
45.0
55.0
65.0
75.0
80.0
85.0
90.0
100.0
110.0
121.0
143.0
176.0
209.0
290.0
297.0
Renco Part No.
RL-1329-10
RL-1329-10-47
RL-1329-10-68
RL-1329-10-100
RL-1329-10-120
RL-1320-10-150
RL-1329-10-180
RL-1329-10-270
RL-1329-10-330
RL-1329-10-390
RL-1329-10-470
RL-1329-10-560
RL-1329-10-680
RL-1329-10-820
RL-1329-10-1000
RL-1329-10-1200
Inductance
(µH)
47.0
68.0
100.0
120.0
150.0
180.0
270.0
330.0
390.0
470.0
560.0
680.0
820.0
1000.0
1200.0
DCR
Max.
(Ohms)
0.0060
0.0065
0.0070
0.0080
0.0090
0.0100
0.0120
0.0130
0.0140
0.0150
0.0200
0.0230
0.0250
0.0280
0.0320
Leakage
Inductance
(µH) Max.
3.7
4.8
6.5
7.5
10.0
12.0
15.0
17.0
21.0
25.0
30.0
37.0
44.0
57.0
85.0
NOTES:
1. ELECTRICAL SPECIFICATIONS MEASURED AT 25ºC
2. Irms - 10 Amps
3. Irms - CURRENT THAT CAUSES THE TEMPERATURE TO RISE
APPROX. 40ºC ABOVE AMBIENT OF 25ºC
4. INDUCTANCE VALUES ± 25% TESTED AT 1 kHz, 1.0 Vrms
NOTES:
1. ELECTRICAL SPECIFICATIONS MEASURED AT 25ºC
2. Irms - 5 Amps
3. Irms - CURRENT THAT CAUSES THE TEMPERATURE TO RISE
APPROX. 40ºC ABOVE AMBIENT OF 25ºC
4. INDUCTANCE VALUES ± 25% TESTED AT 1 kHz, 1.0 Vrms
COMMON MODE CHOKES
RENCO ELECTRONICS INC.
595 International Place, Rockledge, FL 32955-4200 USA • www.rencousa.com • ISO 9001 Certified
Toll Free Engineering Hot Line: 800.645.5828 • P: 321.637.1000 • F: 321.637.1600
RL-1329-15, RL-1329-22
Renco Part No.
RL-1329-15
RL-1329-15-27
RL-1329-15-47
RL-1329-15-68
RL-1329-15-100
RL-1329-15-150
RL-1329-15-180
RL-1329-15-220
Inductance
(µH)
27.0
47.0
68.0
100.0
150.0
180.0
220.0
DCR
Max.
(Ohms)
0.0035
0.0040
0.0045
0.0050
0.0055
0.0060
0.0070
Leakage
Inductance
(µH) Max.
4.0
5.0
6.0
9.0
11.0
15.0
17.0
Renco Part No.
RL-1329-22
RL-1329-22-6.8
RL-1329-22-15
RL-1329-22-27
RL-1329-22-39
RL-1329-22-56
RL-1329-22-82
RL-1329-22-100
Inductance
(µH)
6.8
15.0
27.0
39.0
56.0
82.0
100.0
DCR
Max.
(Ohms)
0.0028
0.0030
0.0032
0.0036
0.0040
0.0045
0.0050
Leakage
Inductance
(µH) Max.
1.5
1.8
2.7
3.5
5.6
6.7
7.8
NOTES:
1. ELECTRICAL SPECIFICATIONS MEASURED AT 25ºC
2. Irms - 15 Amps
3. Irms - CURRENT THAT CAUSES THE TEMPERATURE TO RISE
APPROX. 40ºC ABOVE AMBIENT OF 25ºC
4. INDUCTANCE VALUES ± 25% TESTED AT 1 kHz, 1.0 Vrms
NOTES:
1. ELECTRICAL SPECIFICATIONS MEASURED AT 25ºC
2. Irms - 22 Amps
3. Irms - CURRENT THAT CAUSES THE TEMPERATURE TO RISE
APPROX. 40ºC ABOVE AMBIENT OF 25ºC
4. INDUCTANCE VALUES ± 25% TESTED AT 1 kHz, 1.0 Vrms
RENCO ELECTRONICS INC.
595 International Place, Rockledge, FL 32955-4200 USA • www.rencousa.com • ISO 9001 Certified
Toll Free
Engineering Hot Line: 800.645.5828 • P: 321.637.1000 • F: 321.637.1600
COMMON MODE CHOKES
